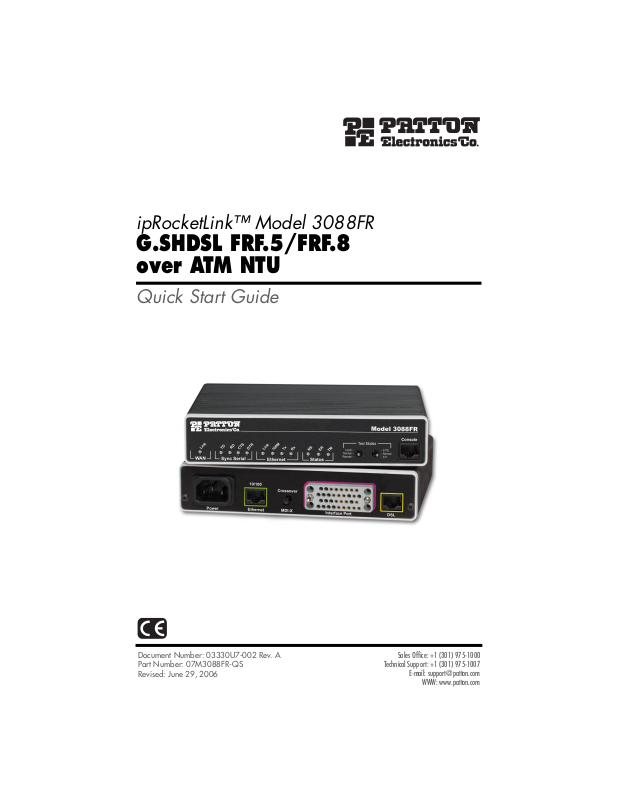

ipRocketLink™ Model 3088FR
G.SHDSL FRF.5/FRF.8
over ATM NTU
Quick Start Guide
Document Number: 03330U7-002 Rev. A
Part Number: 07M3088FR-QS
Revised: June 29, 2006
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
WARNING
CAUTION
• The ipRocketLink 3088FR contains no user serviceable parts. The
equipment shall be returned to Patton Electronics for repairs, or
repaired by qualified service personnel.
• An approved external power supply that incorporates a disconnect
device shall be used and positioned within easy reach of the operator.
• For AC powered units, the power cable used to connect the power
supply shall meet all applicable standards for the country in which it
is to be installed, and be connected to a wall outlet which has
earth ground.
• Hazardous network voltages are present in WAN ports regardless of
whether power to the unit is ON or OFF. To avoid electric shock, use
caution when near WAN ports. When detaching the cables, detach the
end away from the 3088FR first.
• Do not work on the system or connect or disconnect cables during
periods of lightning activity.
1.0 Power up the NTU
The interconnecting cables shall be acceptable for external use and shall be rated for
the proper application with respect to voltage, current, anticipated temperature, flammability, and mechanical serviceability.
Your NTU comes with one of the following power supply options:
•
Internal AC power supply with detachable power cord
External AC adaptor with detachable power cord
•
Internal DC power supply—no power accessories are included
•
1.1 Models with internal AC power supply
1.
Insert the female end of the AC power cord into the internal power supply connector.
2.
Connect the male end of the power cord into an AC power outlet (100–240 VAC).
1.2 Models with external AC adaptor
1.
Connect female plug of the AC power cord to the AC adaptor provided.
2.
Connect the barrel-type connector of the AC adaptor to the barrel-type power jack on the ipRocketLink.
3.
Insert the male plug of the AC power cord into an AC power outlet (100–240 VAC)
2
ipRocketLink 3088FR Quick Start Guide
.
1.3 Models with internal DC power supply
1.
Strip insulation 1/4-inch from the electrical wires that will connect the DC power source to
the ipRocketLink.
2.
Connect the ground terminal from the power source to the ground terminal on the ipRocketLink.
3.
Connect the negative (-) terminal from the power source with to the negative (-) terminal on
the ipRocketLink.
4.
Connect the positive (+) terminal from the power source with to the positive (+) terminal on
the ipRocketLink.
1.4 Power-up indication
The
Power
LED blinks as the ipRocketLink is powering up. When the
Power
LED stops blinking and remains lit,
the ipRocketLink is ready for you to configure.
2.0 Configure the IP address
The ipRocketLink is shipped with a factory-configured IP address assigned to the
line). The address is
192.168.200.10/24
. In most cases, you must change the address to be on the same subnet
Ethernet
LAN port (green out-
as your PC, as described in the procedures below. If you are not sure which IP address to use for your installation, contact your network administrator.
2.1 Connect a PC and log in
1.
Using the included combination RS232/Ethernet cable and DB9-RJ45 adapter, connect a PC’s serial port
to the ipRocketLink’s
Console
port (see
figure 1
).
PC with
terminal emulator
ipRocketLink
Model 3086
Console
G.SHDSL Integrated Access Device
- 511E
- Normal
Test Modes
- 511
Local -
Normal -
Remote -
TM
ER
NS
Rx
Status
Tx
100M
Link
DTR
Ethernet
CTS
RD
TD
Link
Sync Serial
Power
WAN
2.
Start a HyperTerminal session on the PC using the settings:
Connect to Console port
Figure 1.
Connecting ipRocketLink to the PC’s Ethernet port
Serial port
9600 bps, 8 data bits, 1 stop bit, no parity, no flow control
3.
Log in to the ipRocketLink using the factory-default login and password:
Login:
superuser
ipRocketLink 3088FR Quick Start Guide
3
Password: superuser
Login successful
2.2 Modify the IP address
1.
Display current IP interface settings for the ipRocketLink
→→
ip list interfaces <enter>
→→
IP Interfaces:
ID | Name | IP Address | DHCP | Transport
---|------|----------------|----------|------------- 1 | ip1 | 192.168.200.10 | disabled | <bridge>
----------------------------------------------
2.
Modify the IP address for the LAN port according to your network requirements.
→→
ip set interface ip1 ipaddress 10.10.10.5 255.255.255.0
→→
Note
The above IP address (
subnet as your PC
3.
Verify the new address is correct and save it in system boot memory.
→→
→→
ip list interfaces <enter>
→→
system config save <enter>
→→
→→
→→
10.10.10.5/24)
.
is only an example. You must choose an IP address on the same
Ethernet
3.0 Connect to the local IP network
LAN port.
------
Now you can connect the ipRocketLink to your local IP network and complete the remaining configuration from
your PC using a standard web browser.
Connect the ipRocketLink’s
front-panel
Link
Ethernet Link
LED illuminates.
You can check the connection with the ping command. For example shown in
Ethernet
port (green) to the same Ethernet segment as your PC (see
figure 2
LED should turn on. If it does not, press the rear-panel MDI-X switch so that the
figure 2
, you would ping
). The
Ethernet
10.10.10.5 from a PC on the IP network.
Connect to Ethernet port
Power
10/100
Crossover
Ethernet
PC
Ethernet port
Figure 2.
Connecting the ipRocketLink to the local IP network (Model 3088FR/RIC shown)
4
MDI-X
Interface Port
DSL
MDI-X switch
ipRocketLink 3088FR Quick Start Guide
4.0 Log onto the web management interface
You will now access the web management graphical user interface (GUI) to configure the ipRocketLink using a
standard web browser (such as Internet Explorer or Netscape browser).
1.
At your PC, open a web browser and enter the IP address you assigned to the ipRocketLink’s Ethernet LAN
port in step 2 of section
2.
Log in to the web management home page using the username
2.2 “Modify the IP address”
on page 4.
superuser
and the password
superuser
.
Figure 3.
ipRocketLink web management home page
5.0 Connect the G.SHDSL Port
1.
Obtain single-twisted-pair cable with an RJ-11 plug connector at each end.
2.
Plug one end of the cable into the (yellow) RJ-11socket (labelled
DSL)
on the ipRocketLink Integrated
Access Device.
3.
Plug the other end of the cable into the RJ-11 wall socket that provides your G.SHDSL service.
4.
When a DSL link is established the front-panel
WAN LINK
LED will turn on.
6.0 Connect the serial port
Your ipRocketLink is equipped with one of the following serial WAN ports for connection to an NTU:
V.35 (M/34 or DB-25)—Model 3088FR/RIC/EUI
•
X.21 (DB-15)—Model 3088FR/RID/EUI
•
•
T1/E1(RJ-48C and dual BNC)—Model 3088FR/RIK/EUI
Connect the serial cable to the ipRocketLink serial port as follows:
1.
Attach the male connector of the serial cable to the female serial connector on the 3088FR.
2.
Attach the other end of the cable to the serial connector on local device’s serial port.
ipRocketLink 3088FR Quick Start Guide
5
Note
The NTU’s V.35 interface is wired as a DCE. No DTE configuration is possible. If you are directly connect-
ing the NTU’s V.35 interface to third-party equipment that cannot be configured as a DTE, you must use
a tail-circuit cable. You can purchase a tail-circuit cable from a datacom-supply vendor. A tail-circuit
cable will cross-over the necessary V.35 signals so that the two DCE interfaces can communicate.
Note
The NTU’s X.21 interface is default configured as a DCE. Changing the DTE/DCE strap internally can set
the configuration for DTE. The NTU’s X.21 interface requires a cable with a male DB-15 connector.
7.0 Additional Information
Refer to the
ipRocketLink 3086FR Getting Started Guide & 3088FR
Getting Started Guide
located on the CD-ROM
shipped with your 3088FR NTU and available online at www.patton.com/manuals for detailed information
about:
•
Installing, configuring, operating, and troubleshooting,
•
Warranty, trademark, & compliance
A.0 Customer and Technical Support
Toll-Free VoIP support: call
Online support: www
E-mail support:
support@patton.com
Telephone support:
•
Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to
2200 UTC/GMT)
Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800
•
UTC/GMT)
Fax:
+1 (253) 663-5693
sip:support@patton.com
.patton.com
(USA)
or +41 (0)31 985 25 26 (
with a VoIP SIP phone
—answered within 1 business day
Switzerland)
6
ipRocketLink 3088FR Quick Start Guide
B.0 Compliance Information
B.1 Compliance
EMC Compliance:
FCC Part 15, Class A
•
EN55022, Class A
•
EN55024
•
Safety Compliance:
•
UL 609501-1/CSA C22.2 N0. 60950-1
•
IEC/EN 60950-1
•
AS/NZS 60950-1
PSTN Regulatory:
FCC Part 68
•
•
CS-03
•
TBR 12 & 13 (E1 only)
•
AS/ACIF S016:2001 (E1 only)
•
AS/ACIF SO43:2003
B.2 Radio and TV Interference (FCC Part 15)
This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in
strict accordance with the manufacturer's instructions—may cause interference to radio and television reception. This equipment has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable
protection from such interference in a commercial installation. However, there is no guarantee that interference
will not occur in a particular installation. If the equipment causes interference to radio or television reception,
which can be determined by disconnecting the cables, try to correct the interference by one or more of the following measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,
and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and
receiver are on different branches).
B.3 EC Declaration of Conformity
Product Description: ipRocketLink 3088FR
We certify that the apparatus identified above conforms to the requirements of Council Directive 1999/5/EC on
the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition of their conformity.
ipRocketLink 3088FR Quick Start Guide
7
The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the above
directive is indicated by the CE sign on the device.
The safety advises in the documentation accompanying the products shall be obeyed. The
conformity to the above directive is indicated by the CE sign on the device.
The signed Declaration of Conformity can be downloaded from www.patton.com/certifications/.
B.4 FCC Part 68 (ACTA) Statement
This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom side of
this equipment is a label that contains—among other information—a product identifier in the format US:
AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
The method used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with
the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could
affect the operation of the equipment. If this happens, the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact our company. If
the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.
B.5 Industry Canada Notice
This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical
specifications were met. It does not imply that Industry Canada approved the equipment.
This Declaration of Conformity means that the equipment meets certain telecommunications network protective,
operational and safety requirements. The Department does not guarantee the equipment will operate to the
user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to
the facilities of the local telecommunications company. The equipment must also be installed using an acceptable
method of connection. In some cases, the company’s inside wiring associated with a single line individual service
may be extended by means of a certified connector assembly (telephone extension cord). The customer should
be aware that compliance with the above condition may not prevent degradation of service in some situations.
Repairs to some certified equipment should be made by an authorized maintenance facility designated by the
supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give
the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for
8 ipRocketLink 3088FR Quick Start Guide
their own protection that the ground connections of the power utility, telephone lines and internal metallic water
pipe system, are connected together. This protection may be particularly important in rural areas.
Copyright statement
Copyright © 2006, Patton Electronics Company. All rights reserved.
The information in this document is subject to change without notice. Patton Electronics assumes no
liability for errors that may appear in this document.
Trademarks statement
The term
ipRocketLink
is a trademark of Patton Electronics Company. All other trademarks presented in this doc-
ument are the property of their respective owners.
Warranty, Trademark, & Compliance Information
For warranty, trademark and compliance information, refer to the
ting Started Guide
located on the CD-ROM that came with your NTU or available online at www.patton.com.
In accordance with the requirements of council directive 2002/96/EC on Waste of
Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate
this product from other waste and scrap and deliver to the WEEE collection system in
your country for recycling.
Models 3086FR & 3088FR ipRocketLink Get-
ipRocketLink 3088FR Quick Start Guide 9
10 ipRocketLink 3088FR Quick Start Guide
Loading...
