Patton 2823 User Manual

Patton DMZ Secure Routers streamline DMZ implementation and secure-firewall configurations

for enterprise networks without sacrificing QoS for critical business traffic.

QoS/CoS Profiles

Configurable burst tolerance, bandwidth guarantees plus

reduce per flow traffic jitter as required by the application.

Triple-Port Power DMZ

Use to configure the 3rd 10/100 Ethernet port as a physical

and logical DMZ to keep traffic off the local network.

VPN Tunnels

Standard IPSec with AH and ESP ensures maximum

protection when traversing unsecured networks.

IP ACCESS PRODUCTS

atton’s IPLink Managed VPN Routers are a family of next genera­tion appliances that address both the security and the traffic prior­itization needs of enterprises. The Model 2823 Secure DMZ
Router with integrated QoS makes it easy for enterprises to isolate

their web servers in a secure demilitarized zone (DMZ). The
three-port router provides physically and logically separates connections to a
private LAN and a DMZ network, while still allowing secure business-class
Internet access with traffic-shaping services.

As with all IPLink VPN Ro u t e r, the Se c u re DMZ Router implements a com­p r e h e n s i ve security environment. It all starts with IPSec. By supporting ESP as
well as AH, IPLink VPN Routers provide data integrity, authentication, anti­replay and data confidentiality to any traffic flow. DES, 3DES, and AES pro­vide standard encryption up to 256 bits. Fi rewall capabilities of the IPLink
VPN Routers include Access Control Lists (ACLs), IP address and port filter­ing, and protection against Denial of Se rvice (DoS) attacks. Likewise, PPPo E
p rot ocols include support for PAP and CHAP authentication.

QoS features include ToS/DiffServ marking and the configuration of eight
service class tags per IEEE 802.1p/Q. With traffic scheduling and shaping,
create dedicated bandwidth guarantees, configurable burst tolerance, and
policing to include excess traffic discard. IP fragmentation is configurable to
help minimize jitter in traffic flows.

Advanced IP features include RIPv1 & RIPv2 routing and static route config­uration. Static and dynamic NAT, NAPT, DNS resolver and relay, dynamic
DNS, and DHCP server further add to the capabilities of the IPLink VPN
Router. All IPLink VPN routers can be managed via a web browser (HTTP),
command line interface (Telnet), or an SNMP management platform.

For more information, visit us at www.patton.com.

P

IPLink Managed VPN Routers

Model 2823 DMZ Secure Router

IPLink 2823

VPN

Configurable Security Profiles

Built-in IP address and IP port filtering, ACLs and DoS attack

detection creates a comprehensive security environment.

SNMP/HTTP Management

Easily manage the IPLink VPN Routers

via a simple web browser interface.

Strong Encryption

DES, 3DES, and AES offer standards based encryption

algorithms from 56 to 256 bits.

DNS resolver and relay, NAT/NAPT, dynamic

DNS, and DHCP server, eases integration.

Enhanced IP Services

Special Rates Available

Call for Details

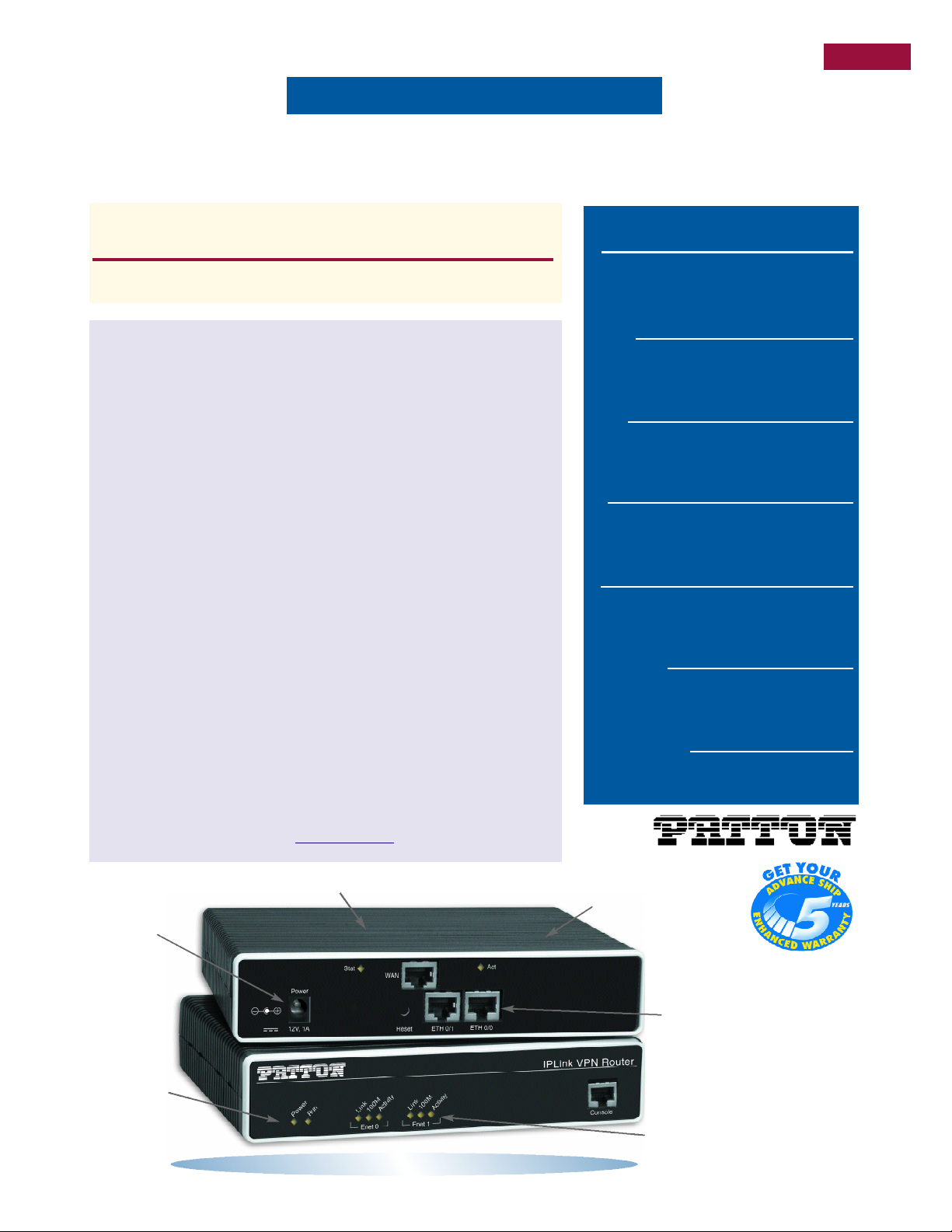

Internal/external
and AC/DC power

VPN & QoS software comes standard

10/100 LAN Ethernet
switch with full-duplex and
auto MDI/MDI-X operation

10/100 Ethernet WAN

with full-duplex and auto

MDI/MDI-X operation

Front panel LEDs
show operational

status at a glance

Proven Patton design

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

Phone [phone]

Fax [phone]

E-mail [e-mail]

URL http://www.patton.com

07M2823-DS2

Meriedweg 7

CH-3172 Niederwangen

Phone [phone]

Fax [phone]

E-mail [e-mail]

URL http://www.inalp.com

Specifications

WAN Ethernet port

10/100BaseT (RJ-45 connector); auto-negotiat­ing; half/full duplex operation with automatic
MDI/MDI-X

LAN Ethernet Ports

One 10/100BaseT port (RJ-45 connector); auto­negotiating; half or full duplex operation with
automatic MDI/MDI-X plus One 10BaseT (RJ-45
connector); half or full duplex with automatic
MDI/MDI-X

Management

CLI via Telnet; TFTP for Software upgrade and
configuration upload; SNMPv1; HTTP/web browser

Protocols

IP (RFC 741), TCP (RFC 793), UDP (RFC 768),
ICMP & ICMP Redirect (RFC 792), ARP (RFC 826).
IP Router with RIPv1 (RFC 1058), RIPv2 (RFC

2453), programmable static routes. Integrated
DHCP Server (RFC 2131), DNS Relay (RFC 1631),
IEEE 802.1p VLAN Tagging, NAT/NAPT (RFC
1631/2391)

Security

IPSec including AH and ESP. DES, 3DES, and AES
encryption. Access Control Lists (ACLs). IP port
and address filtering both by source and destina­tion. DoS Detection. Password protected system

management with a username/password for con­sole and virtual terminal.

Power Supplies

External universal 90–260 VAC input or 48 VDC
input. (Optional Internal universal 90–260
VAC input.)

Compliance

CE Mark; Safety: UL60950-1, CSA 22.2
6095001, IEC/EN60950-1. Universal AC units
are US NRTL Listed; EMC Emission s: FCC Part
15 Class A; EN55 022 Class A; EMC
Immunity: EN55024

Environment

Operating temperature: 0-40°C (32-104 °F);
Humidity: 5-80% non-condensing

Dimensions & Weight

7.3W x 1.6H x 6.1D in.
(18.5H x 4.1W x 15.5D c m)

30.5 oz./500g (models with internal power);

24.4 oz./400g (models with external power; no
power supply)

Ordering Information

2823/UI 2823/48 2823/EUI

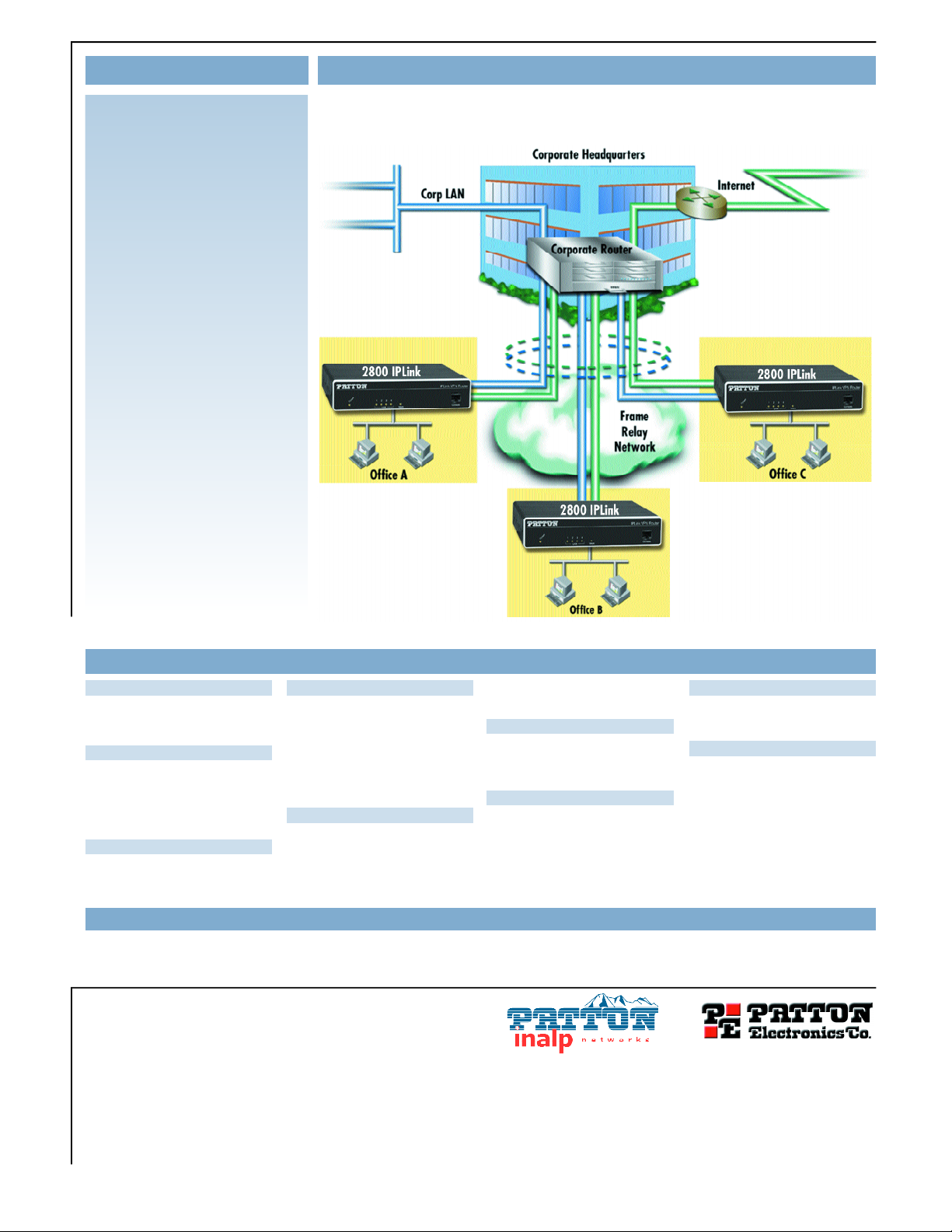

Typical ApplicationFeatures

✔ Three 10/100 Ethernet ports

• Easily create a physical and logical DMZ

• Avoid router configuration complexity

• Apply QoS to the DMZ to guarantee priority

for business traffic flows

✔ VPN tunneling secures IP network traversal.

• IPSec encryption supporting AH and ESP pro-

vides data integrity, authentication, anti-replay
and data confidentiality.

✔ 256-bit encryption protects data.

• With support for DES, 3DES, and AES, data

can be encrypted using 56 to 256-bit algo­rithms, right-sizing security to resources.

✔ QoS/CoS profiles

• QoS/CoS guarantees traffic priority.

• ToS/DiffServ labeling

• Eight service class tags per IEEE 802.1p/Q

• Per flow bandwidth guarantees

• Hierarchical traffic classes

• Configurable burst tolerance

• Excess traffic discard

• Configurable packet and frame fragmenta-

tion to minimize jitter.

IPLink VPN Routers are next-generation security appliances that address the needs of business users by integrating QoS
into a one-box solution. By including QoS, broadband connections can be put to dual-use without impacting the quality of
business data flows.
