E

thernet has far outgrown the confines

of the office network. From factories

and farms to railways and retail

shops, credit bureaus, banks—even medical

and dental offices—anywhere serial devices

are found—the EtherBITS Model 2232 offers

network managers the lowest-cost solution

for making the transition from legacy serial

infrastructure to the age of IP.

The EtherBITS Model 2232 provides both a

serial RS-232 port (male or female/DB-9 or

DB25) and a 10Base-T Ethernet port to link

any RS-232 serial device to the Ethernet LAN

at user-selectable data rates from 1200 bps

to 115.2 kbps.

The Model 2232 encapsulates asynchronous

serial data into IP packets for transport

through the network via TCP or TELNET. The

Model 2232 delivers a transparent end-to-

end connection to your PC or network man-

agement host using any user-defined IP

address and TCP port number. For greater

flexibility, a built-in DHCP client can dynami-

cally obtain an IP address from a master

server anywhere on the network. With the

included COM Port Redirector software you

can use the existing COM/TTY on your PC,

thus avoiding the hassle and expense obtain-

ing an additional software license.

Connect serial devices and terminals to

Ethernet quickly and easily with Patton’s

low-cost EtherBITS Model 2232 Single-Port

Terminal Server. The Patton EtherBITS Model

2232 lets you leverage the power and flexi-

bility of Ethernet for low-cost, hassle-free

device networking.

Visit www.patton.com for more information.

Low-cost single-port device server lets you monitor, control, and collect data from any async RS-232 device over
any IP network.

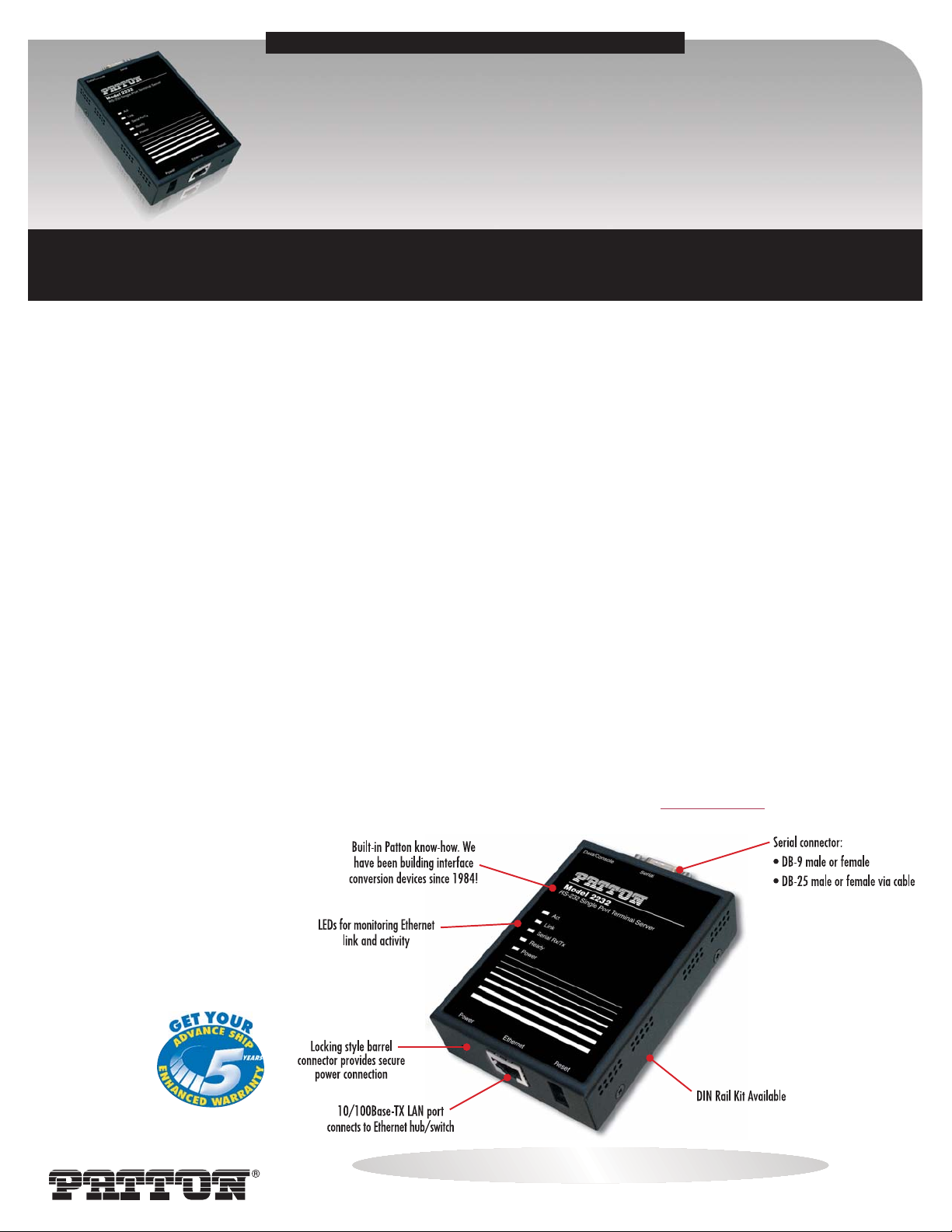

EtherBITS™ RS-232
Device Server

Model 2232

Device Servers

Control and Monitor Serial Device

Link asynchronous serial devices and terminals
to your IP network

Connects Directly to the LAN

10Base-T LAN connection
via shielded RJ-45 connector

Standard TCP/IP Protocols Supported

ARP, ICMP, TCP, DHCP client, Telnet

Supports a Wide Range of Data Rates

User-selectable async data rates up to 115.2
kbps

Special Rates Available

Call for Details

COM Port Redirector Software Included

Windows-Tactical COM Port Redirector Linux­vtty drivers

EtherBITS…

Connect with confidence.

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

Phone [phone]

Fax [phone]

E-mail [e-mail]

Web www.patton.com

07M2232-DS2

Meriedweg 7

CH-3172 Niederwangen

Phone [phone]

Fax [phone]

E-mail [e-mail]

Web www.inalp.com

Patton is a registered trademark, and TrinityAE and Visuality are trademarks of
Patton Electronics Company in the United States and other countries.

Specifications

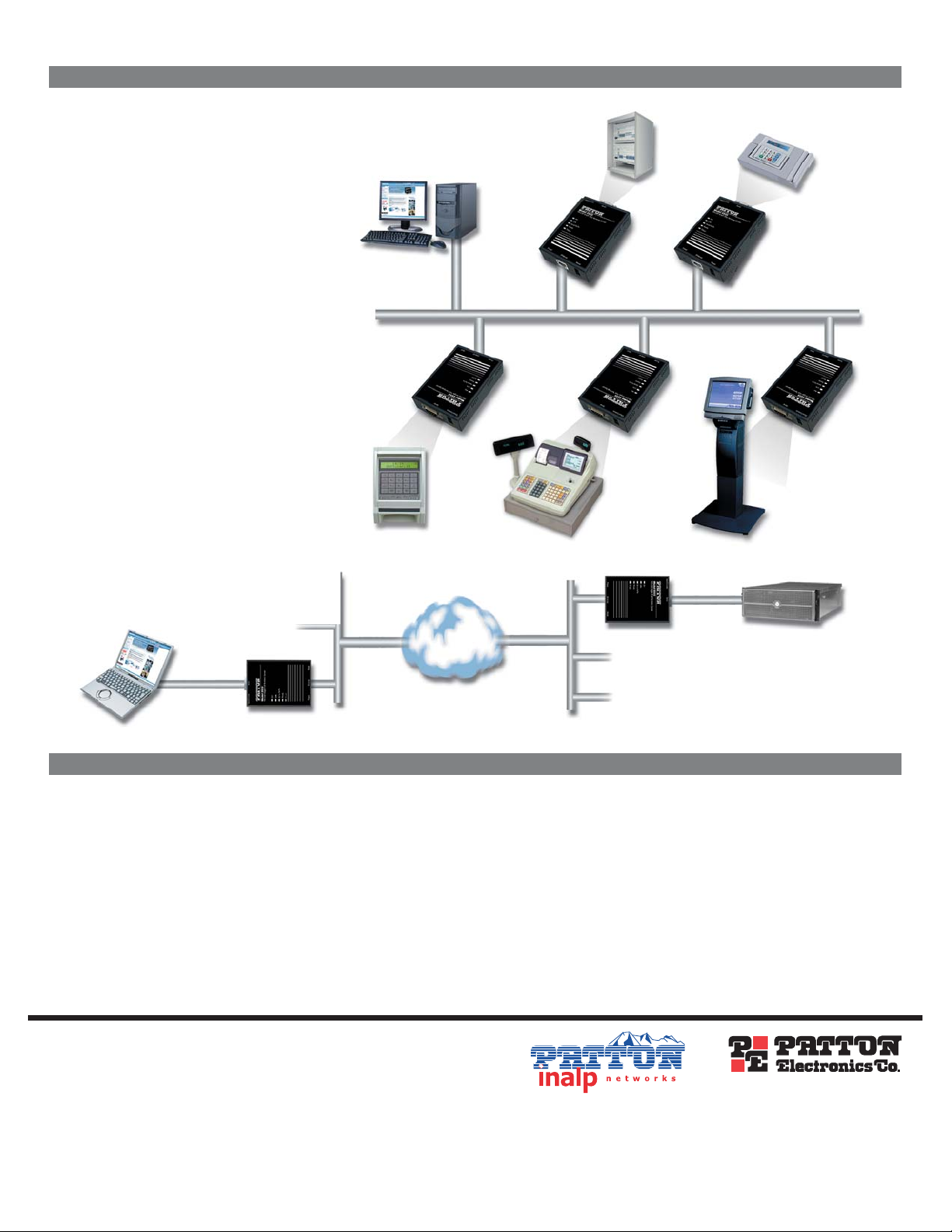

Typical Applications

Physical Interface

Serial: DB-9M/F; DB-25M/F; Ethernet:
Shielded RJ-45

Serial Transmission

RS-232 rates from 1200 bps to 115.2
kbps

Ethernet Transmission

10Base-T

Management

Monitoring, control, and diagnostics

via serial port,TELNET session, or

HTTP

LED Indicators

Power, Ethernet Link and Activity,

Serial Receive and Transmit

Power

External AC: 9~30 VDC, 300 mA at 9
VDC

Compliance

EMC Directive 89/336/EEC, Low
Voltage Directive 73/23/EEC; CE Mark

Environment

Temperature: 40–122°F (5–50°C);
Humidity: Up to 90% non-condensing

Dimensions

4.5L x 3.2W x 1.0H in.

(9.0L x 5.3W x 1.9H cm)

Weight

Packaged: 0.66 lbs (300 g)

Unit Only: 0.55 lbs (250 g)

Ethernet

Cash register or

Sales terminal

Price

scanner

Model

2232

Model

2232

Model
2232

Model

2232

Model

2232

Card

reader

Monitor and Control

over the Network

Data collection

over the Network

Remote control
Port Operation

PBX

Time clock/Data

collection terminal

Ethernet

Unix Server

RS-232 Console port

Model 2232

Model 2232

Ethernet

Serial

Serial

www

IP Network

✔✔

The Model 2232 Single-Port Device Server is

used to connect various RS-232 serial devices to

the local area network through their serial control

ports. The 2232 enables monitoring, control, and

data collection from this equipment by remote

computers located anywhere on the local or wide

area network.

COM Port redirector is provided for users who

choose to use their existing serial communication

application programs. Using the redirector soft-

ware provided on the Patton Model 2232 allows

existing COM/TTY-based software to be preserved,

thus no additional investment is required on addi-

tional software.

✔✔

The Patton Model 2232 can be used for serial data

tunneling when used in pairs. When operating in

pairs, the 2232s will simulate a direct serial link

between two serial devices over an Ethernet con-

nection. Using IP allows the user to extend serial

connections from across the building to across

the world using the World Wide Web.
