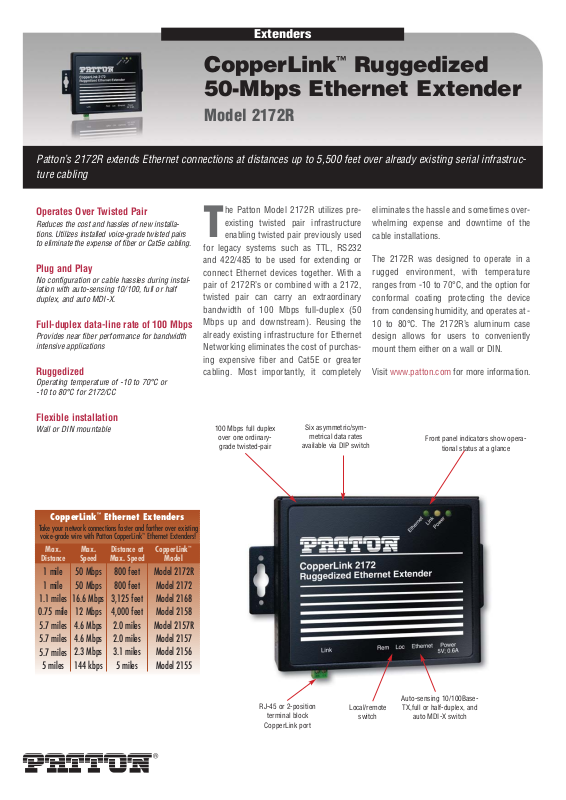

Patton 2172R User Manual

T

he Patton Model 2172R utilizes pre­existing twisted pair infrastructure

enabling twisted pair previously used
for legacy systems such as TTL, RS232
and 422/485 to be used for extending or
connect Ethernet devices together. With a
pair of 2172R’s or combined with a 2172,
twisted pair can carry an extraordinary
bandwidth of 100 Mbps full-duplex (50
Mbps up and downstream). Reusing the
already existing infrastructure for Ethernet
Networking eliminates the cost of purchas­ing expensive fiber and Cat5E or greater
cabling. Most importantly, it completely

eliminates the hassle and sometimes over­whelming expense and downtime of the
cable installations.

The 2172R was designed to operate in a
rugged environment, with temperature
ranges from -10 to 70°C, and the option for
conformal coating protecting the device
from condensing humidity, and operates at ­10 to 80°C. The 2172R’s aluminum case
design allows for users to conveniently
mount them either on a wall or DIN.

Visit www.patton.com for more information.

Patton’s 2172R extends Ethernet connections at distances up to 5,500 feet over already existing serial infrastruc­ture cabling

CopperLink™Ruggedized
50-Mbps Ethernet Extender

Model 2172R

Extenders

Operates Over Twisted Pair

Reduces the cost and hassles of new installa­tions. Utilizes installed voice-grade twisted pairs
to eliminate the expense of fiber or Cat5e cabling.

Plug and Play

No configuration or cable hassles during instal­lation with auto-sensing 10/100, full or half
duplex, and auto MDI-X.

Full-duplex data-line rate of 100 Mbps

Provides near fiber performance for bandwidth
intensive applications

Ruggedized

Operating temperature of -10 to 70°C or

-10 to 80°C for 2172/CC

Flexible installation

Wall or DIN mountable

Auto-sensing 10/100Base-

TX,full or half-duplex, and

auto MDI-X switch

RJ-45 or 2-position

terminal block

CopperLink port

100 Mbps full duplex

over one ordinary-

grade twisted-pair

Front panel indicators show opera-

tional status at a glance

Six asymmetric/sym-

metrical data rates

available via DIP switch

Local/remote

switch

CopperLink™Ethernet Extenders

1 mile
1 mile

1.1 miles

0.75 mile

5.7 miles

5.7 miles

5.7 miles
5 miles

50 Mbps
50 Mbps

16.6 Mbps
12 Mbps

4.6 Mbps

4.6 Mbps

2.3 Mbps
144 kbps

Max.

Distance

Max.

Speed

800 feet

800 feet
3,125 feet
4,000 feet

2.0 miles

2.0 miles

3.1 miles
5 miles

Distance at

Max. Speed

Model 2172R

Model 2172
Model 2168
Model 2158

Model 2157R

Model 2157
Model 2156
Model 2155

CopperLink

™

Model

Take your network connections faster and farther over existing

voice-grade wire with Patton CopperLink™Ethernet Extenders!

07M2172R-DS1

Patton is a registered trademark of Patton Electronics
Company in the United States and other countries.

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

Phone [phone]

Fax [phone]

E-mail [e-mail]

Web www.patton.com

Meriedweg 7

CH-3172 Niederwangen

Phone [phone]

Fax [phone]

E-mail [e-mail]

Web www.inalp.com

Workgroup Ethernet Extension Application

Specifications*

CopperLink line interface: RJ-45 (pin 4
= ring; pin 5 = tip); two position termi­nal block

Ethernet interface: 8-position shielded
RJ-45. Auto-sensing 10/100Base-T with
half or full-duplex operation. DIP switch
capable of disabling 100-Mbps full­duplex for equipment that does not
support 802.3X (Pause Packets)

Protocol: Transparent to high layer pro­tocol. Supports 802.1Q VLAN tagging

Modulation: Quadrature Amplitude
Modulation (QAM) 4-band

Duplexing Method: FDD (Frequency
Division Duplexing)

Frequency Range: CopperLink:
0–12 MHz

Transmission: CopperLink line rate: Up
to 100 Mbps full duplex

Surge suppression: CopperLink line tran­sient peak surge maximum: 200A
(8/20μs)

Front Panel Indicators: Power, Link,
Ethernet

Power Supply: External AC and DC
options: 120VAC, and universal input
(UI)—100–240 VAC, or optional -48
VDC, -24 VDC, or -12 VDC

Compliance: FCC Part 15A, CE Mark,
EMC Directive 89/336/EEC, Low-Voltage
Directive 73/23/EEC

Temperature

Standard: -10 to 70°C

Conformal Coated: -10 to 80°C

Humidity

Standard: Up to 90% non-condensing
Conformal Coated: 85% condensing

humidity from -10 to 35°C
Dimensions: 1.5H x 4.13W x 3.75D in.

(3.81H x 10.5W x 9.53D cm)
Weight: 0.4 lbs (0.18 kg) without

power supply

* Specifications subject to change without notice.

The Model 2172R multi-rate Ethernet Extenders are ideal for delivering
Ethernet links to remote buildings that are beyond the 328-foot (100-meter)
distance limit of Ethernet. The 100 Mbps throughput eliminates bandwidth

concerns previously experienced with other copper wired transmission tech­nologies. By utilizing existing voice grade copper pairs the expense and has­sle of installing low capacitance or fiber cable is no longer required.

Extend 10/100Base-TX Ethernet to reach

beyond its natural limitations

Up to 800 feet (243 meters) at 100 Mbps full

duplex over voice-grade twisted-pair

Pick &

place machine

Office

Model 2172

Model 2172R

Asymmetrical Line Rates

Line Rates (AWG 24/0.5 mm)

Distance in ft (m)

6,000 (1,830)
4,000 (1,200)

2,000 (610)

1
1
2

4
16
50

Upstream in Mbps Downstream in Mbps

Symmetrical Line Rates

Line Rates (AWG 24/0.5 mm)

Distance in ft (m)

10
25
50

10
25
50

Upstream in Mbps Downstream in Mbps

4,000 (1,200)

2,000 (610)

800 (245)

EnviroNET™models

also available
