Patton 2029 USER MANUAL

USER
MANUAL

MODEL 2029

Parallel to Serial/
Serial to Parallel
Interface Converter

Part #07M2029-B
Doc. #102011U, Rev. C
Revised 1/23/08

CERTIFIED

An ISO-9001

Certified Company

SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http://www.patton.com

1.0 WARRANTY INFORMATION

Patton Electronics warrants all Model 2029 components to be

free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.

This warranty is limited to defects in workmanship or materials,
and does not cover customer damage, abuse or unauthorized
modification. If this product fails or does not perform as warranted,
your sole recourse shall be repair or replacement as described above.
Under no condition shall Patton Electronics be liable for any damages
incurred by the use of this product. These damages include, but are
not limited to, the following: lost profits, lost savings and incidental or
consequential damages arising from the use of or inability to use this
product. Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall be
deemed an acceptance of these terms by the user.

1.1 RADIO AND TV INTERFERENCE

The Model 2029 generates and uses radio frequency energy, and
if not installed and used properly—that is, in strict accordance with the
manufacturer's instructions—may cause interference to radio and
television reception. The Model 2029 has been tested and found to
comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the Model 2029
does cause interference to radio or television reception, which can be
determined by disconnecting the RS-232 interface, the user is
encouraged to try to correct the interference by one or more of the
following measures: moving the computing equipment away from the
receiver, re-orienting the receiving antenna and/or plugging the
receiving equipment into a different AC outlet (such that the computing
equipment and receiver are on different branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.

1

1.3 SERVICE

All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,

[e-mail].

NOTE: Packages received without an RMA number will not be

accepted.

Patton Electronics' technical staff is also available to answer any

questions that might arise concerning the installation or use of your
Model 2029. Technical Support hours: 8AM to 5PM EST, Monday

through Friday.

2

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions or problems
arise during installation or use of this product, please do not hesitate to
contact Patton Electronics Technical Support at [phone].

2.1 FEATURES

• Converts parallel data to serial data and vice versa

• Automatically selects parallel-to-serial and serial-to-parallel
operation

• Serial data rates to 38,400 bps

• No AC power required

• Supports both software and hardware flow control

• A five-state LED monitors status and diagnostics

• Ultra-miniature size

• A DB-9 female and a Centronics male connector

• Made in the U.S.A.

2.2 DESCRIPTION
The Patton Model 2029 Parallel to Serial Converter

automatically converts RS-232C serial data to parallel data format and
vice versa. Incorporating advanced microprocessor technology, the
Model 2029 is able to automatically sense and select parallel and serial
modes. Requiring no AC power, the Model 2029 supports serial data
rates to 38.4 Kbps.

For easy configuration, the Model 2029 features a convenient set

of external configuration switches. These accessible configuration
switches allow the user to control baud rate, parity, word length and
flow control. An easy-to-read LED indicator displays status and
operating condition.

Housed in an ultra-miniature ABS plastic case, the Model 2029

measures only 2.68” x 1.25” x .75”. The Patton Model 2029 comes
equipped with a DB-9 female connector on the serial side and a
Centronics 36 pin male connector on the parallel side. A 6-foot integral
cable is also included.

3 4

3.0 CONFIGURATION

The Model 2029 is simple to install and designed for excellent
reliability. The following instructions will help you set up and install the
converter properly. If you have any questions, please call Patton
Technical Support at [phone].

3.1 CONFIGURATION SWITCHES

The Model 2029 uses a set of eight external DIP switches (see
Figure 1) that allow configuration to a wide range of applications.
Because all eight switches are in one externally accessible DIP switch
package, there is no need to open the case for configuration. The
configuration switches allow you to select data rates, parity, word length
and flow control selection. The following section describes all switch
locations, positions and functions.

Configuration

Switch

Complete

Status LED

Figure 1. The location of the configuration switches

The Model 2029 uses a

miniature

configuration switch package.
To configure your unit, use a small screwdriver and gently push each
switch to its proper setting. The ON and OFF positions are shown in
Figure 2. Default settings for the DIP switches are shown in the table
on the following page. Detailed settings follow the table.

12345678

OFF

Figure 2. The miniature configuration switch package

DHS-8

DIP SWITCH SUMMARY TABLE

Position Function Factory Default

SW1 Flow Control Off
SW2 LED Indicator On
SW3 Data, Parity, Stop Bits Off
SW4 Data, Parity, Stop Bits Off
SW5 Data, Parity, Stop Bits Off
SW6 Data Rate Off
SW7 Data Rate Off
SW8 Data Rate Off

3.2 DETAILED SWITCH SETTINGS

This section provides detailed information about the function of

each DIP switch and lists all possible settings.

Switch 1: Hardware/Software Control

The setting for Switch 1 determines whether these interface

converters will control either hardware or software flow control.

Flow Control SW1

Hardware OFF
Software ON

Hardware

Enabled

8B, NP, 1S

}

}

9600 bps

Switch 2: Enable/Disable the LED Indicator

The setting for Switch 2 determines whether the LED indicator is

enabled or disabled.

LED SW2

ON ON
OFF OFF

5

Switch 3 through 5: Data, Parity and Stop Bit

Switches 3 through 5 are used to specify the data, parity and stop

bits. The following table shows the settings that may be used:

Stop

Data Parity Bit SW3 SW4 SW5

7B EP 1S ON ON ON
7B OP 1S OFF ON ON
7B NP 2S ON OFF ON
7B EP 2S OFF OFF ON
7B OP 2S ON ON OFF
8B EP 1S OFF ON OFF
8B OP 1S ON OFF OFF
8B NP 1S OFF OFF OFF

Switches 6 through 8: Frequency and Data Rate

Switches 6 through 8 determine the frequency and data rate. The

following chart shows the settings that may be used:

Model 2029

Data Rate SW6 SW7 SW8

300 OFF OFF ON

600 ON OFF ON
1200 ON ON OFF
2400 OFF ON ON
4800 ON ON ON
9600 OFF OFF OFF

19200 ON OFF OFF
38400 OFF ON OFF

6

4.0 INSTALLATION

The Patton Model 2029 is very simple to install. Once you have
configured the DIP switches, just plug it in like a normal cable and
you're ready to go. Figure 3 illustrates the proper connections for the
standard cables. If you have special-ordered a non-standard
connector, your connections may be different.

Model 2029

Printer

PC

Figure 3. Installing the Model 2029

7 8

5.0 OPERATION

Once your interface converter is properly configured and installed,
it should operate transparently—as if it were a standard cable
connection. Operating power is derived from the RS-232 data and
control signals; there is no “ON/OFF” switch.

5.1 LED STATUS MONITORS

The Model 2029 features an easy-to-read status LED that glows
red to indicate the condition of the transmission line. Figure 1 shows
the location of the LED. The following chart describes the LED's
various functions.

LED Codes

● ● — ● ——— ● ● — ● ——— Computer is sending data

● ——— ● ——— ● ——— Serial device is connected; computer is

● ● ——— ● ● ——— Both serial and parallel devices are

● — ● ——— ● — ● ——— Printer not ready, data held in buffer

● ● ● ● ———● ● ● ● Computer ignoring flow control, data lost

not sending data

connected; computer not sending
data

The red LED indicator blinks to show data activity. However, since
there is only one indicator, it uses different LED codes to demonstrate
various messages. The following chart describes these codes:

Key:

● Blink

— Short pause
——— Long pause

APPENDIX A

PATTON MODEL 2029 SPECIFICATIONS

Interface: Asynchronous., RS-232C compatible

Connectors: Serial, DB-9 female; Parallel, Centronics

male

Cables: Six foot integral cable

Data Rates: 0- 38,400 Kbps

LED: LED displays status and operating condition

Power Supply: No external power required; uses power

from RS-232 interface

Data Format: 7 or 8 bits; 1 or 2 stop bits; even, odd or no

parity

Temperature Range: 0-60

°

C (32-140°F)

Altitude: 0-10,100 feet

Humidity: 5 to 95% non-condensing

Dimensions: 2.68” x 1.25” x .75”

Weight: 2 oz. (56.8 grams)

9 10

APPENDIX B

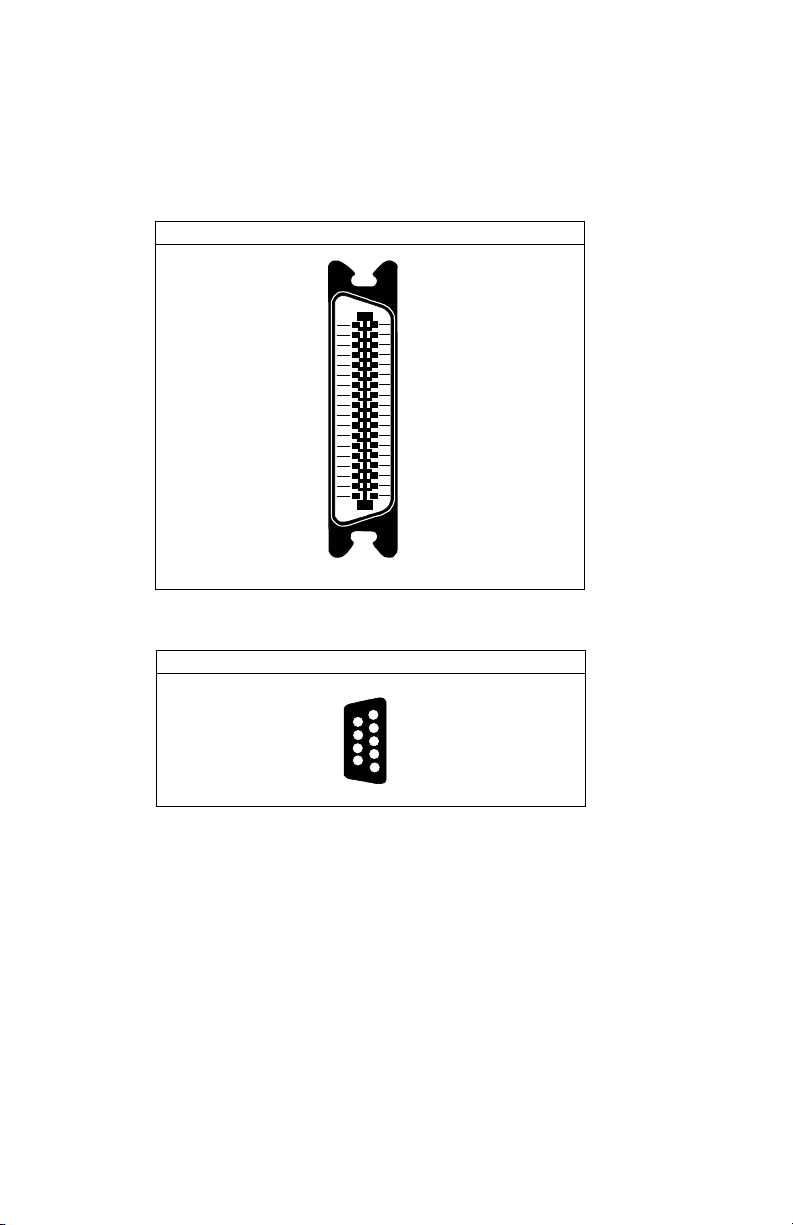

PATTON MODEL 2029 INTERFACE CONNECTIONS

Model 2029 Centronics Interface

Ground -19
Ground -20
Ground -21
Ground -22
Ground -23
Ground -24
Ground -25
Ground -26
Ground -27
Ground -28
Ground -29
Ground -30

-31

Error -32

Ground -33

-34

-35

Ground -36

Model 2029 DB-9 Interface

Data Set Ready (DSR) - 6

Ready to Send (RTS) - 7

Clear to Send (CTS) - 8

External Power - 9

1- Strobe (Output)
2- Data bit 0 (I/O)
3- Data bit 1 (I/O)
4- Data bit 2 (I/O)
5- Data bit 3 (I/O)
6- Data bit 4 (I/O)
7- Data bit 5 (I/O)
8- Data bit 6 (I/O)
9- Data bit 7 (I/O)
10- Acknowledge (Input - active low)
11- Busy (Input - active high)
12- Paper End
13- Select
14­15- No Connect
16­17­18- +5 volts

1- Carrier Detect (CD)
2- Receive Data (RD)
3- Transmit Data (TD)
4- Data Terminal Ready (DTR)
5- Signal Ground/ Frame Ground

(SG/ FG)

APPENDIX C

PATTON MODEL 2029 BLOCK DIAGRAM

Copyright ©

Patton Electronics Company

All Rights Reserved

11

Dear Valued Customer,

Thank you for purchasing Patton Electronics products! We do

appreciate your business. I trust that you find this user manual helpful.

We manufacture one of the widest selections of data
communications products in the world including CSU/DSU's, network
termination units, powered and self-powered short range modems, fiber optic
modems, interface converters, baluns, electronic data switches, data-line surge
protectors, multiplexers, transceivers, hubs, print servers and much more. We
produce these products at our Gaithersburg, MD, USA, facility, and can
custom manufacture products for your unique needs.

We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.

Web: http://www.patton.com

Sales E-mail: [e-mail]

Support E-mail: [e-mail]

Phone - Sales [phone]

Phone - Support [phone]

Fax: [phone]

Mail: Patton Electronics Company

7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA

We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).

It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.

Thank you.

Burton A.Patton

Vice President

P.S. Please tell us where you purchased this product.

_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
