Patton electronic 1070RC User Manual

USER
MANUAL

MODEL 1070RC

AC Powered, Synchronous
Short Range Modem:
Rack Mount Card

CERTIFIED

An ISO-9001

Certified Company

Part #07M1070RC-B
Doc #067021U
Revised 1/23/08

, Rev. C

SALES OFFICE
[phone]
TECHNICAL SUPPORT
[phone]
http;//www.patton.com

1.0 WARRANTY INFORMATION

Patton Electronics warrants all Model 1070RC components to be

free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment.

This warranty is limited to defects in workmanship or materials, and
does not cover customer damage, abuse or unauthorized modification.
If this product fails or does not perform as warranted, your sole
recourse shall be repair or replacement as described above. Under no
condition shall Patton Electronics be liable for any damages incurred
by the use of this product. These damages include, but are not limited
to, the following: lost profits, lost savings and incidental or
consequential damages arising from the use of or inability to use this
product. Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall be
deemed an acceptance of these terms by the user.

1.1 RADIO AND TV INTERFERENCE

The Model 1070RC generates and uses radio frequency energy,
and if not installed and used properly—that is, in strict accordance with
the manufacturer's instructions—may cause interference to radio and
television reception. The Model 1070RC has been tested and found to
comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the Model
1070RC does cause interference to radio or television reception, which
can be determined by turning the power off or removing the card, the
user is encouraged to try to correct the interference by one or more of
the following measures: moving the computing equipment away from
the receiver, re-orienting the receiving antenna and/or plugging the
receiving equipment into a different AC outlet (such that the computing
equipment and receiver are on different branches). In the event the
user detects intermittent or continuous product malfunction due to
nearby high power transmitting radio frequency equipment, the user is
strongly advised to take the following steps: use only data cables with
an external outer shield bonded to a metal or metalized connector; and,
configure the rear card as shown in section 3.3 of this manual.

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the Union European
(EU). A Certificate of Compliance is available by contacting Technical
Support.

1

1.3 SERVICE

All warranty and nonwarranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Support: [phone]; http://www.patton.com; or,

[email protected].

NOTE: Packages received without an RMA number will not be

accepted.

Patton Electronics' technical staff is also available to answer any

questions that might arise concerning the installation or use of your
Model 1070RC. Technical Service hours: 8AM to 5PM EST, Monday

through Friday.

2

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is
warranted for One Year parts and labor. If any questions during
installation or use of the 1070RC, contact Patton Electronics Technical
Support at: [phone].

2.1 FEATURES

• Data Rates from 1200 to 19,200 bps, switch selectable

• Optical Isolation

• High Speed Surge Protection

• Supports distances up to 10 miles

• Mounts in Patton's 16-Card Rack Chassis

• Bi-state LED indicators

• Point-to-Point or Multipoint

• Loopback Test Modes

• Internal or External Clocking

• Hardware and Software Flow Control Support

• Made in the U.S.A.

2.2 DESCRIPTION

The Model 1070RC Synchronous Short Range Modem Rack

Card operates full duplex, over two unconditioned twisted pair.

Supporting data rates to 19.2 Kbps, the Model 1070RC has a maximum
range of 10 miles (@ 1200 bps over 19 AWG wire). The Model
1070RC passes one control signal in each direction, and features both
optical isolation and Silicon Avalanche Diode surge protection on the
data lines side. Clocking can be sourced internally or externally.

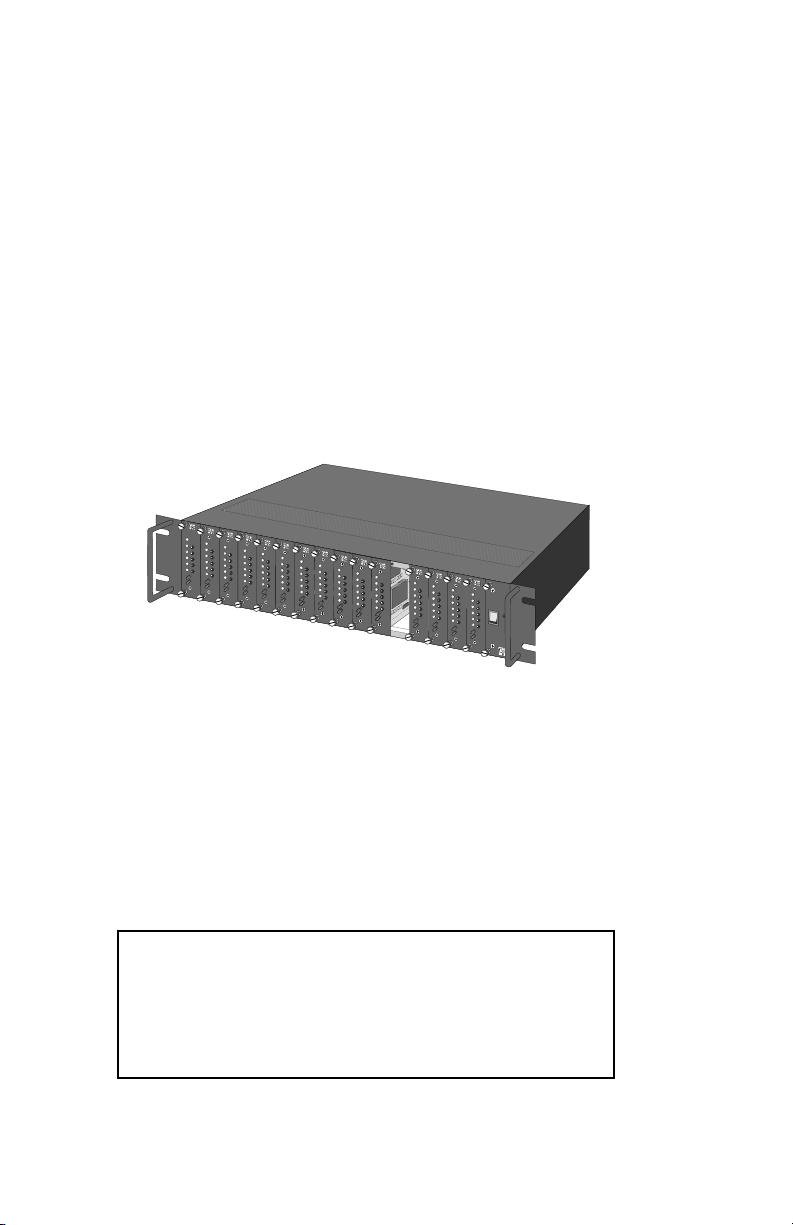

The Model 1070RC is designed to mount in Patton's 2U high 19"
rack chassis. This 16 card chassis has a switchable 120/240 volt
power supply and mounts cards in a mid-plane architecture: The front
"brains" half-card can be plugged into different rear "interface" cards.
This means that the 1070RC card can have several interface options,
and can be switched with other Patton short haul cards.

The Model 1070RC has two built-in diagnostic tools: local and
remote loopback test. Additionally, bi-level LEDs on the 1070RC's
front panel allow you to visually monitor communication.

3

3.0 CONFIGURATION

This section describes the location and orientation of the Model
1070RC's configuration switches, provides detailed instructions on
setting each switch, and describes strap settings for each of the rear
connection cards.

The Model 1070RC uses a set of eight DIP switches that allow
configuration to a wide range of synchronous applications. These DIP
switches are accessible when the card is slid out of the rack chassis.
Once configured, the Model 1070RC is designed to operate
transparently, without need for frequent re-configuration.

SW1

(SW1-1 on left)

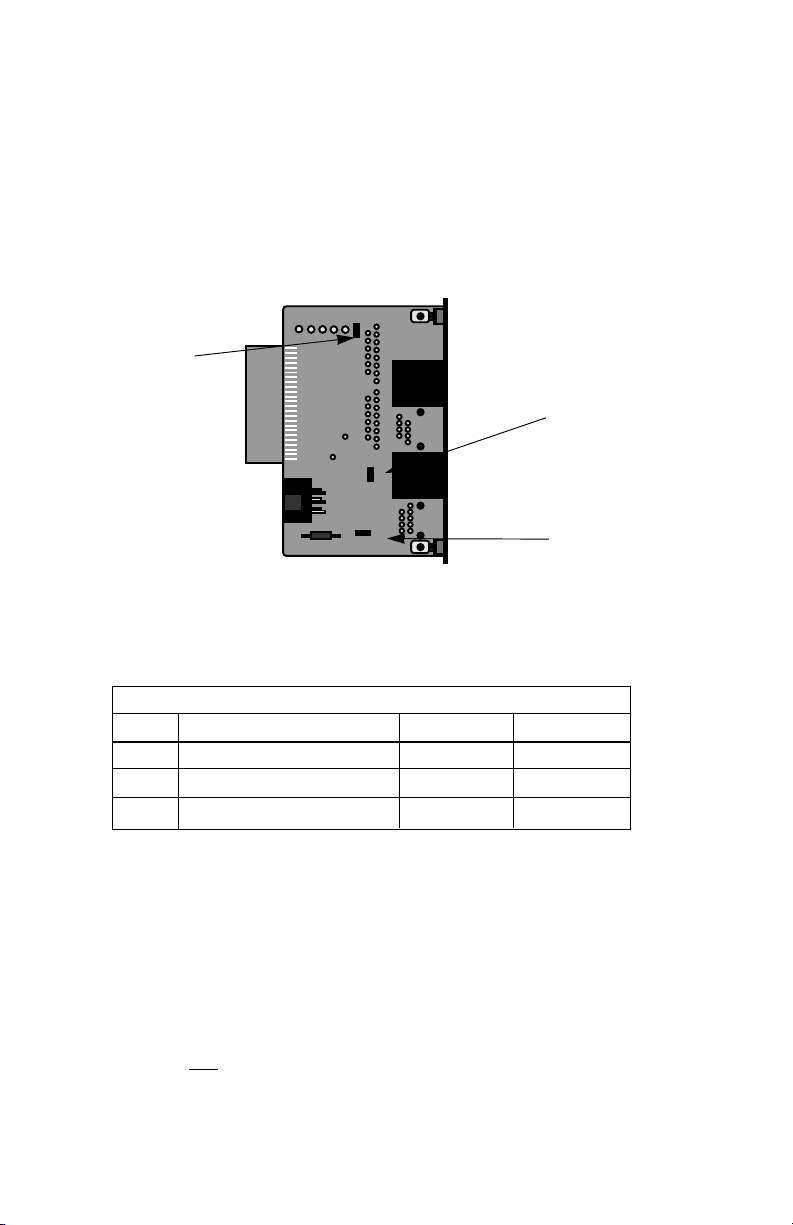

Figure 1. Model 1070RC Board Showing Location of DIP Switches

3.1 SWITCH LOCATIONS AND ORIENTATION

The eight DIP switches on the Model 1070RC board allow you to
specify data rate, clocking method, RTS/CTS delay, and carrier control
method. Figure 2 (below) shows the orientation of the DIP switches
with respect to "ON" and "OFF" positions. The table on the following
page summarizes the switch settings, including the factory default
settings.

ON

ON

12345678

Figure 2. Close Up of DIP Switches Showing ON/OFF Positions.

4

OFF

SWITCH SUMMARY TABLE

Position Function Factory Default

Switch 1 Data Rate Off
Switch 2 Data Rate Off
Switch 3 Data Rate On
Switch 4 Not Used N/A
Switch 5 Transmit Clock Off
Switch 6 RTS/CTS Delay On
Switch 7 RTS/CTS Delay Off
Switch 8 Carrier Control Off

3.2 DETAILED SWITCH SETTINGS

The following section provides detailed information about the
function of each DIP switch, and lists all possible settings. Use this
section as configuration guide for applications where the 1070RC's
default would not provide correct results.

Data Rate

Switches 1 thru 3 are set in combination to allow the Model
1070RC to be used at data rates from 1200 bps up to 19,200 bps.

}

}

Constant

9,600 Bps

8 ms

Switch 1

On On On 1.2 Kbps
Off On On 2.4 Kbps
On Off On 4.8 Kbps
On On Off 7.2 Kbps
Off Off On 9.6 Kbps
Off On Off 14.4 Kbps
On Off Off 19.2 Kbps
Off Off Off 19.2 Kbps

Note: Switch 4 is not used.

Switch 2 Switch 3 Setting

5

Transmit Clock

Switch 5 is used to specify the clocking method. The Model
1070RC can provide an internal clock (Pin 15),or receive an external
clock (from Pin 24).

Switch 5

On = Internal
Off = External

RTS/CTS Delay

Switches 6 and 7 are used together to specify RTS/CTS delay.
After request to send (RTS) is raised by the host terminal, the 1070RC
raises CTS after a slight delay in order to give the remote terminal time
to receive an incoming signal. Depending on the type of environment,
either a 0 mS, 8 mS or 53 mS delay can be selected.

Switch 6

Switch 7
On On = 0 mS
On Off = 8 mS
Off Off = 53 mS

Carrier Enable

Switch 8 is used to specify how the carrier signal is raised. In most

point-to-point , full duplex applications, the carrier signal can remain
constantly "high". Important Note: In a multi-point environment, set
the host to "Constant Carrier" and each slave to "Controlled by RTS".

Switch 8

On = Controlled by RTS
Off = Constant Carrier

6

3.3 REAR CARD CONFIGURATION

The 1070RC has four interface half-card options: DB-25/RJ-11,
DB-25/RJ-45, RJ-45/RJ-11, and dual RJ-45. Each of these options
supports one RS-232 connection and one 4-wire connection. Figure 4
(opposite page) illustrates the four different interface options for the
Model 1070RC:

RJ-11 (6-wire)

RJ-45 (8-wire) RJ-45 (8-wire) RJ-11 (6-wire)

DB-25 F

Figure 4. Model 1070RC interface half-card options

DB-25 F

RJ-45 (10-wIre)

RJ-45 (10-wire)

Prior to installation, you will need to examine the rear half-card you
have selected and be sure it is configured properly for your application.
Each rear half-card is configured by setting straps located on the PC
board. Sections 3.3.1 and 3.3.2 describe the strap locations and
possible settings for each rear card.

7

3.3.1 DB-25/RJ-11 & DB-25/RJ-45 STRAP SETTINGS

Figure 5 (below) shows strap locations for the Model
1000RCM12511 (DB-25/RJ-11) and the Model 1000RCM12545 (DB­25/RJ-45) rear cards. These straps determine various grounding
characteristics for the RS-232 and twisted pair lines.

JB2

(peg 1 on left)

JB3

(peg 1 on top)

JB4

(peg 1 on left)

Figure 5. DB-25/RJ-11 & DB-25/RJ-45 strap locations

Figure 6 (below) shows the orientation of the rear interface card
straps. Observe that the strap can either be on pegs 1 and 2, or on
pegs 2 and 3.

123 123 123

Figure 6. Orientation of interface card straps

8

The table below provides an overview of strap functions for the DB­25/modular cards. Following this overview is a detailed description of
each strap's function.

INTERFACE CARD STRAP SUMMARY TABLE #1

Strap Function Position 1&2 Position 2&3

JB2 Line Shield & FRGND Connected Open*
JB3 DTE Shield (Pin1) & FRGND Connected Open*
JB4 FRGND & SGND Connected Open*

Summary of strap settings, * indicates factory default

Line Shield & FRGND (JB2)

This strap pertains to the line interface. In the connected (closed)
position, this strap links RJ-11 pins 1 and 6, or RJ-45 pins 2 and 7 to
frame ground. These pins can be used as connections for the twisted
pair cable shield. In the open (disconnected) position, pins 1 and 6 (or
2 and 7) remain connected to each other, but are "lifted" from the frame
ground.

JB2
Position 1&2 = Line Shield and FRGND Connected
Position 2&3 = Line Shield and FRGND Not Connected

DTE Shield (Pin 1) & FRGND (JB3)

In the connected (closed) position, this strap links DB-25 pin 1 and
frame ground. In the open (disconnected) position, pin 1 is "lifted" from
frame ground.

JB3
Position 1&2 = DTE Shield (Pin 1) and FRGND Connected
Position 2&3 = DTE Shield (Pin 1) and FRGND Not Connected

SGND & FRGND (JB4)

In the connected (closed) position, this strap links DB-25 pin 7
(Signal Ground) and frame ground. In the open (disconnected)
position, pin 1 is "lifted" from frame ground.

JB4
Position 1&2 = SGND (pin 7) and FRGND Connected
Position 2&3 = SGND (Pin 7) and FRGND Not Connected

9

3.3.2 RJ-45/RJ-11 & RJ-45/RJ-45 STRAP SETTINGS

Figure 8 (below) shows strap locations for the Model 1000RM1D11
(RJ-45/RJ-11) and the Model 1000RM1D45 (RJ-45/RJ-45) rear cards.
These straps determine various grounding characteristics for the RS­232 and twisted pair lines.

JB2

(peg 1 on left)

JB6

(peg 1 on top)

JB5

(peg 1 on left)

Figure 8. RJ-45/RJ-11 & RJ-45/RJ-45 strap locations

The table below provides an overview of strap functions for the
modular/modular cards. Following the table is a detailed description of
each strap's function.

INTERFACE CARD STRAP SUMMARY TABLE #2

Strap Function Position 1&2 Position 2&3

JB2 Line Shield & FRGND Connected Open*
JB5 SGND & FRGND Connected Open*
JB6 DTE Pin 2 DSR* Not Available

Summary of strap settings, * indicates factory default

Line Shield & FRGND (JB2)

This strap pertains to the line interface. In the connected (closed)
position, this strap links RJ-11 pins 1 and 6, or RJ-45 pins 2 and 7 to
frame ground. These pins can be used as connections for the twisted
pair cable shield. In the open (disconnected) position, pins 1 and 6 (or
2 and 7) remain connected to each other, but are "lifted" from frame
ground.

JB2
Position 1&2 = Line Shield and FRGND Connected
Position 2&3 = Line Shield and FRGND Not Connected

10

SGND & FRGND (JB5)

This strap pertains to the DTE interface, which is a 10-position
modular RJ-45 jack. In the connected (closed) position, this strap links
modular pin 5 (Signal Ground) and frame ground. In the open
(disconnected) position, pin 5 is "lifted" from frame ground.

JB5
Position 1&2 = SGND (pin 5) and FRGND Connected
Position 2&3 = SGND (Pin 5) and FRGND Not Connected

DTE Interface Pin 2 (JB6)

This strap configures DTE interface pin 2 for Ready Start (DSR)
operation when placed on pegs 1 & 2. Placing the strap on pegs 2 & 3
is

not a valid option

with the Model 1070RC.

JB6
Position 1&2 = Ready Start (DSR) Operation
Position 2&3 = Not a valid option

when using this rear interface card in conjunction

11

4.0 INSTALLATION

This section describes the functions of the Model 1000R16 rack
chassis, tells how to install front and rear Model 1070RC cards into the
chassis, and provides diagrams for wiring up the interface connections
correctly.

4.1 THE MODEL 1000R16 RACK CHASSIS

The 1000R16 Rack Chassis (shown in figure 10, below) has
sixteen short range modem card slots, plus its own power supply.
Measuring only 3.5" high, the 1000R16 is designed to occupy only 2U
in a 19" rack. Sturdy front handles allow the 1000R16 to be extracted
and transported conveniently.

Figure 10. Model 1000R16 Rack Chassis with Power Supply

4.1.1 THE RACK POWER SUPPLY

The power supply included in the Model 1000R16 rack uses the
same mid-plane architecture as the modem cards. The front card of
the power supply slides in from the front, and the rear card slides in
from the rear. They plug into one another in the middle of the rack.
The front card is then secured by spring loaded thumb screws and the
rear card by conventional metal screws.

WARNING! There are no user-serviceable parts in the

power supply section of the Model 1070RC Series.
Voltage setting changes and fuse replacement should only
be performed by qualified service personnel. Contact
Patton Electronics Technical support at [phone] for
more information.

12

Switching the Power Supply On and Off

The power supply on/off switch is located on the front panel. When
plugged in and switched on, a red front panel LED will glow. Since the
Model 1000R16 is a "hot swappable" rack,

cards to be installed before switching on the power supply

supply may be switched off at any time without harming the installed
cards.

it is not necessary for any

. The power

NOTE: Please refer to the Model 1000RP Series User Manual

and DC Rack Mount Power Supplie

replacement information.

4.2 INSTALLING THE MODEL 1070RC INTO THE CHASSIS

The Model 1070RC is comprised of a front "brains" half card and a

rear "connections" card. The two cards meet inside the rack chassis
and plug into each other by way of mating 50 pin card edge connectors.
Use the following steps as a guideline for installing each Model 1070RC
into the Model 1000R16 rack chassis:

1. Slide the rear "connections" card into the back of the

chassis along the metal rails provided.

2. Secure the rear card using the metal screws provided.

3. Slide the "brains" card into the front of the chassis. It should

meet the rear card when it's almost all the way into the

chassis.

4. Push the front card

the rear card. It should "click" into place.

5. Secure the front card using the spring loaded thumb screws.

Note: Since the Model 1000R16 chassis allows "hot swapping" of
cards, it is
remove a Model 1070RC.

4.3 RS-232 CONNECTION

not necessary to power down

gently

s for fuse and power card

into the card-edge receptacle of

the rack when you install or

AC

The RS-232 port is always the
The DB-25 is pinned according to the RS-232C/V.24 interface standard.
The 10-pin RJ-45 is pinned according Patton's Modified Modular
Interface Standard (based on the EIA/TIA-561Standard). For specific
interface pin-outs, please refer to the diagrams in Appendix D.

lower

port on the rear interface card.

13

The Model 1070RC is wired as a DCE (Data Communications
Equipment). Therefore, it wants to connect to a DTE (Data Termination
Equipment). If your RS-232 output device is a DTE, use a

though cable

device is DCE, call Patton Technical Support at 301-975-1007 for
specific installation instructions.

to connect to the Model 1070RC. If your RS-232 output

straight

Notice! Any terminal cable connected to the Model

1070RC must be shielded cable, and the outer shield must
be 360 degree bonded–at both ends–to a metal or
metalized backshell.

4.4 TWISTED PAIR CONNECTION

The Model 1070RC operates full duplex over two twisted pair.

In

all

applications, the twisted pair wire must be 26 AWG or thicker,

unconditioned, dry metallic wire. Both shielded and unshielded wire
yield favorable results. Note: The Model 1070RC can only
communicate in a closed data circuit with another Model 1070RC. Dial­up analog circuits, such as those used with a standard Hayes-type
modem, are
wire grades, please refer to the diagrams in Appendix B.

4.4.1 Point-to-Point Twisted Pair Connection

The 6-position RJ-11 and 8-position RJ-45 jack options for the
Model 1070RC (always the
prewired for a standard TELCO wiring environment. Connection of a 4­wire twisted pair circuit between two or more Model 1070RCs requires
a

crossed over cable

following page.

not acceptable.

as shown in the figures below and on the

For further information about acceptable

upper

jack on the rear interface card) are

RJ-1

1

SIGNAL PIN# COLOR COLOR PIN# SIGNAL

GND 1 Blue..................White 6 GND

RCV-* 2 Yellow...............Red 4 XMT-

XMT+ 3 Green ...............Black 5 RCV+

XMT- 4 Red ..................Yellow 2 RCV-

RCV+ 5 Black ................Green 3 XMT+

GND 6 White................Blue 1 GND

14

RJ-45

SIGNAL PIN# COLOR COLOR PIN# SIGNAL

GND 2 Orange.............Brown 7 GND

RCV-* 3 Black ................Green 5 XMT-

XMT+ 4 Red ..................Yellow 6 RCV+

XMT- 5 Green...............Black 3 RCV-

RCV+ 6 Yellow ..............Red 4 XMT+

GND 7 Brown ..............Orange 2 GND

* The Model 1070RC is not sensitive to polarity

4.4.2 Multipoint Twisted Pair Connection

Figure 11 (below) shows how to wire two-pair cables properly for a

Model 1070RC star topology.

HOST FIRST SLAVE SECOND SLAVE

XMT RCV

RCV

XMT RCV

RCV

RCV XMT

XMT

RCV XMT

XMT

Figure 11. Star wiring for Model 1070RC host and slaves

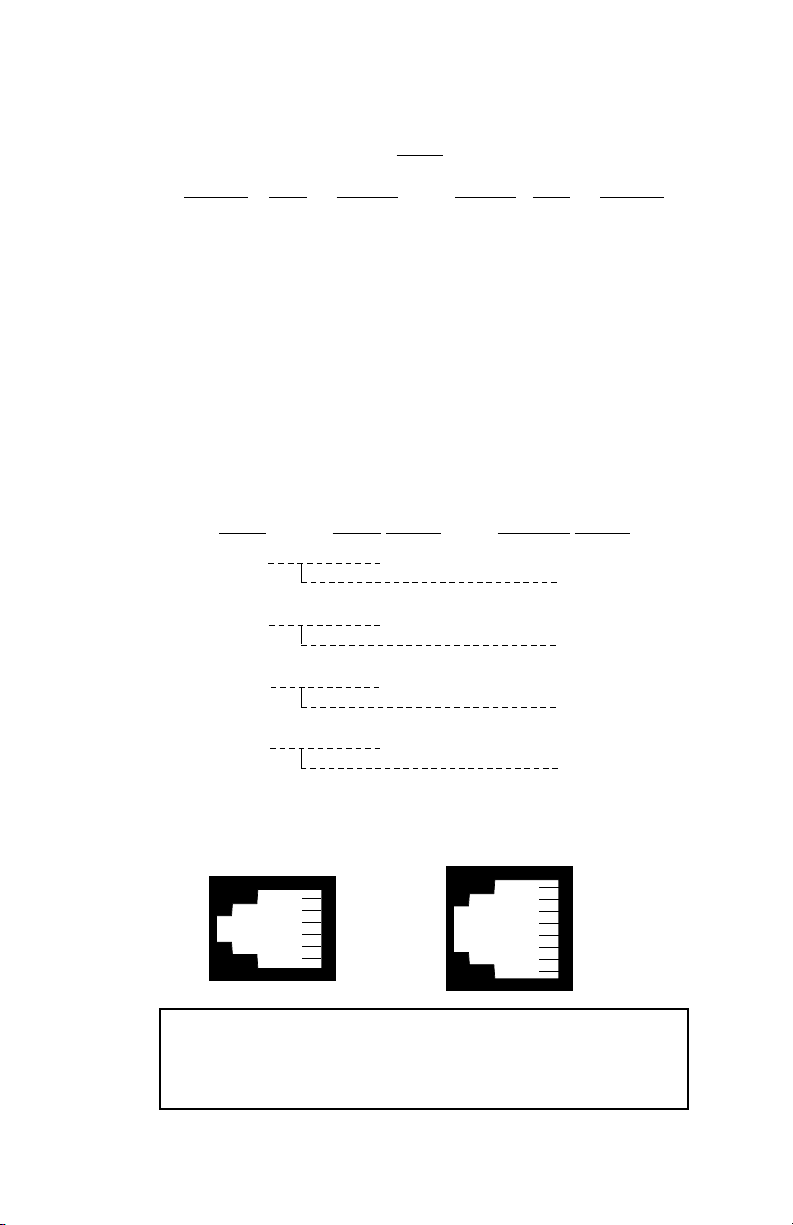

RJ-11

1 - Blue
2 - Yellow
3 - Green
4 - Red
5 - Black
6 - White

RJ-45

1 - Blue
2 - Orange
3 - Black
4 - Red
5 - Green
6 - Yellow
7 - Brown
8 - Slate

Notice! Any modular twisted pair cable connected to

the Model 1070RC must be shielded cable, and the outer
shield must be properly terminated to a shielded modular
plug on both ends of the cable.

15 16

5.0 OPERATION

Once you have configured each Model 1070RC and connected the
cables, you are ready to operate the units. Section 5.0 describes the
LED status monitors, the power-up procedure, and the use of the built­in loopback test modes.

5.1 LED STATUS MONITORS

The Model 1070RC features ten front panel status LEDs that
indicate the condition of the modem and communication link. Figure 12
(below) shows the relative front panel positions of the LEDs. Following
figure 12 is a description of each LED's function.

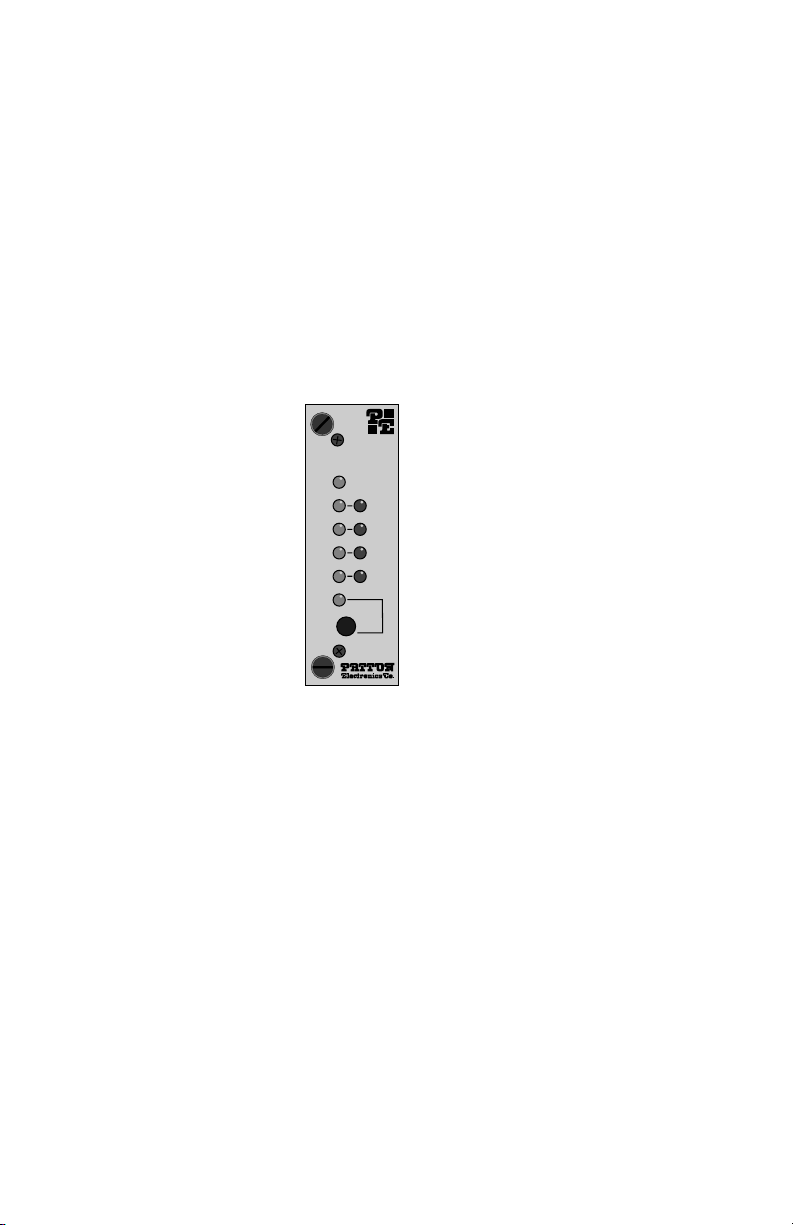

Model 1070RC

Power

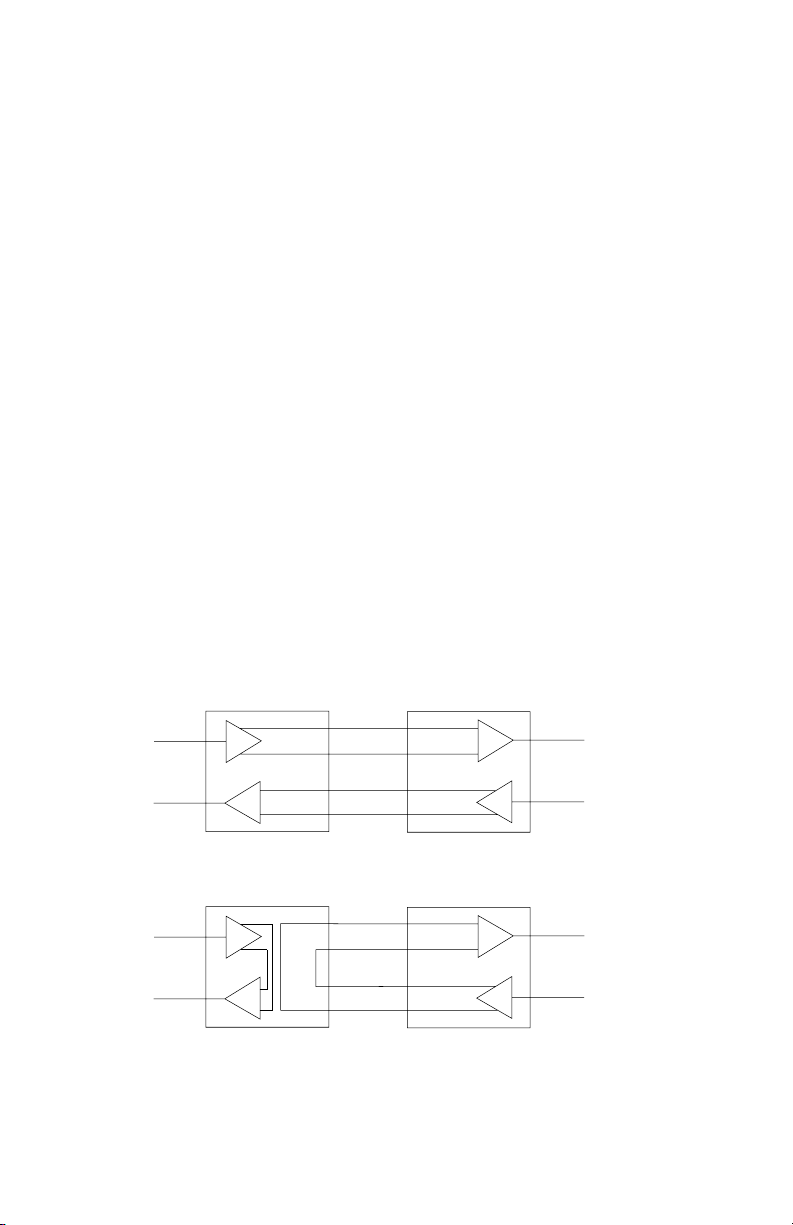

TD

RD

Cntrl

In

Cntrl

Out

Test

Figure 12. The Model 1070RC front panel, showing LED positions

Power glows green when power is applied to the Model

1070RC front card.

TD & RD The green "TD" and "RD" indicators blink to show

positive state data activity. The red "TD" and "RD"
indicators blink to show negative state data activity.
Solid red indicates a connection in an idle state.

Cntrl

and glow red to show that either control signal is off.

in

Cntrl

out

Glow green to show that either control signal is on.
When the 1070RC is connected to a DTE, Control In
will glow green for a positive polarity on Pin 4 (RTS).
Control Out will glow green for an incoming signal
from the line and an outgoing CD signal on RS-232
pin 8.

Test glows green when the loopback test modes are

activated.

5.2 POWER-UP

There is no power switch on the Model 1070RC: Power is
automatically applied to the 1070RC when its card-edge connector
makes contact with the chassis' mid-plane socket, or when the chassis'
power supply is turned on.

Note: The 1070RC is a "hot swappable"
card--it will not be damaged by plugging it in or removing it while the
rack is powered up.

When the local and remote Model 1070RCs are
are passing data

• PWR = green

• TD & RD = flashing red and green

• Control In & Control Out = green

• TEST = off

normally

, the following LED conditions will exist:

both

powered up, and

17

5.3 TEST MODES

The Model 1070RC offers two diagnostic modes: local analog loop

and remote analog loop. These test modes are activated

simultaneously

by depressing the "Test" button on the front panel of the

Model 1070RC.

Local Analog Loop

The Local Analog Loop test mode causes any data sent to the

local 1070RC by the local RS-232 device to be echoed

back

to that RS­232 device. For example, characters typed on the keyboard of a
terminal will appear on the terminal screen. If characters are not
echoed back, check the connection between the local RS-232 device
and the local 1070RC. All 1070RC's in the system should be tested in
this manner

Remote Analog Loop

The Remote Analog Loop test mode causes any characters sent

from the

remote

remote

1070RC to the local 1070RC to be returned back to the

device (see Figure 13). Note: Only the

local

1070RC should

be in "test" mode. The remote 1070RC should be in "normal"

operating mode or this test will not work. If no characters are echoed
back, check the wiring between the two 1070RCs. Be sure to wire the
units according to the instructions in Section 4.0 Installation.

TD

RD

TD

RD

TX+

TX-

RX-

RX+

Local 1070RC

In Normal Mode

TX+
TX-

RX­RX+

Local 1070RC

In Loopback Mode

Figure 13. Normal operating mode vs. loopback test mode

RX+
RX-

TX­TX+

Remote 1070RC

In Normal Mode

RX+
RX-

TX­TX+

Remote 1070RC

In Normal Mode

18

RD

TD

RD

TD

APPENDIX A.

MODEL 1070RC SPECIFICATIONS

Transmission Format: Synchronous
External Interface: RS-232C/CCITT V.24 connection via DB-25

Female; EIA/TIA-561 connection via RJ-45 (10 wire); twisted pair
connection via RJ-11 or RJ-45 (8 wire).

Internal Interface: Connection to Model 1000R16 rack chassis via 50
pin male card edge.

Transmission Line: 4-wire, unconditioned twisted pair, 19-26 AWG,
20pf/ft or better.

Data Rates: 1.2, 2.4, 4.8, 7.2, 9.6, 14.4, and 19.2 Kbps, switch
selected.

Clocking: Internal or External
Controls: Carrier constantly "ON" or "controlled by RTS." RTS/CTS

delay set to 0, 7 or 53 ms.

Applications: Point-to-point or Multi-point
Indicators: Bi-level LED indicators (two each) for Transmit Data,

Receive Data, Control In and Control Out; bi-level indicators (one each)
for Power and Test

Diagnostics: Local and remote analog loopback, activated by front
panel push button

Optical Isolation: 150 V RMS (minimum)
Surge Protection: Silicon Avalanche Diodes, 600 watts RMS power

dissipation @ 1 ms, with response time of less than 1 ps.

0

Temperature: 0-50

C / 32-1220F

Humidity: 0-95%, non-condensing
Dimensions: 0.95"W x 3.1"H x 5.4"L

19

APPENDIX B.

MODEL 1070RC CABLE RECOMMENDATIONS

The Patton Model 1070RC operates at frequencies of 20kHz or less
and has been performance tested by Patton technicians using twisted­pair cable with the following characteristics:

W

ire Gauge Capacitance Resistance

19 AWG/.9mm 83nf/mi or 15.72 pf/ft. .0163 Ohms/ft.
22 AWG/.6mm 83nf/mi or 15.72 pf/ft. .0326 Ohms/ft.
24 AWG/.5mm 83nf/mi or 15.72 pf/ft. .05165 Ohms/ft.

Using or simulating cable with the above characteristics, the
following data rate/distance results were obtained by Patton during
bench tests:

Data Rate (Bps)

19,200 2.5 2.1 1.3

9,600 3.7 2.3 1.7
4,800 4.9 4.9 2.5
2,400 8.2 5.8 4.6
1,200 10.0 8.3 6.8

To gain optimum performance from the 1070RC, please keep the
following guidelines in mind:

•

Always

use twisted pair wire--this is not an option.

• Use twisted pair wire with a capacitance of 20pf/ft or less.

• Avoid twisted pair wire thinner than 26 AWG (i.e. avoid higher

AWG numbers than 26)

• Use of twisted pair with a resistance greater than the above

specifications may cause a reduction in maximum distance

obtainable. Functionality should not be affected.

• Environmental factors too numerous to mention can affect the

maximum distances obtainable at a particular site. Use the above

data rate/distance table as a

Gauge (AWG) / Distance (Mi)

19 22 24

general guideline only.

20

APPENDIX C

FACTORY REPLACEMENT PARTS

The Patton Model 1070RC rack system features interchangeable
rear half cards, power cords/fuses for international various operating
environments and other user-replaceable parts. Model numbers and
descriptions for these parts are listed below:

Patton Model #

Description

1000RPEM..........................120/240V Rear Power Entry Module

1000RPSM-2.......................120/240V Front Power Supply Module

1000RPEM-DC ...................DC Rear Power Entry Module

1000RPSM-48A ..................48V Front Power Supply Module

1000RPEM-V ......................120/240V CE Compliant Rear Power

Entry Module

1000RPSM-V ......................120/240V CE Compliant Front Power

Supply Module

0805US ...............................American Power Cord

0805EUR.............................European Power Cord CEE 7

0805UK ...............................United Kingdom Power Cord

0805AUS.............................Australia/New Zealand Power Cord

0805DEN.............................Denmark Power Cord

0805FR ...............................France/Belgium Power Cord

0805IN.................................India Power Cord

0805IS.................................Israel Power Cord

0805JAP..............................Japan Power Cord

0805SW ..............................Switzerland Power Cord

05R16FPB1.........................Single Width Blank Front Panel

05R16FPB4.........................4-Wide Blank Front Panel

05R16RPB1 ........................Single Width Blank Rear Panel

05R16RPB4 ........................4-Wide Blank Rear Panel

0821R4................................400 mA Fuse (5x20mm)

Littlefuse 239.400 or equivalent

0821R2................................200 mA Fuse (5x20mm)

Littlefuse 239.200 or equivalent

056S1..................................Set of 16 #4 pan head screws/washers

21 22

APPENDIX D.

MODEL 1070RC INTERFACE STANDARDS

DIRECTION STANDARD RS-232C/V.24 "DCE" SETTING DIRECTION

1- (FG) Frame Ground

From 1070RC Transmit Clock - 15

From 1070RC Receive Clock - 17

To 1070RC Data Term. Ready (DTR) - 20

To 1070RC External Clock - 24

2- (TD) Transmit Data To 1070RC
3- (RD) Receive Data From 1070RC
4- (RTS) Request to Send To 1070RC
5- (CTS) Clear to Send From 1070RC
6- (DSR) Data Set Ready From 1070RC
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect From 1070RC

EIA/TIA-561 REFERENCE - 8 Wire RJ-45

Contact Number Circuit Description

1 125 Ring Indicator or DSR
2 109 Received Line Signal Indicator
3 108 / 2 DTE Ready
4 102 Signal Common
5 104 Received Data
6 103 Transmitted Data
7 106 Clear to Send
8 105 / 133 Request to Send / Ready for Receiving

PATTON MODIFIED MODULAR INTERFACE - 10 Wire RJ-45

Contact Number Circuit Description

1 N/A Receive Clock

2 125 Ring Indicator or DSR

3 109 Received Line Signal Indicator

4 108 / 2 DTE Ready

5 102 Signal Common

6 104 Received Data

7 103 Transmitted Data

8 106 Clear to Send

9 105 / 133 Request to Send / Ready for Receiving

10 N/A Transmit Clock

APPENDIX E.

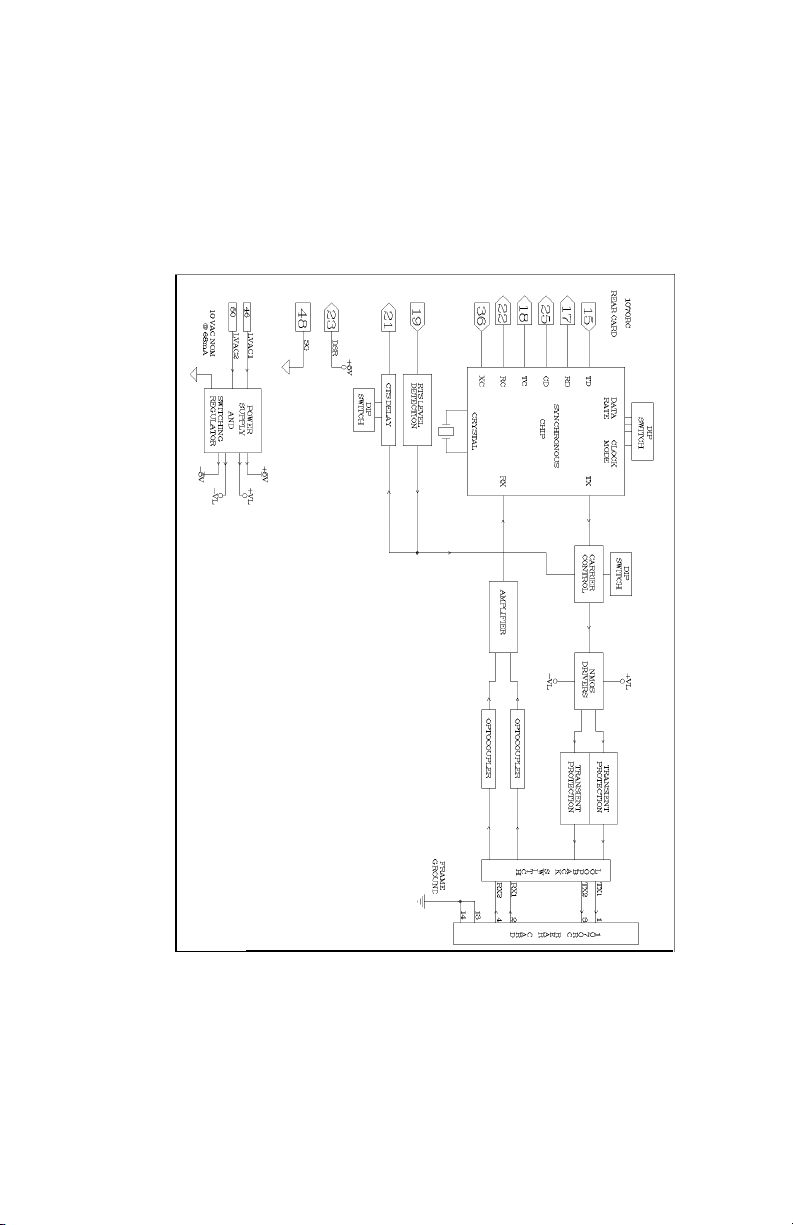

MODEL 1070RC BLOCK DIAGRAM

Copyright © 1997

Patton Electronics Company

All Rights Reserved

23

Dear Valued Customer,

Thank you for purchasing Patton Electronics products! We do

appreciate your business. I trust that you find this user manual helpful.

We manufacture one of the widest selections of data
communications products in the world including CSU/DSU's, network
termination units, powered and self-powered short range modems, fiber optic
modems, interface converters, baluns, electronic data switches, data-line surge
protectors, multiplexers, transceivers, hubs, print servers and much more. We
produce these products at our Gaithersburg, MD, USA, facility, and can
custom manufacture products for your unique needs.

We would like to hear from you. Please contact us in any of the
following ways to tell us how you like this product and how we can meet your
product needs today and in the future.

Web: http://www.patton.com

Sales E-mail: [email protected]

Support E-mail: [email protected]

Phone - Sales [phone]

Phone - Support [phone]

Fax: [phone]

Mail: Patton Electronics Company

7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA

We are committed to a quality product at a quality price. Patton
Electronics is ISO 9001 certified. We meet and exceed the highest
standards in the industry (CE, UL, etc.).

It is our business to serve you. If you are not satisfied with any
aspect of this product or the service provided from Patton Electronics or its
distributors, please let us know.

Thank you.

Burton A.Patton

Vice President

P.S. Please tell us where you purchased this product.

_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
