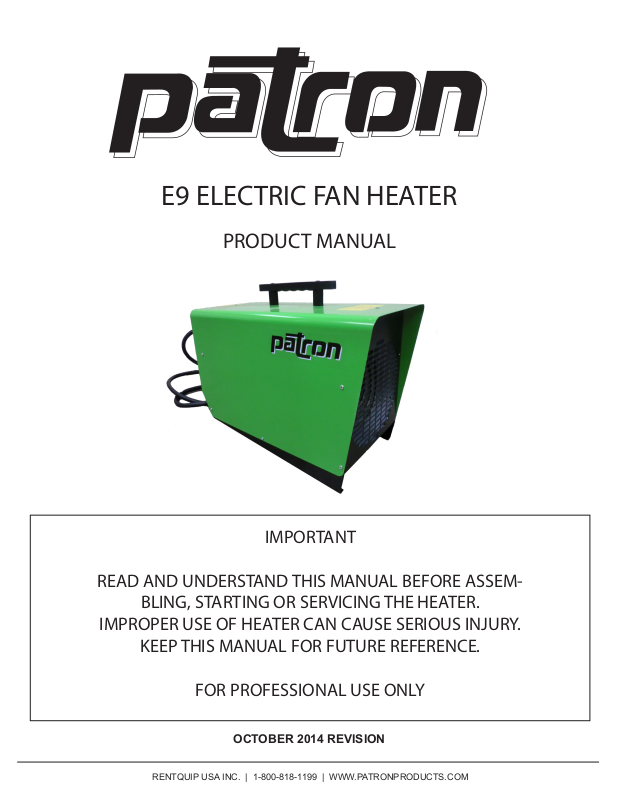

E9 ELECTRIC FAN HEATER
PRODUCT MANUAL
IMPORTANT
READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
FOR PROFESSIONAL USE ONLY
OCTOBER 2014 REVISION
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Page 2
E9 PRODUCT MANUAL
IMPORTANT INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS HEATER
1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handle when
moving this heater. Keep combustible materials at least 6 feet (2 meter) from the front of the heater and keep
them away from sides and rear
2. Extreme caution is necessary when the heater is used near children or invalids and whenever the heater is
left unattended
3. Always unplug the heater when not in use
4. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped
or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical
adjustment or repair
5. Do not expose to rain, water spray or dripping water
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate the
heater where it may fall into a bathtub or other liquid container
7. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away
from trafc area and where it will not be tripped over
8. To disconnect heater, turn controls to off, then remove plug from outlet
9. Connect to properly grounded outlets only
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an elec-
tric shock or re, or damage the heater
11. To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces,
where openings may become blocked
12. A heater has hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint or ammable
liquids are used or stored
13. Do not point to ammable materials
14. Use heater only as described in this manual. Any other use not recommended by the manufacturer may
cause re, electric shock or injury to persons
15. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable
power tap (outlet/power strip)
16. SAVE THESE INSTRUCTIONS
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Page 3
E9 PRODUCT MANUAL
GENERAL INFORMATION FOR USER
Patron electric heaters are designed for professional use.
The heat is generated in sealed heating elements inside the inner mantle of the heater. Heated air is then distributed by an electric motor driven fan blowing air through the heater.
Although effectively cooled by the fan, the heating elements have high surface temperatures. That is why combustible materials must be kept at a safe distance from the heater and care must be taken that no combustible
particles enter the heater with the air sucked in by the fan.
Keep the heater clean of dust at any time. Dust may cause re when heated.
Make sure that the fan blades may rotate unobstructed at all times.
Do not block air intakes or exhaust in any manner.
LIMITED WARRANTY
PATRON heater products are professional construction heaters. They are warranted for twenty-four (24) months
from original date of purchase. The warranty does not cover products modied outside our factory, damage
or failure caused by acts of God, abuse, misuse, use on other than rated voltage, abnormal usage, faulty or
improper installation, failure to provide recommended maintenance or any repairs other than those provided by
an authorized PATRON service.
THERE ARE NO OBLIGATIONS OR LIABILITIES ON THE PART OF PATRON PRODUCTS INC. FOR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCT OR OTHER INDIRECT DAMAGES WITH RESPECT TO LOSS OF PROPERTY, REVENUES,
OR PROFIT, OR COST OF REMOVAL, INSTALLATION OR REINSTALLATION.
THIS WARRANTY CONSTITUTES THE EXCLUSIVE REMEDY OF ANY PURCHASER OF EQUIPMENT
SOLD BY THE MANUFACTURER AND ITS DEALERS AND DISTRIBUTORS AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
During the warranty period, Patron Products will, at its sole option, repair or replace any defective parts or products returned, freight prepaid, to Patron Products or such other location as Patron Products may designate.
Returned products must be packaged carefully, and Patron Products shall not be responsible for damage in
transit. When returning parts, the owner must provide the model number of the product and the nature of difculty being experienced. This warranty does not oblige Patron Products to bear the cost of labour in replacing any assembly, unit or component or part thereof, nor does the company assume any liability for secondary
charges, expenses of removal or installing, freight or damages. There will be charges rendered for product
repair after our warranty period has expired. Proof of purchase, including date, must accompany request for inwarranty service.
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Page 4
E9 PRODUCT MANUAL
OPERATION
REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. THEY ARE ESSENTIAL FOR SAFE USE
OF THE HEATER.
FOLLOW ALL LOCAL CODES
This heater is for use on 240 volts

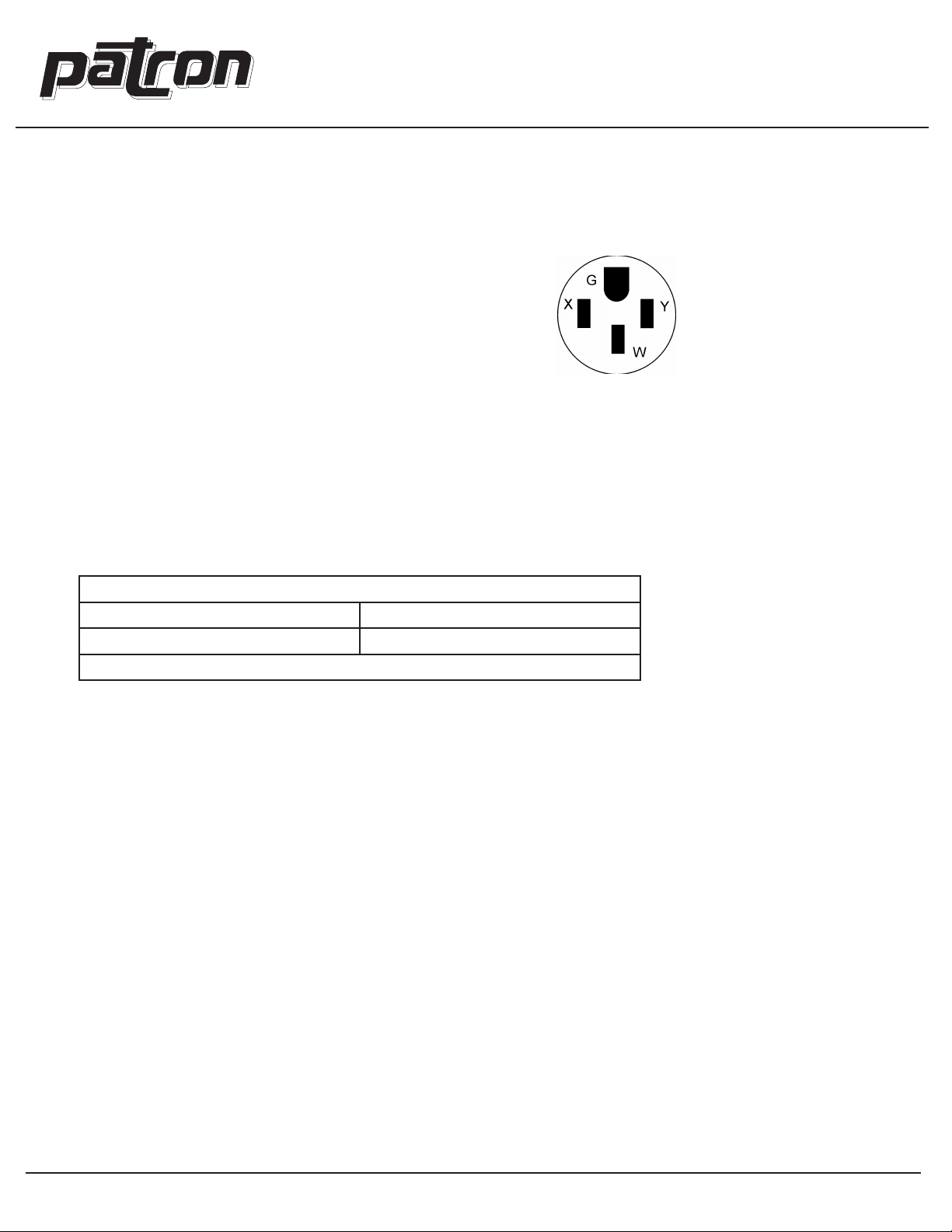

The cord has a plug as show in the gure
The type of outlet is a 240-volt grounding outlet. When properly installed, it provides a ground connection
through the cord to the heater to protect the operator from electric shock.
TO START HEATING:
1. Place the heater on a stable and level surface. Make sure that no explosive or combustible fumes or dust
are present
MINIMUM CLEARANCES FROM COMBUSTABLE MATERIALS
OUTLET = 6 feet SIDES = 1 foot
TOP = 2 feet REAR = 2 feet
FLOOR = COMBUSTABLE
2. Connect power cord of heater into 240 V / 60 Hz power source. See paragraph “Technical specications” in
this manual for correct amperage rating
3. Turn the toggle switch into position “on” and the fan starts
4. Set the room thermostat from “heat off” position to a temperature above the ambient room temperature by
turning the knob. Note! The heater will start heating only if the thermostat “calls for heat” meaning that it is
set to higher than prevailing ambient temperature
5. The heater will now operate automatically, controlled by the thermostats
TO STOP HEATING
1. Turn the room thermostat into position “0”
2. Let the fan cooldown heater for 2-3 minutes
3. Turn the toggle switch into position “off”
4. Disconnect the power supply plug
NOTE!
THE HEATER IS EQUIPPED WITH AN OVERHEAT LIMIT SWITCH WHICH MAY CAUSE THE HEATER TO
STOP. CHECK AND REMOVE THE CAUSE FOR OVERHEATING BEFORE RESTARTING.
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Page 5
E9 PRODUCT MANUAL
MAINTENANCE
WARNING!
NEVER SERVICE THE HEATER WHILE IT IS PLUGGED IN, RUNNING OR HOT. SEVERE BODILY INJURE
OR ELECTRIC SHOCK MAY OCCUR.
ONLY QUALIFIED PERSONS ARE ALLOWED TO OPEN HEATER FOR SERVICE. NO USER-SERVICEABLE PARTS INSIDE.
• Keep heater clean. Use pressurized air to blow fan blades clean. Note! Use moderate pressure to avoid
damage to fan blades
• Inspect heater before and after each use
• The fan motor is sealed and has permanently lubricated bearings
STORAGE
When not in use, the heater must be disconnected from power source, cleaned of dust and stored in a dry
place.
The power supply cord should be loosely wound around the handle of the heater.
TECHNICAL SPECIFICATIONS
HEAT OUTPUT BTU/Hr 30,700 (9,000W)
AIRFLOW CFM 350
ELECTRIC CONNECTION V ac / Hz 240 / 60 single phase
AMPERAGE DRAW A 37.5
POWER CORD 3x8 AWG
PLUG NEMA 14-50P
AMBIENT THERMOSTAT temp. range 32 - 100 °F (0 - 40 °C)
LENGTH inches 23.0
WIDTH inches 11.8
HEIGHT inches 18.3
WEIGHT lbs 39.9
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
Page 6
E9 PRODUCT MANUAL
18
16
21
5
22
6
8
4
17
3
11
24
15
12
2
10
9
20
14
13
19
23

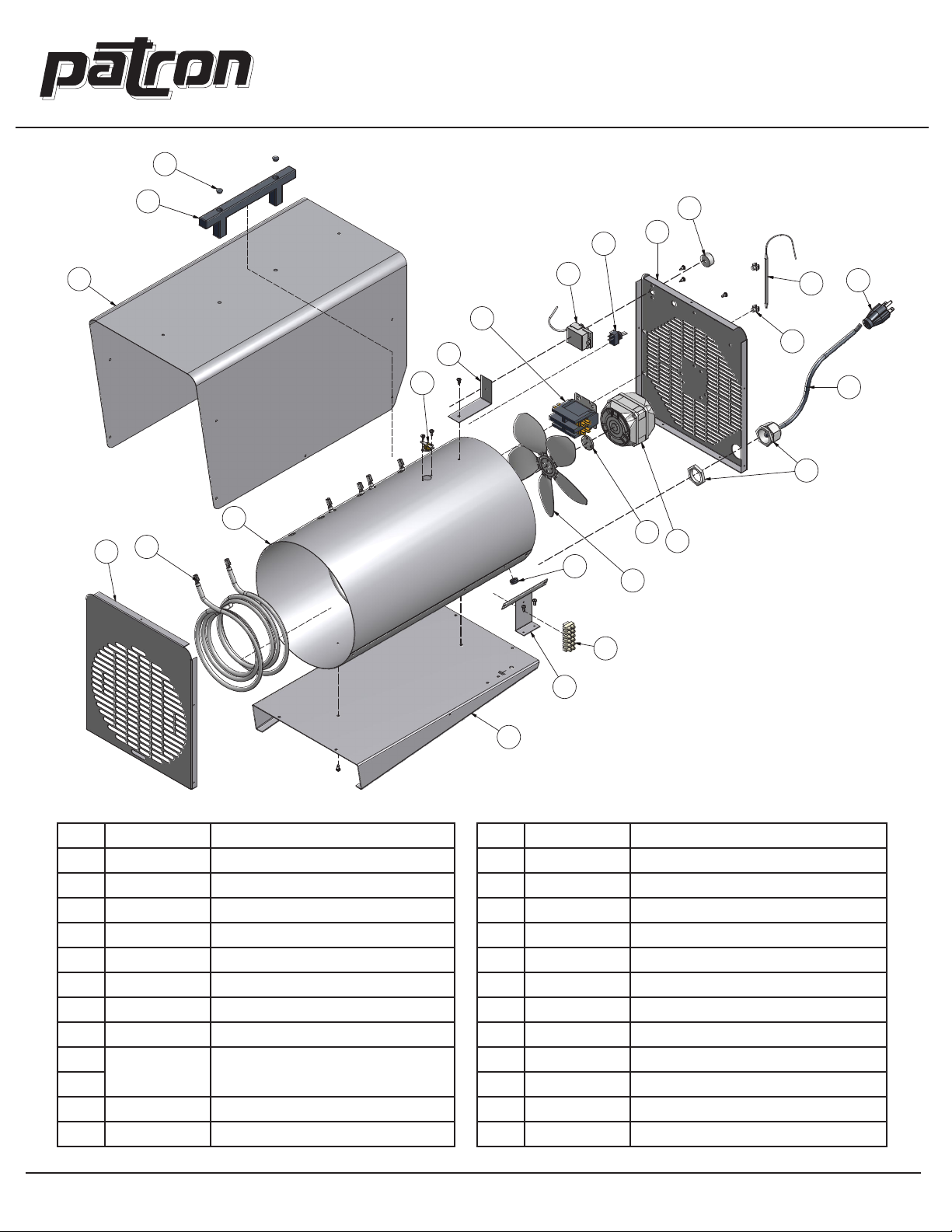

SPARE PARTS
25
DIAGRAM
7
PATRON E9
1
PATRON E9
(4008)
1 4008001 Bottom Plate
2 4008003 Rear Panel
3 4008002 Front Panel
4 4008004 Inner Mantle
5 4008005 Outer Mantle
6 4008006 Bracket, Inner Mantle
7 4008007 Bracket, Terminal Block
8 21200 Overheat Limit Switch
9 37910 Plastic Bracket for Thermostat
10
20220 Ambient Thermostat
11
12 20577 Knob for Thermostat 20220
13 14201 Fan Motor
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
14 17907 Fan Hub, Plastic
15 16110 Fan Blade
16 80100 Handle
17 42800 Heating Element
18 80110 Plug for Handle (2/Pk)
19 34080 Plug
20 36922 Strain Reliever
21 26902 Toggle Switch
22 22570 Contactor
23 30100 Power Cord (per Foot)
24 36809 Guard Ring/Wire Bushing
25 36704 Terminal Block
*** 30346 Grounding Lug
Page 7

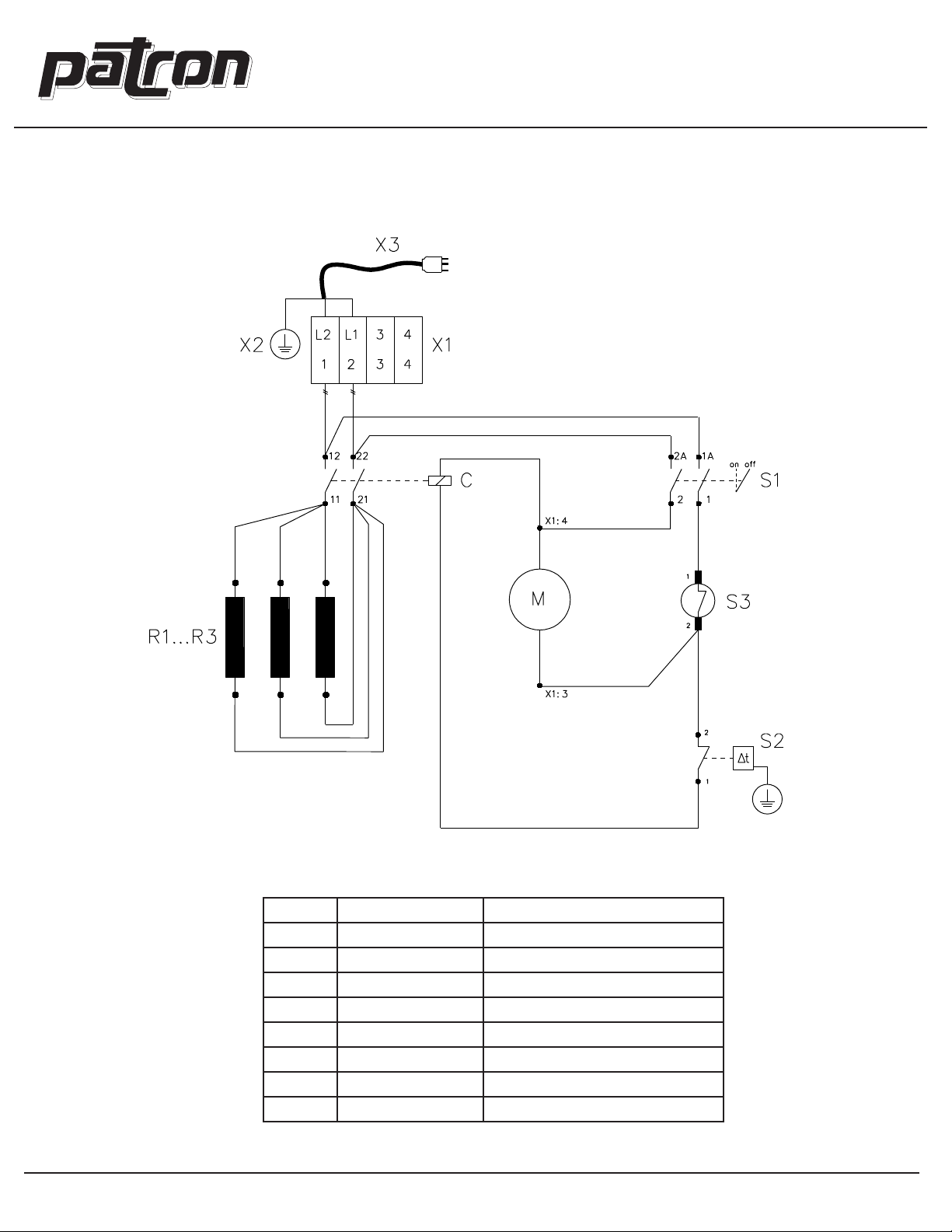

WIRING DIAGRAM
E9 PRODUCT MANUAL
C 22570 Contactor
M 14201 Fan Motor
R1-R3 42800 Heating Element
S1 26902 Toggle Switch
S2 20220 Ambient Thermostat
S3 21200 Overheat Limit Switch
X1 36704 Terminal Block
X2 30346 Grounding Lug
X3 30100+34080 Power Cord & Plug
