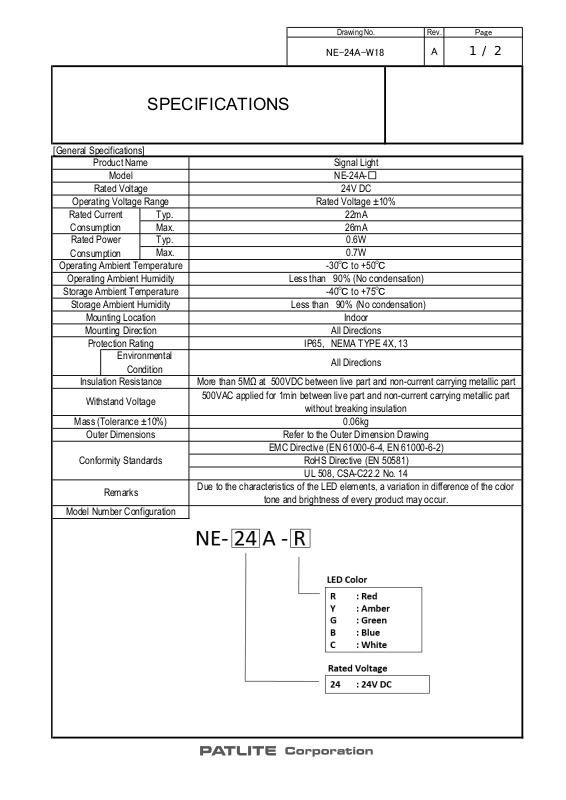

Patlite NE-24A Specifications

[General Specifications]

Model Number Configuration

Operating Voltage Range

Outer Dimensions

Refer to the Outer Dimension Drawing

UL 508, CSA-C22.2 No. 14

EMC Directive (EN 61000-6-4, EN 61000-6-2)

RoHS Directive (EN 50581)

Insulation Resistance

More than 5MΩ at 500VDC between live part and non-current carrying metallic part

Mass (Tolerance ±10%)

0.06kg

Mounting Direction

All Directions

Protection Rating

Environmental

Storage Ambient Temperature

Storage Ambient Humidity

Less than 90% (No condensation)

Mounting Location

Indoor

0.6W

0.7W

Less than 90% (No condensation)

Operating Ambient Temperature

Operating Ambient Humidity

Rated Power

Typ.

Max.

Rated Voltage

24V DC

Rated Voltage ±10%

22mA

Rated Current

Consumption

Typ.

Max.

26mA

Page

Product Name

Signal Light

Model

Due to the characteristics of the LED elements, a variation in difference of the color

Drawing No.

Rev.

Consumption

SPECIFICATIONS

NE-24A-W18

NE-24A-□

-30℃ to +50℃

-40℃ to +75℃

A

1/2

Condition

Withstand Voltage

Conformity Standards

Remarks

IP65,　NEMA TYPE 4X, 13

All Directions

500VAC applied for 1min between live part and non-current carrying metallic part

without breaking insulation

tone and brightness of every product may occur.

PATLITE Corporation

株式会社

パトライト

NE-24A-W18

2/2
