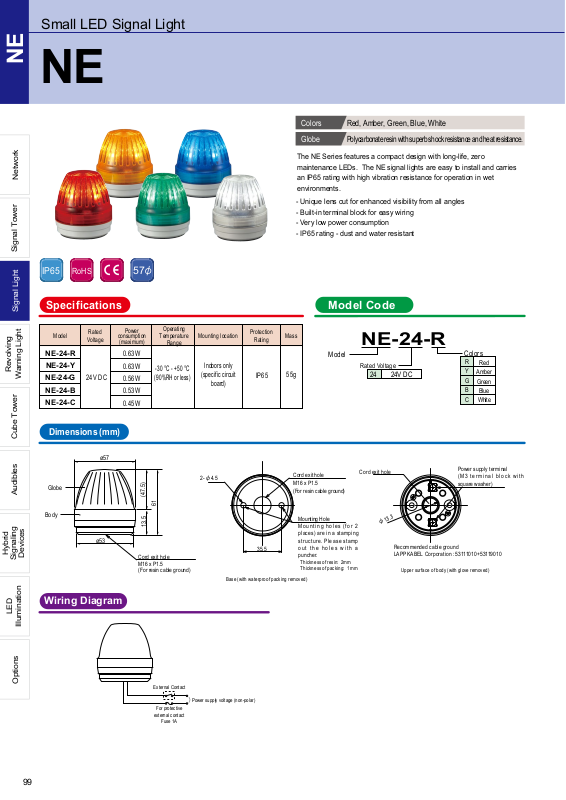

Patlite NE Catalog Page

Small LED Signal Light

NE

NE

6LJQDO7RZHU

Colors Red, Amber, Green, Blue, White

Globe

The NE Series features a compact design with long-life, zero
maintenance LEDs. The NE signal lights are easy to install and carries
an IP65 rating with high vibration resistance for operation in wet
environments.

- Unique lens cut for enhanced visibility from all angles

- Built-in terminal block for easy wiring

- Very low power consumption

- IP65 rating - dust and water resistant

Polycarbonate resin with superb shock resistance and heat resistance.

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

+\EULG

'HYLFHV

6LJQDOLQJ

IP65

RoHS

Specifications

Model

NE-24-R

NE-24-Y

NE-24-G

NE-24-B

NE-24-C

Dimensions (mm)

Globe

Body

Rated

Voltage

24V DC

ø57

ø53

57

φ

Power

consumption

(maximum)

0.63W

0.63W

0.56W

0.53W

0.45W

Cord exit hole
M16 x P1.5
(For resin cable ground)

Operating

Temperature

Range

-30 °C - +50 °C

(90%RH or less)

(47.5)

61

13.5

Mounting location

Indoors only

(specific circuit

board)

2-φ4.5

Base (wit h waterproof pac king removed)

Protection

Rating

IP65

35.5

Mass

55g

Cord exit hole
M16 x P1.5
(For resin cable ground)

Mounting Hole
Mounting holes (for 2
places) ar e in a stamping
structure. Please stamp
out the holes with a
puncher.

Thickn ess of resin: 2mm
Thickn ess of packing: 1 mm

Model Code

NE-24-R

Model

Rated Voltage

24

Cord exit hole

φ13.3

Colors

R

Red

Y

24V DC

Recommended cable ground
LAPPKABEL Corp oration : 53111010+53119010

Upper sur face of body (wi th glove removed)

Amber

G

Green

B

Blue

C

White

Power supply terminal
(M3 terminal block with
square washer)

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN

99

Wiring Diagram

External Contact

For protective

external contact

Fuse 1A

Power supply voltage (non-polar)
