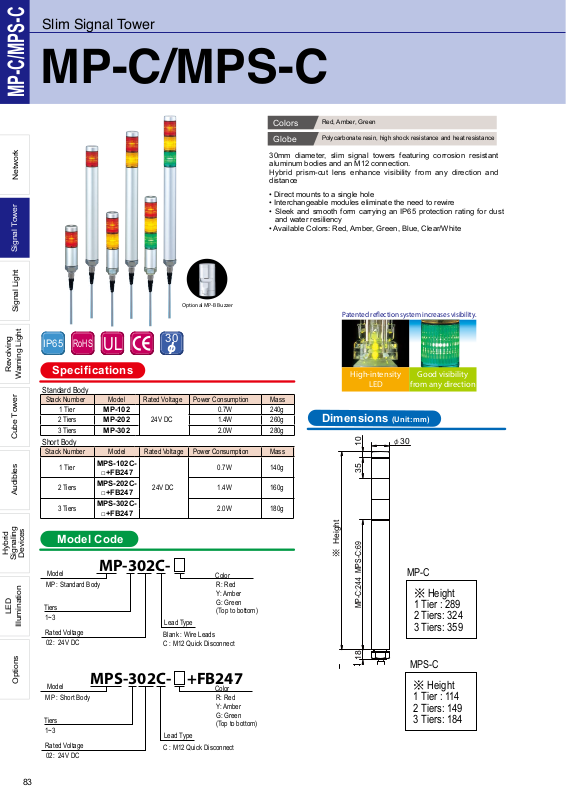

Patlite MP-C, MPS-C Catalog Page

Slim Signal Tower

MP-C/MPS-C

MP-C/MPS-C

6LJQDO7RZHU

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

30mm diameter, slim signal towers featuring corrosion resistant
aluminum bodies and an M12 connection.
Hybrid prism-cut lens enhance visibility from any direction and
distance

• Direct mounts to a single hole

• Interchangeable modules eliminate the need to rewire

• Sleek and smooth form carrying an IP65 protection rating for dust

• Available Colors: Red, Amber, Green, Blue, Clear/White

Optional MP-B Buzzer

IP65

RoHS

UL

30

φ

Specifications

Standard Body

Stack Number Model Rated Voltage Power Consumption Mass

1 Tier MP-102
2 Tiers MP-202 1.4W 260g
3 Tiers MP-302 2.0W 280g

Short Body

Stack Number Model Rated Voltage Power Consumption Mass

1 Tier

2 Tiers 1.4W 160g

3 Tiers 2.0W 180g

MPS-102C-

□+FB247

MPS-202C-

□+FB247

MPS-302C-

□+FB247

24V DC

24V DC

0.7W 240g

0.7W 140g

Colors

Globe

and water resiliency

Red, Amber, Green

Polycarbonate resin, high shock resistance and heat resistance

Dimensions (Unit:mm)

Patented reection system increases visibility.

High-intensity

LED

10

35

Good visibility

from any direction

φ

30

+\EULG

'HYLFHV

6LJQDOLQJ

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN

83

Model Code

Model

MP : Standard Body

Tiers

1~3

Rated Voltage
02: 24V DC

Model

MP : Short Body

Tiers

1~3

Rated Voltage
02: 24V DC

MPS-302C-

MP-302C-

Color

R: Red
Y: Amber
G: Green
(Top to bottom)

Lead Type

Blank : Wire Leads
C : M12 Quick Disconnect

+FB247

Color

R: Red
Y: Amber
G: Green
(Top to bottom)

Lead Type

C : M12 Quick Disconnect

※ Height

MP-C:244 MPS-C:69

18

MP-C

※ Height

1 Tier : 289
2 Tiers: 324
3 Tiers: 359

MPS-C

※ Height

1 Tier : 114
2 Tiers: 149
3 Tiers: 184

MP-C/MPS-C

Wiring Diagram

External Contact Capacity Is: Current Capacity Vs: Withstand Voltage

LED Unit (1 Tier)

Power Supply

Current Consumption Red: 29.0ｍA Amber: 29.5mA Green: 23.9mA

Capacity Is≥50mA Vs≥35V DC

Current Consumption 200mA

Capacity Is≥200mA Vs≥35V DC

• MP-C M12 Connector

M12 Connector Pin No.

Pin No. LED Unit Color

1 Green
2 Red
3 Common
4 Amber

2

1

4

3

M12 Connector
Pin Layout

6LJQDO7RZHU

Easy to add and remove

• When adding or removing modules, the
center shaft that matches the
amount of tiers has to be
purchased.

Optional Parts

Model

MP-B 24V AC/DC 80dB (at 1m) 0.7W

• Double-insulation for enhanced durability and safety

• Direct mount installation with just a single screw

• Main body made of heat resistant ABS resin for superior impact
resistance

• Compatible with the MP and MPS Signal Tower
(The Red module is required when using the optional MP-B)

• Operates in conjunction with the Red LED module (Alarm activation
with other colors must be special ordered).

Rated

Voltage

Sound Level

For details, see pages 182 to 187.

Power

Consumption

Interchangeable LED M odules

Changeable color sequence: Easy to add/ remove up to 3

colored modules even after installation.

Note: LED modules of the same color within a signal tower

will light up simultaneously.

Wi ring doesn' t chang

• The LED Module colors correspond to the
wiring, so re-wiring is not necessary.

e

(Unit: mm)

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

+\EULG

'HYLFHV

6LJQDOLQJ

84

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN
