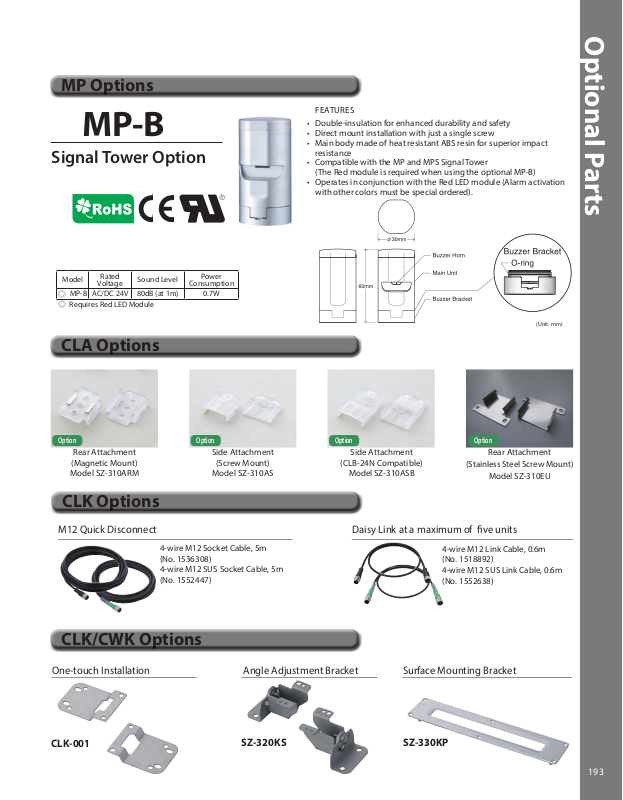

Patlite MP-B Optional Parts

MP Options

MP-B

Signal Tower Option

Optional Parts

FEATURES

• Double-insulation for enhanced durability and safety

• Direct mount installation with just a single screw

• Main body made of heat resistant ABS resin for superior impact
resistance

• Compatible with the MP and MPS Signal Tower
(The Red module is required when using the optional MP-B)

• Operates in conjunction with the Red LED module (Alarm activation
with other colors must be special ordered).

Model

MP-B AC/DC 24V 80dB (at 1m) 0.7W

◎

Requires Red LED Module

◎

Rated

Voltage

Sound Level

Power

Consumption

CLA Options

Option

Rear Attachment

(Magnetic Mount)

Model SZ-310ARM

Option

Side Attachment

(Screw Mount)

Model SZ-310AS

Option

Side Attachment

(CLB-24N Compatible)

Model SZ-310ASB

Option

Rear Attachment

(Stainless Steel Screw Mount)

Model SZ-310EU

CLK Options

M12 Quick Disconnect Daisy Link at a maximum of ve units

4-wire M12 Socket Cable, 5m
(No. 1536308)
4-wire M12 SUS Socket Cable, 5m
(No. 1552447)

4-wire M12 Link Cable, 0.6m
(No. 1518892)
4-wire M12 SUS Link Cable, 0.6m
(No. 1552638)

(Unit: mm)

CLK/CWK Options

One-touch Installation

CLK-001

Angle Adjustment Bracket

SZ-320KS

Surface Mounting Bracket

SZ-330KP

193
