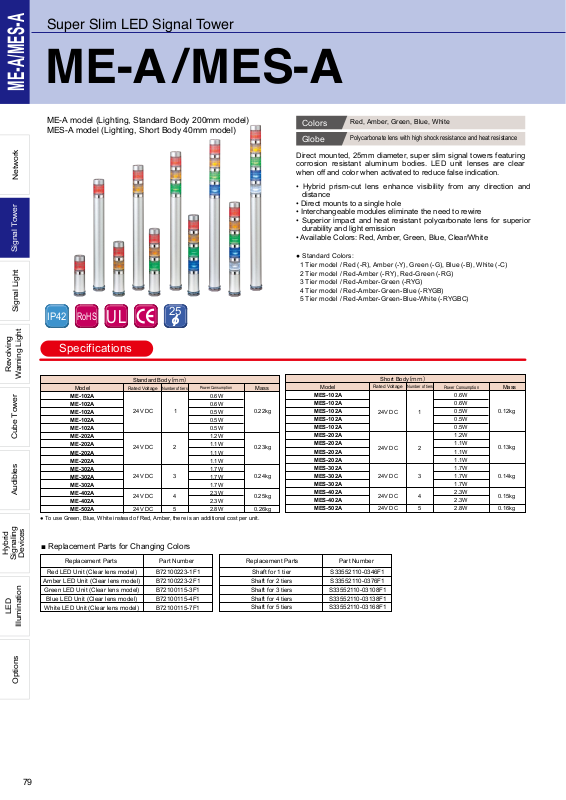

Patlite ME-A, MES-A Catalog Page

Super Slim LED Signal Tower

ME-A/MES-A

ME-A / MES-A

6LJQDO7RZHU

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

ME-A model (Lighting, Standard Body 200mm model)
MES-A model (Lighting, Short Body 40mm model)

IP42

RoHS

UL

25

φ

Specifications

Standard Body

Model

ME-102A
ME-102A
ME-102A
ME-102A
ME-102A
ME-202A
ME-202A
ME-202A
ME-202A
ME-302A
ME-302A
ME-302A
ME-402A
ME-402A
ME-502A

● To use Green, Blue, White instead of Red, Amber, there is an additional cost per unit.

Rated Voltage

24V DC

24V DC

24V DC

24V DC

24V DC

（ｍｍ）

Number of tiers

1

2

3

4

5

Power Consumption

0.6W

0.6W

0.5W

0.5W

0.5W

1.2W

1.1W

1.1W

1.1W

1.7W

1.7W

1.7W

2.3W

2.3W

2.8W

Mass

0.22kg

0.23kg

0.24kg

0.25kg

0.26kg

Colors

Globe

Red, Amber, Green, Blue, White

Polycarbonate lens with high shock resistance and heat resistance

Direct mounted, 25mm diameter, super slim signal towers featuring
corrosion resistant aluminum bodies. LED unit lenses are clear
when off and color when activated to reduce false indication.

• Hybrid prism-cut lens enhance visibility from any direction and
distance

• Direct mounts to a single hole

• Interchangeable modules eliminate the need to rewire

• Superior impact and heat resistant polycarbonate lens for superior
durability and light emission

• Available Colors: Red, Amber, Green, Blue, Clear/White

● Standard Colors:

1 Tier model / Red (-R), Amber (-Y), Green (-G), Blue (-B), White (-C)
2 Tier model / Red-Amber (-RY), Red-Green (-RG)
3 Tier model / Red-Amber-Green (-RYG)
4 Tier model / Red-Amber-Green-Blue (-RYGB)
5 Tier model / Red-Amber-Green-Blue-White (-RYGBC)

Short Body

（ｍｍ）

Model

MES-102A
MES-102A
MES-102A
MES-102A
MES-102A
MES-202A
MES-202A
MES-202A
MES-202A
MES-302A
MES-302A
MES-302A
MES-402A
MES-402A
MES-502A

Rated Voltage

24V DC

24V DC

24V DC

24V DC

24V DC

Number of tiers

1

2

3

4

5

Power Consumption

0.6W

0.6W

0.5W

0.5W

0.5W

1.2W

1.1W

1.1W

1.1W

1.7W

1.7W

1.7W

2.3W

2.3W

2.8W

Mass

0.12kg

0.13kg

0.14kg

0.15kg

0.16kg

+\EULG

'HYLFHV

6LJQDOLQJ

/('

,OOXPLQDWLRQ

2SWLRQV 1HWZRUN

79

■ Replacement Parts for Changing Colors

Part NumberReplacement Parts Replacement Parts

Red LED Unit (Clear lens model)
Amber LED Unit (Clear lens model)
Green LED Unit (Clear lens model)

Blue LED Unit (Clear lens model)

White LED Unit (Clear lens model)

B72100223-1F1
B72100223-2F1
B72100115-3F1
B72100115-4F1
B72100115-7F1

Shaft for 1 tier
Shaft for 2 tiers
Shaft for 3 tiers
Shaft for 4 tiers
Shaft for 5 tiers

Part Number

S33552110-0346F1

S33552110-0376F1
S33552110-03108F1
S33552110-03138F1
S33552110-03168F1

ME-A/MES-A

Model Code

Dimensions (mm)

ME-302A-RYG

Model

Standard Body Type

ME

Short Body Type

MES

Number of tiers

Optional Parts

Optional Parts Model

L Angle SZ L- 001

Wiring Diagram

[Type ME/MES-□□□A]

Red Unit / Red Wire

Amber Unit / Orange Wire

Green Unit / Green Wire

Blue Unit / Blue Wire

White Unit / White Wire

COM / Yellow Wire

Rated Voltage

For details, see pages 182 to 187.

24V DC02

External Contact

Fuse 1A

Colors

Red

R

Amber

Y

Green

G

Blue

B

White

C

From Top to
Bottom

-

+

Mount on
Horizontal
Surface

Maximum Board

Thickness

0 - 10mm

Power supply voltage

10

φ25

Type ME-A

* Main Unit Length

1 tier: 240
2 tiers: 270
3 tiers: 300
4 tiers: 330
5 tiers: 360

Type MES-A

* Main Unit Length

* Main Unit Length

ME: 200

Main Unit

(MES: 40)

Mounting Surface

Lock Nut
Parallel Pipe Thread

Gland

PF½

Mounting Hole

φ22

■ Corresponding Signal Wire Colors

LED Unit Colors

Red

Amber

Green

Blue

White

Type ME-A
Type MES-A

(For multiple LED units of the same color, they illuminate at the same time.)

Nominal Cross-sectional Area

■ Signal Wire Voltage and Current per tier

Voltage

24V DC

* Set aside ample capacity for the external contact,

considering the Signal Wire Current and Inrush Current.

Signal Wire Voltage

1 tier: 80
2 tiers: 110
3 tiers: 140
4 tiers: 170
5 tiers: 200

Mount on
Vertical
Surface

Lock Nut

* Nuts and bolts not included.

2

0.3mm

2

0.3mm

24V DC

Mounting Angle
(SZL-001, sold
separately)

Bolt
(M8)

Mounting Surface

Corresponding Signal Wire Color

Red

Orange

Green

Blue

White

:
:
:

Wire Length

Wire Type

:

UL1007

:

UL1007

:

Signal Wire Current

Red-Amber: 25.2mA

Green-Blue-White: 13.3mA

Nut

300mm
460mm

6LJQDO7RZHU

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

Example: 24V DC driven by NPN Transistor

24V DC, NPN type transistor

● Lighting type

LED Red Red

LED Amber Orange

LED Green Green

LED Blue Blue

LED White White

Power Supply Wire Yellow

Fuse

1A

Power supply

24V DC

For lighting

I/O Unit

■ Transistor Capacity

Model

Current Capacity

Withstand Voltage

Leakage Current

Transistor (NPN)

Ic≧50mA

Vc≧35V

IL< 0.1mA

80
