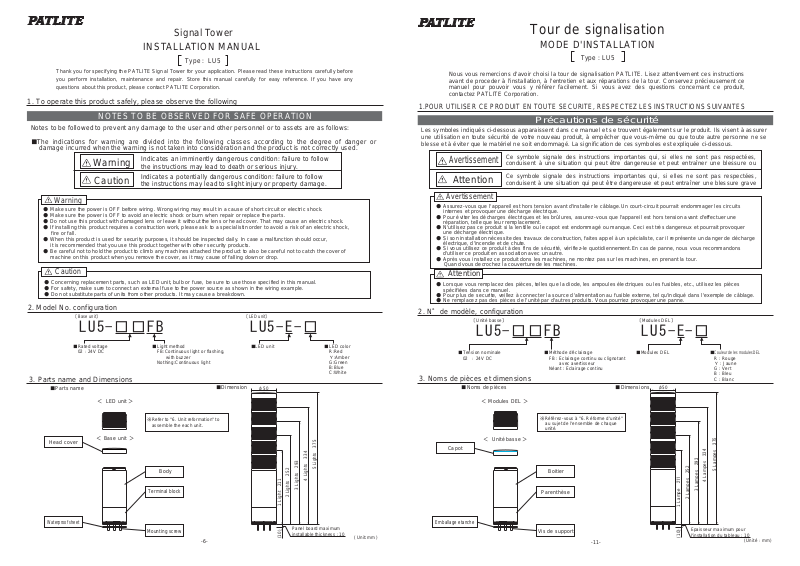

Signal Tower
INSTALLATION MANUAL
Type : LU5
Thank you for specifying the PATLITE Signal Tower for your application. Please read these instructions carefully before
you perform installation, maintenance and repair. Store this manual carefully for easy reference. If you have any
questions about this product, please contact PATLITE Corporation.
1. To operate this product safely, please observe the following
NOTES TO BE OBSERVED FOR SAFE OPERATION
Notes to be followed to prevent any damage to the user and other personnel or to assets are as follows:
■The indications for warning are divided into the following classes according to the degree of danger or
damage incurred when the warning is not taken into consideration and the product is not correctly used.
Warning
Caution
Warning
● Make sure the power is OFF before wiring. Wrong wiring may result in a cause of short circuit or electric shock.
● Make sure the power is OFF to avoid an electric shock or burn when repair or replace the parts.
● Do not use this product with damaged lens or leave it without the lens or head cover. That may cause an electric shock.
● If installing this product requires a construction work, please ask to a specialistin order to avoid a risk of an electric shock,
fire or fall.
● When this product is used for security purposes, it should be inspected daily. In case a malfunction should occur,
it is recommended that you use this product together with other security products.
● Be careful not to hold the product to climb any machines attached the product to also be careful not to catch the cover of
machine on this product when you remove the cover, as it may cause of falling down or drop.
Indicates an imminently dangerous condition: failure to follow
the instructions may lead to death or serious injury.
Indicates a potentially dangerous condition: failure to follow
the instructions may lead to slight injury or property damage.
Caution
● Concerning replacement parts, such as LED unit, bulb or fuse, be sure to use those specified in this manual.
● For safety, make sure to connect an external fuse to the power source as shown in the wiring example.
● Do not substitute parts of units from other products. It may cause a breakdown.
2. Model No. configuration
〔Base unit〕
LU5-□□FB
02：24V DC
3. Parts name and Dimensions
■Parts name
＜ LED unit ＞
Head cover
＜ Base unit ＞
■Light method
FB:Continuous light or flashing,
with buzzer
Nothing:Continuous light
※Refer to "6. Unit reformation" to
assemble the each unit.
■Dimension
〔LED unit〕
LU5-E-□
■LED unit■Rated voltage
φ50
■LED color
R:Red
Ｙ:Amber
G:Green
B:Blue
C:White
Waterproof sheet
Body
Terminal block
Mounting screw
-6-
5 Lights 375
4 Lights 334
3 Lights 293
2 Lights 252
1 Light 211
Panel board maximum
)
installable thickness : 10
10
(
( Unit:mm )
4. Installation
■ Mounting
● Drill mounting holes in the wall. (See the mounting dimension.)
● Secure the mounting bracket with the hex bolts and hex nuts.
● Install the Signal Tower vertically at a location that has sufficient strength and minimal
vibration.
● The alarm of buzzer models can be heard best from the front direction.
Therefore make sure the Signal Tower is facing the correct direction before install it.
Caution
● This product can be used only indoors. (Do not use it outdoors.)
● Do not install the Signal Tower horizontally or inverted.
(See the following "Mounting side" .)
● Make sure of the specified operating voltage and current before use.
● Do not use or keep without LED unit or Head cover installed.
● Use the soft cloth with moisture when the LED unit or Bse unit must be
cleaned up. (Do not use thinner, benzine, gasoline or oil.)
● During installation, do not remove the waterproof sheet. It may cause
a malfunction of water proof structure.
● This product has 1mm thick waterproof packing at the bottom of the pole
bracket. However, when complete waterproofing is not provided due to the
unevenness of the installation surface, apply waterproof sealant between the
unit and the installation surface to maintain waterproof conditions.
Buzzer
transmission
direction
φ30
Name plate
Wiring through hole
Mounting dimension
Mounting hole
3-φ4
30°
（φ13）
Unit：mm
12.5
[Mounting side]
VOL.
①
Upright
Invert
VOL.
VOL.
②
③
Horizontal
5. Wiring Procedure
■ Wiring procedure (Concerning the mark ※, the conditions about the product corresponding to UL are mentioned.)
● Please make wiring connection according to wiring example.
● For wiring of 5 layers or less, please make wiring connection by increasing or decreasing external contacts in each layer according
to wiring example.
● When using multiple LED units of the same color, make the contact capacity equal to the number of same color LED units multiplied
by the contact capacity for 1 light. (This is because LED units of the same color light up for one signal line.)
※ Fuse for protection of external contact should be installed within 305mm from the connected point of the power source wire.
● When wiring is completed, insulate the end of each unused lead wire by using insulation tape.
※ Use "Class 2 Circuit" for the power supply source. Concerning fuse and fuse-holder, be sure to use the products authorized
by UL Inc.
※ Use the fuse conforming to the rated current of the machine. ( Example : Class J type fuse )
● If you have any questions about simultaneous use of multiple units or other special operations,
contact PATLITE Customer Service before wiring.
5-1. Wiring for Base unit [Terminal block]
● Remove Body from Base unit.( Refer to "6. Unit reformation" .)
〔Terminal block〕
Front
For signal and low voltage
※ Strip length of lead wires: 9mm
※Recommendable wire type / dia
UL1007AWG22～16
※Use 75℃ CU Wire only.
UL1430AWG22～16
Terminal
No.
1
2
3
4
5
6
7
8
9
10
Terminal
color
Red
Orange
Green
Blue
White
Gray
Black
Yellow
Gray
Black
Corresponding unit
or operation
LED unit Red
LED unit Amber
LED unit Green
LED unit Blue
LED unit White
Buzzer1：Pi…(Continuous)
Buzzer2：Pi・Pi…
Power supply(Continuous COM)
Flashing COM
Power supply
Caution
●Never fail to observe the strip length of lead wire. Excessively short strip length causes
connection failure and excessively long strip length gives rise to electric shock or short circuit,
which are extremely dangerous.
－Screw driver
Lever
CN2
Terminal
Lead wires
① Press the lever with screw driver etc.
② Insert the stripped portion of the lead wire all the way into Terminal block.
③ Release the lever and wiring is completed.
●While wiring this product, take care to avoid short-circuits from loose wire strands or similar
conditions.
●Do not use unnecessarily strong force to separate the Terminal block and the Body.
Inside wiring may be damaged and may cause failure.
●Connect high-voltage power supply cable to the specified terminals in the Terminal block.
Failure to connect this cable correctly will burn out the internal circuit.
●When removing the lead wire, be sure to operate the lever first, before pulling the wire out.
-7-
5-2. Wiring example
LU5 [ Continuous light type ]
[CN2]
Terminal
No.
1
2
3
4
5
6
7
8
9
10
Terminal
color
Red
Orange
Green
Blue
White
Gray
Black
Yellow
Gray
Black
Corresponding unit
or operation
LED unit Red
LED unit Amber
LED unit Green
LED unit Blue
LED unit White
Buzzer1：Continuous
Buzzer2：Pi・Pi・・
Power supply(Continuous COM)
Flashing COM
Power supply
LED Red
LED Amber
LED Green
LED Blue
LED White
Continuous COM
External
contact fuse
External
contact
(1A)
LU5-FB [ Continuous light or Flashing, with Buzzer type ]
[CN2]
Terminal
No.
1
2
3
4
Continuous light
Power
supply
(Non polar)
5
6
7
8
9
10
Terminal
color
Red
Orange
Green
Blue
White
Gray
Black
Yellow
Gray
Black
Corresponding unit
or operation
LED unit Red
LED unit Amber
LED unit Green
LED unit Blue
LED unit White
Buzzer1：Continuous
Buzzer2：Pi・Pi・・
Power supply(Continuous COM)
Flashing COM
Power supply
LED Red
LED Amber
LED Green
LED Blue
LED White
Buzzer 1
Buzzer 2
Flashing COM
Power supply
Power supply
Continuous COM
contact fuse
(1A)
External
External
contact
with Buzzer
Continuous light
Flashing
Power
supply
(Non polar)
【Recommended external contact capacity】
Voltage specs.
LED unit
〔1-Light〕
Buzzer
Current consumption
Contact capacity
Current consumption
Inrush current
Red・Amber： 52mA Green・Blue・White：42mA
Contact capacity
Current consumption
Power supply
Contact capacity
※Is：Current capacity, Vs：Withstand voltage
24V DC
Is≧100mA, Vs≧35V AC
50mA
100mA
Is≧100mA, Vs≧35V AC
360mA
Is≧500mA
Vs≧35V AC
【Recommended external contact fuse】
Ampere rating of fuse
250V 1A
※Use the fuse conforming to the rated current of
the machine which you install product.
(Example : UL Class J type fuse)
Caution
● Make sure the power is OFF before wiring. A short circuit may damage internal circuits or cause an electric shock.
● Do not pull out the lead wire or push it into the pole or the body.
● Install the external contact fuse on the power supply side as shown in the wiring example in order to prevent
burn in case of a wiring error.
● Failure to follow wiring instructions may cause damege to product or product may not operate properly.
● Do not apply voltage directly to Flashing common wire. It may cause a breakdown. ( FB type )
● Do not connect Continuous common wire and Flashing common wire. It may damage the internal circuit.
● If using both flashing and continuous circuits, do not apply power at the same time as this may cause second color
indicator to light. This also applies to both alarm circuits.
● If you use the product with both alarms, please use external contacts for lighting and for alarms.
5-3. NPN ( PNP ) Transistor drive example
■LU5 [ Continuous light ]
NPN Transistor
[CN2]
Terminal
Terminal
color
No.
Red
1
Orange
2
Green
3
Blue
4
White
5
Gray
6
Black
7
Yellow
8
Gray
9
Black
10
LED Red
LED Amber
LED Green
LED Blue
LED White
Continuous
COM
(1A)
External
contact
fuse
Continuous
24V DC
Power
Supply
I/O Unit
-8-
PNP Transistor
[CN2]
Terminal
Terminal
color
No.
Red
1
Orange
2
Green
3
Blue
4
White
5
Gray
6
Black
7
Yellow
8
Gray
9
Black
10
LED Red
LED Amber
LED Green
LED Blue
LED White
Continuous
COM
24V DC
Power
Supply
Continuous
I/O Unit
(1A)
External
contact fuse
■LU5- FB [ Continuous light or Flashing, with Buzzer type ]
● When you use FB (Continuous light or Flashing, with Buzzer) type, you need the I/O unit respectively.
NPN Transistor
[CN2]
Terminal
Terminal
color
No.
1
Red
2
Orange
3
Green
4
Blue
5
White
6
Gray
7
Black
8
Yellow
9
Gray
10
Black
LED Red
LED Amber
LED Green
LED Blue
LED White
Buzzer 1
Buzzer 2
Continuous COM
Power supply wire
Flashing COM
External
contact
Fuse
(1A)
Power
Supply
24V DC
Continuous
I/O Unit
Flashing
I/O Unit
PNP Transistor
[CN2]
Terminal
Terminal
No.
color
1
Red
2
Orange
3
Green
4
Blue
5
White
6
Gray
7
Black
8
Yellow
9
Gray
10
Black
Continuous COM
LED Red
LED Amber
LED Green
LED Blue
LED White
Buzzer 1
Buzzer 2
Power supply
Flashing COM
■Recommendation transistor
Current capacity
Dielectric break
down strength
Leak current
Ic≧100mA
（LED unit）
（Buzzer）
Vc≧35V
IL≦0.1mA
Power
Supply
24V DC
External
contact fuse
(1A)
Continuous
I/O Unit
Flashing
I/O Unit
6. Unit reformation
●Turn the power OFF before performing unit reformation.
●First make sure the O-ring is mounted as shown in Drawing 1,then align the locating mark of each unit,and place the units together in
the direction of the arrow (①) as shown.
●Rotate the upper unit in the direction of the arrow(②).(Refer to Drawing.2)
Caution
22
a
O ring
Drawing.1
1
Drawing.2
7. To use this product in accordance with the CE marking, please observe the followings
● Please use a fuse specified by IEC 127.
● When lead wires are exposed outside the body during pole installation, etc. always provide double insulation using insulation tape
and vinyl tubing, etc.
● Do not remove a LED unit forcibly.
It may damage the unit.
● Do not warp or damage the LED unit to a lower unit.
● Make sure the O-ring is first mounted in position on
the Terminal block as shown in Drawing 1,
then place the Body on the O-ring.
-9-
8. Specifications
［Base unit］
Model
LU5-02
LU5-02FB
Rated voltage
24V DC
Power consumption
1.2W
Mass
182g
200g
Flashing cycle and
Peak sound level
FB Type
60 Flashes
per minute
Sound level
85dB/m
※FB type only
［LED unit］
Model
LU5-E-R
LU5-E-Ｙ
LU5-E-G
LU5-E-B
LU5-E-C
Rated voltage
24V DC
Power
consumption
1.1W
0.5W
0.4W
Caution
● In the event that the tower is subject to continuous,excessiv shaking,vibration may be too strong and there is a danger
of breakage. Immediately stop using the tower and consult PATLITE Customer Service.
● PATLITE Corporation disclaims all liability for any malfunction or damage occurring as a result of handling contrary to
the instructions, cautions and warnings mentioned in this manual.
● Specifications may change without notice due to continual product improvement.
Mass
44g
-10-
Loading...
