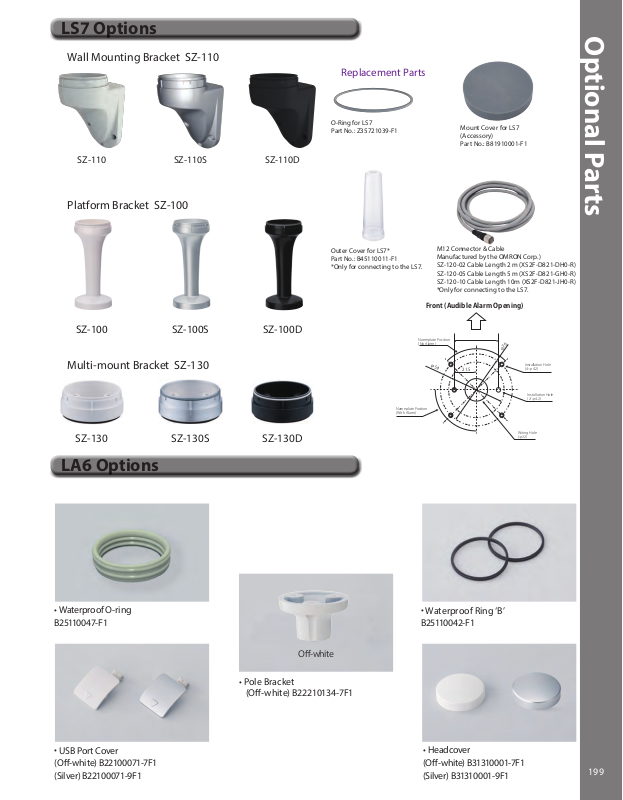

Patlite LS7 Optional Parts

LS7 Options

Wall Mounting Bracket SZ-110

Optional Parts

Replacement Parts

SZ-110 SZ-110S SZ-110D

Platform Bracket SZ-100

SZ-100 SZ-100S SZ-100D

Multi-mount Bracket SZ-130

O-Ring for LS7
Part No.: Z35721039-F1

Outer Cover for LS7*
Part No.: B45110011-F1
*Only for connecting to the LS7.

Nameplate Position
(With Alarm)

Mount Cover for LS7
(Accessory)
Part No.: B81910001-F1

M12 Connector & Cable
Manufactured by the OMRON Corp.)
SZ-120-02 Cable Length 2 m (XS2F-D821-DH0-R)
SZ-120-05 Cable Length 5 m (XS2F-D821-GH0-R)
SZ-120-10 Cable Length 10m (XS2F-D821-JH0-R)
*Only for connecting to the LS7.

Front (Audible Alarm Opening)

Nameplate Position
(No Alarm)

φ54

21.5

φ70

Installation Hole
(4-φ4.2)

Installation Hole
(2-φ4.2)

SZ-130 SZ-130S SZ-130D

LA6 Options

• Waterproof O-ring
B25110047-F1

•

Pole Bracket

(O-white) B22210134-7F1

O-white

•

Waterproof Ring ‘B’

B25110042-F1

Wiring Hole
(φ22)

•

USB Port Cover
(O-white) B22100071-7F1
(Silver) B22100071-9F1

• Headcover
(O-white) B31310001-7F1
(Silver) B31310001-9F1
