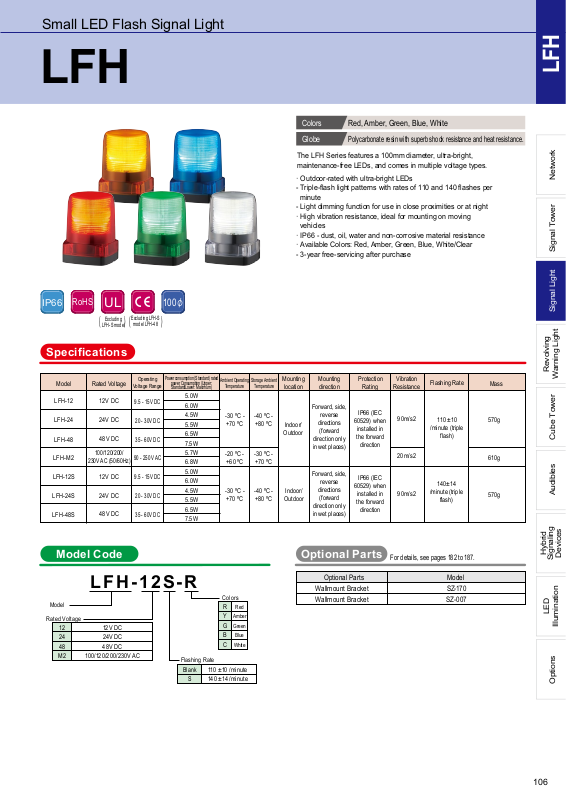

Patlite LFH Catalog Page

Small LED Flash Signal Light

LFH

LFH

Colors Red, Amber, Green, Blue, White

IP66

RoHS

UL

Excluding

( )

LFH-S model

Specifications

Model

LFH-12

LFH-24

LFH-48

LFH-M2

LFH-12S

LFH-24S

LFH-48S

Rated Voltage

12V DC

24V DC

48V DC

100/120/200/

230V AC (50/60Hz)

12V DC

24V DC

48V DC

100

φ

Excluding LFH-S

( )

model LFH-48

Power consumption (Standard) rated

Operating

Voltage Range

9.5 - 15V DC

20 - 30V DC

35 - 60V DC

90 - 250V AC

9.5 - 15V DC

20 - 30V DC

35 - 60V DC

power Consumption (Upper:
Standard/Lower: Maximum)

5.0W

6.0W

4.5W

5.5W

6.5W

7.5 W

5.7W

6.8W

5.0W

6.0W

4.5W

5.5W

6.5W

7.5 W

Ambient Operating

Temperature

-30 ºC ­+70 º C

-20 ºC ­+60 ºC

-30 ºC ­+70 º C

Storage Ambient

Temperature

-40 ºC ­+80 ºC

-30 ºC ­+70 º C

-40 ºC ­+80 ºC

Globe

Polycarbonate resin with superb shock resistance and heat resistance.

The LFH Series features a 100mm diameter, ultra-bright,
maintenance-free LEDs, and comes in multiple voltage types.

· Outdoor-rated with ultra-bright LEDs

- Triple-flash light patterns with rates of 110 and 140 flashes per
minute

- Light dimming function for use in close proximities or at night

· High vibration resistance, ideal for mounting on moving
vehicles

· IP66 - dust, oil, water and non-corrosive material resistance

· Available Colors: Red, Amber, Green, Blue, White/Clear

- 3-year free-servicing after purchase

Mounting

location

Indoor/

Outdoor

Indoor/

Outdoor

Mounting

direction

Forward, side,

reverse

directions

(forward

direction only

in wet places)

Forward, side,

reverse

directions

(forward

direction only

in wet places)

Protection

Rating

IP66 (IEC

60529) when
installed in

the forward

direction

IP66 (IEC

60529) when
installed in

the forward

direction

Vibration

Resistance

90m/s2

20m/s2

90m/s2

Flashing Rate

110 ±10

/minute (triple

flash)

140±14

/minute (triple

flash)

Mass

570g

610g

570g

6LJQDO7RZHU

6LJQDO/LJKW

5HYROYLQJ

:DUQLQJ/LJKW

&XEH7RZHU

$XGLEOHV

Model Code

LFH-12S-R

Model

Rated Volt age

12
24
48

M2

100/120/200/230V AC

12V DC
24V DC

48V DC

Flashing Rate

Blank

S

Colors

R

Red

Y

Amber

G

Green

B

Blue

C

White

110 ±10 /minute
140 ±14 /minu te

Optional Parts

For details, see pages 182 to 187.

Optional Parts Model
Wallmount Bracket
Wallmount Bracket

SZ-170
SZ- 007
