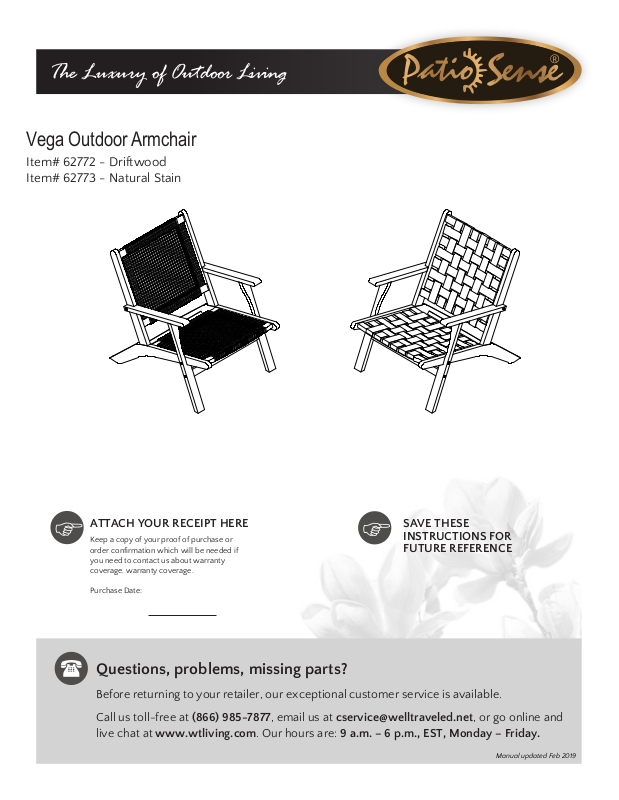

Page 1
The Luxury of Outdoor Living
Vega Outdoor Armchair
Item# 62772 - Driftwood
Item# 62773 - Natural Stain
ATTACH YOUR RECEIPT HERE
Keep a copy of your proof of purchase or
order confirmation which will be needed if
you need to contact us about warranty
coverage. warranty coverage.
Purchase Date:
SAVE THESE
INSTRUCTIONS FOR
FUTURE REFERENCE
Questions, problems, missing parts?
Before returning to your retailer, our exceptional customer service is available.
Call us toll-free at (866) 985-7877, email us at [email protected], or go online and
live chat at www.wtliving.com. Our hours are:
9 a.m. – 6 p.m., EST, Monday – Friday.
Manual updated Feb 2019
Page 2
INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts received with the “Parts List.” If any
part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire
manual before attempting to assemble, operate or install this product. If you have any questions regarding the
product, please call us toll-free at (866) 985-7877, email us at [email protected], or go online and live
chat at www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday.
GENERAL INFORMATION
Your new chair is made from the finest materials available. It should provide many years of enjoyment with
minimal care. This chair is intended for outdoor use but as with all wood products, it will age faster with exposure
to the weather and sun.
For best results, keep your chair clean and dry. Clean with a soft, damp cloth. If you use furniture covers, always
make sure the chair is clean and completely dry before covering, as mold may form in dark, wet places. Between
uses and when seasonally out of use, store this chair in a dry, temperature controlled place to prolong its useful
lifespan. Check the hinges on your chair regularly to make sure they are secure.
To avoid damaging the chair, do not drag when moving.
The weight limit for this chair is 330 LB/150 KG.
SAFETY INFORMATION
WARNING
DO NOT stand or allow children to stand on this chair. Make sure connectors are securely in place. Perform
periodic checks to make sure the connectors are secure and adjust if needed.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in faulty assembly and potential
injury. Assemble the item on a soft, non-abrasive surface such as carpet or cardboard to avoid damaging the
item.
2
Page 3
Par TS LiST
PART DESCRIPTION QUANTITY
A
B
C
A
B
C
D
E
Seat Back 1
Seat 1
Left Arm/Leg 1
Right Arm/Leg
Brace
1
1
HARDWARE CONTENTS
D
E
1
Screw M7x90
Qty:
4
2
Bolt M6x40
Qty:
4
3
Hex Wrench
Qty: 1
3
Page 4
ASSEMBLY
PREPARATION
Before beginning assembly, be sure to empty contents of carton and make sure all parts are present. If any parts
are missing, please contact Customer Service at (866)-985-7877, Monday-Friday, 9 a.m. - 6 p.m. EST or
email at [email protected].
Place all parts on a soft, level surface for assembly. Estimated Assembly Time: 20 Minutes | DO NOT over tighten hardware!
Assemble the seat: insert the oblong pegs at the
bottom of each side of Seat Back A into the oblong
1
holes drilled opposite the curve of the Seat B as
shown. Insert a Screw 1 through the hole drilled in
the inside of the curve and tighten into the Seat
Back. Repeat to fasten the other side.
Hardware Used: 1 Screw (7x90) x 2
A
1
Connect the Arms C/D and Brace E: insert the
oblong peg at one end of the Brace E into the oblong
2
hole drilled in the side of Right Arm/Leg D. Fasten the
two pieces together using a Screw 1. Repeat to
attach the Brace to the Left Arm/Leg C.
Attach the arms to the assembled Seat B: locate the
hole drilled on the right side of the seat (a few inches
back from the front edge) and align it with the hole
drilled above the notch in the front right leg, resting
the side of the seat on the notch in the inner edge of
the right leg. Connect the two pieces using a Bolt 2.
Repeat to attach
Attach the arms to the Seat Back: align the hole
drilled through the back end of the right arm with the
hole about halfway down the right side of the Seat
Back
A. Insert a Bolt 2 and tighten to connect.
Repeat to attach the left side.
Check that all hardware is secure, being careful not to
over-tighten. Your Vega chair is ready for use!
the left side.
2
2
B
1
2
C
2
1
E
1
D
Hardware Used: 1 Screw (7x90) x 2
2 Bolt (6x40) x 4
Contact us for assistance: (866) 985-7877 | www.wtliving.com
4
Page 5

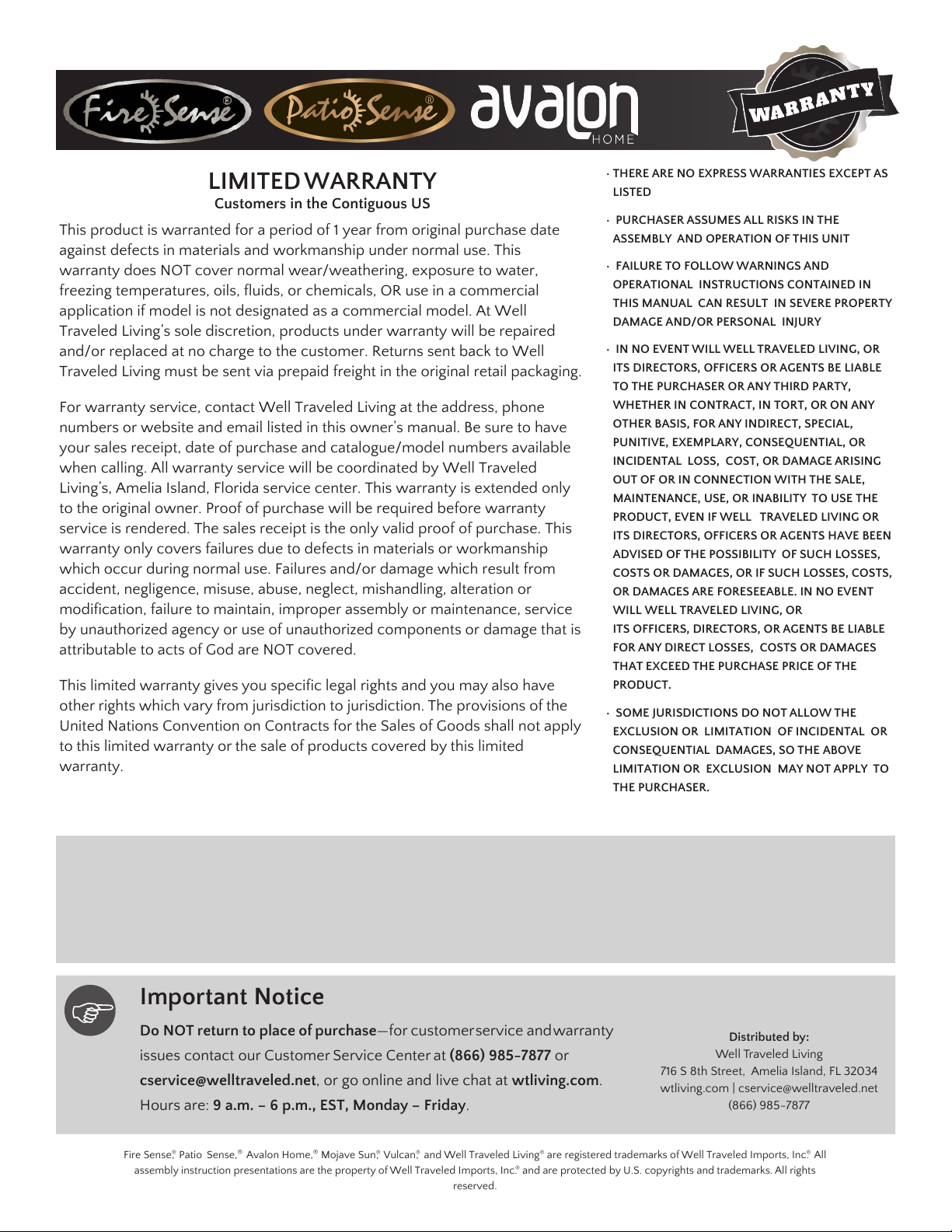

LIMITED WARRANTY
Customers in the Contiguous US
This product is warranted for a period of 1 year from original purchase date
against defects in materials and workmanship under normal use. This
warranty does NOT cover normal wear/weathering, exposure to water,
freezing temperatures, oils, fluids, or chemicals, OR use in a commercial
application if model is not designated as a commercial model. At Well
Traveled Living’s sole discretion, products under warranty will be repaired
and/or replaced at no charge to the customer. Returns sent back to Well
Traveled Living must be sent via prepaid freight in the original retail packaging.
For warranty service, contact Well Traveled Living at the address, phone
numbers or website and email listed in this owner’s manual. Be sure to have
your sales receipt, date of purchase and catalogue/model numbers available
when calling. All warranty service will be coordinated by Well Traveled
Living’s, Amelia Island, Florida service center. This warranty is extended only
to the original owner. Proof of purchase will be required before warranty
service is rendered. The sales receipt is the only valid proof of purchase. This
warranty only covers failures due to defects in materials or workmanship
which occur during normal use. Failures and/or damage which result from
accident, negligence, misuse, abuse, neglect, mishandling, alteration or
modification, failure to maintain, improper assembly or maintenance, service
by unauthorized agency or use of unauthorized components or damage that is
attributable to acts of God are NOT covered.
This limited warranty gives you specific legal rights and you may also have
other rights which vary from jurisdiction to jurisdiction. The provisions of the
United Nations Convention on Contracts for the Sales of Goods shall not apply
to this limited warranty or the sale of products covered by this limited
warranty.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS
LISTED
• PURCHASER ASSUMES ALL RISKS IN THE
ASSEMBLY AND OPERATION OF THIS UNIT
• FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THIS MANUAL CAN RESULT IN SEVERE PROPERTY
DAMAGE AND/OR PERSONAL INJURY
• IN NO EVENT WILL WELL TRAVELED LIVING, OR
ITS DIRECTORS, OFFICERS OR AGENTS BE LIABLE
TO THE PURCHASER OR ANY THIRD PARTY,
WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL,
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
MAINTENANCE, USE, OR INABILITY TO USE THE
PRODUCT, EVEN IF WELL TRAVELED LIVING OR
ITS DIRECTORS, OFFICERS OR AGENTS HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH LOSSES,
COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS,
OR DAMAGES ARE FORESEEABLE. IN NO EVENT
WILL WELL TRAVELED LIVING, OR
ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE
FOR ANY DIRECT LOSSES, COSTS OR DAMAGES
THAT EXCEED THE PURCHASE PRICE OF THE
PRODUCT.
• SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.
Important Notice
Do NOT return to place of purchase—for customer service and warranty
issues contact our Customer Service Center at (866) 985-7877 or
Hours are: 9 a.m. – 6 p.m., EST, Monday – Friday.
Distributed by:
Well Traveled Living
716 S 8th Street, Amelia Island, FL 32034
wtliving.com | cservice@welltraveled.net
(866) 985-7877
Fire Sense®, Patio Sense,® Avalon Home,® Mojave Sun®, Vulcan®, and Well Traveled Living® are registered trademarks of Well Traveled Imports, Inc®. All
assembly instruction presentations are the property of Well Traveled Imports, Inc.® and are protected by U.S. copyrights and trademarks. All rights
reserved.
EXTEND YOUR WARRANTY
When you purchase a Fire Sense, Patio Sense, or Avalon Home product, you have the peace of
mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional
year when you write a review of your purchase on www.wtliving.com within 365 days of purchase.
