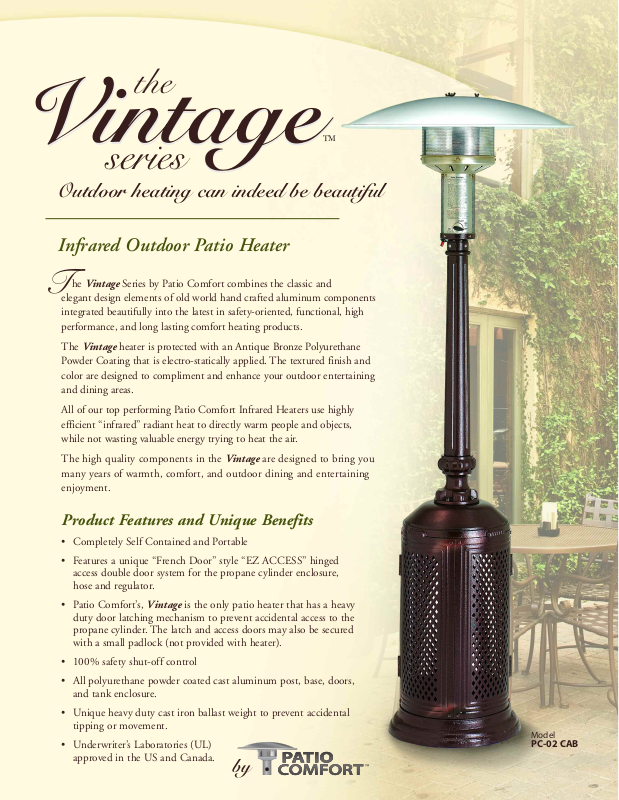

Page 1
the
Vintage
Vintage
series
Outdoor heating can indeed be beautiful
Infrared Outdoor Patio Heater
he Vintage Series by Patio Comfort combines the classic and
T
elegant design elements of old world hand crafted aluminum components
integrated beautifully into the latest in safety-oriented, functional, high
formance, and long lasting comfort heating pr
per
oducts.
M
T
The
Vintage heater is pr
Powder Coating that is electro-statically applied. The textured finish and
color ar
and dining areas.
All of our top performing Patio Comfort Infrared Heaters use highly
efficient “infrared” radiant heat to directly warm people and objects,
while not wasting valuable energy trying to heat the air.
The high quality components in the
many years of warmth, comfor
enjoyment.
e designed to compliment and enhance your outdoor entertaining
otected with an Antique B
Vintage are designed to bring you
t, and outdoor dining and enter
e Polyurethane
ronz
taining
Product Features and Unique Benefits
• Completely Self Contained and Portable
• Features a unique “French Door” style “EZ ACCESS” hinged
access double door system for the propane cylinder enclosure,
hose and regulator.
• Patio Comfort’s,
duty door latching mechanism to prevent accidental access to the
opane cylinder
pr
with a small padlock (not provided with heater).
Vintage is the only patio heater that has a heavy
The latch and access doors may also be secur
.
ed
• 100% safety shut-off control
• All polyurethane powder coated cast aluminum post, base, doors,
and tank enclosure.
• Unique heavy duty cast iron ballast weight to prevent accidental
tipping or movement.
• Underwriter’s Laboratories (UL)
approved in the US and Canada.
by
Model
PC-02 C
AB
Page 2
the
Vintage
Vintage
series
Model PC-02 CAB
Specifications and Safety Features:
TM
This product is for outdoor use only
Outdoor heating can indeed be beautiful
Infrared Outdoor Patio Heater
Tank in enclosure Close up detail
(tank not include)
Heavy Duty Latch Color and Texture
e have made every effort
ever, improper use, installation,
w
ty damage,
, or possibly death. Please read
y
uction manual thor
vement, prices, specifications,
o
oper
oughly before
epairing this
lease contact us if you have
er about the
oduct. D
ue to
oduct
Hood Cover
(Optional Accessories)
lease note: W
P
to make our heaters as safe, easy to
assemble, and durable as possible.
o
H
adjustment, alteration, or maintenance
of heater can cause pr
injur
instr
using, installing, or r
oduct. P
pr
any questions whatsoev
safe operation of this pr
our ongoing commitment to pr
impr
and materials subject to change
without prior notice.
Overall Height: 92 inches (including installed reflector)
Weight: 95 lbs including reflector. Tank with fuel weighs
dditional 40 lbs.
a
eflector: One piece anodized aluminum- 34 inch diameter
R
Major Components: Solid cast aluminum post, socket, and tank enclosure.
Stainless steel burner head, solid feed line, and heavy
duty round cast iron base for easily moving heater.
Ignition: “Sure Start” push button Piezo ignition (no battery required)
urner Material: Commercial grade series 403 stainless steel
B
Emitter Grid: Commercial grade series 403 stainless steel
xternal Fasteners: Stainless steel
E
TU Input/Hour: 40,000 BTU
B
Base Diameter: 19.5 inches (weight 40 lbs) base solid cast iron tank/fuel
weighs additional 40 lbs. Tank is not ncluded
Circle of Heat: Varies 10 to 15 ft (3.2 to 4.2 meters), based on wind
conditions, wind chill factor, location, and wind protection.
We do not recommend using heater in windy conditions,
in rainy conditions, or snow
Clearances: Minimum clearance from combustibles is 24 inches from
top of reflector 24 inches from sides of reflector.
Burn Time: Approximately 10 hours on high setting
Gas Pressure: 11 inches water column for propane (LP reg required
and included)
Gas Supply: The PC-07CAB is designed and UL approved for
propane fuel only.
Safety System: 100% safety pilot and safety shut-off cylinder
must be supplied that conforms to current standard
and has OPD (overfill protection device) included
(tank optional)
Certifications: Underwriters labs (UL) US and Canada.
In the US model PC-02 heater complies with
CSA 5.90 (3rd Edition). In Canada heater complies
with CAN 1-2.23-M82 outdoor patio heater standard.
Warranty: One year limited
nstallation must conform to your local codes and
nstallation:
I
I
ordinances. If you have any questions as to your local
regulations or possible restrictions to using propane fired
outdoor heaters y
code, or safety officials.
return that cannot be used due to your local building or
safety standards. It is the responsibility of the purchaser to
check their local codes and fir
Not for use inside any enclosed space, tents, recreational
vehicles, prefab enclosure, boats, or other moving objects.
ou should check with your local fire,
e will not accept any heaters for
W
estrictions or ordinances.
e r
AEI Corporation
oviding Only The Finest In Leisure Gas Products... Since 1966”
r
“P
uBridge Avenue, Irvine, CA 92606
2641 D
hone 949-474-3070 - F
P
Email [email protected] - www.patiocomfortheaters.com
AX 949-474-0559
