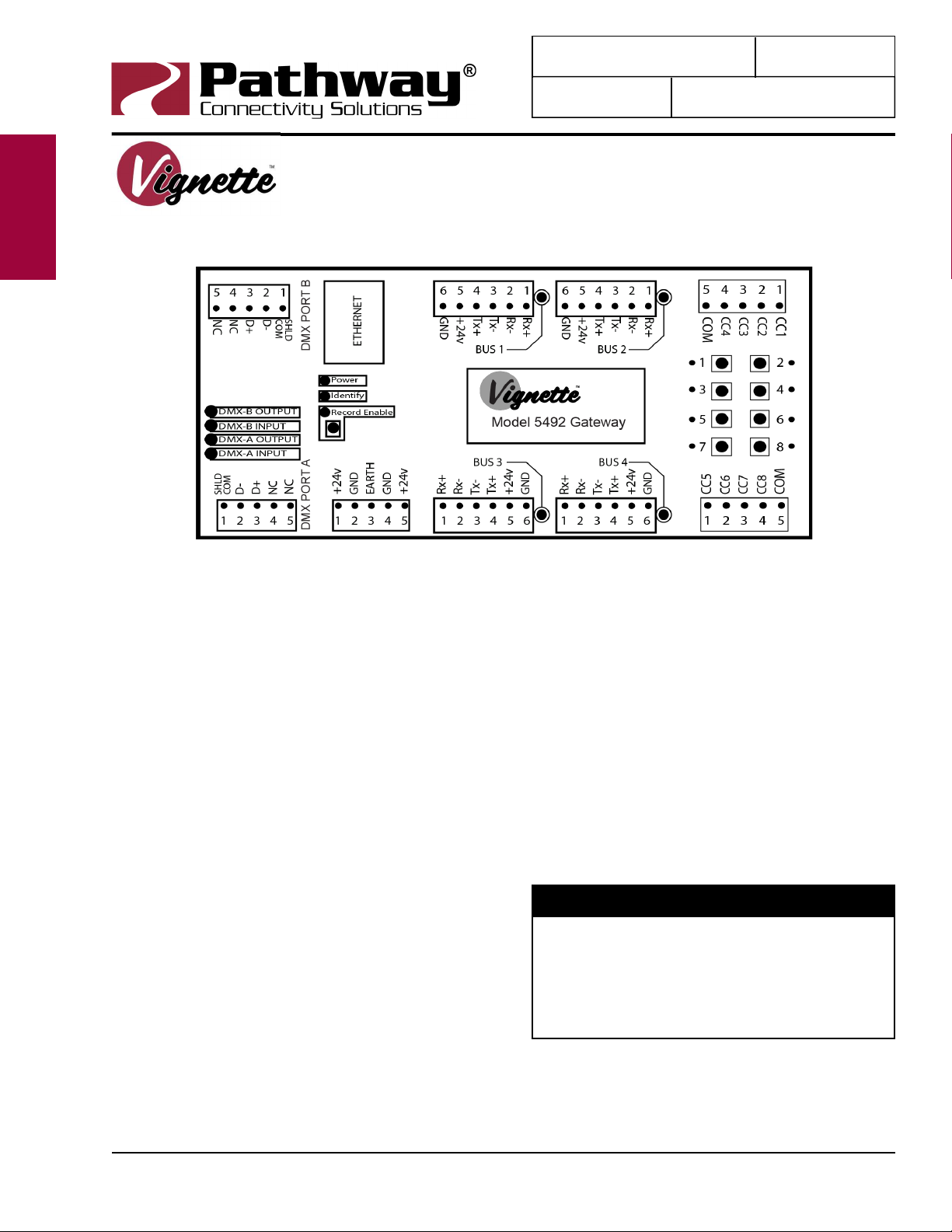

Vignette™ 485 Architectural Gateway
Date:
Notes:
PRODUCT OVERVIEW SPECIFICATIONS
The Vignette Gateway provides connectivity for Vignette 485
button and slider stations using a multi-drop serial data bus
for recording and recall of lighting snapshots. The Gateway
has four separate buses, each accommodating up to 16
devices (button or slider modules). This device comes in a
variety of configurations with or without buttons, auxiliary
contact closures , DMX In and Thru/Out and Ethernet
connectivity.
FEATURES
• Power and network connectivity for Vignette slider and
button modules, with optional DMX512 ports and Contact
Closures
• Configure up to four groupings of presets allows one
Gateway to achieve asynchronous fades across four rooms
• Out of the box DMX512 Snapshot record and playback for
multiple rooms
• Allows using legacy multi-drop wiring where PoE home-run
is not feasible
• Use third-party buttons to trigger snapshot replay
• Use Pathscape software to configure sACN output
universes, sACN priorities, crossfades timing and the
function of the two optional DMX512 ports.
• DMX512 outputs will crossfade between presets and
incoming source when present. No sudden blackouts.
• Models 700-5491 and 700-5492 have integrated DMX512
In and Out/Thru ports that can crossfade on priority
changes
• All models can use Pathport Gateways to record and
playback up to four universes of DMX512
• Class 2 (24v DC RS485 over Cat5 or six-wire cable)
• Compression fit and IDC terminal connections for DMX512
connections and station buses
• 3.6” wide and 4.5”, 6.25” and 8” long depending on model
• Gateway requires 10W at 24VDC plus 1W per insert on the
4-port station bus network
• Operating Conditions: 32°F-105°F (0°C to 40°C );
10-90% relative humidity, non-condensing
STANDARDS COMPLIANCE
• ANSI E1.11 DMX512-A
• ANSI E1.31 streaming ACN
• IEEE 802. Ethernet
• RoHS 2002/95/EC
#103 - 1439 17th Ave SE Calgary AB Canada T2G 1J9 Phone + 1 403 243 8110 orders@pathwayconnect.com www.pathwayconnect.com
© 2017 Acuity Brands Lighting Canada Inc. All Rights Reserved Form #0317-03- Vignette Gateway
1 of 3
6.17
Vignette™ Architectural Gateway

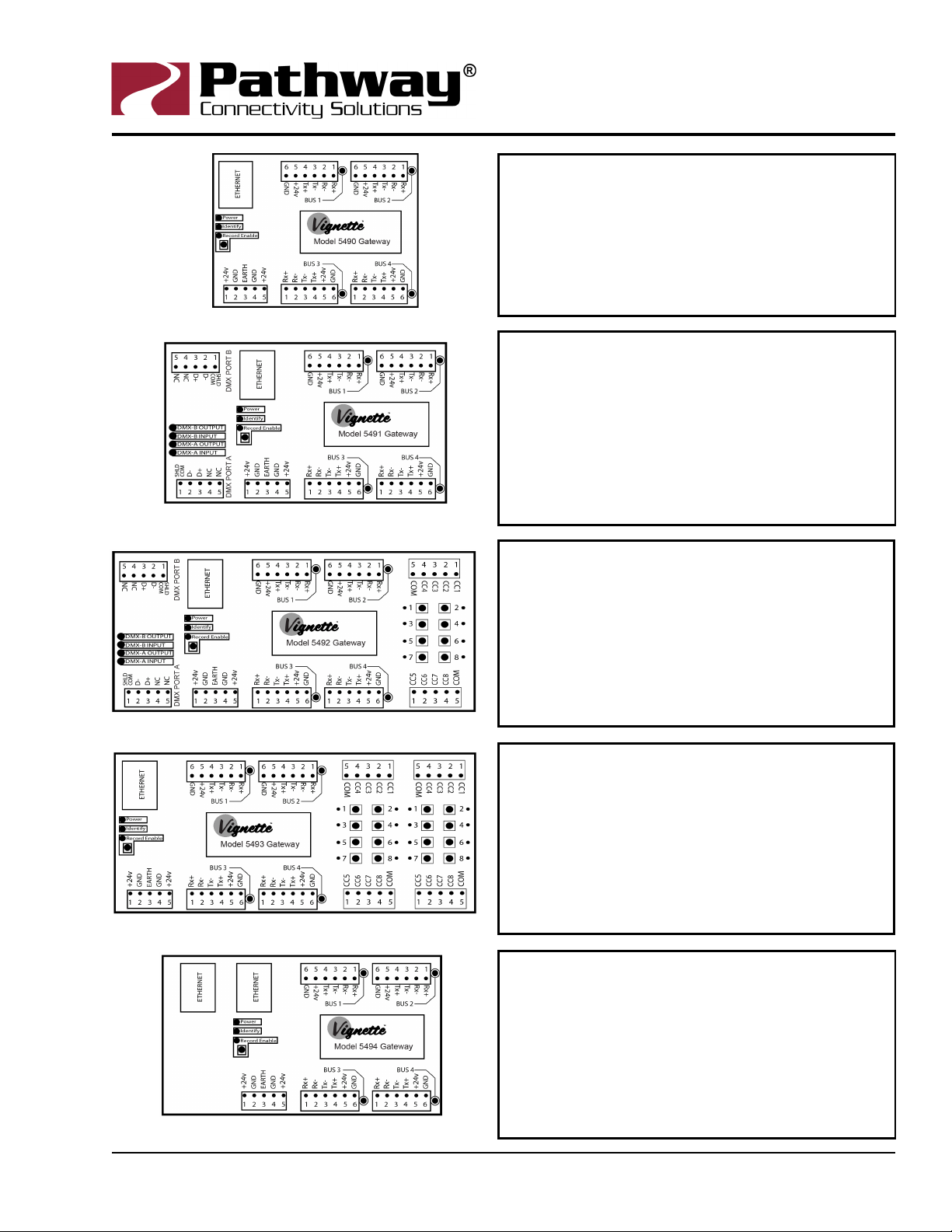

700-5490 Vignette Gateway
• Four buses, each capable of powering 16 inserts
(a 3-gang button station is 3 inserts)
• Zero config out of the box operation
• Ethernet for configuration and sACN capture and playback
• Record Enable button for Press-and-Hold to record a
snapshot on any button when used with Vignette
700-5491 Vignette Gateway with
2 DMX ports
• Four buses capable of powering 64 Vignette inserts
• Two DMX ports, can be configured as In for capture, Out for
Playback of snapshots, or In and Out/Thru for priority or HTP
of Vignette snapshots and theatrical control
• Ethernet configuration using Pathscape and for sACN
capture and playback
700-5492 Vignette Gateway with DMX
and 8 buttons
• Four buses capable of powering 64 Vignette inserts
• DMX and/or sACN capture and playback
• Stand-alone mode with 8 dedicated momentary
buttons and LED indicators allows the 5492 be used
without Vignette stations on the bus
• Eight contact closure for A/V and third-party control
700-5493 Vignette Gateway with 16
Contact Closures
• Four buses capable of powering 64 Vignette inserts
• Local test buttons and LEDs
• Suitable Audio/Video integration or third party push
buttons with or without Vignette stations
• DMX512 and Bus connectors come with IDC and
Compresson fit connectors
700-5494 Vignette Gateway with 2
Ethernet
• Two Ethernets reduces port consumption on switches
• Works without a switch when paired with eDIN 1014
Pathport gateway for recording and playing back 2048 DMX
slots
• 1014 can be configured to HTP two universes between
theatrical console and Vignette snapshots or prioritize show
#103 - 1439 17th Ave SE Calgary AB Canada T2G 1J9 Phone + 1 403 243 8110 orders@pathwayconnect.com www.pathwayconnect.com
© 2017 Acuity Brands Lighting Canada Inc. All Rights Reserved Form #0317-03-Vignette Gateway
2 of 3
6.17
Vignette™ Architectural Gateway
700-5491 Vignette Snapshot across four rooms
700-5494 & eDIN 1014 for two universe Priority/Merge system
