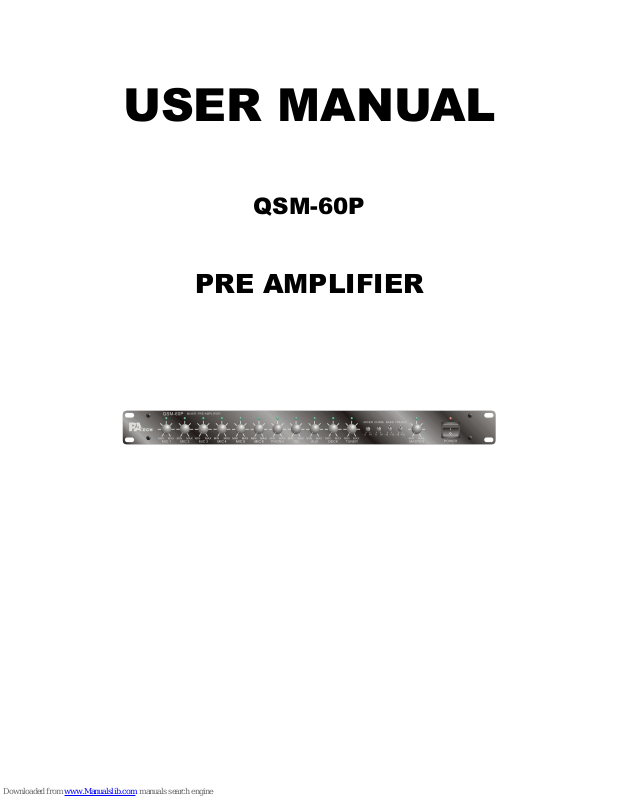

Page 1
USER MANUAL
QSM-60P
PRE AMPLIFIER
Page 2
FRONT PANEL
1. MIC 1 Volume Control 10. DECK Volume Control
2. MIC 2 Volume Control 11. TUNER Volume Control
3. MIC 3 Volume Control 12. MIXER Volume Control
4. MIC 4 Volume Control 13. CHIME Volume Control
5. MIC 5 Volume Control 14. BASS Volume Control
6. MIC 6 Volume Control 15. TREBLE Volume Control
7. PHONO Volume Control 16. MASTER Volume Control
8. CD Volume Control 17. Power On / Off switch
9. AUX Volume Control
REAR PANEL
Page 3
FEATURES
VERSATILE AND CONVENIENT USE
13 channels of input signals from MIC 1-6, PHONO, CD, DECK, TUNER, AUX, CHIME, MIXER are
provided and mixed for versatile and convenient use.
MUTING FOR PRIORITY
Signal from Mic 1, 2, Chime, Mixer automatically activate the muting circuit which temporarily mutes
the signals from other input channels. You needn’t to reduce volume of other input channels. You needn’t
to reduce volume of other input signals when you make an emergency call or announcement by Mic 1, 2,
Chime and Mixer.
HIGH PERFORMANCE CIRCUIT
This pre amplifier employs the high performance circuit, and performs better than 65dB of S/N ratio and
less than 0.1% of THD.
USE OF EMERGENCY BATTERY
You can operate this pre amplifier by using of emergency battery for unexpected AC power failure.
INPUT SIGNAL INDICATING LED
This LED of volume control knob indicates input signal source
TRANSFORMER BALANCED CIRCUIT(OPTION)
Microphone input 6 channel and line output circuit are designed with electronic balanced circuit which
can use mic or line matching transformer optionally.
1. Mains Input Socket 11. AUX output
2. Power Fuse 12. CD output
3. Earth Connection Screw 13. PHONO output
4. LINE output 14. MIC 6 output
5. REC output 15. MIC 5 output
6. CHIME output 16. MIC 4 output
7. MIXER output 17. MIC 3 output
8. DC Power Supply Terminals 18. MIC 2 output
9. TUNER output 19. MIC 1 output
10. DECK output 20. MUTE Volume Control
Page 4
SPECIFICATIONS
ELECTRICAL
ELECTRICAL ELECTRICAL
ELECTRICAL
*0dB=0.775Vrms
Input Sensitivity/Impedance
Input Sensitivity/ImpedanceInput Sensitivity/Impedance
Input Sensitivity/Impedance
MIC 1-6
0.4mV @600Ω, Balanced
PHONO
4mV @50KΩ, Unbalanced
CD
300mV @47KΩ, Unbalanced
DECK
100mV @50KΩ,Unbalanced
TUNER
100mV @50KΩ,Unbalanced
AUX
100mV @50KΩ,Unbalanced
CHIME
700mV @10KΩ,Unbalanced
MIXER
700mV @600Ω,Unbalanced
Output Level/Impedance
Output Level/ImpedanceOutput Level/Impedance
Output Level/Impedance
Line Out
1.2V @600Ω, Balanced
Recording Out
1V @600Ω, Unbalanced
Frequency Response
Frequency ResponseFrequency Response
Frequency Response 50HZ~20KHZ
T.H.D(at 1kHz, rated output)
T.H.D(at 1kHz, rated output)T.H.D(at 1kHz, rated output)
T.H.D(at 1kHz, rated output) ≦1% @ 1KHZ
Signal to Noise ratio
Signal to Noise ratioSignal to Noise ratio
Signal to Noise ratio 65 dB
Tone Control
Tone ControlTone Control
Tone Control Bass 100HZ +/- 12 db
Treble 10KHZ +/- 12 dB
Power Source
Power SourcePower Source
Power Source AC 115V/230V 50/60HZ, DC24V
Power Consumption
Power ConsumptionPower Consumption
Power Consumption AC 9.5W @ Rated Power
DC 1A @ Rated Power
Weight
WeightWeight
Weight 4kgs
Dimensions (mm)
Dimensions (mm)Dimensions (mm)
Dimensions (mm) 44(H)x483(W)x290(D)
Mounting
MountingMounting
Mounting
19”RACK
