February 2009
09-02-27 www.passtech.co.kr 1
SYSTEM COMPONENTS
Key
card
Key Management
System
Card set
Info Terminal
Card Issuing
System
Management
Information system
SETUP
CARD
09-02-27 www.passtech.co.kr 2
TECHNICAL SPECIFICATIONS
ITEM FEATURES
Main CPU 8bit Microprocessor
RF Protocol 13.56Mhz ISO 14443 Type A (basic)
Security Unique key for RF lockers and cards
Power
Operation signal LED (Green/Red) and Beep
History Tracking The latest 18 times use
Operation Mode
Time Recording Built-in Timer
6V battery operated (AA battery 4 pcs.)
External Battery socket for battery
override
External AC power (Optional)
Free selection / Pre-assigned / Multilockers /Multi-users
Matrix / Week-day operation (optional)
Front case : 53.34mm(W) x 19.54mm(D) x
Dimension
Housing Polycarbonate & ABS
Operating
temperature
Safety & Reliability FCC (USA), CE(Europe), MIC (Korea)
68.58mm (H)
Back case : 98.9mm (W) x 34.29mm(D) x
70.00mm (H)
-10°C to +70°C (+14°F to +159°F)
Designed for waterproof
09-02-27 www.passtech.co.kr 3
09-02-27 www.passtech.co.kr 4
BENEFIT OF THE PRODUCTS
Easy Programmable to various operation mode
Free Selection / Pre-assigned mode
Multi Users (upto 9 users for a locker) / Multi Lockers (upto 5 lockers for a user)
Matrix / Week-day operation
Time based program for shifts – time setting for 3 shifts
Easy installation and maintenance
Low installation costs for retrofitting existing lockers
Program upgrade at site by using embedded
communication socket without dismantle the ZP-100.
Just issue new User card in the event User card is lost.
No need to replace the ZP-100.
Flexibility in setting the RF locker locks.
- Setting ZP-100 is possible before or after the ZP-100 installation.
Suitable for all types of lockers (wood, metal, and HPL)
09-02-27 www.passtech.co.kr 5
BENEFIT OF THE PRODUCTS
Simple programming the RF locker Lock and management
Just touch the keycard and setup card on the ZP-100, then setting is finished.
By using MIS program, operator can supervisde the RF locks in a system.
- Low battery, Locker occupancy (Pre-Assigned), Tracking the locker usage,
statistics generation, User card management
Possible to change the RF locker lock program without dismantling ZP-100 in
the event Locker operation mode needs to be changed.
.
Unique Key with the highest Key Security by Triple DES sucurity
algorithm
Same Security level used in Banking Smart cards.
Variable unique key for each card
09-02-27 www.passtech.co.kr 6

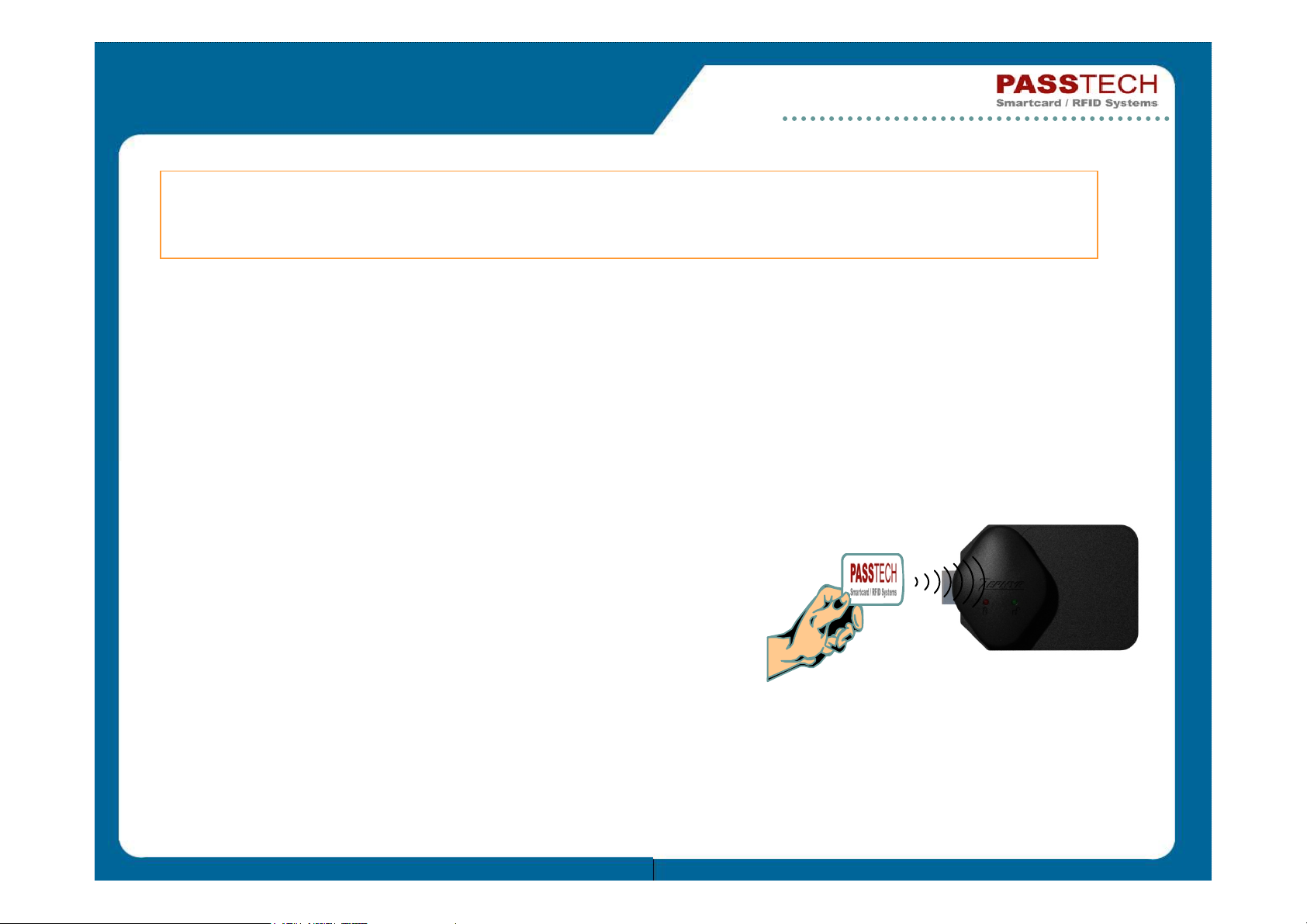

ZP-100 OPERATION
Wake-up by touch sensor & 13.56Mhz ISO 14443 Type A RF based operation
Off-line 6V battery operated (basic) / On-line AC Power (Optional)
I. Free Selection
- Intial Status : Bolt is recessed (door open)
Put closely the card on the front cover of
the ZP-100
ZP-100 read the card validity and key, then
write the Locker information to the card.
Bolt comes out from the back housing, and
Locker is closed.
Put closely the card on the front cover of the
ZP-100.
ZP-100 autheneticates the card, and releses
the ZP-100.
09-02-27 www.passtech.co.kr 7
ZP-100 OPERATION
II. Pre-Assigned Mode
- Intial Status : Bolt comes out (door closed)
Put closely the card on the front cover of
the ZP-100
ZP-100 authenticates the Card (Locker
number, key, and validity).
Bolt is released after the authentication
process.
Bolt operation can be set as semi-automatic
cycle or full automatic cycle.
09-02-27 www.passtech.co.kr 8

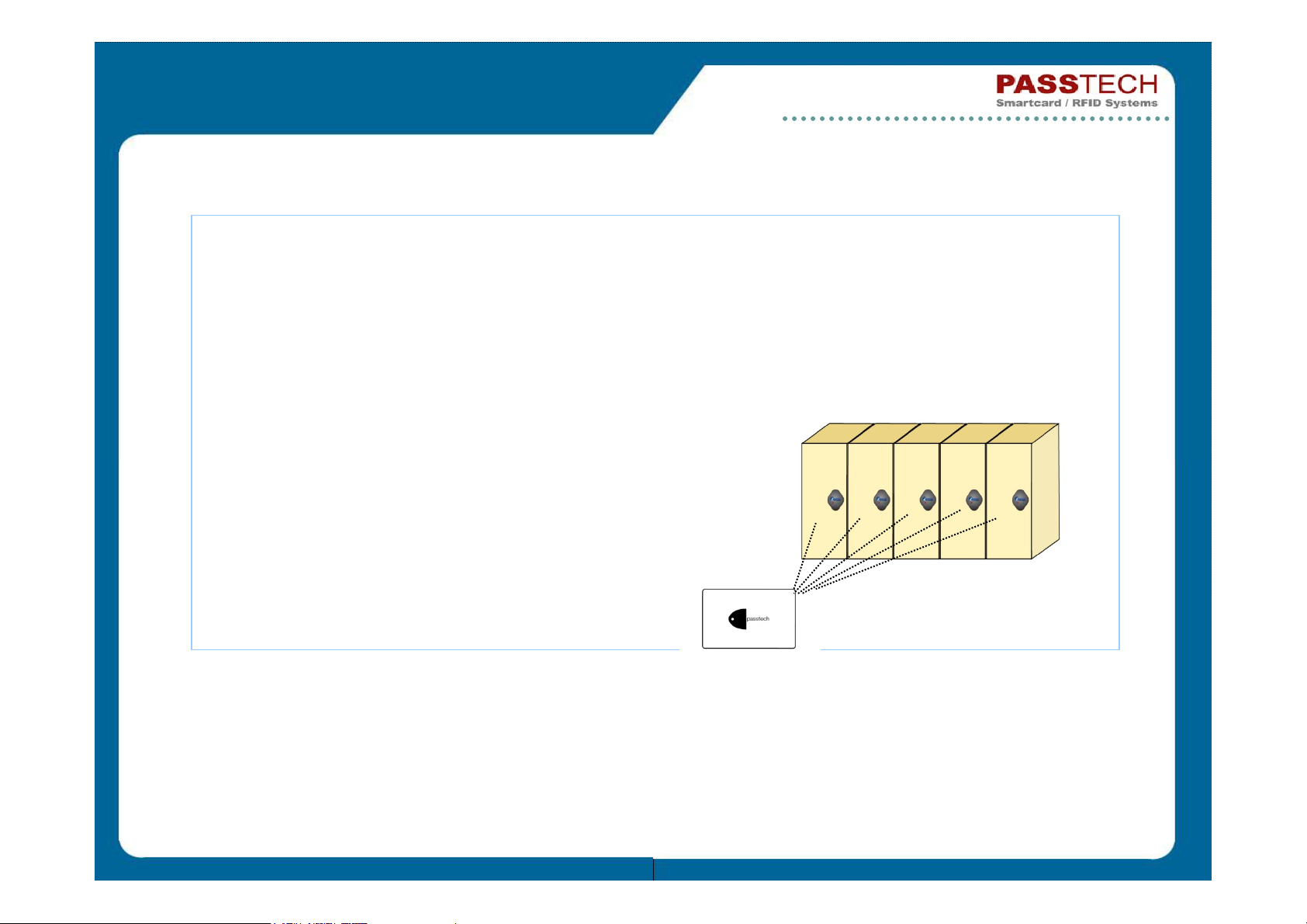

OPERATION MODE
z Free Selection Mode
- User can select any empty locker.
- LED lamp is blinked to represent locker is empty.
- Programmable to use multiple locks with
one User card (max. 5 lockers)
- Programmable to Time based operation
09-02-27 www.passtech.co.kr 9
OPERATION MODE
z Pre-Assigned Mode
- Assigned locker number is registered on the
card when card is issued.
- ZP-100 check the locker number ad validty of the
card.
- Programmable to use multiple assigned lockers
with one card (max. 5 lockers in current program).
- Programmabel to use multiple user mode.
User User
09-02-27 www.passtech.co.kr 10
User
User
User

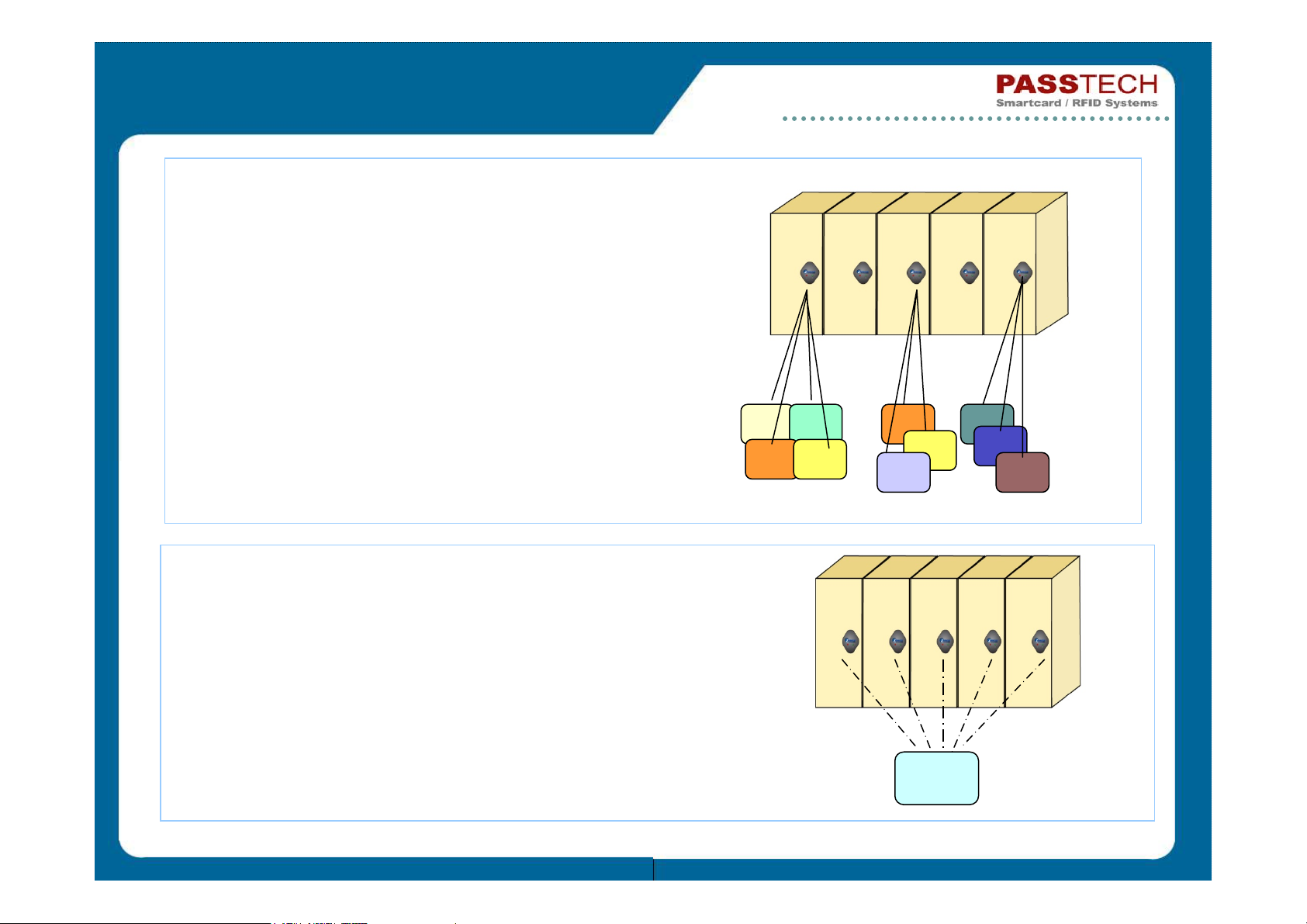

OPERATION MODE
zMulti-user Mode
- Multi user can share one locker.
- Appliable to both Free Selection and PreAssigned Operation mode.
- Current program setting : upto 9 users can
share a RF locker.
z Multi-Locker Mode
- One user can use multiple lockers.
- Current program setting : upto 5 lockers can be
occupied by a User
- Applicable to both Free Selection and Pre-Assigned
User
Operation mode.
09-02-27 www.passtech.co.kr 11
OPERATION MODE
z Matrix Mode
- It is a mixed operation mode of Multiple locker Mode and Multi User Mode.
- A ZP-100 can accept upto 9 users.
User User
09-02-27 www.passtech.co.kr 12
User
User
