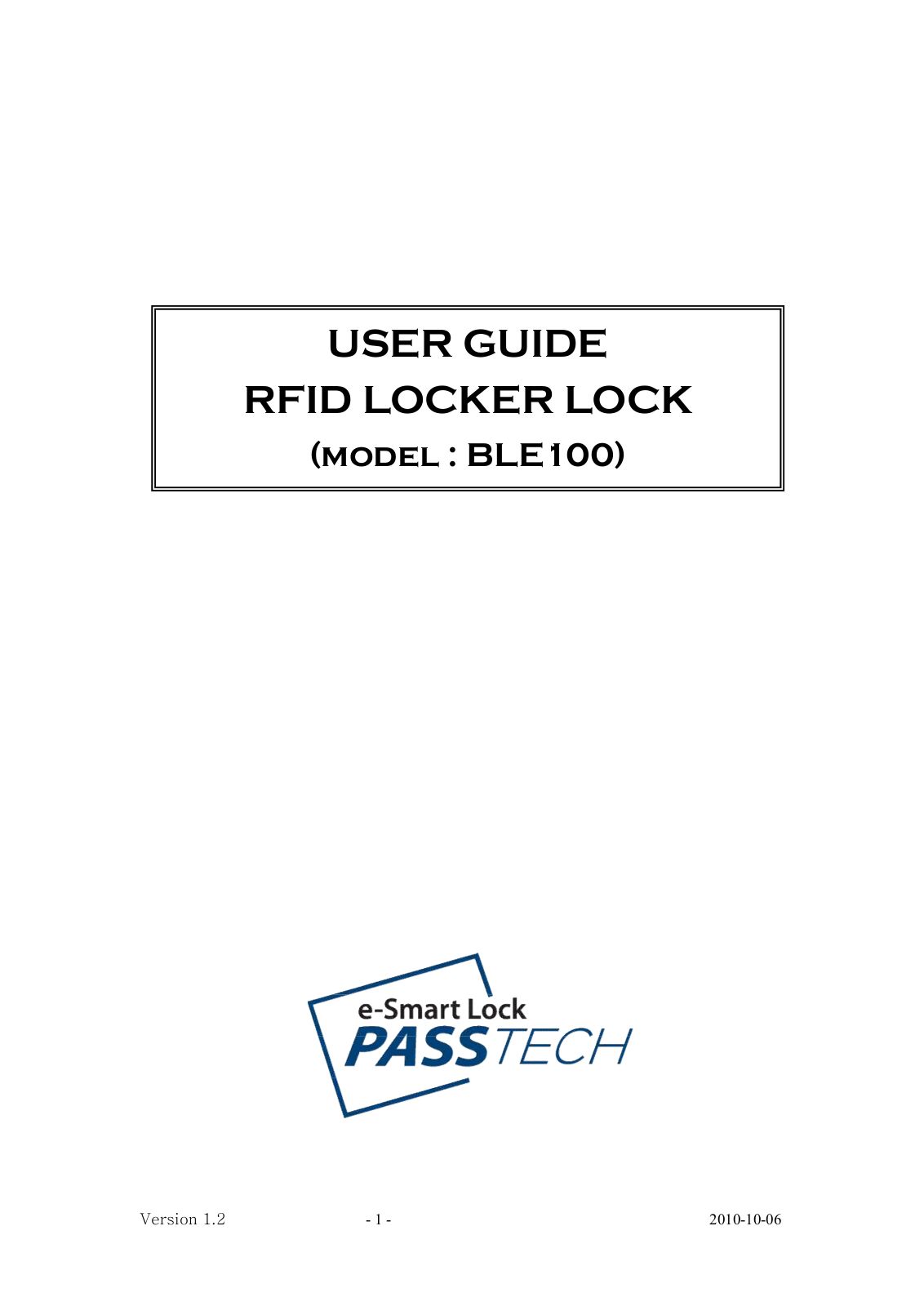

USER GUIDE
RFID LOCKER LOCK
(model : BLE100)
Version 1.2 - 1 - 2010-10-06

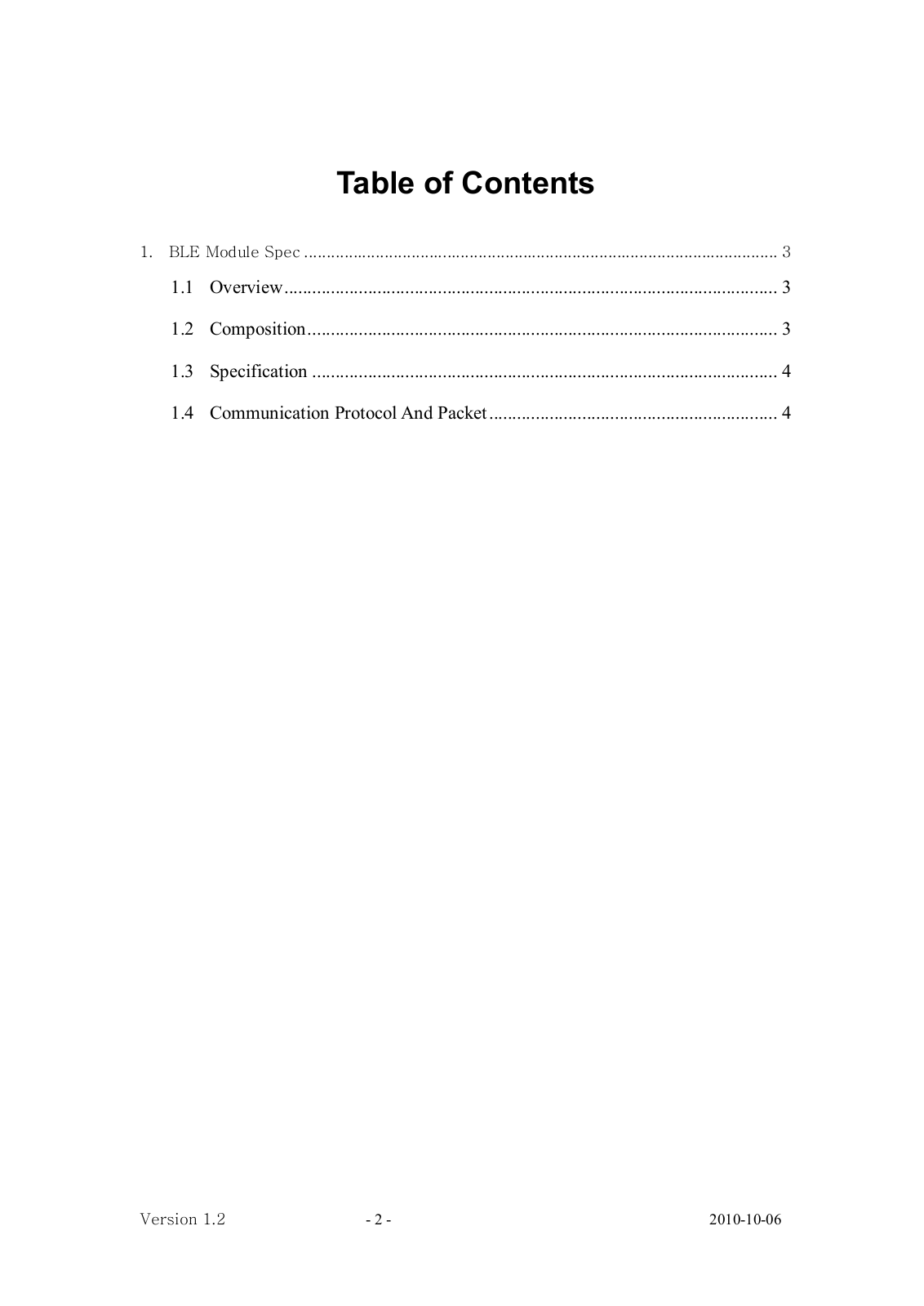

Table of Contents
1. BLE Module Spec .......................................................................................................... 3
1.1 Overview .......................................................................................................... 3
1.2 Composition ..................................................................................................... 3
1.3 Specification .................................................................................................... 4
1.4 Communication Protocol And Packet .............................................................. 4
Version 1.2 - 2 - 2010-10-06

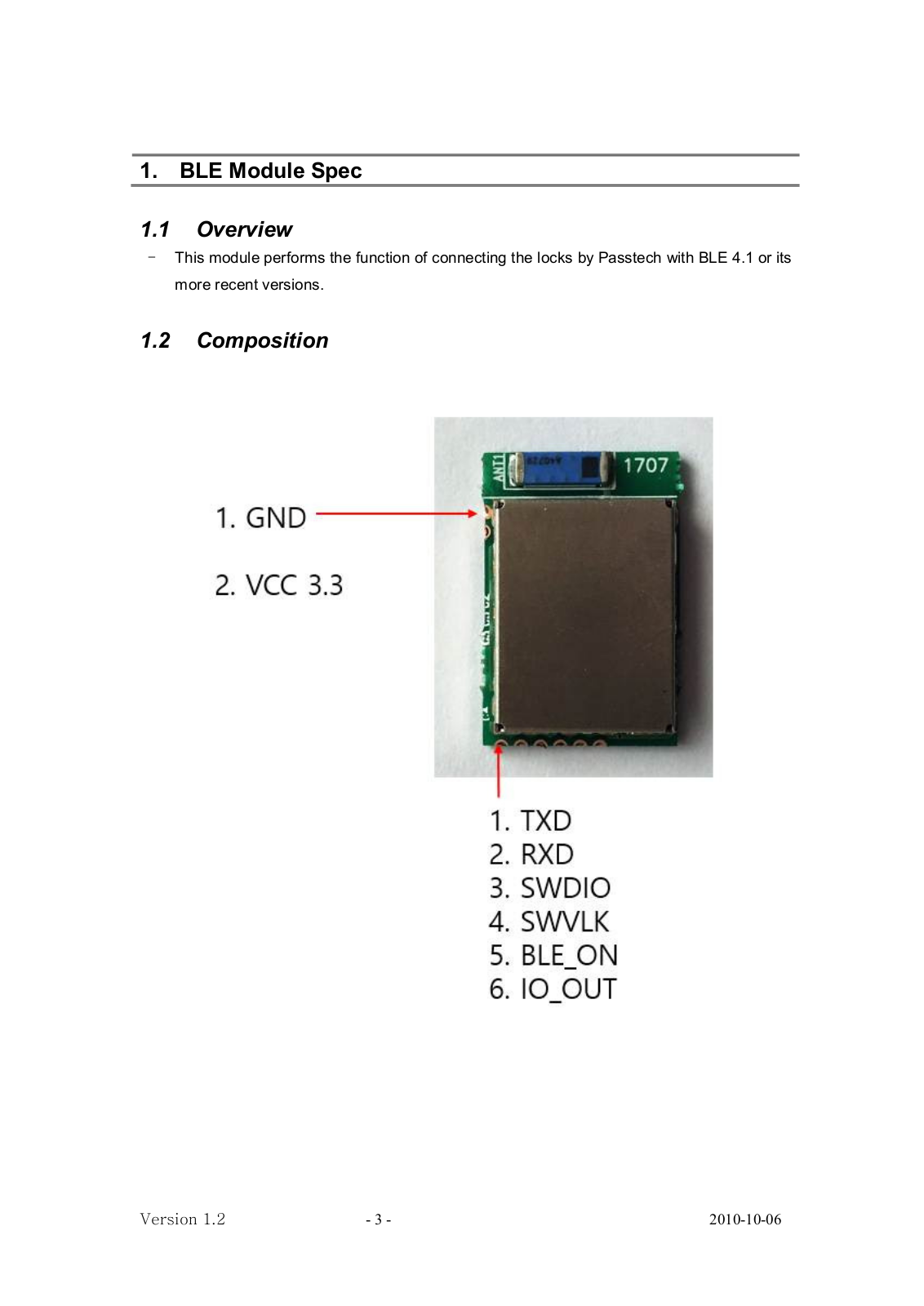

1. BLE Module Spec
1.1 Overview
- This module performs the function of connecting the locks by Passtech with BLE 4.1 or its
more recent versions.
1.2 Composition
Version 1.2 - 3 - 2010-10-06

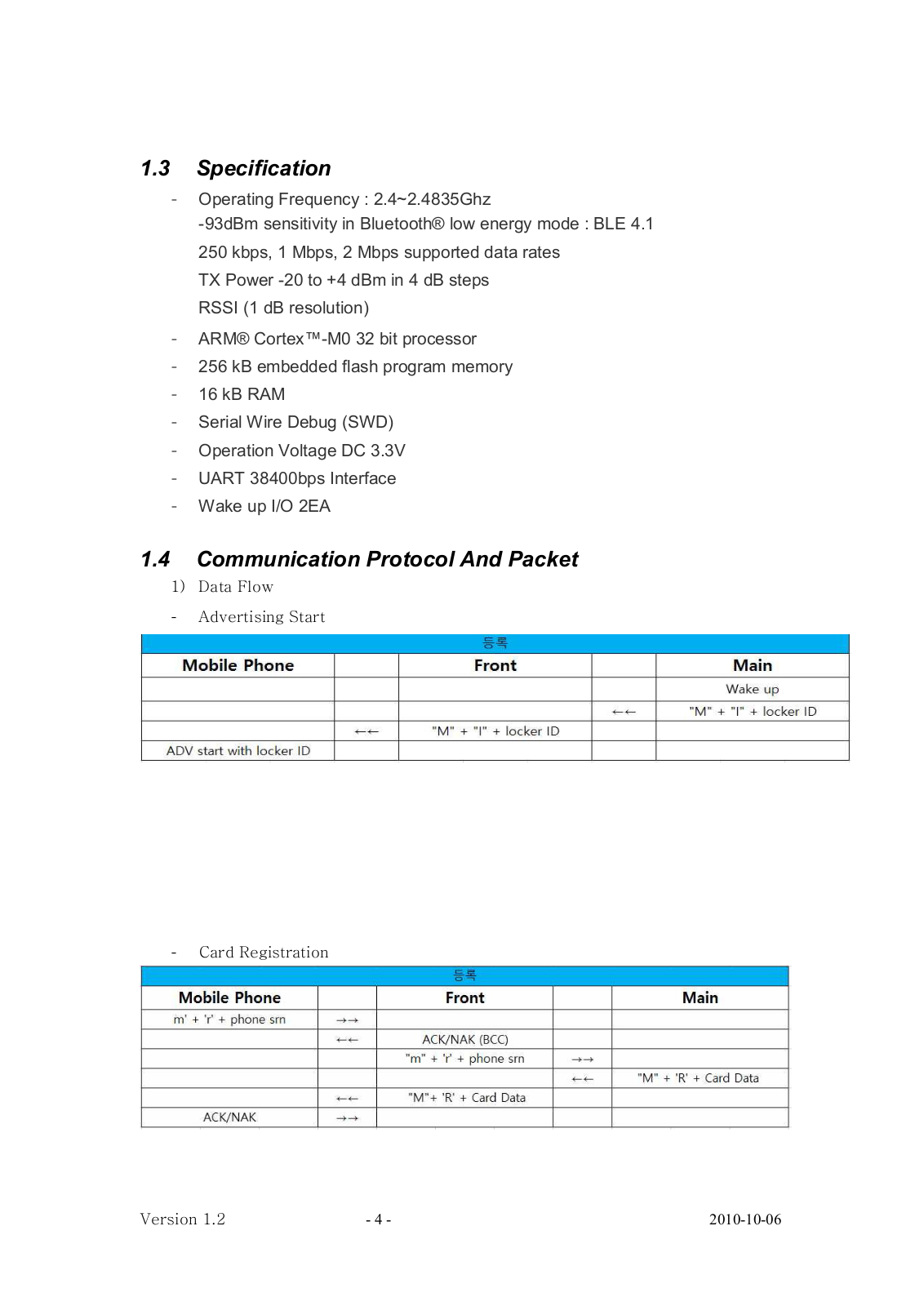

1.3 Specification
- Operating Frequency : 2.4~2.4835Ghz
-93dBm sensitivity in Bluetooth® low energy mode : BLE 4.1
250 kbps, 1 Mbps, 2 Mbps supported data rates
TX Power -20 to +4 dBm in 4 dB steps
RSSI (1 dB resolution)
- ARM® Cortex™-M0 32 bit processor
- 256 kB embedded flash program memory
- 16 kB RAM
- Serial Wire Debug (SWD)
- Operation Voltage DC 3.3V
- UART 38400bps Interface
- Wake up I/O 2EA
1.4 Communication Protocol And Packet
1) Data Flow
- Advertising Start
- Card Registration
Version 1.2 - 4 - 2010-10-06

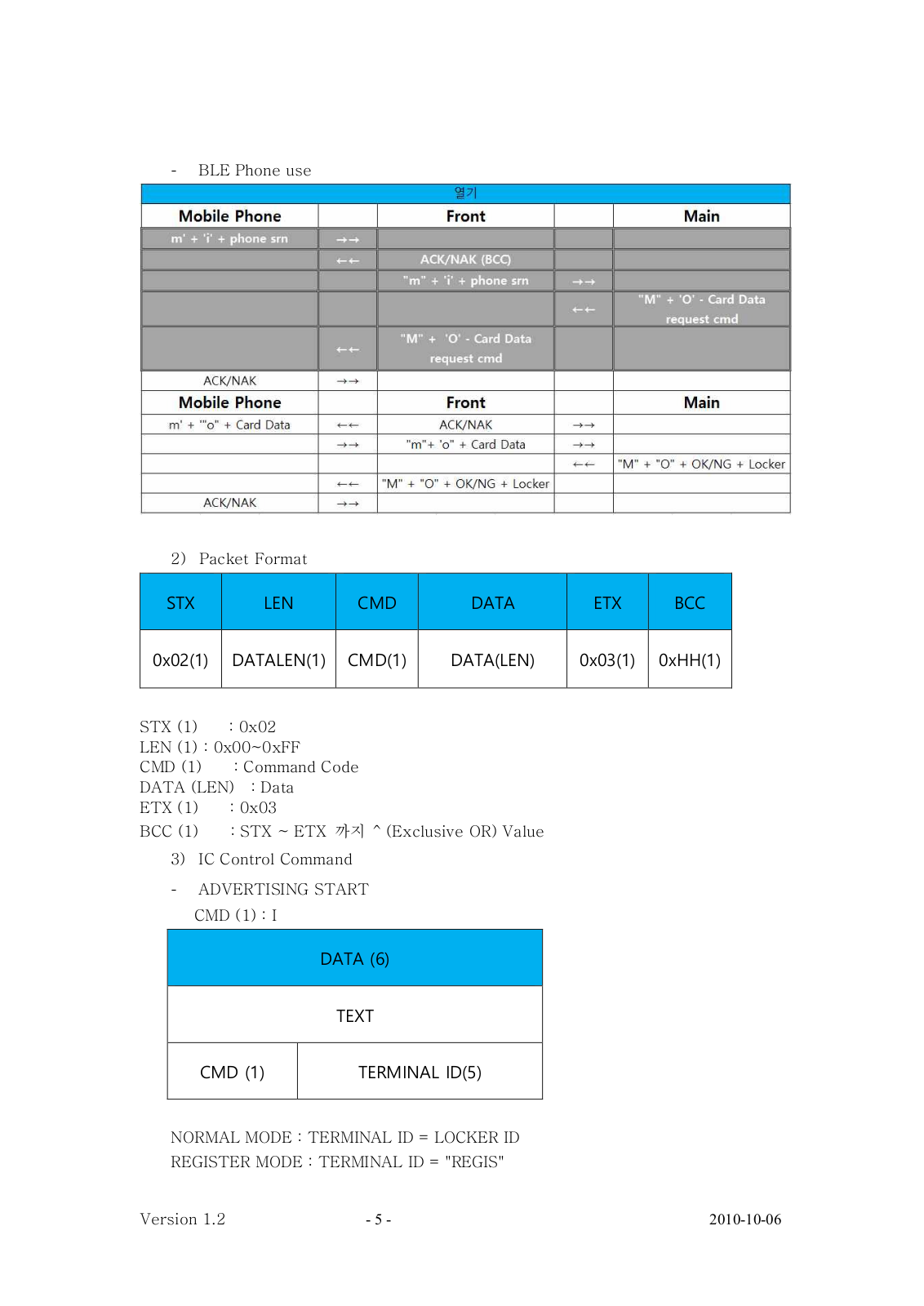

- BLE Phone use
STX
LEN
CMD
DATA
ETX
BCC
0x02(1)
DATALEN(1)
CMD(1)
DATA(LEN)
0x03(1)
0xHH(1)
DATA (6)
TEXT
CMD (1)
TERMINAL ID(5)
2) Packet Format
STX (1) : 0x02
LEN (1) : 0x00~0xFF
CMD (1) : Command Code
DATA (LEN) : Data
ETX (1) : 0x03
BCC (1) : STX ~ ETX 까지 ^ (Exclusive OR) Value
3) IC Control Command
- ADVERTISING START
CMD (1) : I
NORMAL MODE : TERMINAL ID = LOCKER ID
REGISTER MODE : TERMINAL ID = "REGIS"
Version 1.2 - 5 - 2010-10-06
DATA (2)
TEXT
CMD (1)
STATE (1)
DATA (3)
TEXT
CMD (1)
종류 (1)
STATE (1)

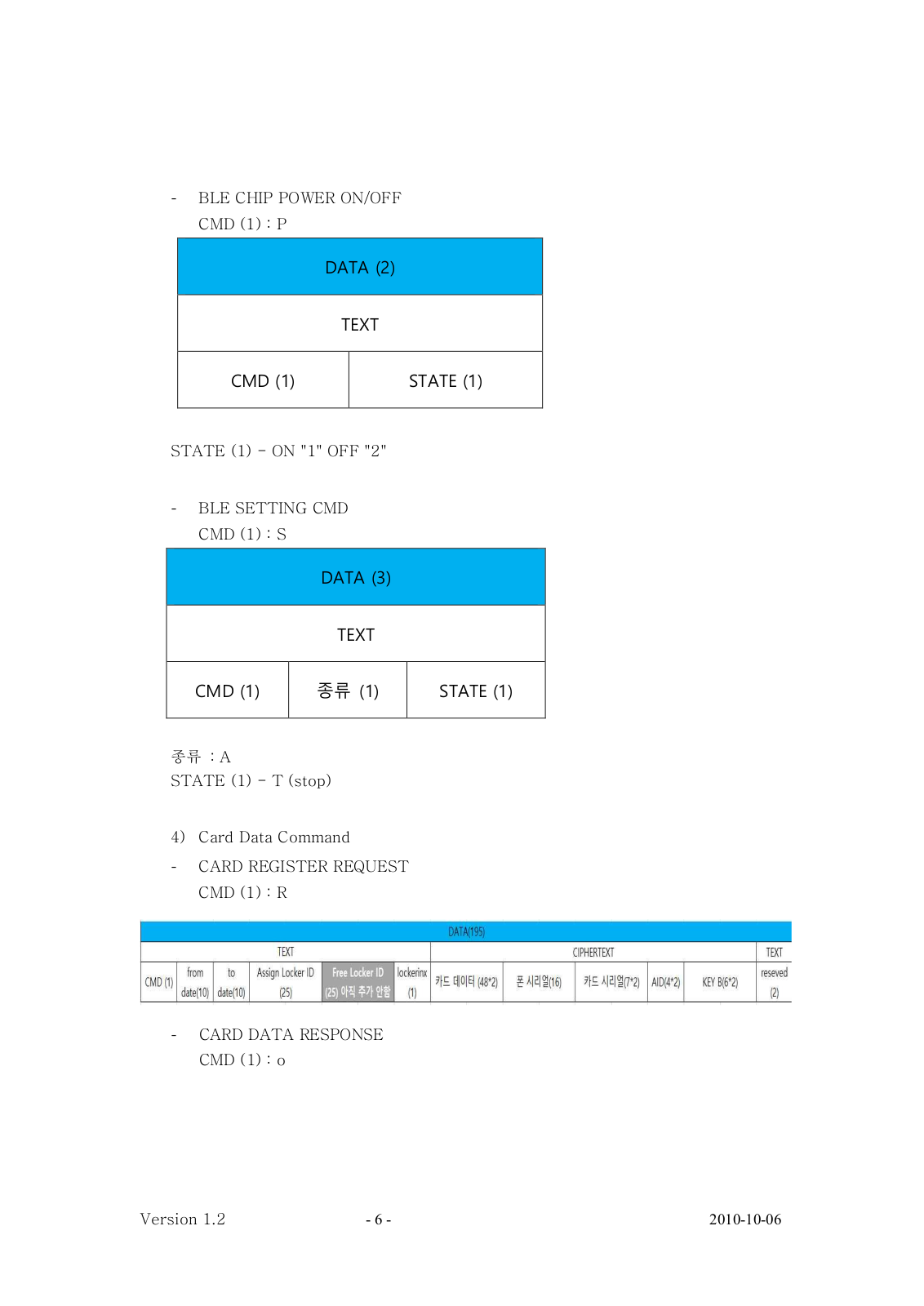

- BLE CHIP POWER ON/OFF
CMD (1) : P
STATE (1) - ON "1" OFF "2"
- BLE SETTING CMD
CMD (1) : S
종류 : A
STATE (1) - T (stop)
4) Card Data Command
- CARD REGISTER REQUEST
CMD (1) : R
- CARD DATA RESPONSE
CMD (1) : o
Version 1.2 - 6 - 2010-10-06
DATA (17)
TEXT
CMD (1)
폰 시리얼(16)
DATA (15)
TEXT
CMD (1)
0x20 (14)
DATA (15)
TEXT
CMD (1)
OK/NG (2)
Locker ID (5)
0x20 (7)

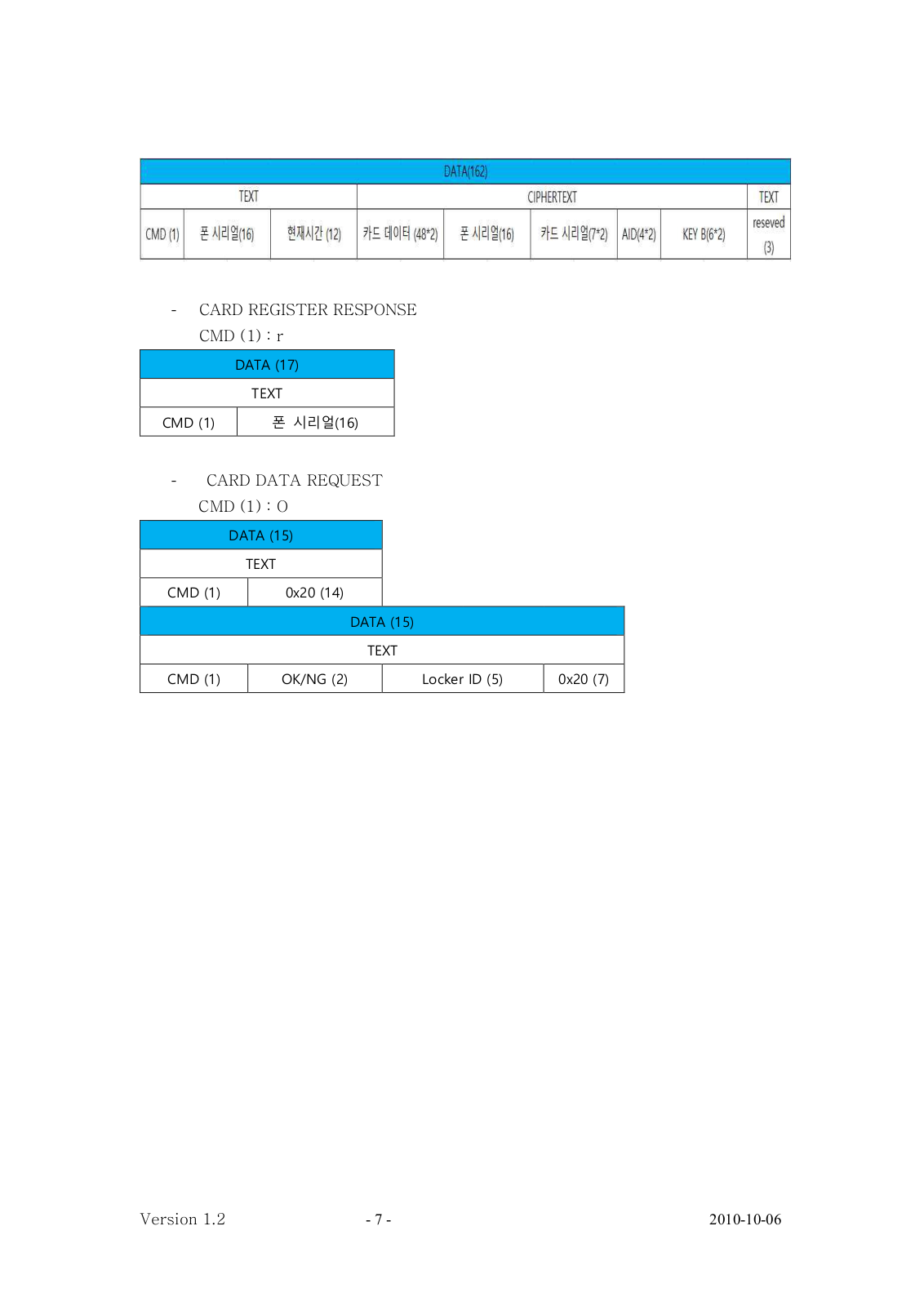

- CARD REGISTER RESPONSE
CMD (1) : r
- CARD DATA REQUEST
CMD (1) : O
Version 1.2 - 7 - 2010-10-06
