PASQUALICCHIO CL 20-110 SCHEDA TECNICA

Page 1
Design, Quality & Production Made in Italy
CALDAIE A LEGNA
CL
Caldaie | Termostufe | Termocamini | Stufe
www.pasqualicchio.it
Scheda Tecnica Data Sheet
Page 2
Caratteristiche tecniche / Technical Specications
CL
Focolare [kW] / Firebox output 24,0 34,0 44,0 55,0 77,7 100,0 122,0
Nominale [kW] / Nominal output 20,5 29,3 38,8 47,1 67,3 85,2 105,4
Rendimento a Pmin-Pmax (%) / Combustion efficiency Pmin-Pmax (%) 85,5 86,2 86,4 85,7 86,6 85,2 86,4
Misure Camera di combustione (Lu x La x H) [mm] / Combustion
chamber dimensions ( Len. x W x H)
Mandata/Ritorno Impianto (‘’) / System Outlet/Inlet (‘’) 1-1/4’’ 1-1/4’’ 1-1/4’’ 1-1/4’’ 1-1/2’’ 2’’ 2’’
Massima Pressione di esercizio [bar]
Maximum working pressure [bar]
Contenuto Acqua [Lit] / Water Capacity [Lit] 76 90 101 114 175 193 214
Consumo Combustibile [kg/h]* / Fuel Consumption [kg/h]* 4,8 6,8 8,8 11,0 15,5 20,0 24,4
Temperatura mandata massima (°C) / Max Outlet Temperature (°C) 85 85 85 85 85 85 85
Temperatura minima ritorno (°C) / Max Inlet Temperature (°C) 50 50 50 50 50 50 50
500*300*400 540*350*400 540*450*400 610*450*400 730*450*500 730*500*500 730*550*500
3 3 3 3 3 3 3
CALDAIE A LEGNA
* I valori sono stati calcolati prendendo come riferimento un combustibile avente potere calorico inferiore a 5 [kW * h / kg].
* The values have been calculated taking as reference a fuel with a caloric value lower than 5 [kW * h/kg].
Page 3

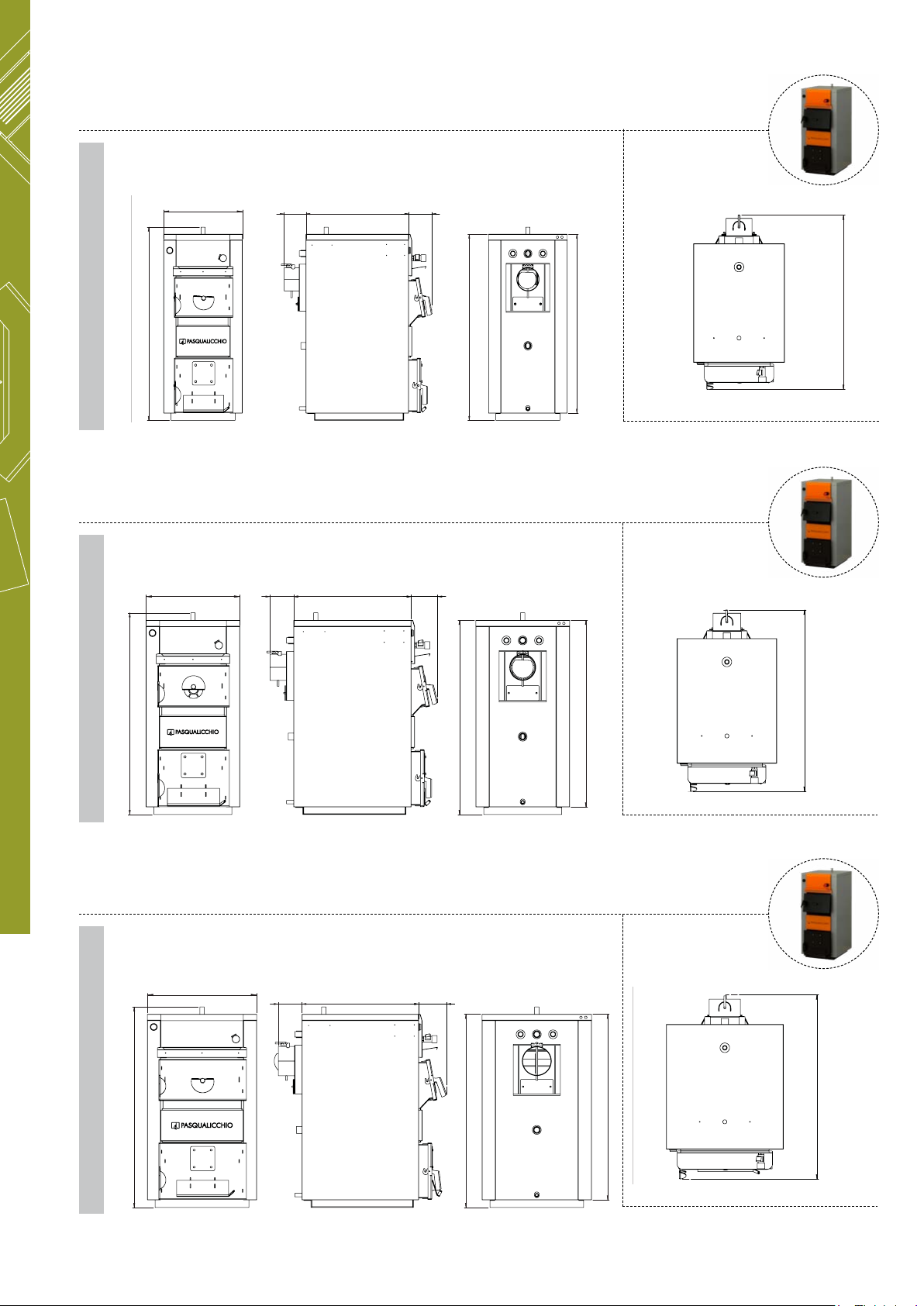

Scheda tecnica / Design options
525
1237
146 685 156
1192
1146
525
1237
146 685 156
1192
1146
1237
1237
575
1237
146 720 162
1192
1146
675
1237
146 720 172
1192
1146
CL 20
Scheda tecnica / Design options
1006
CALDAIE A LEGNA
CL 30CL 40
575
Scheda tecnica / Design options
675
146 720 162
146 720 172
1192
1146
1047
1192
1146
1063
Page 4
146 915 127
1291
1246
146 915 164
1291
1246
1291
1246
1291
1246
1291
675
1337
146 915 127
1291
1246
725
1337
146 915 164
1291
1246
Scheda tecnica / Design options
675
1237
146 795 164
1192
1146
675
1237
146 795 164
1192
1146
CL 50
Scheda tecnica / Design options
1105
CALDAIE A LEGNA
CL 70CL 90
146 915 127
675
1337
Scheda tecnica / Design options
725
146 915 164
1291
1246
1238
1337
1246
1238
Page 5
Scheda tecnica / Design options
146 915 164
1291
1246
1291
1246
1291
775
1337
146 915 164
1291
1246
CL 110
775
146 915 164
1337
1246
1238
CALDAIE A LEGNA
