PASCO Pasport PS-2140 Instruction Sheet

Instruction Sheet

Light

Aperture

Ambient

Temperature

Aperture

Sound

Aperture

Temperature

Probe Port

Sensor

PASPORT

Input Port

Interface

012-08533B

Temperature/Sound Level/Light Sensor

PS-2140

Setup the Sensor

• Plug the sensor into one of the PASPORT input ports of
a PASCO PASPORT-compatible interface.

.

Required Items*

PASCO Interface

PASCO Data Acquisition Software

*See the PASCO catalog or the PASCO web site at www.pasco.com
for more information.

Recommended Items*

Stainless Steel Temperature Probe (PS-2153)

Fast Response Temperature Probes (PS-2135)

PASPORT Sensor Extension Cable (PS-2500)

Introduction

The PS-2140 Temperature/Sound Level/Light Sensor mea­sures ambient temperature, probe temperature, sound level in
decibels (dB), and light level (light intensity) in lux (lumens
per square meter). Ambient temperature is automatically
recorded through the Ambient Temperature Aperture and
does not need a temperature probe. Probe temperature refers
to the measurement from a probe connected to the Tempera­ture Probe Port on the side of the sensor. Any PASCO tem­perature probe with a 2.5 millimeter (mm) phone plug can be
connected to the temperature probe port.

The sensor is designed to work with a PASPORT-compatible
interface (such as the UI-5100 850 Universal Interface) and
PASCO data acquisition software (such as PASCO Cap­stone) to measure charge and voltage.

NOTE: If more distance is needed between the sensor and
the interface, plug the sensor into the included Sensor Exten­sion Cable, and then plug the cable into the interface.

• Start the PASCO data acquisition software.

Using PASCO Capstone Software

• Click the “Hardware Setup” icon in the Tools palette to
open the “Hardware Setup” panel. Confirm that the sen­sor icon appears with the interface’s icon.

• Click one of the display templates in the Capstone work­book page, or double-click an icon in the “Displays”
palette to open a data display.

• Setup the data display to show what is to be measured
and the units for displaying the data.

Using SPARKvue Software

• Connect the sensor to a SPARKvue-compatible inter­face and start the software. The sensor parameter screen
opens and shows the list of measurements for the sensor.

• In the sensor parameter screen, touch the measurement
name, and then touch ‘Show’ to open a graph display.

• To change the measurement or the units, touch the
“Graph Tools” icon ( ) and then touch the “Display
Properties” icon ( ).

Record Data

• If needed, press the ZERO button on the sensor.

• Click “Record” or touch ‘Start’ to begin recording data.

Temperature/Sound Level/Light Sensor Specifications

Temperature

Probe Port

More Information

For more information about collecting, recording, displaying
and analyzing data, refer to the User’s Guide or Online Help
System for the data acquisition software.

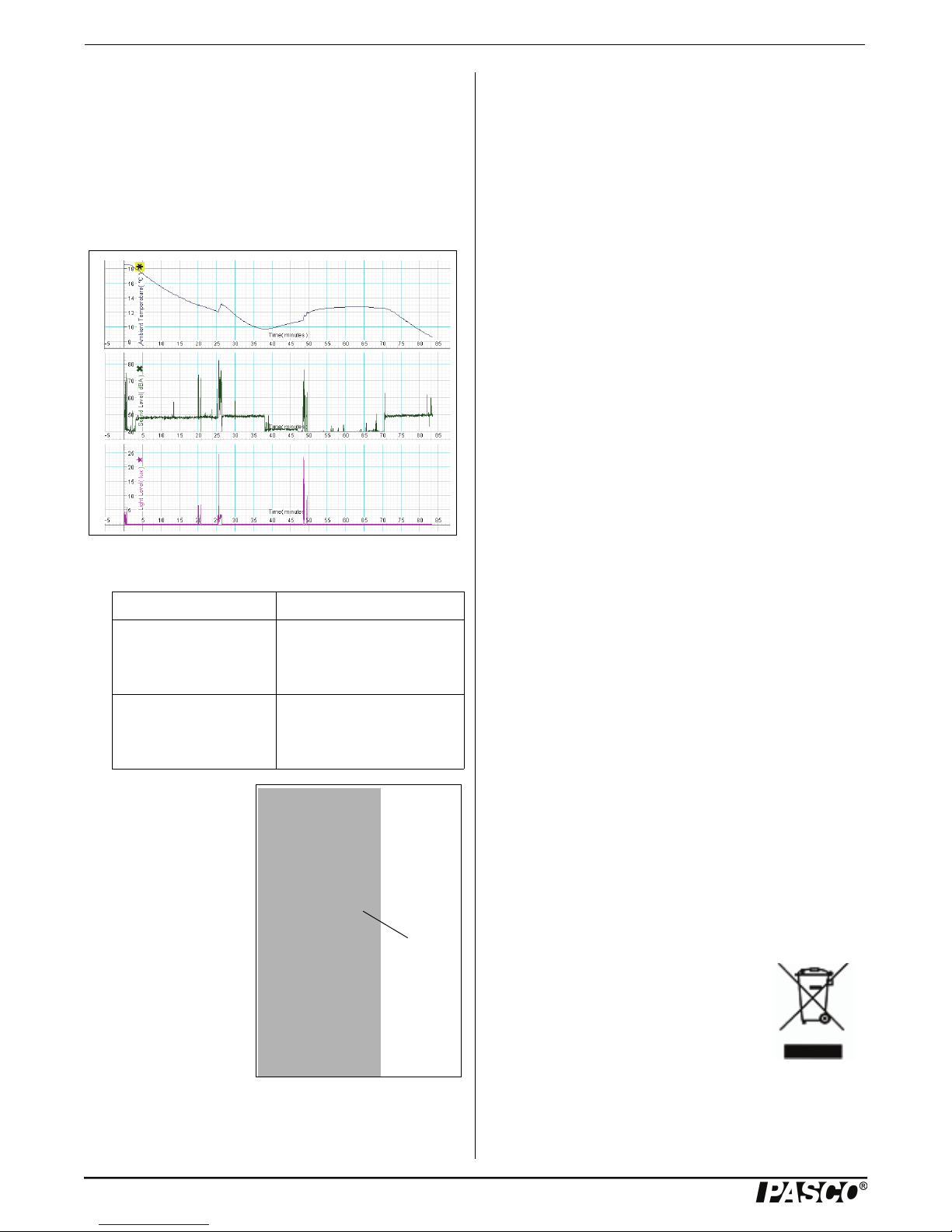

Sample Data

The following graph display shows data for Temperature,
Sound Level, and Light Intensity changes inside a refrigera­tor.

Specifications

Tip: When using the Temperature/Sound Level/Light Sensor
with a PASCO datalogger for prolonged measurements
(more than 55 minutes), ensure that the PASCO datalogger
contains new or charged batteries.

Suggested Applications

• Studying light absorption, sound acoustics, thermal
energy transfer (conduction, convection, and radiation).

• Environmental, greenhouse, and ecological studies.

• Comparing temperature, light, and sound from different
electrical devices.

More Information

For the latest information about the sensor, visit
www.pasco.com and enter “PS-2140” in the Search window.

Technical Support

For assistance with any PASCO product, contact PASCO at:

Address: PASCO scientific

10101 Foothills Blvd.
Roseville, CA 95747-7100

Phone: [phone] (worldwide)

800-772-8700 (U.S.)

E-mail: [e-mail]

Web www.pasco.com

Item Item

Ambient Temperature:
Range: -10° to 50°C
Accuracy: ±2°C
Resolution: 0.01°C

Probe Temperature*:
Range: -35°C to 135°C
Accuracy: ±0.5°C
Resolution: 0.01°C

(*The range, accuracy and
resolution of the Probe
Temperature measurement
will vary with the type of
probe connected to the
sensor.)

Light:
Range: 0 to 5249 lux
Accuracy: ±2 dB
Resolution: 0.1 lux

Sound Level:
Range: 40 to 90 dBA
Accuracy: ±3 dB
Resolution: 0.1 dB

Sensor Usage

Tip: Do not point the
Light Aperture at the Sun
for more than a few min­utes.

Tip: If connecting two or
more Temperature/Sound
Level/Light Sensors to a
multi-port PASCO inter­face, don’t plug the sen­sors side-by-side. Placing the sensors too close to each other
may block a sensor’s Temperature Probe Port.

Limited Warranty For a description of the product warranty, see the
PASCO catalog. Copyright The PASCO scientific Instruction Sheet
is copyrighted with all rights reserved. Permission is granted to
non-profit educational institutions for reproduction of any part of this
manual, providing the reproductions are used only in their laborato­ries and classrooms, and are not sold for profit. Reproduction under
any other circumstances, without the written consent of PASCO sci­entific, is prohibited. Trademarks PASCO, PASCO Capstone,
PASPORT, SPARK Science Learning System, SPARK SLS, and
SPARKvue are trademarks or registered trademarks of PASCO sci­entific, in the United States and/or in other countries. For more infor­mation visit www.pasco.com/legal.

Product End of Life Disposal Instructions:

This electronic product is subject to disposal and recycling regula­tions that vary by country and region. It is your responsibility to recy­cle your electronic equipment per your local environmental laws and
regulations to ensure that it will be recycled in a manner that protects
human health and the environment. To find out where you can drop
off your waste equipment for recycling, please contact your local
waste recycle/disposal service, or the place where you purchased
the product.

The European Union WEEE (Waste Electronic
and Electrical Equipment) symbol (to the right)
and on the product or its packaging indicates
that this product must not be disposed of in a
standard waste container.
