Parweld DP323C, DP403SW, DP503SW, DS403SW User Manual
ISSUE 2
User Manual
DP323C
USER AND MAIINTENANCE MANUAL
Parweld would like to thank you for choosing this machine; if used according to the instructions reported in this user and
maintenance manual, it will accompany you in your work for many years without any problems. This manual is an integral
part of the machine and must accompany it whenever moved or resold. The user is responsible for making sure the machine
is complete and in good working order. The manufacturer has the right to make changes at any time, without notice. No
part of this manual may be translated into another language, adapted or reproduced with any means (including scanned
documents, photocopies, film and microfilm) without the prior written consent of the manufacturer
INDEX
• CAUTION ......................................................................................... page. 2, 3, 4
NOMINAL DATA ..................................................................................................... page 5
1. GENERAL SPECIFICATIONS AND NOTES FOR CONSULTING
THIS MANUAL ............................................................................................... page 6
2. DESCRIPTION OF THE EQUIPMENT .......................................................... page. 6
3. LOADING THE WELDING WIRE................................................................... page. 9
4. MIG/MAG WELDING...................................................................................... page. 10
4. 1 Manual Short Arc MIG Welding ................................................................... page. 10
4. 2 Synergic Short Arc MIG WELDING ............................................................ page. 11
4. 3 Pulse synergic MIG WELDING ................................................................... page. 13
5. MIG WELDING CONECTOR.......................................................................... page. 14
5. 2 CONNECTOR FOR MIG WELDING with a traditional torch....................... page. 15
5. 3 CONNECTOR FOR MIG WELDING with a Spool or Push-Pull torch ...... page. 15
6. STRIKING AN ARC IN MIG WELDING.......................................................... page. 15
7. ADJUSTING THE WELDER........................................................................... page. 15
8. HOW TO ACHIEVE THE BEST WELDING RESULTS.................................. page. 15
9. MMA WELDING.............................................................................................. page. 16
9. 1 MMA WELDING Manual ............................................................................... page. 16
10 WELDING TABLE.......................................................................................... page. 17
11 CONNECTION FOR MMA WELDING............................................................ page. 17
12. IGNITING THE MMA ARC ............................................................................. page. 17
13. TIG WELDING................................................................................................ page. 18
13. 1 TIG WELDING (Lift-Arc) ............................................................................... page. 18
14. CONNECTOR FOR TIG WELDING ............................................................. page. 19
15. IGNITION OF THE TIG ARC.......................................................................... page. 19
16. POWER CONNECTOR.................................................................................. page. 20
17. REMOTE CONNECTION ............................................................................... page. 20
17.1 REMOTE CONTROL OF THE WELDING CURRENT ................................... page. 20
18. CONNECTING THE OUTPUTS .................................................................... page. 20
19. CONNECTING THE GAS CYLINDER AND THE GAS REGULATOR page. 20
20. ORDINARY MACHINE MAINTENANCE........................................................ page. 21
22. MEMORISING THE WORK POINT................................................................ page. 21
23. LOCKING A WORK POINT............................................................................ page. 21
24. TROUBLESHOOTING ................................................................................... page. 24
25. BLOCK DIAGRAM WIRE FEEDER............................................................... page. 25
26. BLOCK DIAGRAM GENERATOR.................................................................. page. 25
27. SPARE PARTS DP403SW........................ .................................................... page. 26
28. SPARE PARTS DP503SW............. ............................................................... page. 27
29. SPARE PARTS WIRE FEEDER .................................................................... page. 28
CONTENTS
2
www.parweld.com
3
www.parweld.com
4
www.parweld.com
5
www.parweld.com
1. GENERAL SPECIFICATIONS AND
NOTES FOR CONSULTING THIS MANUAL
The DS323C, welders is made using
INVERTER technology. They are extremely compact and versatile
devices that can be used in all those situations that require minimum
obstruction, combined with the highest performance.
These welders use both manual and synergic
MMA, TIG and MIG/MAG (short arc, pulse or double pulse).
The innovative operator interface system, which uses a large
5,7” TFT colour screen, allows for simple and intuitive use of the
equipment, without renouncing on the possibility to personalise all
of the welding settings. All of the main parameters of the machine
are stored on a memory card (SD-Card), keeping the equipment
constantly up-dated with the latest welding developments. If the
memory card is removed the equipment will cease to function,
providing an optimal antitheft system and safeguard against
inappropriate use. Thanks to the advanced control techniques
adopted, the product is extremely reliable and easy to use.
This instruction manual provides detailed information on the machine
settings: reading the entire manual will allow you to appreciate the
extreme exibility and practicality of use. Caution: the device must
only be used in the manner and for the purpose described in this
manual. Never use inappropriately or for any other purpose.
6
www.parweld.com

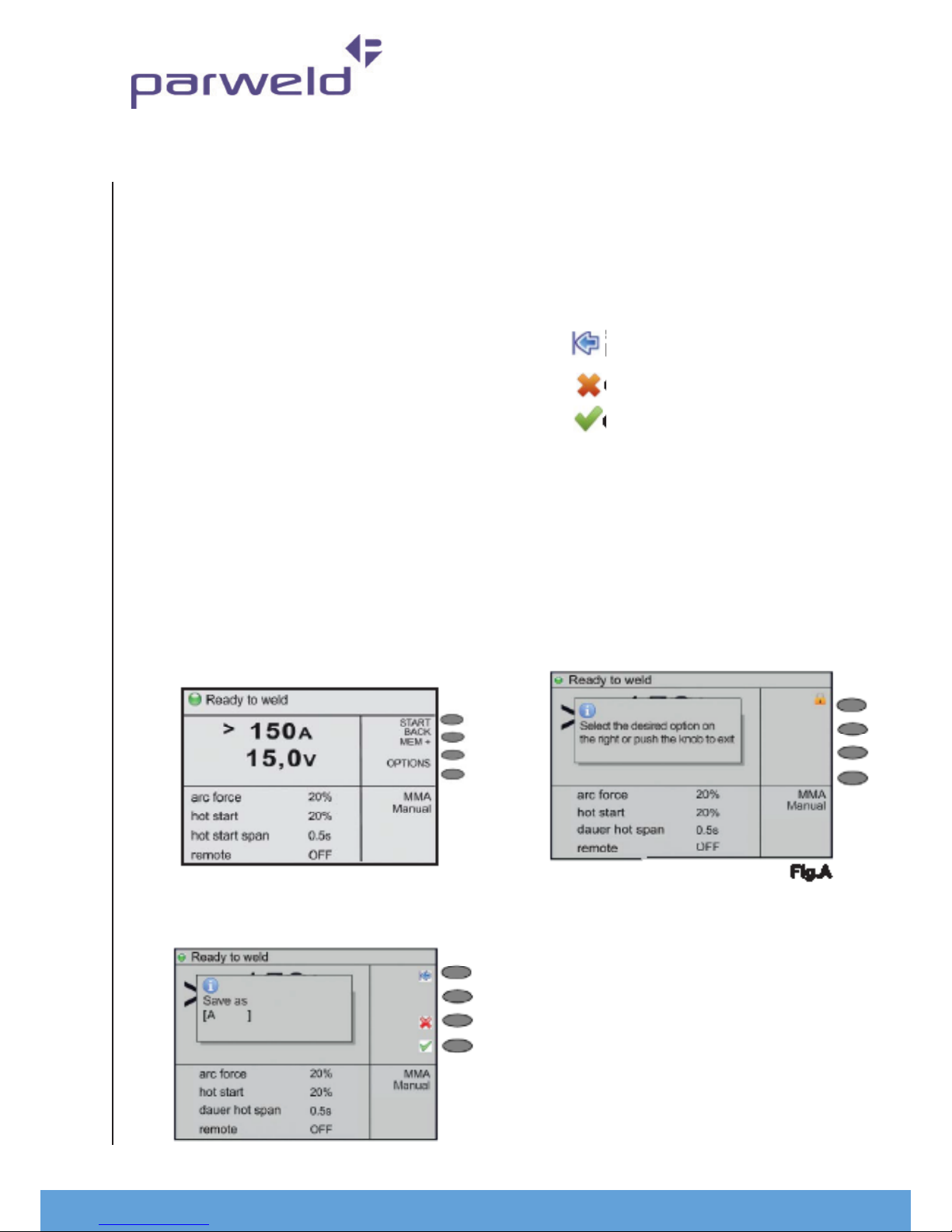

1. Graphic display: The 5,7’’ colour screen displays
different screens, according to the welding mode or
settings. In weld mode the display is divided into ve
principal:
Part 1: Machine status
Part 2: Meaning of the active buttons (buttons 2, 3, 4,
5,6 di g.1)
Part 3: Size values set
Part 4: Type of process selected
Part 5: Indicates the values that can be set for the
various welding settings (to change the values select
using switch 10 and conrm the selection by pressing
the same switch; the value will be highlighted in a
contrasting colour. The values can be changed by
turning the switch, to conrm the new value press the
switch again. 10).
Highlighted value: Indicates the parameter that is being
changed using switch 10.
DISPLAYS: - When the screen comes on, the Parweld
logo will appear and the Firmware revisions will load.
CONTROL BUTTONS: (2, 3, 4, 5,6 in g.1)
Each control button is associated with a specic
function shown on the display.
7. SD slot: this slot, covered with a rubber cap,
contains the SD-Card provided with the machine;
without the card, the machine will be inactive and a
warning message will appear on the screen.
8. USB port: for technical assistance only. 9. Switch for
adjusting the principal welding settings: This switch is
used to set the principal welding parameters: MMA/TIG
Welding; set the welding current
11. H²O in: to be used only with liquid cooling torches.
12. H²O out: to be used only with liquid cooling
torches.
13. Connector for remote control.
14. “+” dinse front connector: positive pole inlet. MMA
Mode: Electrode holder
15. EUROCONNECTOR (SEPARATED TROLLEY):
quick connector for welding torch. This connector is
used to supply welding gas to the torch, the electrical
contacts of the torch button and the welding current.
16. ON-OFF switch: turns the machine on and off.
17. “-” dinse front connector: negative pole inlet.
MMA Mode: Ground clamp
TIG Mode: TIG torch
MIG Mode with gas: Not used
MIG without gas mode: Not used
18. “+” dinse front connector: positive pole inlet.
MMA Mode: Electrode holder
MIG Mode: Ground clamp
MIG with gas mode: Not used
MIG without gas mode: Not used
19. TIG gas Outlet
20.Connector for supplying power to the
liquid cooling system (Optional): Warning
the connector contains dangerous
voltages: NEVER use it for purposes other than
those for which it was specically designed
22. WIRE SPOOL SUPPORT
The 300mm MIG welding spool requires an
external support
23. WIRE FEEDER SYSTEM: see gure 3A
for a more detailed image.
24. WIRE TENSION REGULATOR: Adjusts
the tension of the welding wire.
25. INLET OF THE WIRE FEEDER MOTOR
26. WIREFEEDER SPOOLS
7
www.parweld.com
8
3. LOADING THE WELDING WIRE
To load the welding wire, follow these instructions
Loading...
