Partner T330+ Instruction Manual

545058758 1/3/06

INSTRUCTION MANUAL

IMPORTANT INFORMATION

: Please read these instructions carefully and make
sure you understand them before using this unit. Retain these instructions for future
reference.

MANUEL D’INSTRUCTIONS

RENSEIGNEMENTS IMPORTANTS:

Avant d’utiliser cet appareil, veuillez lire
atentivement les instructions et assurez--vous de les avoir comprises. Conservez
les instructions pour référence ultérieure.

BETRIEBSANWEISUNG

WICHTIGE INFORMA TI O N:

Lesen Sie diese Hinweise zur Handhabung des
Geräts aufmerksam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie
alle Anweisungen verstanden haben und gut aufbewahren.

MANUAL DE INSTRUCCIONES

INFORMACIÓN IMPORTANTE:

Lea atentamente las instrucciones y
asegúrese de entenderlas antes de utilizar esta aparato. Conserve las instruc­ciones para la referencia en el futuro.

T330+

GB

FR

DE

ES

2

IDENTIFICATION (WHAT IS WHAT?)

14

20

19

7

16

2

17

8

6

9

18

3

10

21

5

13

15

1

4

1. Fuel tank

2. Handlebar

3. ON/OFF switch

4. Shoulder strap clamp

5. Shoulder strap

6. Trimmer head

7. Line limiter blade

8. Shield

9. Shaft

10. Coupler

11. Blade

12. Throttle trigger

13. Throttle lock--out

14. Starter handle

15. Fuel cap

16. Primer bulb

17. Choke lever

18. Muffler

19. Wrench

20. Hex wrench

21. Instruction manual

22. Transport guard

11

12

22

IDENTIFICATION OF SYMBOLS

A.

B.

C.

D.

E.

F.

G.

H.

I.

J.

K.

3

A.

WARNING! This brushcutter can be dangerous! Careless or improper use can

cause serious or even fatal injury.
B. Read and understand the instruction manual before using the brushcutter.
C. Always use:

Ear protection, eye protection, head protection, boots, and gloves.

D. DANGER! Blade can thrust violently away from material it does not cut. Blade

thrust can cause amputation of arms or legs. Keep people and animals 15 meters

away.

E. WARNING! Blade/trimmer line can throw objects violently. You and others can be

blinded or injured. Always wear eye protection and leg protection.
F. The operator of the machine must insure that no one comes within a 15 meter radius

while working. When several operators are working within the same area a safety dis-

tance of at least 15 meters must be observed.
G. Use unleaded or quality leaded petrol and two--stroke oil mixed at a ratio of 2.5%.
H. Assist handle to be positioned only below the arrow.
I. Engine ON/STOP Switch.
J. Guaranteed sound power level according to Directive 2000/14/EC

K. Maximum rotational frequency of the spindle, rpm

SAFETY RULES

WARNING: When using gardening

appliances, basic safety precautions should al­ways be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.

DANGER: This power tool can be

dangerous! This unit can cause serious injury
including amputation or blindness to the op­erator and others. The warnings and safety
instructions in this manual must be followed to
provide reasonable safety and efficiency in
using the unit. The operator is responsible for
following the warnings and instructions in this
manual and on the unit. Read the entire in­struction manual before assembling and us­ing the unit! Restrict the use of this unit to per­sons who read, understand, and follow the
warnings and instructions in this manual and
on the unit. Never allow children to operate
this unit.hildren to operate this unit.

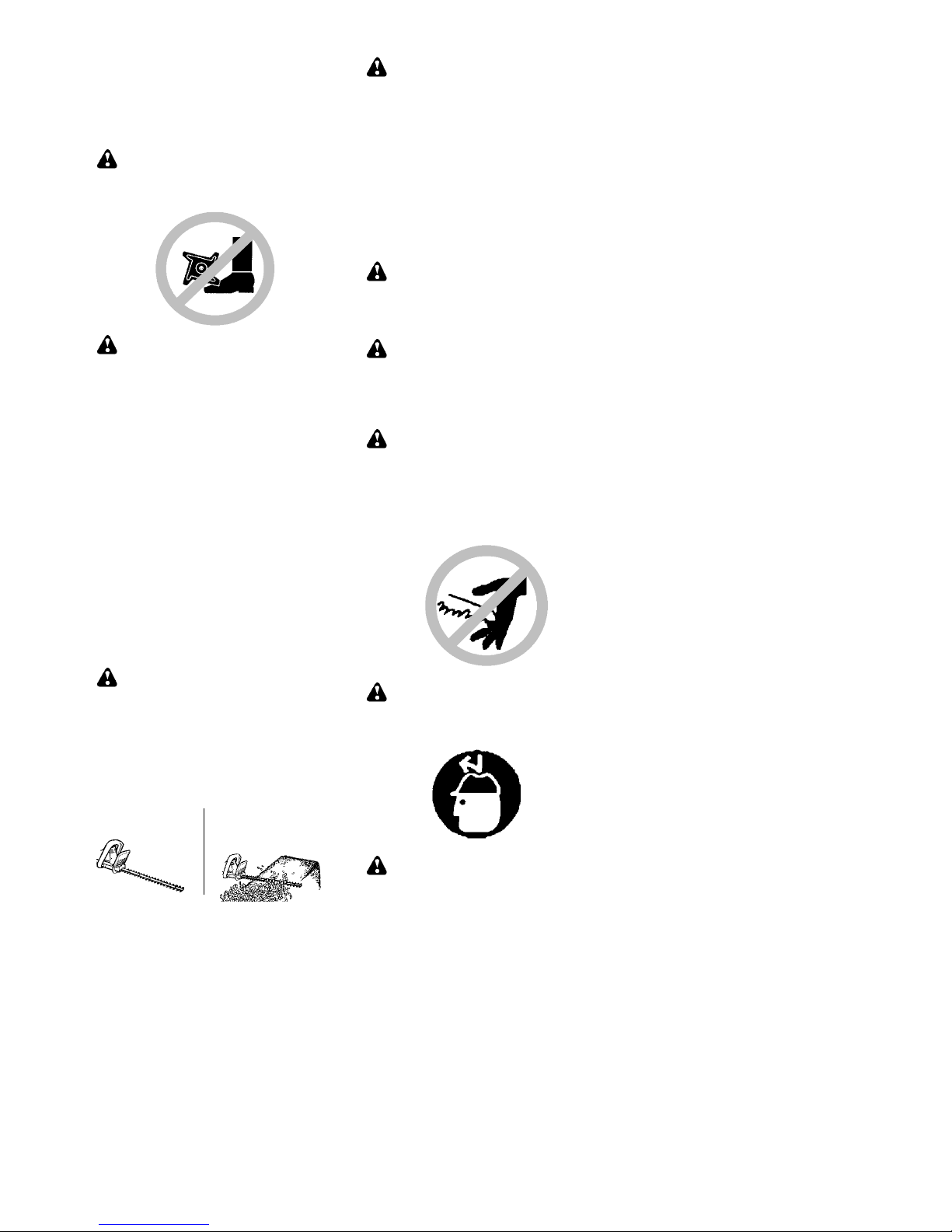

SAFETY INFORMATION
ON T HE UNIT

INSTRUCTION
MANUAL

DANGER: Blade can thrust violently

away from material it does not cut. Blade
thrust can cause amputation of arms or legs.
Keep people and animals 15 meters away.

WARNING: Blade/trimmer line can

throw objects violently. Y o uand others can be
blinded or injured. Wear safety glasses and
leg protection.

WARNING: Hazard zone for thrown

objects. Blade/Trimmer linecan throw objects
violently. Others can be blinded or injured.
Keep people and animals 15 meters away.

Hazard Zone

WARNING: Do not use trimmer head

as a fastening device for the blade.

4

WARNING: The blade continues to

spin after the throttle is released or, engine is
turned off. The coasting blade can throw objects
or seriously cut if accidentally touched. Stop the
blade by contacting the right hand side of the
coasting blade with material already cut.

Stop coasting
blade by contact
with cut material.

OPERATOR SAFETY

S Dress properly. Always wear safety

glasses or similar eye protection when op­erating, or performing maintenance, on
your unit (safety glasses are available).
Eye protection should be marked Z87.

S Always wear face or dust mask if operation

is dusty.

S Always wear heavy, long pants, long

sleeves, boots, and gloves. Wearing safety
leg guards is recommended.

S Always wear foot protection. Do not go

barefoot or wear sandals. Stay clear of
blade/spinning line.

S Secure hair above shoulder length. Secure

or remove loose clothing or clothing with
loosely hanging ties, straps, tassels, etc.
They can be caught in moving parts.

S Being fully covered also helps protect you

from debris and pieces of toxic plants
thrown by spinning line.

S Stay alert. Do not operate this unit when you

are tired, ill, upset or under the influence of al­cohol, drugs, or medication. Watch what you
are doing; use common sense.

S Wear hearing protection. Long or continu-

ous exposure to high noise levels may
cause permanent hearing impairment.

S Never start or run inside a closed room or

building. Breathing exhaust fumes can kill.

S Keep handles free of oil and fuel.
S Always use the handlebar and a properly

adjusted shoulder strap with a blade (see
ASSEMBLY).

UNIT / MAINTENANCE SAFETY

WARNING: Stop unit and disconnect

the spark plug before performing mainte­nance (except carburetor adjustments).
S Throw away blades that are bent, warped,

cracked, broken, or damaged in any other
way. Replace trimmer head parts that are
cracked, chipped, broken, or damaged in
any other way before using the unit.

S Maintain unit according to recommended

procedures. Keep blade sharp. Keep cut­ting line at the proper length.

S Use only 0.095″ (2,4 mm) diameter Part-

ner® brand replacement line. Never use
wire, rope, string, etc.

S Install required shield properly before using

theunit.Usethemetalshieldforallmetal
blade use. Use the plastic shield for all line
trimmer use.

S Use only specified blade or trimmer head;

make sure it is properly installed and se­curely fastened.

S Never start engine with clutch shroud re-

moved. The clutch can fly off and cause se­rious injury.

S Be sure bladeor trimmer head stops turning

when engine idles.

S Make carburetor adjustments with the low-

er end supported to prevent blade or trim­mer line from contacting any object. Hold
unit by hand; do not use the shoulder strap
for support.

S Keep others away when making carbure-

tor adjustments .

S Use only recommended Partnerr accesso-

ries and replacement parts.

S Have all maintenance and service not ex-

plained in this manual performed by your au­thorized service dealer.

FUEL SAFETY

S Mix and pour fuel outdoors.
S Keep away from sparks or flames.
S Use a container approved for fuel.
S Do not smoke or allow smoking near fuel or

the unit.

S Avoid spilling fuel or oil. Wipe up all fuel spills.
S Move at least 3 meters away from fueling

site before starting engine.

S Stop engine and allow to cool before re-

moving fuel cap.

S Always store gasoline in a container ap-

proved for flammable liquids.

CUTTING SAFETY

WARNING: Inspect the area to be cut

before each use. Remove objects (rocks,
broken glass, nails, wire, string, etc.) which
can be thrown or become entangled in the
blade or trimmer head.
S Keep others including children, animals,

bystanders, and helpers at least 50 feet (15
meters) away. Stop engine immediately if
you are approached.

S Always keep engine on the right--hand side

of your body.

S Hold the unit firmly with both hands.
S Keep firm footing and balance. Do not

overreach.

S Keep blade or trimmer head below waist

level. Do not raise engine above your waist.

S Keep all parts of your body away from blade,

trimmer head, and muffler when engine is
running. A hot muffler can cause serious
burns.

S Cut from your left to your right. Cutting on

right side of the shield will throw debris
away from the operator.

S Use only in daylight or good artificial light.
S Use only for jobs explained in this manual.

5

TRANSPORTING AND STORAGE

S Allow the engine to cool; secure unit before

storing or transporting in vehicle.

S Empty fuel tank before storing or transport-

ing the unit. Use up fuel left in the carburetor
by starting engine and letting it run until it
stops.

S Store unit and fuel in an area where fuel va-

pors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.

S Store unit so line limiter cannot accidentally

cause injury. Unit can be hung by the shaft.

S Always install transport guard on blade be-

fore transporting or strorage.

S Store the unit out of the reach of children.

SPECIAL NOTICE: Exposure to vibra-

tions through prolonged use of gasoline pow­ered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel dam­age in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek med­ical attention. An anti-vibration system does
not guarantee the avoidance of these prob­lems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condi­tion of this tool.

ASSEMBLY

CARTON CONTENTS

Check carton contents against the following
list:

S Powerhead
S Lower attachment
S Blade and blade shield
S Trimmer head and plastic shield
S Nut(screwedontoplasticshield)
S Handlebar
S Bracket cover
S Bracket cover screws (2)
S Hex wrench
S Wrench
S Shoulder strap with warning

WARNING: Always stop unit and dis-

connect spark plug before performing any as­sembly procedures.

WARNING: If received assembled,

repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam­aged parts.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.

TOOLS REQUIRED

S Hex wrench (provided)
S Adjustable wrench
S Phillips screwdriver

INSTALLING BRUSHCUTTER
ATTACHMENT
CAUTION:

When installing brushcutter at­tachment, place the unit on a flat surface for
stability.

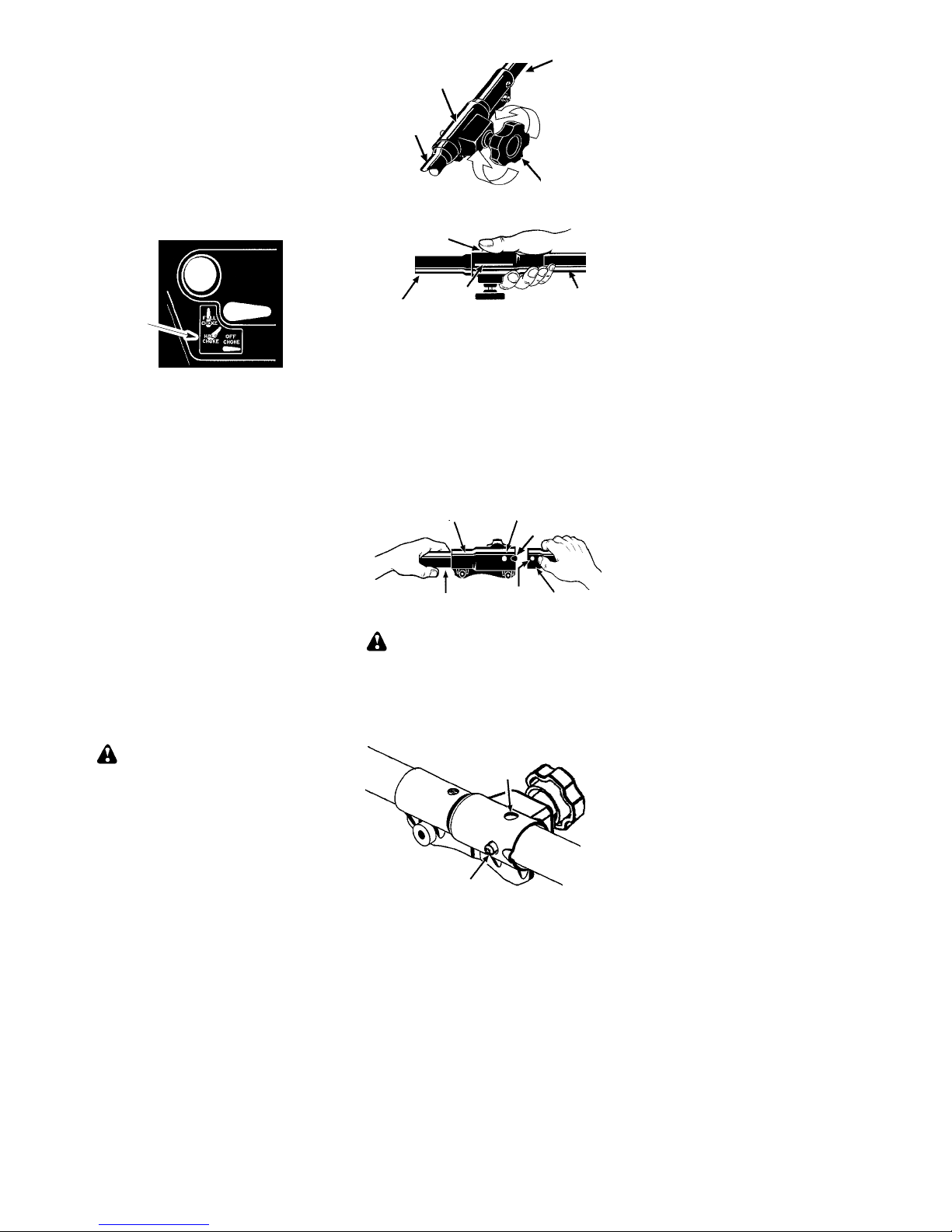

1. Loosen the coupler by turning the knob

counterclockwise.

Coupler

Knob

LOOSEN

TIGHTEN

Shipping
protector

2. Remove shipping protector from coupler.

3. Remove the shaft cap from the brushcutter
attachment (if present).

4. Position locking/release button of attach­ment into guide recess of coupler.

5. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.

6. Before using the unit, tighten the knob se­curely by turning clockwise.

Coupler Primary Hole

Upper

Shaft

Locking/
Release

Button

Lower

Attachment

Guide Recess

WARNING: Make sure the locking/

release button is locked in the primary hole
and the knob is securely tightened before op­erating the unit. All attachments are designed
to be used in the primary hole unless otherwise
stated in the applicable attachment instruction
manual. Using the wrong hole could lead to seri­ous injury or damage to the unit.

6

Locking/Release
Button in Primary Hole

Secondary Hole

For optional attachments, see the AS­SEMBLY section of the applicable attach­ment instruction manual.

ATTACHING THE HANDLEBAR

DANGER: T o avoid serious injury, the

barrier portion of the handlebar must be installed
as shown to provide a barrier between operator
and the spinning blade.

1. Locate the decal on the handlebar. This
decal includes an arrow. Position the han­dlebar with the mounting bracket at the
end of the arrow.

2. Align hole in handlebar with pin on mount­ing bracket.

Pin

Mounting
Bracket

3. Position the bracket cover over the han­dlebar. Again make sure the handlebar is
at the end of the arrow.

4. Insert screws and hand tighten only. Be
sure the handlebar is installed correctly;
then, tighten each screw securely with
the hex wrench.

Screw

Mounting
Bracket

Handlebar

Bracket Cover

ASSEMBLY OF SHOULDER STRAP

Proper shoulder strap and handlebar adjust­ments must be made with the engine com­pletely stopped before using unit.

1. Insert your right arm and head through the
shoulder strap and allow it to rest on your
left shoulder. Make sure the danger sign
is on your back and the hook is to the right
side of your waist.

NOTE: A one-half twist is built in the shoul-

der strap to allow the strap to rest flat on the
shoulder.

2. Adjust the strap, allowing the hook to be
about 6 inches (15 cm) below the waist.

3. Fasten the strap hook to the clamp located
between the trigger handle and the handle­bar clamp base and lift the tool to the operat­ing position.

4. Try on shoulder strap and adjust for fit and
balance before starting the engine or be­ginning a cutting operation.

NOTE: It may be necessary to relocate the

shoulder strap clamp on the shaft for proper
balancing of unit.

TO RELOCATE SHOUL DER STRAP
CLAMP:

1. Loosen and remove both clamp screws.

2. Place the upper shoulder strap clamp
over the shaft.

3. Position the lower shoulder strap clamp
under the shaft and align the upper and
lower clamp screw holes.

Upper Shoulder
Strap Clamp

Screws

Lower Shoulder
Strap Clamp

4. Insert two screws into the screw holes.

5. Secure shoulder strap clamp by tighten­ing screws with a hex wrench.

76 cm

HARNESS

ADJUSTMENT

FOR BALANCE

10 -- 30 cm

above

ground

15 cm
below
waist

7

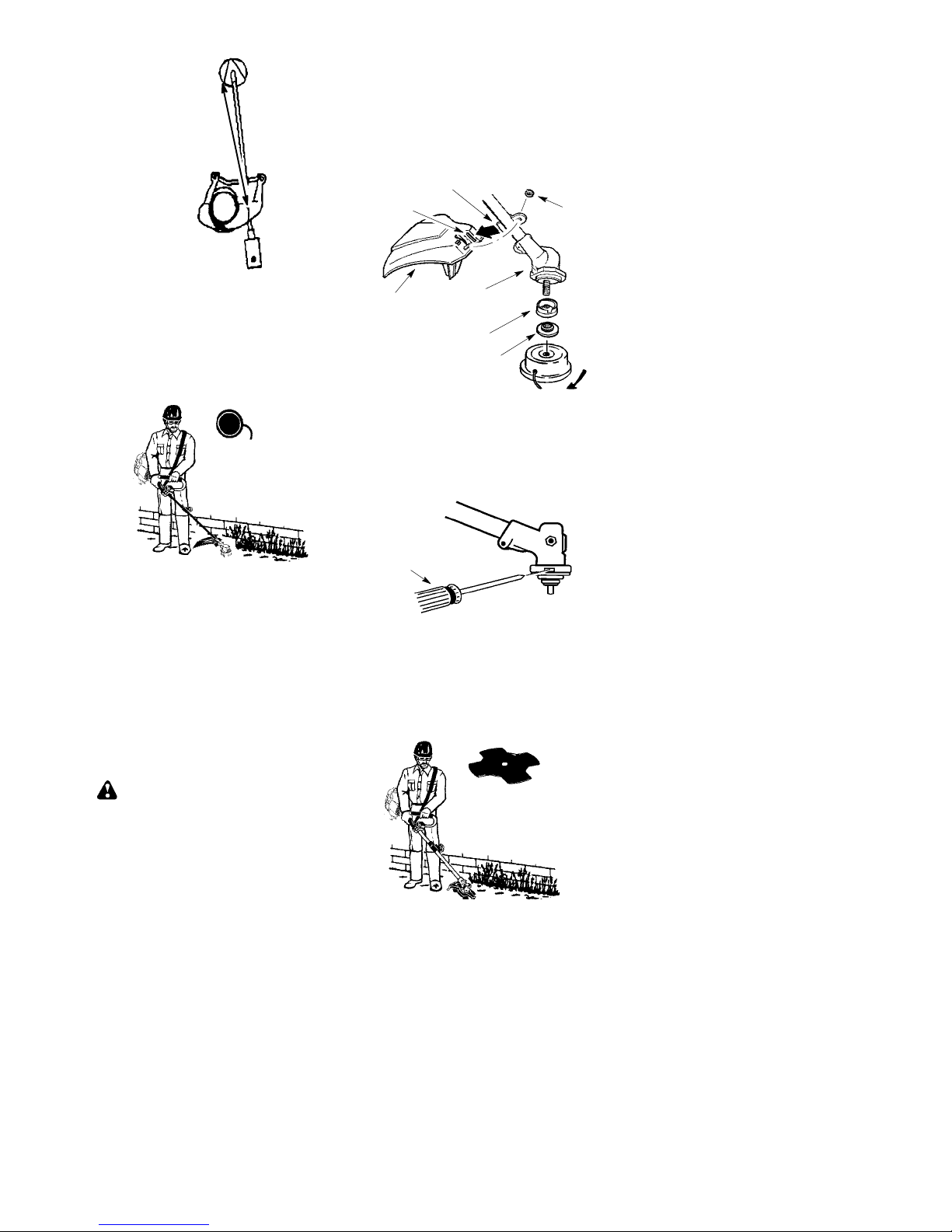

30 inches
(76 cm)

CONFIGURING YOUR UNIT

Youcan configure your unit using a cutting head
for grass and light weeds, or a weed blade for
cutting grass, weeds, and brush up to 1 cm in
diameter. To assemble your unit, go to the sec­tion for the desired configuration and follow the
instructions.

ASSEMBLY INFORMATION -­TRIMMER HEAD

TRIMMER
HEAD

NOTE: Remove the blade and metal shield be-

fore attaching the plastic shield and trimmer
hea d. To remove blade, align hole in the dust
cup with the hole in the side of the gearbox by
rotating the blade. Insert a small screwdriver
into aligned holes. This will keep theshaftfrom
turning while loosening the blade nut. Remove
blade nut by turning clockwise. Remove the
screwdriver. Remove both washers and blade.
T o remove metal shield, loosen and remove the
four mounting screws. See ATT ACHING THE
METAL SHIELD and INSTALLATION OF THE
METAL BLADE for illustrations. Be sure to store
all parts and instructions for future use.

ATTACHING THE PLASTIC SHIELD
ANDTRIMMERHEAD

WARNING: The shield must be prop-

erly installed. The shield provides partial
protection to the operator and others from the
risk of thrown objects, and is equipped with a
line limiter blade which cuts excess line to the
proper length. The line limiter blade (on un­derside of shield) is sharp and can cut you.

1. Remove nut from shield.

2. Insert bracket into slot on shield.

3. Pivot shield until bolt passes through hole
in bracket.

4. Reinstall nut and tighten securely with
wrench (provided).

NOTE: If your unit has a plastic cover over

the threads on the threaded shaft, remove the
covering to expose the threads. Before instal­ling the trimmer head, make sure the dust cup
and retaining washer are positioned on the
gearbox as shown below.

Nut

Retaining Washer

Dust C up

Bracket

Slot

Shield

Gearbox

NOTE: Make sure all parts are properly

installed as shown in the illustration before
installing the trimmer head.

5. Align hole in the dust cup with the hole in the
side of the gearbox by rotating the dust cup.

6. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while tightening trimmer head.

Screwdriver

7. While holding the screwdriver in position,
thread trimmer head onto the shaft in the
direction shown on the decal (counter­clockwise). Tighten until secure.

NOTE: The retaining washer must be posi-

tioned with the raised section facing toward the
gearbox.

ASSEMBLY INFORMATION -- WEED
BLADE

WEED
BLADE

8

NOTE: Remove the trimmer head and plastic

shield before attaching the metal shield and
installing the weed blade. T oremove the trimmer
head, align hole in the dust cup with the hole in
the side of the gearbox by rotating the dust cup.
Insert a small screwdriver into aligned holes.
This will keep the shaft from turning while loos­ening the trimmer head. Remove the trimmer
head by turning clockwise. Remove the screw­driver. To remove the plastic shield, loosen and
remove nut. Pivot shield to release bracket from
slot. See INSTALLATION OF THE CUTTING
HEAD and ATTACHING THE PLASTIC
SHIELD for illustrations. Be sure to store all
parts and instructions for future use. Never use
the trimmer head with the metal blade installed.

ATTACHING THE METAL SH IELD

WARNING: The metal shield must be

properly installed on the tool anytime the tool is
used with a blade. Failure to install the shield in
the position shown can result in serious injury to
the operator. The length of the shield must be
aligned with the length of the shaft.

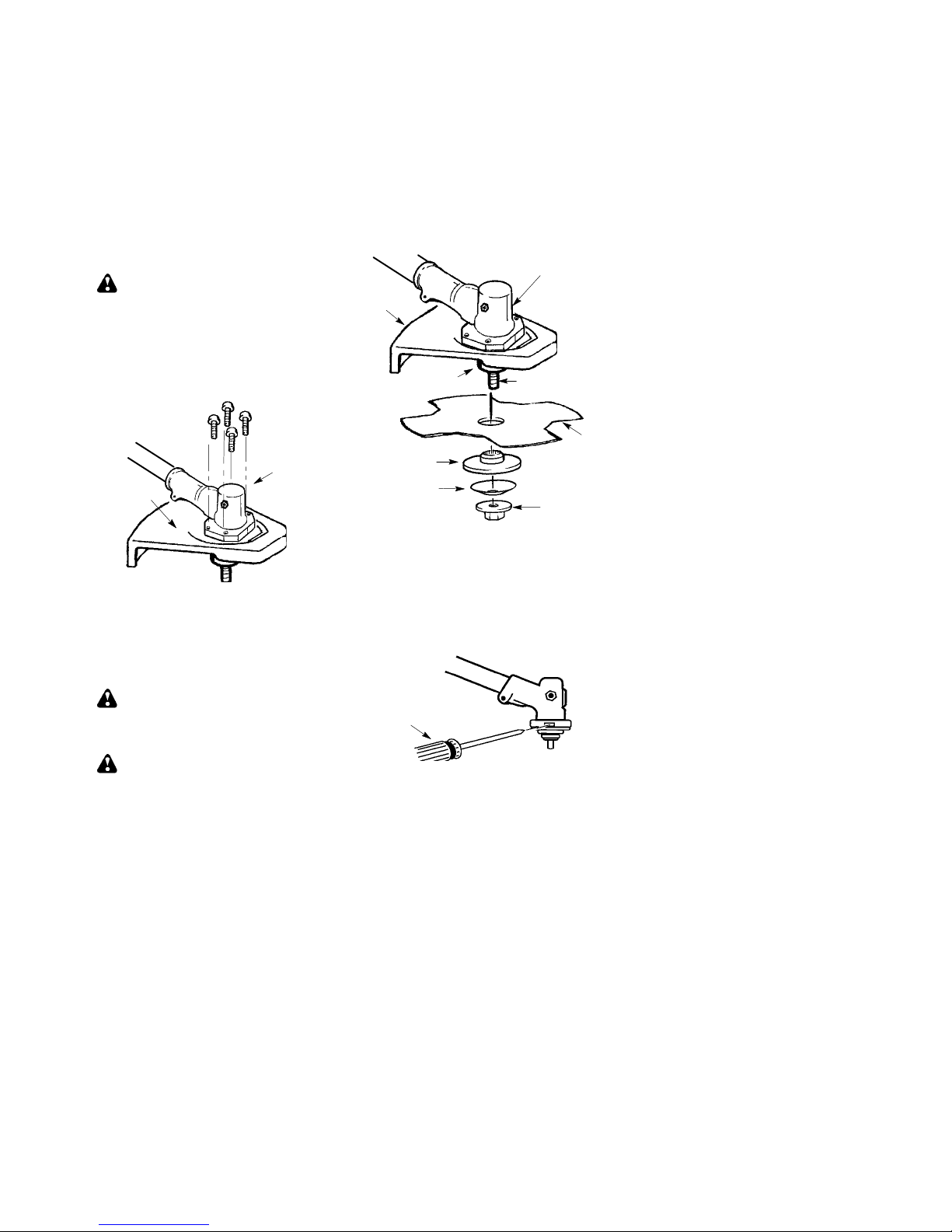

1. Place the metal shield under the gearbox,
and align the screw holes.

Shield

Gearbox

2. Insert and thread the 4 mounting screws
through the holes of the gearbox and the
metal shield. Tighten evenly and securely
with the hex wrench provided.

INSTALLA TION OF THE METAL
BLADE

WARNING: Wear protective gloves

when handling or performing maintenance on
the blade to avoid injury. The blade is sharp and
can cut you even when it is not moving.

WARNING: Do not use any blades, or

fastening hardware other than the washers and
nuts shown in the following illustrations. These
parts must be provided by Partner and installed
as shown below. Failure to use proper parts can
cause the blade to fly off and seriously hurt you
or others.

NOTE: The dust cup and retaining washer are

located on the gearbox shaft and not in the parts
bag. All other fasteners mentioned in the follow­ing assembly steps are in the parts bag.

1. Remove the retaining washer from the
threaded shaft of the gearbox. Leave the
dustcupontheshaft.

2. Install the blade and the retaining washer
over the threaded shaft.

3. Make sure the raised part of the retaining
washer is facing the gearbox and the raised
area fits into the hole in the center of the
blade.

4. Slide the blade and retaining washer onto
the shaft of the gearbox.

5. Place the cupped washer onto the shaft.
Make sure the cupped side of the washer
is toward the blade.

6. Install the blade nut by threading onto the
shaft counterclockwise.

Shield

Blade

Retaining
Washer

Dust C up

Cupped
Washer

Nut

Threaded Shaft

Gearbox

NOTE: Make sure all parts are in place as il-

lustrated, and the blade is sandwiched between
the dust cup and the retaining washer. There
should be no space between the blade and the
dust cup or the retaining washer.

7. Align hole in dust cup with hole in side of
gearbox by rotating the blade.

8. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while tightening the blade nut.

Screwdriver

9. Tighten blade nut firmly with a wrench while
holding screwdriver in position.

10. Remove the screwdriver.

11. Turn blade by hand. If the blade binds
against the shield, or appears to be uneven,
the blade is not centered, and you must re­install.

NOTE: To remove blade, insert screwdriver

into aligned holes. Unthread the nut and re­move parts. Be sure to store parts and instruc­tions for future use.

9

OPERATION

WARNING: Be sure to read the fuel

information in the safety rules before you be­gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Contact an
authorized service dealer.

FUELING ENGINE

WARNING: Remove fuel cap slowly

when refueling.
This engine is certified to operate on un-

leaded petrol. Before operation, petrol must
be mixed with a good quality 2-cycle air­cooled engine oil. We recommend using a
good quality fully synthetic oil mixed at a ratio
of 40:1 (2.5%). A 40:1 ratio is obtained by mix­ing 5 liters of unleaded petrol with 0,125 liter of
oil. DO NOT USE automot ive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on oil con­tainer. Once oil is added to gasoline, shake con­tainer momentarily to assure that the fuel is thor­oughly mixed. Always read and follow the safety
rules relating to fuel before fueling your unit.

IMPORTANT

Experience indicates that alcohol blended fuels
(called gasohol or using ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
gas can damage the fuel system of an engine
while in storage. To avoid engine problems,
empty the fuel system before storage for 30
days or longer. Drain the gas tank, start the en­gine and let it run until the fuel lines and carbure­tor are empty. Use fresh fuel next season. Nev­er use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur.

HOW TO STOP YOU R UNIT

S To stop the engine, move the ON/OFF

switch to the OFF position.

ON/OFF Switch

HOW TO START YOUR UNIT

WARNING: Avoid any contact with

the muffler. A hot muffler can cause serious
burns.

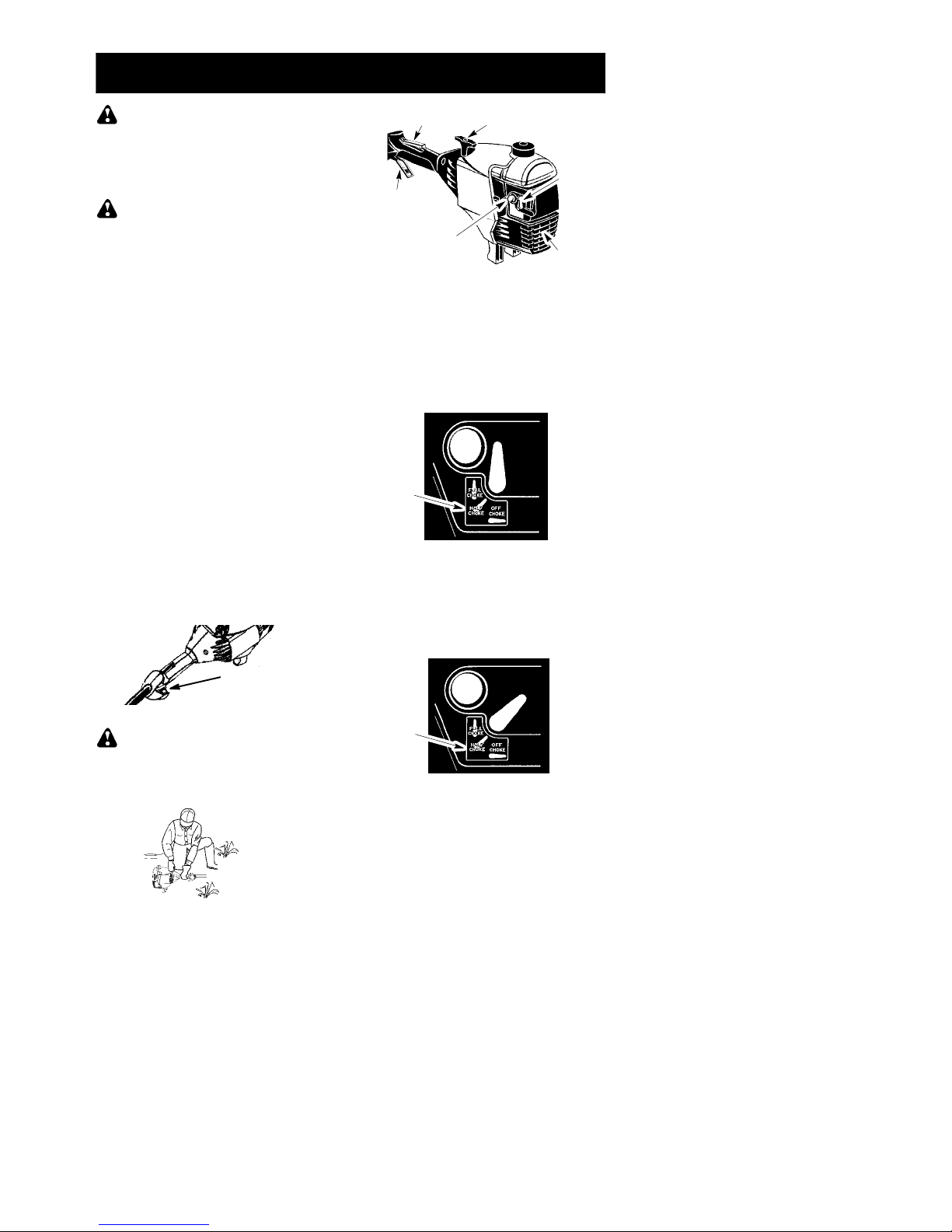

ST ARTI NG A COLD ENGINE (or a
warm engine after running out of fuel)

Starting Position

Muffler

Choke
Lever

Starter Handle

Primer Bulb

Throttle
Trigger

Throttle
Lock--out

NOTE: The throttle lock--out is designed to

prevent unintentional use of the throttle trig­ger. The lock--out must be pressed with the
palm of your hand as you grip the throttle han­dle before the trigger can be used.

1. Set unit on a flat surface.

2. Move ON/OFF switch to the ON position.

3. Slowly press the primer bulb 6 times.

4. Move choke lever to FULL CHOKE position
by aligning lever with position shown on de­cal (see illustration below).

Choke
position
decal

5. Squeeze and hold trigger through all re-
maining steps.

6. Pull starter rope handle sharply until en­gine sounds as if it is trying to start, but do
not pull rope more than 6 times.

7. As soon as engine sounds as if it is trying
to start, move choke lever to HALF
CHOKE by aligning lever with position
shown on decal (see illustration below).

Choke
position
decal

8. Pull starter rope sharply until engine runs,
but no more than 6 pulls. If the engine
doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever
to the FULL CHOKE position and press
the primer bulb 6 times. Squeeze and hold
the throttle trigger and pull the starter rope
2 more times. Move the choke lever to the
HALF CHOKE position and pull the start­er rope until the engine runs, but no more

10

than 6pulls.

NOTE: If engine still doesn’t

start, it is probably flooded. Proceed to
STARTING A FLOODED ENGINE.

9. Once the engine starts, allow it to run 10
seconds, then move the choke lever to OFF
CHOKE by aligning lever with position
shown on decal (see following illustration).
Allow the unit to run for 30 more seconds at
OFF CHOKE before releasing the throttle
trigger.

NOTE: If engine dies with the

choke lever in the OFF CHOKE position,
move the choke lever to the HALF CHOKE
position and pull the rope until engine runs,
but no more than 6 pulls.

Choke
position
decal

STARTING A WARM ENGINE

1. Move ON/OFF switch to the ON position.

2. Move the choke lever to the HALF
CHOKE position.

3. Squeeze and hold the throttle trigger.
Keep throttle trigger fully squeezed until
the engine runs smoothly.

4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.

5. Allow engine to run 15 seconds, then
move the choke lever to the OFF CHOKE
position.

NOTE: If engine has not started, pull starter

rope 5 more pulls. If engine still does not run, it
is probably flooded.

STARTING A F LOODED ENGINE

Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of ex­cess fuel. This could require pulling thestarter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to TROU­BLESHOOTING TABLE.

OPERATING THE COUPLER

This model is equipped with a coupler which
enables optional attachments to be installed.

WARNING: Always stop unit and dis-

connect spark plug before removing or instal­ling attachments.

REMOVING TRIMMER ATTACH­MENT (OR OTHER OPTIONAL AT­TACHMENTS)
CAUTION:

When removing or installing at­tachments, place the unit on a flat surface for
stability.

1. Loosen the coupler by turning the knob

counterclockwise.

Coupler

Knob

LOOSEN

TIGHTEN

Upper
Shaft

Lower
Attachment

2. Press and hold the locking/release button.

L

ocking/Release

Button

Coupler

Upper Shaft

Lower Attachment

3. While securely holding the engine and up­per shaft, pull the attachment straight out
of the coupler.

INSTALLING OPTIONAL ATTACH­MENTS

1. Remove the shaft cap from the attach­ment (if present).

2. Position locking/release button of attach­ment into guide recess of coupler.

3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.

4. Before using the unit, tighten the knob se­curely by turning clockwise.

Coupler

Primary Hole

Upper

Shaft

Locking/
Release

Attachment

Guide Recess

WARNING: Make sure the locking/

release button is locked in the primary hole
and the knob is securely tightened before op­erating the unit. All attachments are designed
to be used in the primary hole unless otherwise
stated in the applicable attachment instruction
manual. Using the wrong hole could lead to seri­ous injury or damage to the unit.

Locking/Release
Button in Primary Hole

Secondary Hole

11

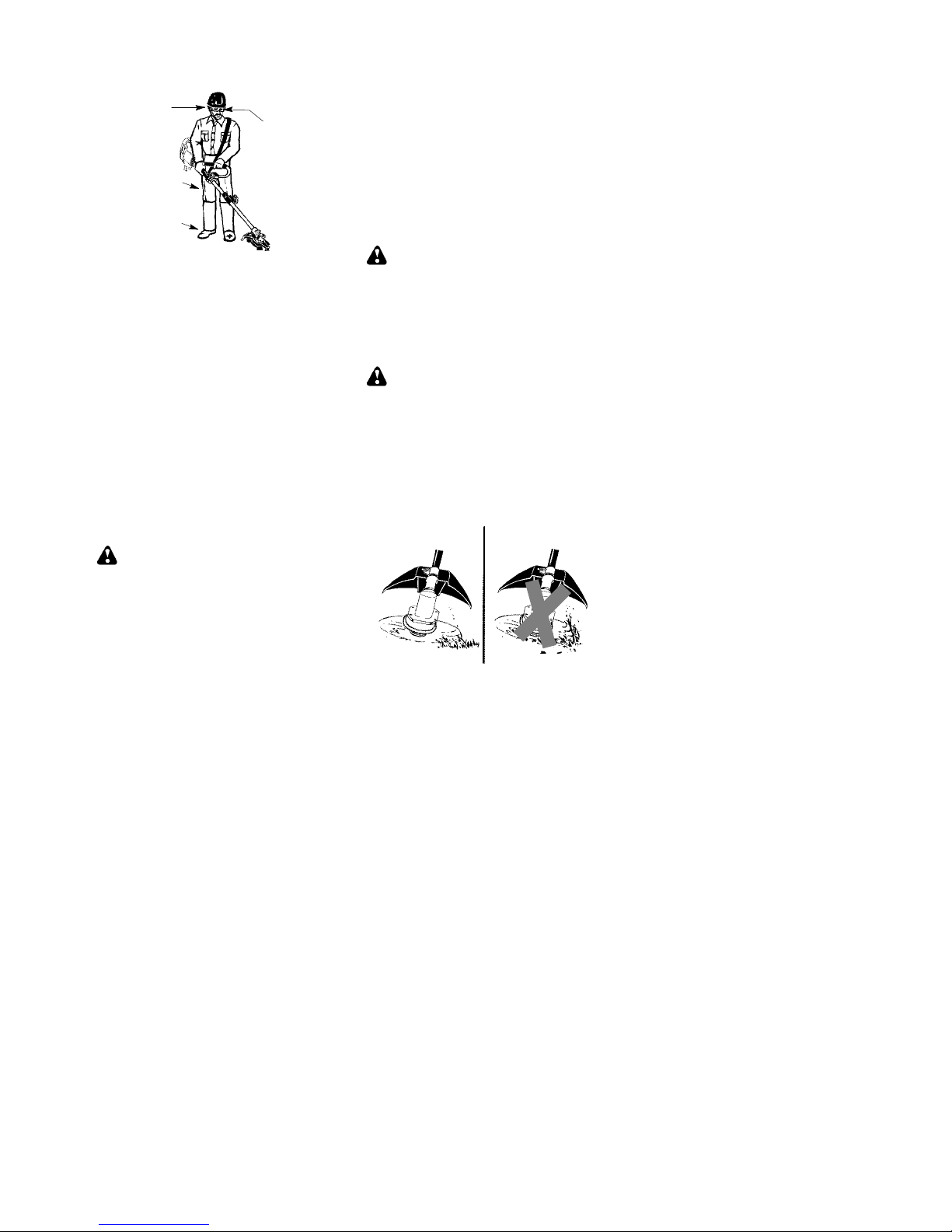

OPERATING POSITION

Boots

Heavy,
Long Pants

Eye Protection

ALWAYS WEAR:

Cut from your left to your right.

Hearing
Protection

When operating unit, clip shoulder strap onto
clamp, stand as shown and check for the fol­lowing:

S Wear eye protection and heavy clothing.
S Extend your left arm and hold handlebar

grip with your left hand.

S Hold throttle grip with your right hand with

finger on throttle trigger.

S Keep unit below waist level.
S Keep shoulder strap pad centered on your

left shoulder and danger sign centered on
your back.

S Maintain full weight of tool on your left

shoulder.

S Without bending over, keep the blade or

trimmer head near and parallel to the ground
and not crowded into material being cut.

OPERATING INSTRUCTIONS FOR
USE WITH TRIMMER HEAD

WARNING: Always wear eye protec-

tion. Never lean over the trimmer head. Rocks
or debris can ricochet or be thrown into eyes
and face and cause blindness or other serious
injury.
Before trimming, bring engine to a speedsuffi­cient to cut material to be trimmed.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration. The cutting line will last longer and will
be less likely to “weld” onto the spool.
Always release the throttle trigger and allow
the engine to return to idle speed when not
cutting.
To stop engine:

S Release the throttle trigger.
S Move the ON/OFF switch to the OFF

position.

TRIMMER LINE ADVANCE

The trimmer line will advance approximately 2
inches (5 cm) each time the bottom of the
trimmer head is tapped on the ground with the
engine running at full throttle.
The most efficient line length is the maximum
length allowed by the line limiter. Always keep

the shield in place when the tool is being oper­ated.
To advance line:

S Operate the engine at full throttle.
S Hold the trimmer head parallel to and above

the grassy area.

S T ap the bottom of the trimmer head lightly on

the ground one time. Approximately 2 inches

(5 cm) of line will be advanced with each tap.
Always tap the trimmer head on a grassy area.
T apping on surfaces such as concrete or as­phalt can cause excessive wear to the trimmer
head.If the line is worn down to 2 inches (5 cm)
or less, more than one tap will be required to ob­tain the most efficient line length.

WARNING: Use only 0.095″ (2,4

mm) diameter line. Other sizes of line will not
advance properly and can cause serious
injury. Do not use other materials such as
wire, string, rope, etc. Wire can break off dur­ing cutting and become a dangerous missile
that can cause serious injury.

CUTTING METHODS

WARNING: Use minimum speed and

do not crowd the line when cutting around
hard objects (rock, gravel, fence posts, etc.),
which can damage thetrimmer head, become
entangled in the line, or be thrown causing a
serious hazard.
S The tip of the line does the cutting. You will

achieve the best performance and minimum

line wear by not crowding the line into the

cutting area. The right and wrong ways are

shown below.

Tip of the line
does the cutting.

Right Wrong

Line crowded into
work area.

S The line will easily remove grass and weeds

from around walls, fences, trees and flower

beds, but it also can cut the tender bark of

trees or shrubs and scar fences.
S For trimming or scalping, use less than full

throttle to increase line life and decrease head

wear, especially:

S During light duty cutting.

S Near objects around which the line can wrap

such as small posts, trees or fence wire.

S For mowing or sweeping, use full throttle for a

good clean job.

TRIMMING -- Hold the bottom of the trimmer
head about 3 inches (8 cm) above the ground
and at an angle. Allow only the tip of the line to
make contact. Do not force trimmer line into
work area.

12

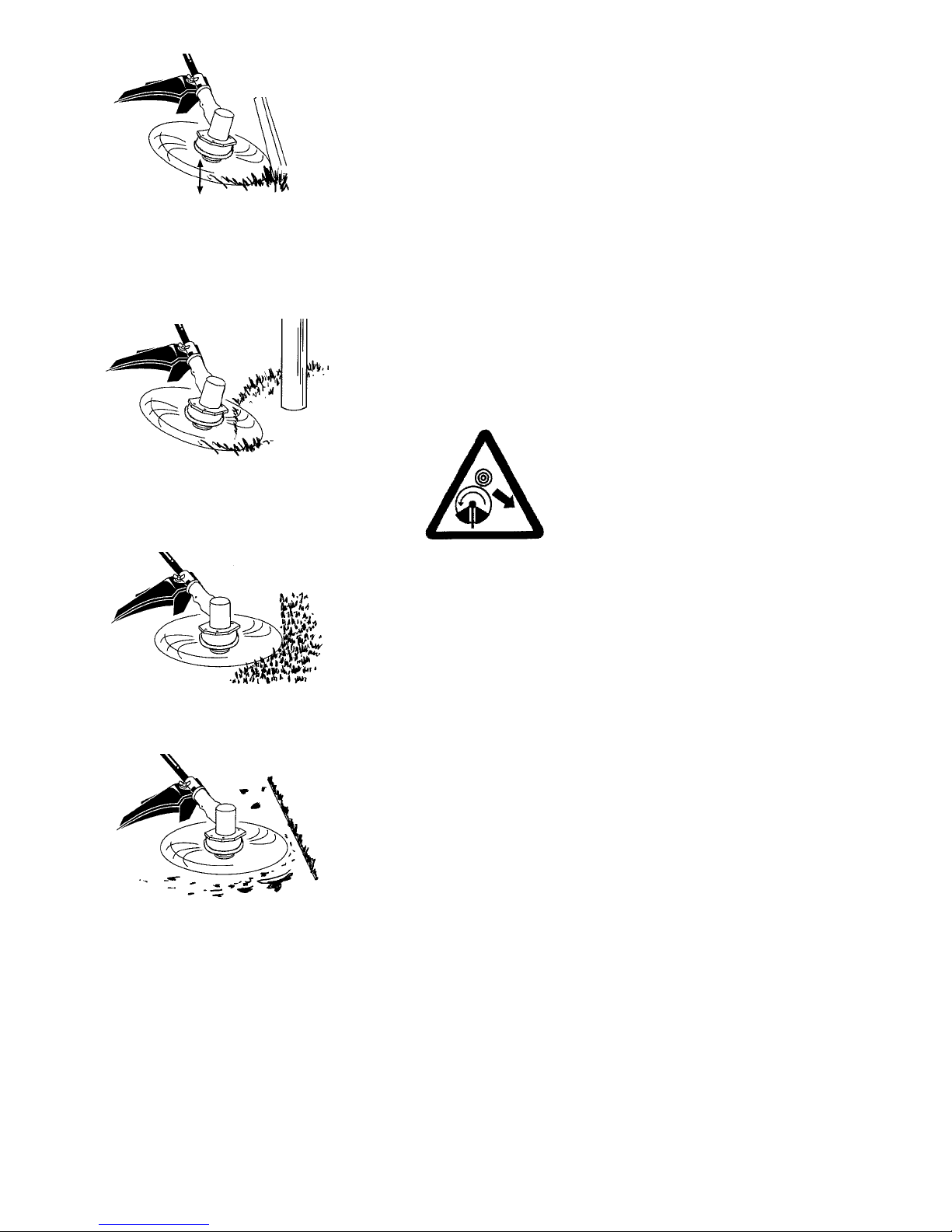

Trimming

3 inches (8 cm)
above ground

SCALPING -- The scalping technique removes
unwanted vegetation down to the ground. Hold
the bottom of the trimmer head about 3 in. (8
cm) above the ground and at an angle. Allow the
tip of the line to strike the ground around trees,
posts, monuments, etc. This technique in­creases line wear.

Scalping

MOWING -- Your trimmer is ideal for mowing

in places conventional lawn mowers cannot
reach. In the mowing position, keep the line
parallel to the ground. Avoid pressing the
head into the ground as this can scalp the
ground and damage the tool.

Mowing

SWEEPING -- The fanning action of the rotat-

ing line can be used to blow away loose debris
from an area. Keep the line parallel to and
above the area surface and swing the tool
from side to side.

Sweeping

OPERATING INSTRUCTIONS FOR
USE WITH WEED BLADE

S Blade Thrust is a reaction that only occurs

when using a bladed unit. This reaction can

cause serious injury such as amputation.

Carefully study this section. It is important that

you understand what causes blade thrust,

how you can reduce the chance of its

occurring, and how you can remain in control

of unit if blade thrust occurs.

S WHAT CAUSES BLADE THRUST -- Blade

Thrust can occur when the spinning blade

contacts an object that it does not cut. This

contact causes the blade to stop for an instant

and then suddenly move or “thrust” away

from the object that was hit. The “thrusting”

reaction can be violent enough to cause the

operator to be propelled in any direction and

lose control of the unit. The uncontrolled unit

can cause serious injury if the blade contacts

the operator or others.

S WHEN BLADE THRUST OCCURS --

Blade Thrust can occur without warning if

the blade snags, stalls, or binds. This is

more likely to occur in areas where it is

difficult to see the material being cut. By

using the unit properly, the occurrence of

blade thrust will be reduced and the

operator will be less likely to lose control.

S Cut only grass, weeds, and woody brush up

to 1/2 inch (1 cm) in diameter with the weed

blade. Do not let the blade contact material it

cannot cut such as stumps, rocks, fences,

metal, etc., or clusters of hard, woody brush

having a diameter greater than 1 cm.
S Keep the blade sharp. A dull blade is more

likely to snag and thrust.
S Cut only at full throttle. The blade will have

maximum cutting power and is less likely to

bind or stall.
S “Feed” the blade deliberately and not too

rapidly. The blade can thrust away if it is fed

too rapidly.
S Cut only from your left to your right. Cutting on

right side of the shield will throw debris away

from the operator.
S Use the shoulder strap and keep a firm grip

on the unit with both hands. A properly

adjusted shoulder strap will support the

weight of the unit, freeing your arms and

hands to control and guide the cutting motion.
S Keep feet comfortably spread apart and

braced for a possible sudden, rapid thrust of

unit. Do not overreach. Keep firm footing and

balance.
S Keep blade below waist level; it will be

easier to maintain control of unit.

13

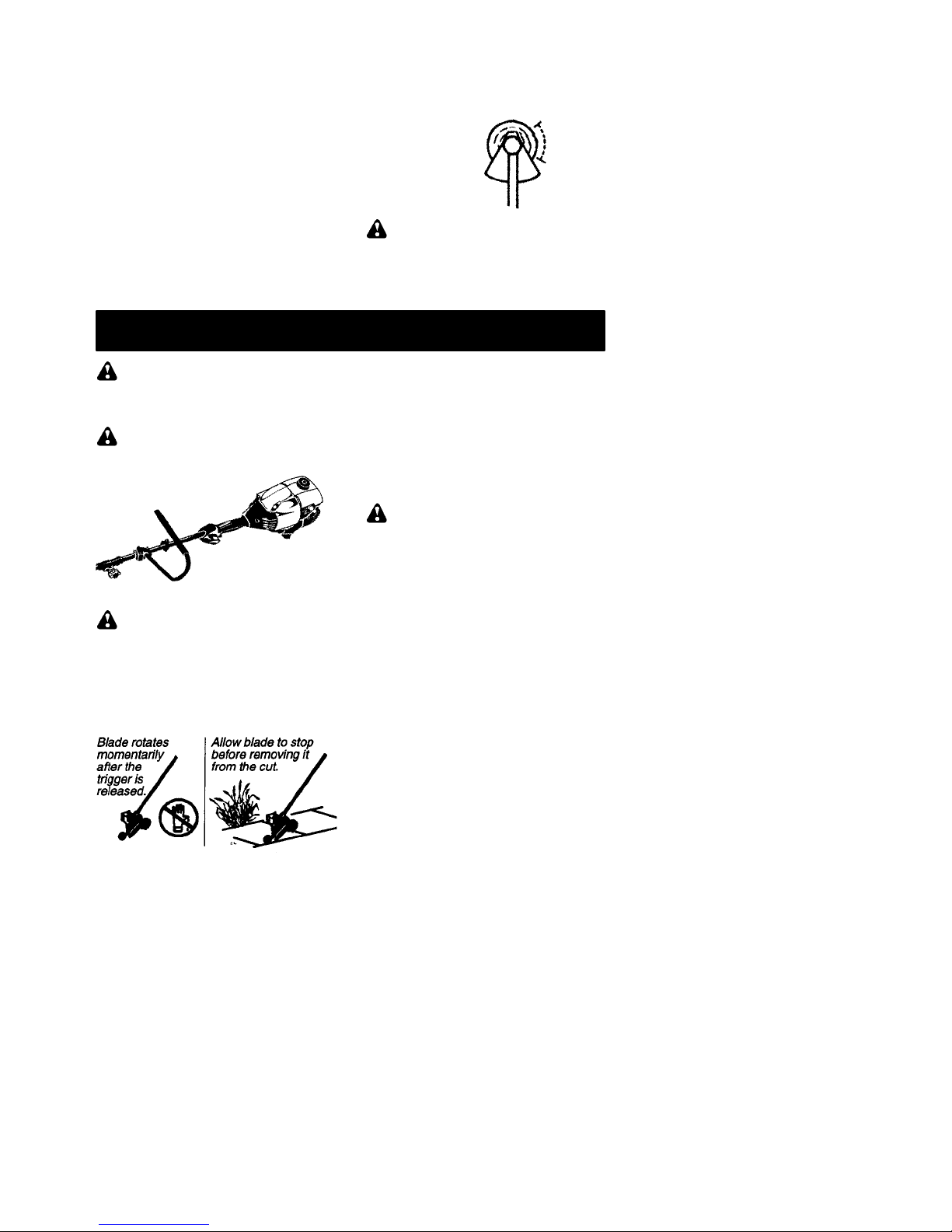

S Do not raise the engine above your waist as

the blade can come dangerously close to
your body.

S Do not swing unit with such force that you

are in danger of losing your balance.
Bring the engine to cutting speed before enter­ing the material to be cut. If the blade does not
turn when you squeeze the throttle trigger, make
sure shaft is fully inserted into the engine.
Always release the throttle trigger and allow
engine to return to idle speed when not cut­ting. The blade should not turn while the en­gine is running at idle. If the blade turns at idle,
do not use your unit. Refer to the CARBURE­TOR ADJUSTMENT section or contact your
authorized service dealer.
S Maintain good firm footing while using the

unit. Do this by planting feet firmly in a

comfortable apart position.

S Cut while swinging the upper part of your

body from left to right.

S Asyoumoveforwardtothenextareatocut,

be sure to maintain your balance and footing.

Cut using the 2
o’clock to 4 o’clock
position of the
blade

2 o’clock

4 o’clock

RECOMMENDED CUTTING POSITION

WARNING: The operator or others

must not try to clear away cut material with the
engine running or the blade turning to avoid
serious injury. Stop engine and blade before
removing materials wrapped around blade or
shaft.

ADDITIONAL SAFETY RULES

FOR OPTIONAL ATTACHMENTS

WARNING: For each optional attach-

ment used, read entire instruction manual be­fore use and follow all warnings and instruc­tions in manual and on attachment.

WARNING: Ensure handlebar is

installed on upper shaft (engine end of unit) at
all times.

Handlebar

EDGER SAFETY

WARNING: Inspect the area to be

edged before each use. Remove objects
(rocks, broken glass, nails, wire, etc.) which
can be thrown by the blade or can wrap
around the shaft.
S Blade rotates momentarily after the trigger is

released. The blade can seriously cut you or

others. Allow blade to stop before removing it

from the cut.

S Throw away blades that are bent, warped,

cracked, broken or damaged in any other

way. Replace parts that are cracked, chipped,

or damaged before using the unit.

S Do not attempt to remove cut material nor

hold material to be cut when the engine is
running or when cutting blade is moving.

S Always keep the wheel and depth adjusting

skid in contact with the ground.

S Always push the unit slowly over the ground.

Stay alert for uneven sidewalks, holes in the
terrain, large roots, etc.

S Always use the handlebar when using edger

attachment.

BLOWER/VACUUM S AFETY

WARNING: Inspect area before start-

ing unit. Remove all debris and hard objects
such as rocks, glass, wire, etc. that can rico­chet, be thrown, or otherwise cause injury or
damage during operation.
S Do not set unit on any surface except a clean,

hard area while engine is running. Debris
such as gravel, sand, dust, grass, etc., could
be picked up by the air intake and thrown out
through discharge opening, damaging unit,
property, or causing serious injury to
bystanders or operator.

S Never place objects inside the blower tubes,

vacuum tubes or blower outlet. Always direct
the blowing debris away from people,
animals, glass, and solid objects such as
trees, automobiles, walls, etc. The force of air
can cause rocks, dirt, or sticks to be thrown or
to ricochet which can hurt people or animals,
break glass, or cause other damage.

S Never run unit without the proper equipment

attached.

S Check air intake opening frequently always

with engine stopped and spark plug
disconnected. Keep vents and discharge
tubes free of debris which can accumulate
and restrict proper air flow.

S Never place any object in air intake opening

as this could restrict proper air flow and cause
damage to the unit.

14

S Never use for spreading chemicals, fertilizers,

or other substances which may contain toxic

materials.
S T oavoid spreading fire, do not use near leaf or

brush fires, fireplaces, barbecue pits,

ashtrays, etc.

CULTIVATOR SAFETY

WARNING: Rotating tines can cause

serious injury. Keep away from rotating tines.
Stop the engine and disconnect the spark plug
before unclogging tines or making repairs.

WARNING: Inspect the area to be

cultivated before starting the unit. Remove all
debris and hard and sharp objects such as
rocks, vines, branches, rope, string, etc.
S Avoid heavy contact with solid objects that

might stop the tines. If heavy contact occurs,

stop the engine and inspect the unit for

damage.
S Never operate the cultivator without the tine

cover in place and prop erly secured.

S Keep the tines and guard clear of debris.
S After striking a foreign object, stop the engine,

disconnect the spark plug and inspect the

cultivator for damage. Repair before

restarting.
S Disconnect attachment from the drive engine

before cleaning the tines with a hose and

water to remove any build--up. Oil the tines to

prevent rust.
S Always wear gloves when servicing or

cleaning the tines. The tines become very

sharp from use.
S Do not run unit at high speed unless

cultivating.

HEDGE TRIMMER SAFETY

DANGER: RISK OF CUT; KEEP

HANDS AWAY FROM BL A DE

-- B l a d e
moves momentarily after the trigger is re­leased. Do not attempt to clear away cut ma­terial when the blade is in motion. Make sure
the switch is in the OFF position, the spark
plug wire is disconnected, and the blade has
stopped moving before removing jammed
material fromthe cutting blade. Do not grab or
hold the unit by the cutting blade.

A

l

lowbl

adestostop
before removing
them from the cut.

Bladesmove

momentarily

after the

trigger is

released.

WARNING: Inspect the area before

starting the unit. Remove all debris and hard
objects such as rocks, glass, wire, etc. that
can ricochet, be thrown, or otherwise cause
injury or damage during operation.
S Do not use a cutting blade that is bent,

warped, cracked, broken or damaged in any
other way. Have worn or damaged parts
replaced by your authorized service dealer.

S Always keep unit in front of your body. Keep

all parts of your body away from the cutting
blade.

S Keep the cutting blade and air vents clear of

debris.

POLE PRUNER SAFETY

WARNING: The reciprocating blade/

rotating chain can cause severe injury. In­spect the unit before use. Do not operate unit
with a bent, cracked or dull blade or dull chain.
Keep away from the blade/chain.

WARNING: The reciprocating blade/

rotating chain is sharp. Do not touch. To pre­vent serious injury, always stop engine and
ensure blade/chain has stopped moving, dis­connect spark plug, and wear gloves when
changing or handling the blade or chain.

WARNING: A coasting blade/rotating

chain can cause injury while it continues to
move after the engine is stopped. Maintain
proper control of the unit until the blade/chain
has completely stopped moving. Keep
hands, face and feet at a distance from all
moving parts. Do not attempt to touch or stop
the blade or chain when it is moving.

WARNING: Falling objects can

cause severe head injury. Wear head protec­tion when operating this unit with a pole prun­er attachment.

WARNING: Toprevent serious injury,

do not use more than one boom extension
with a pole pruner attachment.

15

WARNING: Keep the pruner away

from power lines or electrical wires.
S Only use for pruning limbs or branches up to 4

inches in diameter.

S Do not operate the unit faster than the speed

needed to prune. Do not run the unit at high
speed when not pruning.

S Always stop the unit when work is delayed or

when walking from one cutting location to
another.

S If you strike or become entangled with a

foreign object, stop the engine immediately
and check for damage. Have any damage
repaired by an authorized service dealer
before attempting further operations. Discard
blades that are bent, warped, cracked or
broken.

S Stop the unit immediately if you feel excessive

vibration. Vibration is a sign of trouble. Inspect
thoroughly for loose nuts, bolts or damage
before continuing. Contact an authorized
service dealer for repair or replacement of
affected parts as necessary.

SNOW THROWER SAF ETY

WARNING: Keep hands and feet

away from the rotor when starting or running
the engine. Never attempt to clear the rotor
with the engine/motor running. Stop engine
and disconnect spark plug before unclogging
snow or debris from discharge chute or when
adjusting vanes.

WARNING: Never lean over dis-

charge chute. Rocks or debris could be

thrown into the eyes and face and cause seri­ous injury or blindness.

WARNING: Inspect the area where

the unit is to be used. Remove objects that
could be thrown or damage the unit. Some
objects may be hidden by fallen snow -- be
alert for the possibility.
S Direct material discharge away from glass

enclosures, automobiles, etc.

S Do not run engine at high speed while not

removing snow.

S Be attentive when using the snowthrower,

and stay alert for holes in the terrain and other
hidden hazards.

S Make sure the rotor will spin freely before

attaching the snowthrower to the powerhead.

S If the rotor will not rotate freely due to frozen

ice, thaw the unit before thoroughly before
attempting to operate under power.

S Keep the rotor clear of debris.
S Do not throw snow near other people. The

snow thrower could propel small objects at
high speed causing injury.

S After striking a foreign object, stop the engine,

disconnect spark plug and inspect the
snowthrower for damage and repair if
necessary before restarting unit.

S Never operate the snowthrower near glass

enclosures, automobiles and trucks.

S Never attempt to use the snowthrower on a

roof.

S Never operate the snowthrower near window

wells,dropoffs,etc.

S Never discharge snow onto public roads or

near moving traffic.

S Clear snow from slopes by going up and

down; never across. Use caution when
changing directions. Never clear snow from
steep slopes.

S Let snowthrower run for a few minutes after

clearing snow so moving parts do not freeze.

S Look behind and use care when backing up.

Exercise caution to avoid slipping or falling,
especially when operating in reverse.

S Know how to stop quickly.

MAINTENANCE

WARNING: Disconnect the spark

plug before performing maintenance except
for carburetor adjustments.

CHECK FOR LOOSE
FASTENERS AND PARTS

S Spark Plug Boot
S Air Filter
S Housing Screws
S Handlebar Screws
S Debris Shield

CHECK FOR DAMAGED OR
WORN PARTS

Contact an authorized service dealer for re­placement of damaged or worn parts.

S ON/OFF Switch -- Ensure ON/OFF switch

functions properly by moving the switch to
the OFF position. Make sure engine stops;
then restart engine and continue.

S Fuel Tank -- Discontinue use of unit if fuel

tank shows signs of damage or leaks.

S Debris Shield -- Discontinue use of unit if

debris shield is damaged.

INSPECT AND CLEAN UNIT AND
LABELS

S After each use, inspect complete unit for

loose or damaged parts. Clean the unit and
labels using a damp cloth with a mild deter­gent.

S Wipe off unit with a clean dry cloth.

16

CLEAN AIR FILTER

A dirty air filter decreases engine perform­ance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.

1. Clean the cover and the area around it to
keep dirt from falling into the carburetor
chamber when the cover is removed.

2. Remove parts as illustrated.

NOTE: Do not clean filter in gasoline or other

flammable solvent to avoid creating a fire haz­ard or producing harmful evaporative emis­sions.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Replace parts.

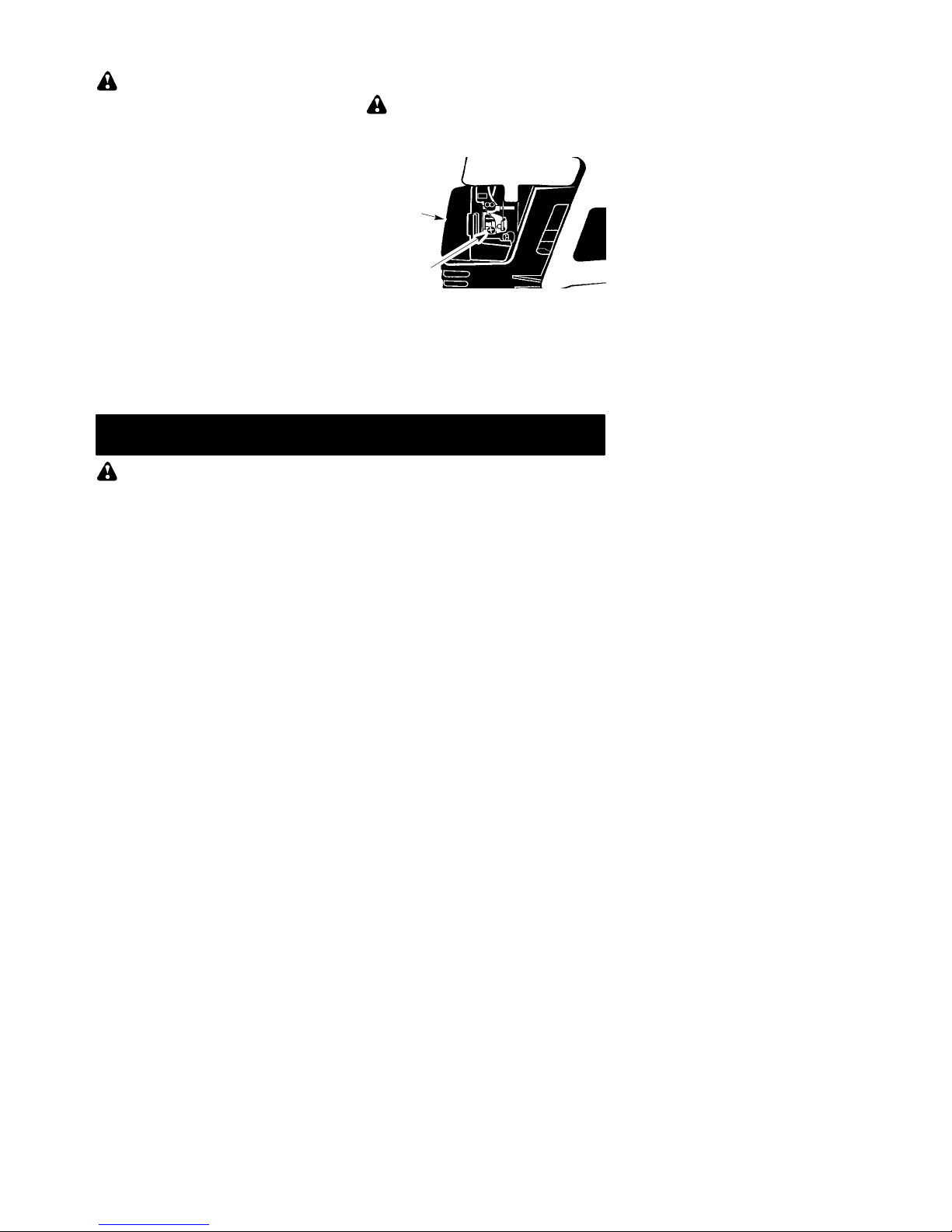

Air Filter

Air Filter
Cover

Button

REPLACE SPARK PLUG

Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0,6 mm. Ignition timing is
fixed and nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder and dis­card.

3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 19 mm
socket wrench.

4. Reinstall the spark plug boot.

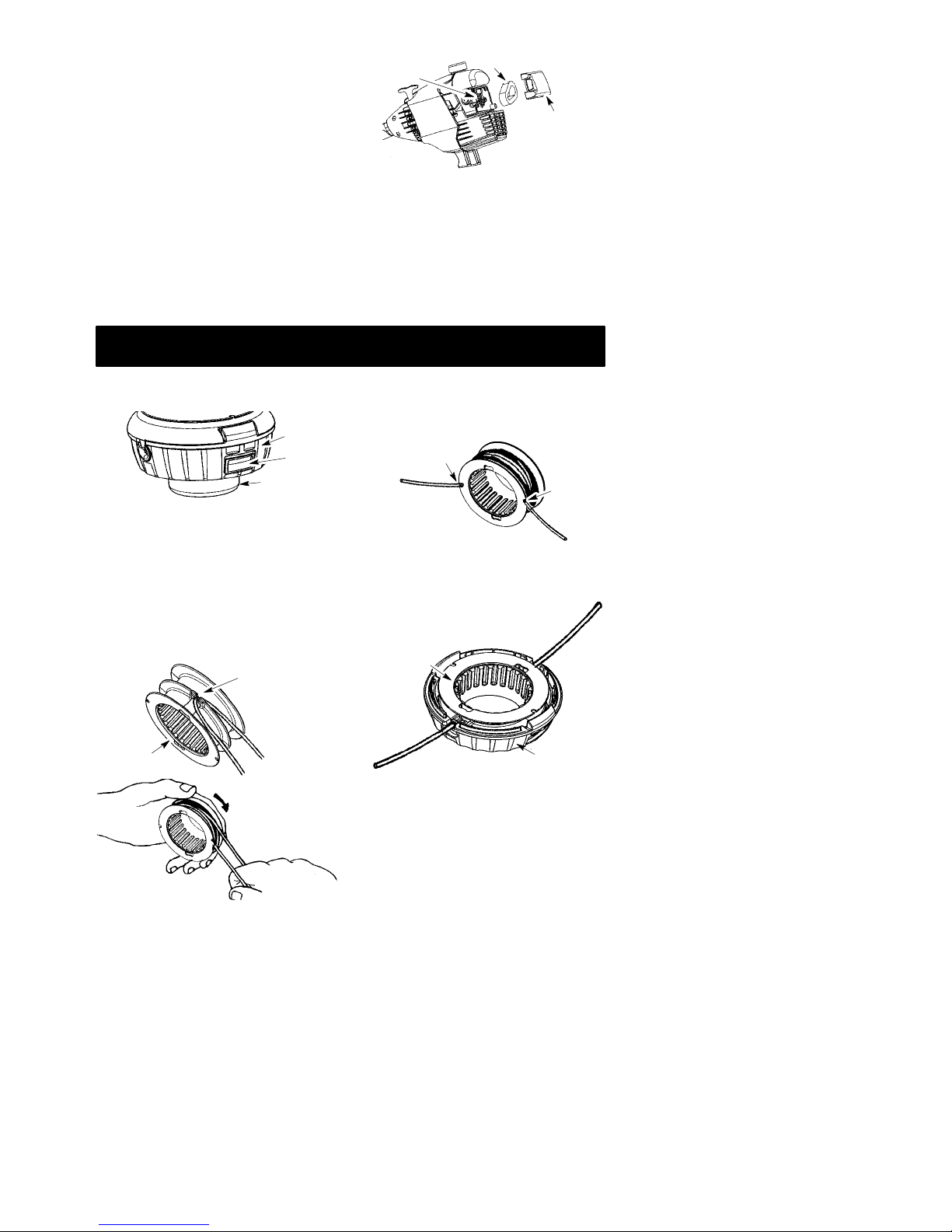

SERVICE AND ADJUSTMENTS

REPLACING THE LINE

1. Press the tabs on the side of the trimmer
head and remove cover and spool.

Tab

Cover

Tap Bu tt o n

2. Remove any remaining line.

3. Clean dirt and debris from all parts. Re­place spool if it is worn or damaged.

4. Replace with a pre-wound spool, or re­place line using a 4,5 meters length of 2,4
mm diameter Partner® brand line.

5. When installing new line on an existing
spool, hold the spool as shown in the il­lustration below.

6. Bend the line at the midpoint and insert
the bend into the slot in the center rim of
the spool. Ensure line snaps into position
in the slot.

Slot

Spool

7. With your finger between the lines, wrap
the lines evenly and firmly around the
spool in a clockwise direction.

8. Position the lines in the guide slots.

Guide

Slot

Guide Slot

9. Insert the ends of the lines through exit
holes in the sides of the cover.

10. Place the spool in the cover.

Spool

Cover

11. Make sure the lines are not caught be­tween the rim of the spool and the wall of
the cover.

12. Reinstall the spool and cover onto the
trimmer head. Push until cover snaps into
place.

BLADE REPLACEMENT

Refer to the ASSEMBLY section for blade re­placement instructions and illustrations.

17

CARBURETOR ADJUSTMENT

WARNING: Keep others away when

making idle speed adjustments. The trimmer
head will be spinning during most of this pro­cedure. Wear your protective equipment and
observe all safety precautions. After making
adjustments, the trimmer head must not
move/spin at idle speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if you
notice any of the following conditions:
S Engine will not idle when the throttle is re-

leased.
S The trimmer head moves/spins at idle speed.
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making ad­justments. Keep all parts of your body away
from the cutting attachment and muffler.

Idle Speed Adjustment

Allow engine to idle. Adjust speed until engine
runs without trimmer head moving or spinning
(idle speed too fast) or engine stalling (idle
speed too slow).
S Turn idle speed screw clockwise to in-

crease engine speed if engine stalls or dies.

S Turn idle speed screw counterclockwise to

decrease engine speed if trimmer head
moves or spins at idle speed.

WARNING: Recheck the idle speed

after each adjustment. The trimmer head
must not move or spin at idle speed to avoid
serious injury to the operator or others.

Idle Speed

Screw

Air Filter
Cover

If you require further assistance or are unsure
about performing this procedure, contact an
authorized service dealer.

STORAGE

WARNING: Perform the following

steps after each use:
S Allow engine to cool before storing or trans-

porting.
S Store unit and fuel in a well ventilated area

where fuel vapors cannot reach sparks or

open flames from water heaters, electric

motors or switches, furnaces, etc.
S Empty fuel tank before storing or transport-

ing the unit.
S Store unit and fuel well out of the reach of

children.
S Store unit with all guards in place. Position

unit so that any sharp object cannot acci-

dentally cause injury.

SEASONAL STORAGE

Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:

S Clean the entire unit before lengthy storage.
S Store in a clean dry area.
S Lightly oil external metal surfaces.

ENGINE

S Remove spark plug and pour 1 teaspoon of

40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.

S Replace spark plug with new one of recom-

mended type and heat range.

S Clean air filter.
S Check entire unit for loose screws, nuts,

and bolts. Replace any damaged, broken,
or worn parts.

S At the beginning of the next season, use

only fresh fuel having the proper gasoline to
oil ratio.

OTHER

S Do not store gasoline from one season to

another.

S Replace your gasoline can if it starts to rust.

18

TROUBLE CAUSE REMEDY

Engine will not
start.

1. ON/OFF switch in OFF
position.

2. Engine flooded.

3. Fuel tank empty.

4. Spark plug not firing.

5. Fuel not reaching
carburetor.

6. Carburetor requires
adjustment.

1. Move ON/OFF switch to ON position.

2. See “Starting a Flooded Engine” in
Operation Section.

3. Fill tank with correct fuel mixture.

4. Install new spark plug.

5. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.

6. Contact an authorized service dealer.

Engine will
not idle
properly.

1. Carburetor requires
adjustment.

2. Crankshaft seals worn.

3. Compression low.

1. See “Carburetor Adjustment” in
Service and Adjustments Section.

2. Contact an authorized service dealer.

3. Contact an authorized service dealer.

1. Air filter dirty.

2. Spark plug fouled.

3. Carburetor requires
adjustment.

4. Carbon build-up on
muffler outlet screen.

5. Compression low.

Engine will not
accelerate,
lacks power ,
or dies under
a load.

1. Clean or replace air filter.

2. Clean or replace plug
and regap.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

5. Contact an authorized service dealer.

Engine
smokes
excessively.

1. Choke partially on.

2. Fuel mixture incorrect.

3. Air filter dirty.

4. Carburetor requires
adjustment.

1. Adjust choke.

2. Empty fuel tank and refill with
correct fuel mixture.

3. Clean or replace air filter.

4. Contact an authorized service dealer.

Engine runs
hot.

1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires
adjustment.

4. Carbon build-up on
muffler outlet screen.

1. Empty fuel tank and refill with
correct fuel mixture.

2. Replace with correct spark plug.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

WARNING: Always stop unit and disconnect spark plug before performing all of the

recommended remedies below except remedies that require operation of the unit.

TROUBLESHOOTING TABLE

DECLARATION OF CONFORMITY

relating to 2000/14/EC

EC Declaration of Conformity relating to 2000/14/EC

We, Electrolux Home Products, Inc., Texarkana, TX, 75501, USA, Tél. : [phone]
4100, declare under sole responsibility that the Partner model T330+ brushcutter was
assessed in accordance with Annex V of the DIRECTIVE and from serial numbers
2005--335N00001 and onwards, conforms to the provisions of the DIRECTIVE. The
cutting width is 431 mm. The measured sound power is 108 dB and the guaranteed sound
power is 114 dB.

Texarkana 05--12--01

Michael S. Bounds, Director
Product Safety and Standards

19

DECLARATION OF CONFORMITY

relating to 98/37/EC

EC Declaration of Conformity (Directive98/37/EC,Annex II,A) (Only applies to Europe)
We, Electrolux Home Products, Inc., Texarkana, TX, 75501, USA, Tél. : [phone]

4100, Declare under sole responsibility that the Partner model T330+ brushcutter from
serial numbers 2005--335N00001 and onwards, follows the provisions of the
DIRECTIVES: 98/37/EC (machinery) and 89/336/EEC (electromagnetic compatibility),
including amendments and is in conformity with the following standards: EN 12100--2, EN

ISO 11806 and CISPR 12.
SMP, The Swedish Machinery Testing Institute, Fyrisborgsgatan 3 S--754 50 Uppsala,

Sweden, has carried out voluntary type approval. The certificate(s) are numbered:
SEC/04/1035.

Texarkana 05-- 12--01

Michael S. Bounds, Director
Product Safety and Standards

TECHNICAL DATA SHEET

MODEL: T330+ Blade Trimmer

ENGINE

Displacement, cm

3

32 32
Maximum engine power, measured in
accordance with ISO 8893, kW 0,7 0,7

ENGINE ROTATIONAL SPEEDS

At maximum engine power, rpm 7000 7000
Maximum rotational frequency of the spindle 10000 10000
Engine speed at recommended maximum
spindle rotational frequency 7400 7400
Recommended speed idling, rpm 3000 3000

FUEL AN D LUBRICATION SYSTEM

Fuel tank volume capacity, cm

3

325 325
Fuel consumption at maximum engine power,
measured in accordance with ISO 8893, g/h 399 399
Specified fuel consumption at max. engine power,
measured in accordance with ISO 8893, g/kWh 435 435

WEIGHT

Without cutting attachment or shield, empty tank, kg 5,9 5,9

CUTTING ATTACHMENT

Weed blade, part number #530055892 Opt.
Cutting head assembly, part number Opt. #537419202

NOISE LEVELS (Octave Band Analysis 100--10000hz 1/3 Octave)

SOUND PRESSURE LEVELS in accordance with ISO/EN 11806
measured in accordance with EN 27917, dB(A) 95,6 95,6
SOUND POWER LEVELS in accordance with ISO/EN 11806
measured in accordance with ISO/EN 10884, dB(A) 105,7 105,7

VIBRATION LEVELS measured in accordance with ISO 7916
FRONT HANDLE
Idling, m/s

2

10,3 11,8
Racing, m/s

2

14,5 8,7
REAR HANDLE

Idling, m/s

2

6,5 6,8
Racing, m/s

2

14,8 8,6

YEAR OF CONSTRUCTION: 2006
MANUFACTURER’S ADDRESS: Electrolux Outdoor Products Italy

ViaComo72
Valmadrera, Lecco
ITALY I--23868
