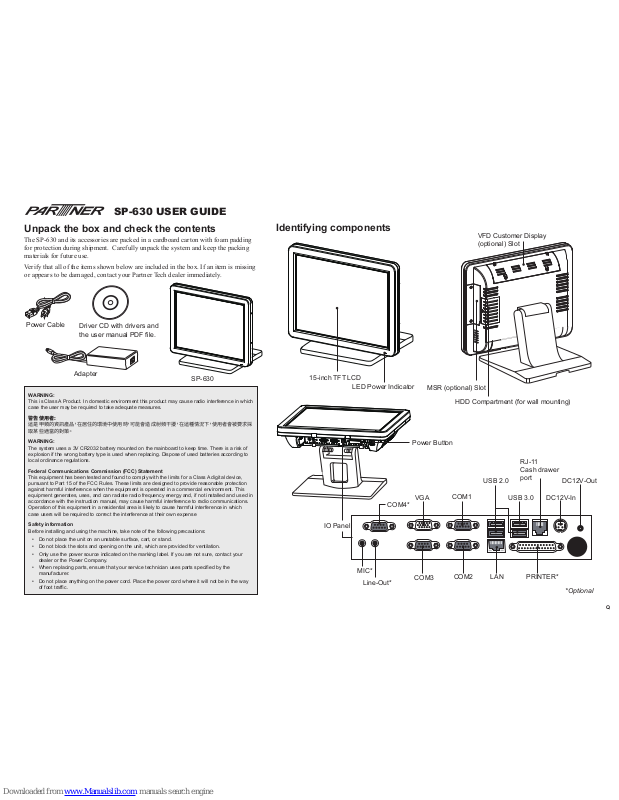

SP-630 USER GUIDE

Unpack the box and check the contents

The SP-630 and its accessories are packed in a cardboard carton with foam padding
for protection during shipment. Carefully unpack the system and keep the packing
materials for future use.

Verify that all of the items shown below are included in the box. If an item is missing
or appears to be damaged, contact your Partner Tech dealer immediately.

SP-630

Adapter

Power Cable

Driver CD with drivers and

the user manual PDF le.

Identifying components

Power Button

IO Panel

LED Power Indicator

15-inch TFT LCD

MSR (optional) Slot

DC12V-In

DC12V-Out

COM2

COM3

MIC*

Line-Out*

COM4*

LAN PRINTER*

RJ-11
Cash drawer
port

VGA

COM1

USB 3.0

USB 2.0

VFD Customer Display
(optional) Slot

HDD Compartment (for wall mounting)

*Optional

Q

WARNING:

This is Class A Product. In domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

警告使用者:

這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，使用者會被要求採
取某些適當的對策。

WARNING:

The system uses a 3V CR2032 battery mounted on the mainboard to keep time. There is a risk of
explosion if the wrong battery type is used when replacing. Dispose of used batteries according to
local ordinance regulations.

Federal Communications Commission (FCC) Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which
case users will be required to correct the interference at their own expense

Safety information

Before installing and using the machine, take note of the following precautions:

• Do not place the unit on an unstable surface, cart, or stand.

• Do not block the slots and opening on the unit, which are provided for ventilation.

• Only use the power source indicated on the marking label. If you are not sure, contact your
dealer or the Power Company.

• When replacing parts, ensure that your service technician uses parts specied by the
manufacturer.

• Do not place anything on the power cord. Place the power cord where it will not be in the way
of foot trafc.

Specication

3. Press the power button on the right underside of the SP-630.

Note: Press once to power on the system. Press it for 4~5
seconds to force the system power off.

Quick start

1. Connect the power cable to the DC-IN connector located on the right side
of the SP-630 I/O panel.

2. Plug the power cable into an electrical outlet.

Item SP-630

CPU Type Intel® Celeron® Processor N2807 (1M Cache, 1.58 GHz up to 2.16 GHz)

LCD 15” Active TFT color LCD, 350 nits resolution 1024 x 768

Touch 5-wire Resistive touch (USB interface)

Memory 204pin DDR3L-1333 SO-DIMM x 2, Max Support 4GB

LAN 10/100/1000 Gb Ethernet x 1

Storage Internal 2.5” type SATA HDD x 1

I/O Interface 3* COM ports (powered with DC +5/+12V, COM1~2 by BIOS selection; COM3 by jumper

setting)
1* DB-15 VGA port
1* RJ11 port supports 2 cash drawer(DC+24v)
1* RJ-45 LAN port with activity and link LEDs
1* DC+12v out
3* USB 2.0 + 1 * USB 3.0
1* DC +12V input power-jack
1* optional COM4 port
1* optional Printer port
1* optional MIC jack
1* optional Audio Line-out jack

Expansion Options 1* Mini PCI-e, Support Wireless LAN module

Optional Peripherals 3 tracks magnetic reader

Customer display module (2 x 20 VFD)
Biometric Reader, Smart Card Reader, I-Button, RFID reader

Operation System Window 7, POS Ready7, Window 8.1, Industry pro embedded 8.1 , Linux (Ubuntu)

Power Supply AC100~240V/DC+12V,7.5A, 90 watt power adaptor (Standard)

Dimensions Physical:360mm(W)x240mm(D)x365mm(H),(LCD 15 tilt angle)

Operating Temp 0°C ~ +40°C

Storage Temperature -20°C ~ +60°C

Humidity 15%~80%

Certication CE, FCC, LVD, VCCI, BSMI, CCC, CB, Class A
