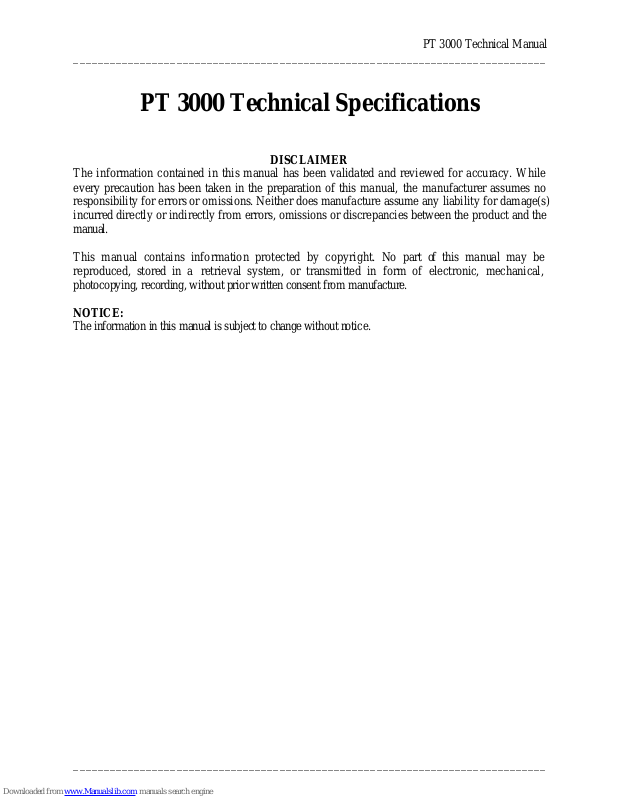

PT 3000 Technical Specifications
DISCLAIMER
The information contained in this manual has been validated and reviewed for accuracy. While
every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does manufacture assume any liability for damage(s)
incurred directly or indirectly from errors, omissions or discrepancies between the product and the
manual.
This manual contains information protected by copyright. No part of this manual may be
reproduced, stored in a retrieval system, or transmitted in form of electronic, mechanical,
photocopying, recording, without prior written consent from manufacture.
NOTICE:
The information in this manual is subject to change without notice.
______________________________________________________________________________
Page 2
PT 3000 Technical Manual
______________________________________________________________________________
Battery Replacement Warning:
Your system is provided with a battery-powered Real-Time Clock circuit. There is a danger of
explosion and risk of personal injury if the battery is incorrectly replaced or mistreated. Do not
attempt to disassemble the battery, immerse it in water or dispose of it in fire.
CE Warning:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
______________________________________________________________________________
Page 3
PT 3000 Technical Manual
______________________________________________________________________________
Trademarks Acknowledgments
Intel & Pentium is a trademark of Intel Corporation
AMD is a trademark of Advance Micro Devices, Inc
Microsoft is a registered trademark
Windows and Windows logo are trademark of Microsoft Corporation.
AWARD is a trademark of the Award Software Inc
Cyrix is a trademark of Cyrix Corporation
SIS is a trademark of Silicon Integrated System Corporation
Cirrus Logic is a trademark of Cirrus Logic Inc
C&T is a trademark of the Chips and Technologies, Inc
Turbo C is a trademark of Borland Inc
All other registered and unregistered trademarks are trademarks of their respective holders.
______________________________________________________________________________
Page 4
PT 3000 Technical Manual
______________________________________________________________________________
S
PECIFICATIONS
CPU Intel Pentium P54C / P55C, MMX 233 MHz
Option AMD K5/ K6, Cyrix 6x86 & IDT C6.
Chipset SiS 5582.
BIOS
Cache Memory On-board 512KB-pipelined burst SRAM.
RAM 2 x 168-pin DIMM upgradeable to 128MB.
EIDE Interface Support two HDD’s (3.5” & 2.5” each).
FDD Interface Support two FDD’ s (1.44MB).
Parallel Port 1 port, support SPP/EPP/ECP parallel mode.
Serial Port
Watchdog Timer
Keyboard Supports one PS/2 type keyboard.
Mouse Supports one PS/2 type mouse.
USB Interface
Display Interface
Resolution
Cash Drawer 1 x RJ11 connector supports two cash drawers.
Drive Voltage +24V DC
Drive Current 0.8A at maximum (within 510 ms)
Ethernet 1 x RJ45 connector supports 10/100 Base-T, NE2000 compatible.
Touch Panel Elo TouchSystem, five-wire resistive sensor.
Disk-On-Chip Supports Disk-On-Chip 2000 serials, Upgradable to 72 MB.
DC Power Supports +24VDC/ 3A output for printer Interface.
Customer Display
MSR Interface Supports 1 / 2 / 3 track reader.
Power Supply Adapter Input: 110 ~ 230 VAC, 50/ 60 Hz
Adapter Output +5V/10A, +12V/2A, +24V/3A
Total wattage 146 W
Dimensions
CPU Unit rotation min 50o C ~ max 275o C
AWARD 128KB Flash ROM includes System & Video BIOS, Ethernet
Boot ROM, SSD Driver and support Plug and play.
4 RS232C ports, supports 2 x 9-pin D-type (COM1, 2) 1 x 8-pin RJ45
type (COM3) and 1 x internal port used for touch panel (COM4).
Generates a system reset, timing & temperature Intervals are software
programmable.
Supports two USB devices with fuse protection. Compliant with USB
specs Rev 1.0
12.1” LCD single / double tube option and CRT (PCI SVGA) display.
Simultaneously supports CRT and flat panel (EL, LCD and Gas Plasma)
display.
Support non-interlaced CRT & LCD display up to 1024 x 768 @ 256
colors with onboard 1MB video memory. (Expandable to 2 MB)
Supports +12VDC, 2 x 20-character display Interface through COM3
serial port.
CPU Unit: 318 (L) x 326 (W) x 82 (H) mm
CPU Unit on Pedestal 318(L) x 345(W) x 193(H) mm
______________________________________________________________________________
Page 5
PT 3000 Technical Manual
______________________________________________________________________________
Weight
Temperature
Packing: 10.3 Kgs
CPU Unit: 6.2 Kgs
Storage: -25o C ~ 70o C
Operation: 5o C ~ 55o C
Humidity 0 to +85% (operating)
Options Sound Card Interface.
PC/104 Interface PCMCIA / FAX Modem Interface. IrDA device Interface.
Green Function
Software
Suspend mode support IDE & Display power down support APM 1.1
Compliant
Operation with MS-DOS, WINDOWS 95/ 98, WINDOWS NT, OS/2,
NOVELL and SCO UNIX.
