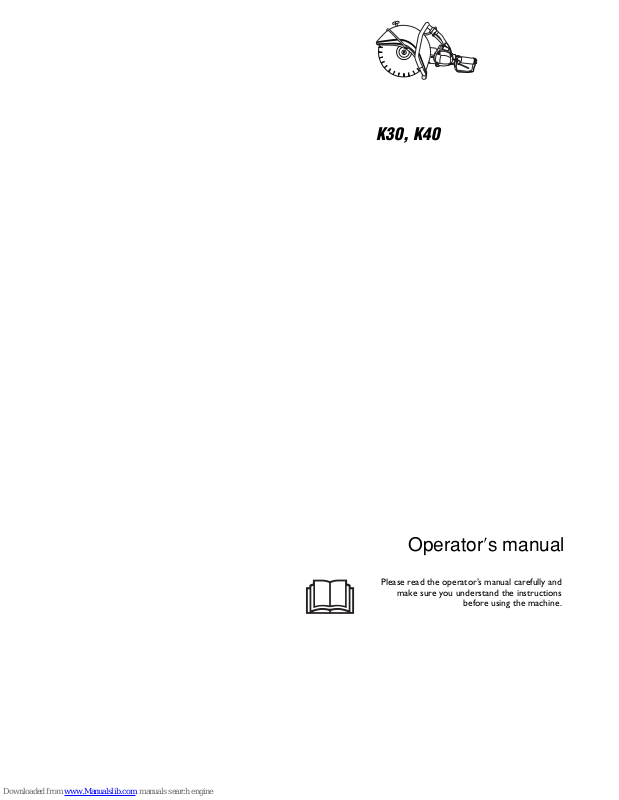

Partner K30, K40 Operator's Manual

K30, K40

Operator ′ s manual

Please read the operator’s manual carefully and

make sure you understand the instructions

before using the machine.

2 –

English

KEY TO SYMBOLS

Key to symbols

WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or fatal
injury to the operator or others.

Please read the operator’s manual carefully
and make sure you understand the
instructions before using the machine.

Always wear:

• Approved protective helmet

• Approved hearing protection

• Protective goggles or a visor

• Dust forms when cutting, which can
cause injuries if inhaled. Use an
approved breathing mask. Always
provide for good ventilation.

This product is in accordance with applicable
EC directives.

Other symbols/decals on the machine refer to special
certification requirements for certain markets.

Always disconnect the machine from the air
hoses before inspection and/or maintenance
of the machine.

Always wear approved protective gloves.

Regular cleaning is required.

Visual check.

Protective goggles or a visor must be worn.

English

– 3

CONTENTS

Contents

KEY TO SYMBOLS

Key to symbols ............................................................. 2

CONTENTS

Contents ...................................................................... 3

WHAT IS WHAT?

What is what on the power cutter? ............................... 4

SAFETY INSTRUCTIONS

Steps before using a new power cutter. ....................... 5

Personal protective equipment ..................................... 5

Machine ′ s safety equipment ........................................ 5

Checking, maintaining and servicing the machine ′ s

safety equipment .......................................................... 6

General safety precautions .......................................... 7

General working instructions ....................................... 7

Cutting blades .............................................................. 9

ASSEMBLY

Assembly ..................................................................... 11

Fitting the cutting blade ................................................ 11

Guard for the blade ...................................................... 11

STARTING AND STOPPING

Starting and stopping ................................................... 12

MAINTENANCE

Maintenance ................................................................ 13

TECHNICAL DATA

Cutting equipment ........................................................ 15

EC-declaration of conformity ........................................ 15

4 –

English

WHAT IS WHAT?

What is what on the power cutter?

2

3

5

7

8

10

6

9

11

4

1

12 14

151316

18

19

17

1 Cutting blade

2 Flange washer

3 Guard for the blade

4 Catch for the guard

5 Front handle

6 Water tap

7 Air motor

8 Switch lock

9 Rear handle

10 Connection for air hose

11 Rating plate

12 Switch

13 Water connection with filter

14 Belt guard

15 Belt tensioner

16 Cutting arm

17 Combination spanner

18 Operator ′ s manual

19 Air hose

English

– 5

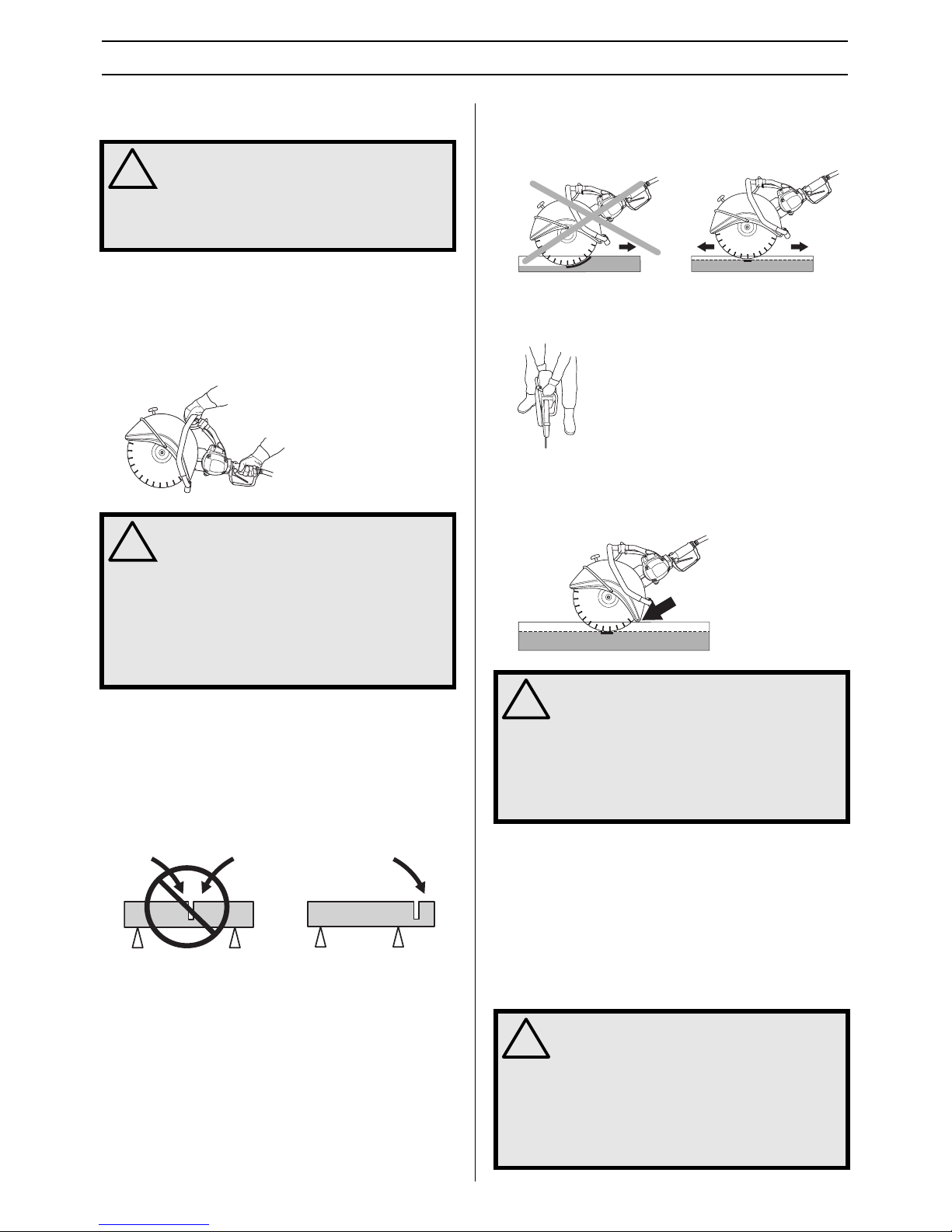

SAFETY INSTRUCTIONS

Steps before using a new power
cutter.

• This machine is a pneumatically operated power cutter
intended for free-hand cutting. The machine must be
connected to a compressor that gives an air pressure of 7
bar and an air volume of 2.8-3.5 m

3

/min for K40 and 2.0-

2.4 m

3

/min for K30.

• Please read the operator’s manual carefully.

• Check the cutting blades mounting, see the chapter
”Assembly”.

• Check that the air hose is in full working order and in good
condition.

Let your Partner dealer check the power cutter and make
essential adjustments and repairs.

Personal protective equipment

• Protective helmet

• Hearing protection

• Protective goggles or a visor

• Breathing mask

• Heavy-duty, firm grip gloves.

• Tight-fitting, heavy-duty and comfortable clothing that
permits full freedom of movement.

• Use leg-guards recommended for the material to be cut.

• Boots with steel toe-caps and non-slip sole

• Always have a first aid kit nearby.

Machine ′′

′′

s safety equipment

This section describes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.

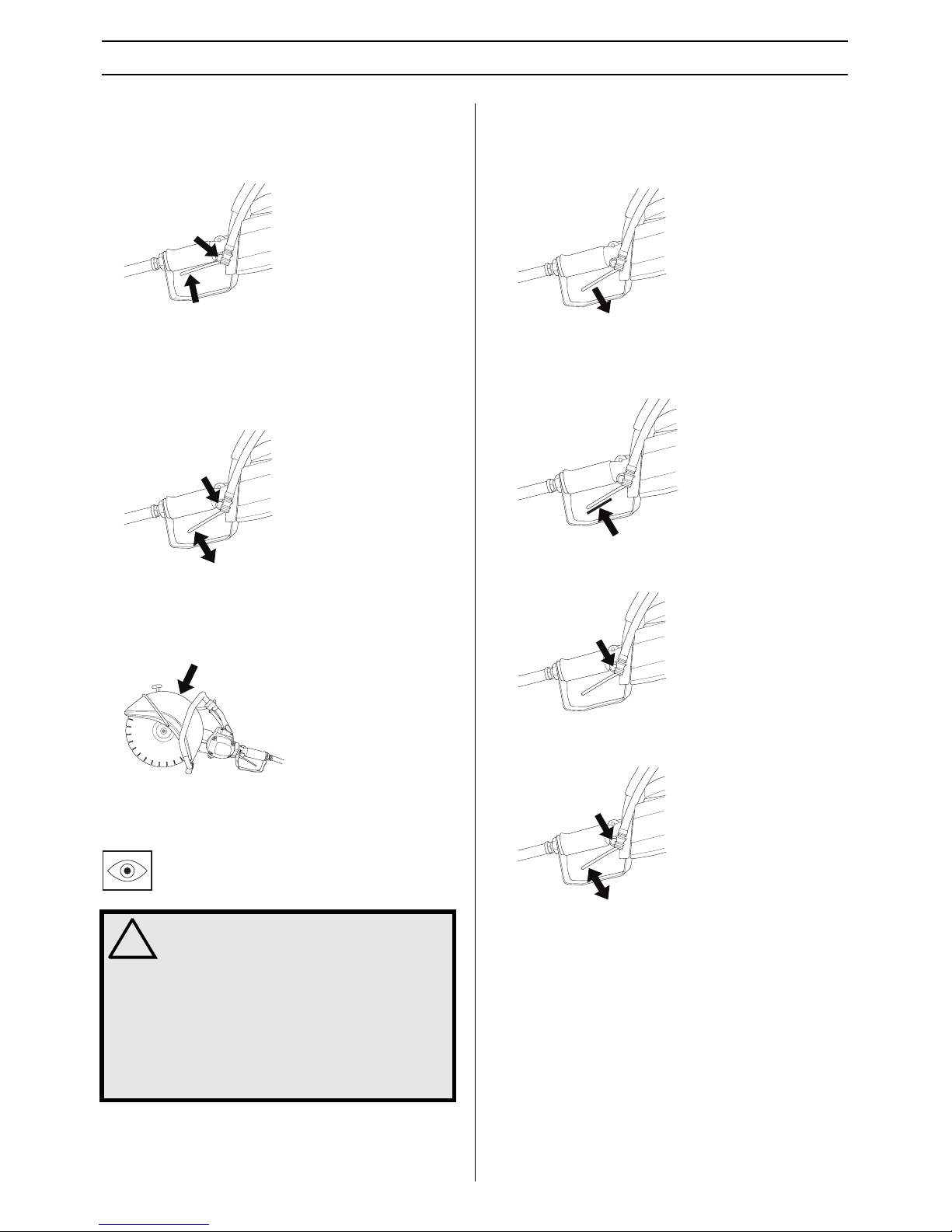

Switch

The switch is used to start and stop the machine.

!

WARNING! Under no circumstances should
you modify the original design of the
machine without approval from the
manufacturer. Always use original spare
parts. Unauthorised modifications and/or
accessories may lead to serious injury or
death to the user or others.

!

WARNING! Use of products which cut, grind,
drill, sand or shape material can generate
dust and vapors which may contain harmful
chemicals. Know the nature of the material
being worked on and wear appropriate dust
mask or respirator protection.

!

WARNING! You must use approved personal
protective equipment whenever you use the
machine. Personal protective equipment
cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident
does happen. Ask your dealer for help in
choosing the right equipment.

!

WARNING! Never use a machine that has
faulty safety equipment! Carry out the
inspection, maintenance and service
routines listed in this section.
