Instruction Manual
LPG Gas Griddles
PGF600G/PGF800G/PGF1000G
Page 2
Page 3
Contents
Parry-British Built for Purpose
IN205-4
1
Contents .......................................................................................................................... 1
Product Overview ............................................................................................................ 2
Safety Instructions ............................................................................................................ 3
Installation Instructions ................................................................................................ 4-5
Operating Instructions ...................................................................................................... 6
Cleaning Instructions ....................................................................................................... 7
Maintenance Instructions ................................................................................................. 8
Conversion Instructions ................................................................................................... 9
Technical Information ................................................................................................ 10-11
Fault Finding .................................................................................................................. 12
Service Information ........................................................................................................ 13
Exploded View ............................................................................................................... 14
Parts List ................................................................................................................... 15-16
Warranty Information .................................................................................................... 17
Disposal & Recycling ...................................................................................................... 18
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN205-4
2
Product Overview
The stainless steel Parry LPG Gas Griddle range feature superior quality stainless steel
burners and a natural gas conversion kit, making the range ideal for mobile catering use.
The units are exceptionally easy to clean thanks to a drip tray included with all models.
Please note that the gas hose and regulator not included.
PGF600G
PGF800G
PGF1000G
Unpacked weight (kg)
22.5
29
35
Packed weight (kg)
25
32
57
Dimensions (w x d x h) mm
620 x 470 x
200
820 x 470 x
200
1020 x 470
x 200
Warranty
2 years
2 years
2 years
KW – Natural
KW – Propane/Butane
n/a
5.5
n/a
8.25
n/a
9.3
BTU – Natural
BTU – Propane/Butane
n/a
18,766
n/a
28,149
n/a
31,732
Input Gas Connection
½” BSP
Male
½” BSP
Male
½” BSP
Male
GAS INPUT PRESSURE – Natural
GAS INPUT PRESSURE – Propane
GAS INPUT PRESSURE – Propane/Butane
20mbar
37mbar
28mbar
20mbar
37mbar
28mbar
20mbar
37mbar
28mbar
Can the unit be converted using conversion kit
Yes
Yes
Yes
The units lead the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Page 5
Parry-British Built for Purpose
IN205-4
3
Safety Instructions
SAFETY INSTRUCTIONS
IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE
THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND MUST ONLY BE USED BY QUALIFIED
PEOPLE.
Attention should be drawn to the fact that parts of this unit by necessity, will get VERY HOT,
and will cause burns if touched accidentally. Therefore, it is the responsibility of the supervisor
or equivalent to provide SUITABLE PROTECTIVE CLOTHING for the user.
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED FITTER BEFORE USE.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the Gas
Safety (Installation and Use) Regulations and the Health and Safety at Work Act.
Each appliance requires a flow of fresh air for combustion. Under no circumstances should air
vents on the appliances, or air vents installed by the fitter in the room of the appliance to
supply combustion air, be altered or omitted in any way.
To prevent shocks, all appliances whether gas or electric, must be earthed.
ANY GAS CONVERSIONS NEEDED TO BE MADE TO THE PRODUCT MUST BE CARRIED OUT BY
A GAS SAFE REGISTERED ENGINEER
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that the protective film is removed from the unit prior to use.
Page 6
Parry-British Built for Purpose
IN205-4
4
Installation Instructions
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED FITTER IN
ACCORDANCE WITH CURRENT REGULATIONS
EACH APPLIANCE REQUIRES A FLOW OF FRESH AIR FOR COMBUSTION,
UNDER NO CIRCUMSTANCES SHOULD AIR VENTS ON THE APPLIANCES, OR
AIR VENTS INSTALLED BY THE FITTER IN THE ROOM OF THE APPLIANCES
TO SUPPLY COMBUSTION AIR, BE ALTERED OR OMITTED IN ANY WAY.
All appliances are supplied for use on L.P.G gas (conversion to NAT is possible
with conversion kit available). Working pressures and heat inputs are listed in the
Technical Details.
Appliances must not be installed on or against any combustible surface.
Clearances are appliances must be:
CEILING/SHELF 900mm
REAR 150mm
SIDES 150mm
During installation provision must be made for combustion air supply to the
appliance, which enters the appliance through the base and rear of the appliance,
this should not be blocked at any time. SEE TECHNICAL DETAILS.
Appliances are designed to be installed, on Parry Catering Equipment for stability,
if they are fitted on any other surface they should be suitably secured, to prevent
excessive movement.
Connection to the appliance is by ½” BSPT at the left hand side of the appliance.
Pressure test point is located underneath the appliance – it is located on the tap
rail.
Low rate is factory set for LPG gas, and only require adjustment when converting
from LPG to NAT Gases.
Remove all protective film before use.
Ensure whoever is operating the appliance is fully conversant with its operation
and aware of dangers involved in incorrect operation and cleaning, especially the
danger of burns and scolds from the cooking medium and hot surfaces of working
areas.
Page 7
Parry-British Built for Purpose
IN205-4
5
Installation Instructions
• The appliance must be placed in a well ventilated location, underneath a
suction fan with a suction capacity of at least 1500m3/h
• The griddle must be secured by placing four M10 sized screws with at
least 15mm of thread available.
• In the shape of a rectangle, holes should be drilled on the work surface
for the location of where the feet will sit
• Screws will be placed through the work surface so the feet of the
appliance can sit directly on top of the screws so appliance can not move
• Sizes required : GGP6.4 295mm x 332mm
• Sizes required : GGP6.6 295mm x 532mm
• Sizes required : GGP6.8 295mm x 732mm
• Sizes required : GGP6.10 295mm x 932mm
IMPORTANT: After installing the appliance, make sure that it has a downward
inclination (higher on the back), so that all the juices are drained
into the drip tray.
Page 8
Parry-British Built for Purpose
IN205-4
6
Operating Instructions
FOR FITTING INSTRUCTIONS SEE INSTALLATION SECTION.
ALL GRIDDLES ARE FITTED WITH FLAME FAILURE DEVICE FOR SAFETY AND SPARK IGNITION
FOR EASE OF LIGHTING
TO LIGHT BURNER:
Turn knob to * position
Push knob in and ignite gas by pressing ignition button to left of the on/off knob.
Keep ON/OFF knob pressed in for 15-20 seconds. Check gas is lit by looking through the
gap between plate and the front panel of the appliance.
Release ON/OFF knob, gas should stay lit, if gas goes out repeat (2) the burner is now on.
If the unit fails to light within 1 minute, abort the lighting process for at least 2 minutes to
allow gas to disperse.
Turn knob anti-clockwise to obtain main gas . The lowest setting has been set at the
factory and sealed. This must not be adjusted by user.
To turn burner off, turn knob in a clockwise direction all the way round to •
We advise that the appliance should not be left unattended when switched on.
The appliances are designed for professional use by qualified people only.
There are no user serviceable parts.
It is recommended that Griddles be run on full gas after ignition for 10 minutes, then adjusted
as necessary to obtain correct cooking temperature.
To remove any residue, use a scraper several times a day after cooking. Scaling will result if
this is not done. Empty the fat drawer and clean every day.
Page 9
Parry-British Built for Purpose
IN205-4
7
Cleaning Instructions
The appliance should be cleaned after every use.
Allow unit to cool down before cleaning
Always clean the griddle plate and fat drawer after use.
Wipe down the machine with hot soapy water using a soft cloth, do not use abrasive
materials.
Cleaning of the griddle plate it may be necessary to use a griddle stone to remove
carbon build up. Once this has been done seasoning of the plate will be necessary.
Stainless steel cleaners maybe used on the exterior and cleaning instructions on the
product must be adhered to.
Never clean the unit with water jets.
Page 10
Parry-British Built for Purpose
IN205-4
8
Maintenance Instructions
Ensure the appliance is isolated from the power supply before installing, cleaning or
maintaining the appliance.
Maintenance and service must only be undertaken by a qualified electrician/gas engineer.
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares
In order to clean or replace the burner, loosen the nut that connects the (8mm) gas
pipe to the aluminium part;
Loosen the nut that connects the thermocouple to the aluminium part and disconnect
the piezo ignitor
In case there a tap malfunction, you should replace and there should be no attempt
to oil it.
YOU MUST CLEAN THE COMPONENTS OF THE UNIT AT LEAST ONCE A YEAR
Page 11
Parry-British Built for Purpose
IN205-4
9
Conversion Instructions
Close the gas supply valve.
Disconnect the inlet gas supply.
o To replace burner, push it a bit to the back of the equipment and this loosens
the burner from the aluminium part. Replace the old burner with a new one or
replace the injector in case of a change of gas type. To loosen the injector, one
must use an adequate nut driver. Attention: Keep in mind the relation between
the diameter of the injector’s hole and the type of gas.
To replace the thermocouple and the electrode it is necessary to take out the front
panel. To do so, loosen the screws that attach the side panels’ corners. This way the
whole assembly; front panel and corners will come out together.
The thermocouple and the electrode are attached to the aluminium part, which is
attached to the burner support. In order to take out the aluminium part, it’s necessary
to unscrew the pipe that links the tap to the burner and the 2 screws that hold the
burner frontal support.
The minimum setting is regulated with the burner on turned to the minimum setting.
Remove the black knob from the gas tap and regulate the frontal screw which is
located below the shaft of the tap.
Adjust the flame to a desired low setting that will have enough heat to keep the
thermocouple hot and keep the flame burning.
Wait for a couple of minutes to make sure that the flame doesn’t go out.
Page 12
Parry-British Built for Purpose
IN205-4
10
Technical Details
PGF600G (GGP6.6)
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
5.500 KW = 18767 Btu/h
BUTANE G30
29mb/11.2” W.G.
5.500 KW = 18767 Btu/h
PROPANE G31
37mb/14.8” W.G.
5.500 KW = 18767 Btu/h
G25
25mb/10” W.G.
5.000 KW = 17061 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.582 M³/HR
20.553 FT³/HR
BUTANE G30
0.184 M³/HR
6.505 FT³/HR
0.957 LB/HR
0.434 KG/HR
PROPANE G31
0.243 M³/HR
8.565 FT³/HR
0.941 LB/HR
0.427 KG/HR
G25 @ 25mb
0.615 M³/HR
21.719 FT³/HR
INJECTORS
Natural G20 = INJECT 115
Butane G30 = INJECT 85
Propane G31 = INJECT 85
G25 @ 25mb = INJECT 115
PGF800G (GGP6.8)
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
8.250 KW = 28150 Btu/h
BUTANE G30
29mb/11.2” W.G.
8.250 KW = 28150 Btu/h
PROPANE G31
37mb/14.8” W.G.
8.250 KW = 28150 Btu/h
G25
25mb/10” W.G.
7.500 KW = 25591 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.872 M³/HR
30.794 FT³/HR
BUTANE G30
0.276 M³/HR
9.747 FT³/HR
1.433 LB/HR
0.650 KG/HR
PROPANE G31
0.364 M³/HR
12.864 FT³/HR
1.413 LB/HR
0.641 KG/HR
G25 @ 25mb
0.922 M³/HR
32.560 FT³/HR
INJECTORS
Natural G20 = INJECT 115
Butane G30 = INJECT 85
Propane G31 = INJECT 85
G25 @ 25mb = INJECT 115
Page 13
Parry-British Built for Purpose
IN205-4
11
Technical Details
PGF1000G (GGP6.10)
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb/8” W.G.
9.300 KW = 31733 Btu/h
BUTANE G30
29mb/11.2” W.G.
9.300 KW = 31733 Btu/h
PROPANE G31
37mb/14.8” W.G.
9.300 KW = 31733 Btu/h
G25
25mb/10” W.G.
8.700 KW = 29686 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.990 M³/HR
34.962 FT³/HR
BUTANE G30
0.303 M³/HR
10.692 FT³/HR
1.554 LB/HR
0.705 KG/HR
PROPANE G31
0.399 M³/HR
14.142 FT³/HR
1.554 LB/HR
0.705 KG/HR
G25 @ 25mb
1.050 M³/HR
37.080 FT³/HR
INJECTORS
Natural G20 = INJECT 125
Butane G30 = INJECT 93
Propane G31 = INJECT 93
G25 @ 25mb = INJECT 125
Page 14
Parry-British Built for Purpose
IN205-4
12
Fault Finding
Fault
Check
Solution
Unit will not light
Check gas supply
Ensure gas supply is turned ON
to appliance.
Check to see if a spark is being
generated when piezo is
pressed.
If piezo is faulty, contact your
distributor.
Unit lights but will not stay lit
Ensure you press and hold the
control knob in for around 10
seconds.
If the problem still persists,
please contact distributor.
Page 15
Parry-British Built for Purpose
IN205-4
13
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12 month warranty period will cause the 24 month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register you warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical assistance on
01332 875544
Page 16
Parry-British Built for Purpose
IN205-4
14

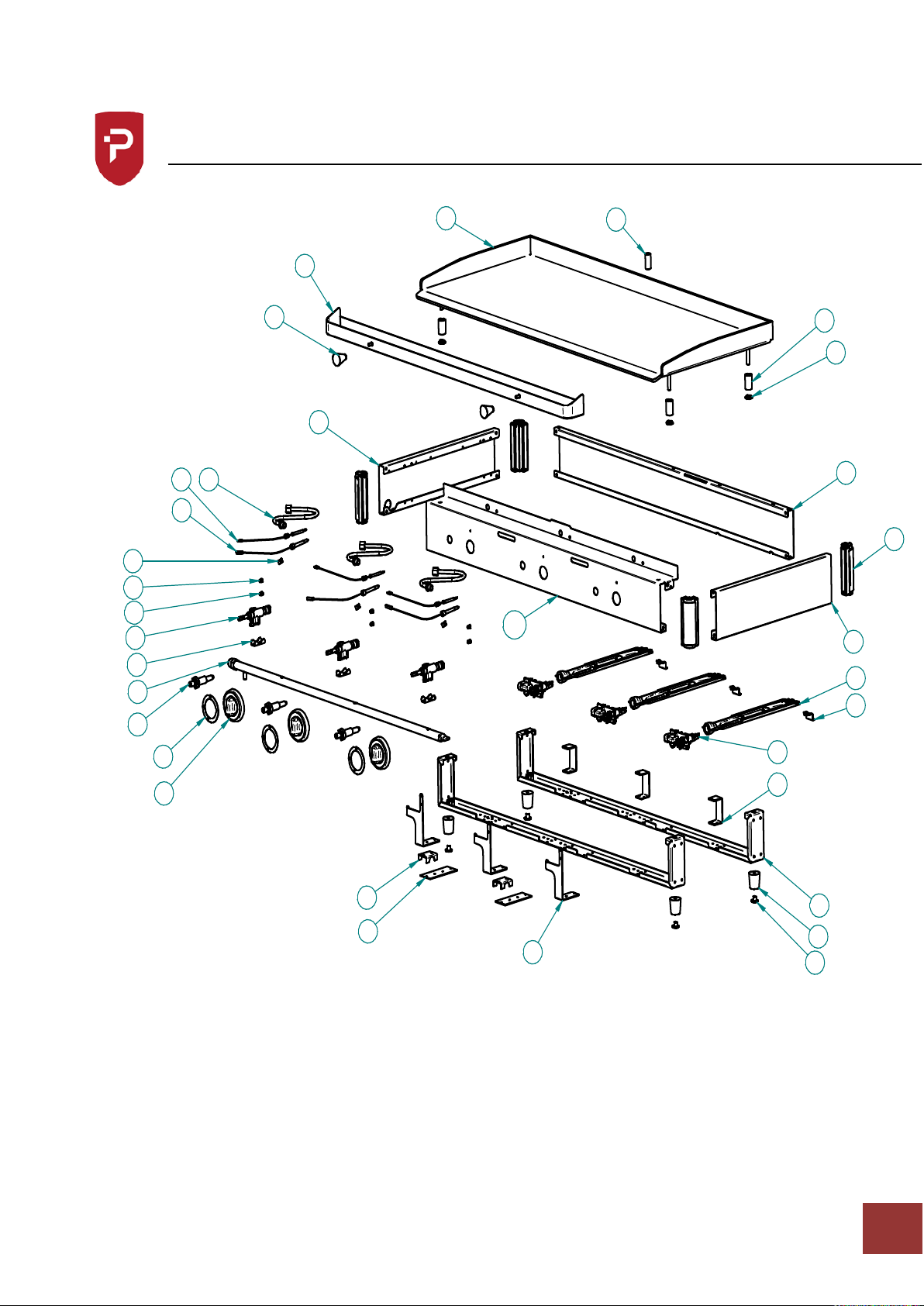

Exploded View
19
8
7
30
14
1
18
17
2
3
25
22
9
16
13
23
26
24
29
33
28
27
4
5
10
12
31
32
11
21
20
15
6
Page 17
Parry-British Built for Purpose
IN205-4
15
Parts List
Part Number
Description
Code
1
7.0.302.0060
GRILL PLATE GGP6.6
1
7.0.303.0060
GRILL PLATE GGP6.8
1
7.0.304.0060
GRILL PLATE GGP6.10
2
4.0.301.0010
SLEEVE ø19x1.5x33 mm
GL500
3
4.0.301.0011
SLEEVE DRIVE ø19x1.5x33
mm GL500
4
7.0.301.0001
LEFT PANEL GL500
5
7.0.301.0002
RIGHT PANEL GL500
6
7.0.302.0012
FRONT PANEL GGP6.6
6
7.0.303.0012
FRONT PANEL GGP6.8
6
7.0.304.0012
FRONT PANEL GGP6.10
7
7.0.302.0006
REAR PANEL GGP6.6
7
7.0.303.0006
REAR PANEL GGP6.8
7
7.0.304.0006
REAR PANEL GGP6.10
8
4.0.201.0001
COURNER GL
9
4.0.301.0028
IGNITOR FASTON 2.8x0.5
10
7.0.301.0020
FRONT BURNER SUPPORT
SBF
11
4.0.100.0010
TAP HANDLE STICHER
12
7.0.301.0021
REAR BURNER SUPPORT
SBF
13
4.0.301.0031
INJECTOR SUPPORT
14
7.0.302.0030
STRUCTURE
REINFORCEMENT GL500.6
14
7.0.303.0030
STRUCTURE
REINFORCEMENT GL500.8
14
7.0.304.0030
STRUCTURE
REINFORCEMENT GL500.10
15
7.0.120.0030
DISTRIBUTION PIPE
SUPPORT
16
4.0.301.0030
BURNER SBF 300MM
17
4.0.301.0001
HANDLE FOR GAS TAP GL
18
7.0.302.0070
DISTRIBUTION TUBE
GGP6.6
Page 18
Parry-British Built for Purpose
IN205-4
16
Parts List
Part Number
Description
Code
18
7.0.303.0070
DISTRIBUTION TUBE
GGP6.8
18
7.0.304.0070
DISTRIBUTION TUBE
GGP6.10
19
4.0.000.0878
ADHERENT RUBBER FOR
FEET
20
7.0.100.0050
DISTRIBUTION TUBE
FASTENER
21
4.0.100.0035
GAS TAP FASTENER
22
4.0.301.0025
TAP WITH SECURITY VALVE
23
4.0.301.0032
BURNER SUPPORT SBF
24
4.0.301.0034
IGNITION PILOT SBF
25
4.0.301.0012
PLATE REAR SUPPORT
ø15x34.5mm GL500
26
4.0.301.0033
GAS TERMOCOUPLE
250MM FASTON 8X1
27
4.0.301.0045
GAS INJECTOR M6x0.75 -
1.25 (GGP6.4, GGP6.10)
27
4.0.301.0044
GAS INJECTOR M6x0.75 -
1.15 (GGP6.6, GGP6.8)
28
4.0.301.0043
GAS INJECTOR M6x0.75 -
0.93 (GGP6.4, GGP6.10)
28
4.0.301.0042
GAS INJECTOR M6x0.75 -
0.85 (GGP6.6, GGP6.8)
29
4.0.301.0035
SBF IGNITION PILOT FIXING
SPRING
30
7.0.302.0027
DRAIN TRAY GL500.6
30
7.0.303.0027
DRAIN TRAY GL500.8
30
7.0.304.0027
DRAIN TRAY GL500.10
31
4.0.065.0004
HANDLE WITH THREAD M6
32
4.0.066.0087
GAS GRILL PLATE FEET
33
4.0.301.0036
CONNECTION TUBE
TAP/INJECTOR (G1/4F-
M12x1)
Page 19
Parry-British Built for Purpose
IN205-4
17
Warranty Information
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2 year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service
call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2 year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 20
Parry-British Built for Purpose
IN205-4
18
Disposal & Recycling
Packaging should be disposed of according to regulations in place.
Loading...
