Instruction Manual

Wet Bain Marie

NPWB2/NPWB4/NPWB6

Page 2

Page 3

Contents

Parry-British Built for Purpose

IN125-1

Contents ...................................................................................................................................... 1

Product Overview .................................................................................................................... 2-3

Safety Instructions ....................................................................................................................... 3

Technical Data ............................................................................................................................ 4

Installation Instructions ............................................................................................................... 4

Operating Instructions ................................................................................................................. 5

Cleaning Instructions ................................................................................................................... 6

Maintenance Instructions............................................................................................................. 7

Fault Finding ............................................................................................................................... 8

Service Information...................................................................................................................... 9

Wiring Diagram ......................................................................................................................... 10

Exploded View ........................................................................................................................... 11

Parts List .............................................................................................................................. 12-13

Warranty Information ................................................................................................................ 14

Disposal & Recycling ................................................................................................................. 15

Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.

Sales Tel: 01332 875544

Page 4

Parry-British Built for Purpose

IN125-1

Product Overview

NPWB2

Excellent for keeping foods at ready-to-serve temperatures, the Parry NPWB2 electric wet bain marie is ideal for mobile caterers, restaurants, cafes and pubs. Made from high grade stainless steel and featuring a front mounted easy-drain valve, the unit is user friendly and effortless to clean. Temperature is regulated by the simple responsive thermostat control dial, and the unit is supplied with stainless steel pots and lids as standard.

NPWB4

Made from high grade stainless steel, this Parry bain marie comes with four circular pots, ideal for keeping pre-cooked food at hygienic, ready to-serve temperatures. Perfect for buffets and self-service environments, the bain marie can also be used for the preparation of sauces and custards and has a front manual dial for easy temperature control.

NPWB6

With its 6 x 4 litre pot capacity, the Parry NPWB6 electric wet bain marie is a versatile addition to any commercial catering establishment. Ideal for storing pre-cooked foods – curry, gravy, chilli and stew, for example – at safe and hygienic temperatures, the bain marie is designed to fit comfortably on commercial countertops. Constructed from high quality stainless steel, the front-mounted drain valve ensures easy cleaning.

These units lead the industry in:

Design and aesthetic appeal Performance Power Functionality After sales support

Page 5

Parry-British Built for Purpose

IN125-1

Product Overview

Features

NPWB2

NPWB4

NPWB6

Unpacked weight (kg)

Packed Weight (kg)

Dimensions (w x d x h) mm

300 x 600 x 360

450 x 600 x 360

750 x 600 x 360

Pot capacity

2 x 4 litre

4 x 4 litre

6 x 4 litre

Cooking zones

2 4 6

Wet or dry

Wet

Plug

Yes

Power rating

3kW

Warranty

2 years

Safety Instructions

IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE. ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE INSTALLING, CLEANING OR MAINTAINING.

This appliance has been designed to keep food warm and therefore during its use parts of the appliance will become very hot. All personnel must be given sufficient supervision and training in the safe use of this appliance.

ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.

The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the Health and Safety at Work Act.

To prevent shocks, all appliances whether gas or electric, must be earthed.

To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed.

It is IMPORTANT that this protective film is peeled off before the equipment is used.

Page 6

Parry-British Built for Purpose

IN125-1

Technical Data

NPWB2

NPWB4

NPWB6

Nominal Voltage

240 v ~ 50 hz

Nominal Current

12.5 Amps

Nominal Wattage

3000 W

Dimensions (mm)

300 x 600 x 310

450 x 600 x 310

750 x 600 x 310

Weight (kg)

Installation Instructions

ELECTRICAL INSTALLATION

ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE

FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.

Page 7

Parry-British Built for Purpose

IN125-1

Operating Instructions

DO NOT USE THESE MACHINES FOR COOKING PURPOSES

Ensure the drain tap is in the closed position where fitted Fill the tank with water until it reaches just below the bottom of the pots Turn on the power supply, the red lamp will illuminate to indicate the power is on Turn the thermostat dial to the required setting, the green lamp will show indicating

that there is power to the element.

When the desired temperature is reached the green lamp will extinguish, this

procedure will be repeated automatically as the thermostat maintains a constant temperature.

Fill the containers with hot food and replace the covers. The water content inside the tank must be monitored and topped up as required,

never let the water drop below the level of the element.

WATER CHANGING ON MACHINES FITTED WITH A DRAIN

ALWAYS SWITCH OFF THE MACHINE AND ISOLATE FROM THE MAINS SUPPLY BEFORE CHANGING THE WATER.

Unscrew the bung fitted to the drain tap and connect the drain spout provided. Place a suitable receptacle underneath the spout Lift the locking device and slide the drain tap across After draining slide the tap back across and replace the bung

Page 8

Parry-British Built for Purpose

IN125-1

Cleaning Instructions

The appliance should be cleaned after every use.

Allow unit to cool down before cleaning Turn off unit at the mains power. Remove containers and clean in hot soapy water With the containers removed wipe down the machine with a soft cloth, do not use

abrasive materials.

Clean the tank on a regular basis to avoid scale build up, which could reduce the life

of the element.

If scale has built up, use a suitable descaling fluid or powder, and follow product

instructions.

Stainless steel cleaners maybe used and cleaning instructions on the product must

be adhered to.

Never clean the unit with water jets.

Page 9

Parry-British Built for Purpose

IN125-1

Maintenance Instructions

Ensure the appliance is isolated from the power supply before installing, cleaning or maintaining the appliance.

Maintenance and service must only be undertaken by a qualified electrician.

Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts.

For more information on buying spares visit:

www.parry.co.uk/parry-commercial-catering-spares

Page 10

Parry-British Built for Purpose

IN125-1

Fault Finding

Fault

Check

Solution

Mains lamp does not

illuminate

1. Check the unit is

plugged into the mains supply and the socket is switched on.

2. Check the fuse in the

plug

3. Try a different socket

4. If the unit has been

permanently connected to a fused switch, ask a qualified electrician or competent person to check the connections.

If the problem continues please

contact your distributor

Page 11

Parry-British Built for Purpose

IN125-1

Service Information

This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void.

If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service

agent, or a similarly qualified person.

Enhanced 2 Years Warranty

Parry Catering (Midlands) Ltd offer an enhanced warranty of two years (including parts and labour) on all of the Parry manufactured products. To take advantage of this you should register you warranty by logging onto the company website and filling out our simple form.

www.parry.co.uk/the-parry-warranty

If you have any issues with your product and wish to request a warranty call you can contact our friendly team who will organize a Parry approved service engineer to attend and fix your problem.

All warranty requests can be sent to [email protected] alternatively call our warranty department for technical assistance on 01332 875544

Page 12

Parry-British Built for Purpose

IN125-1

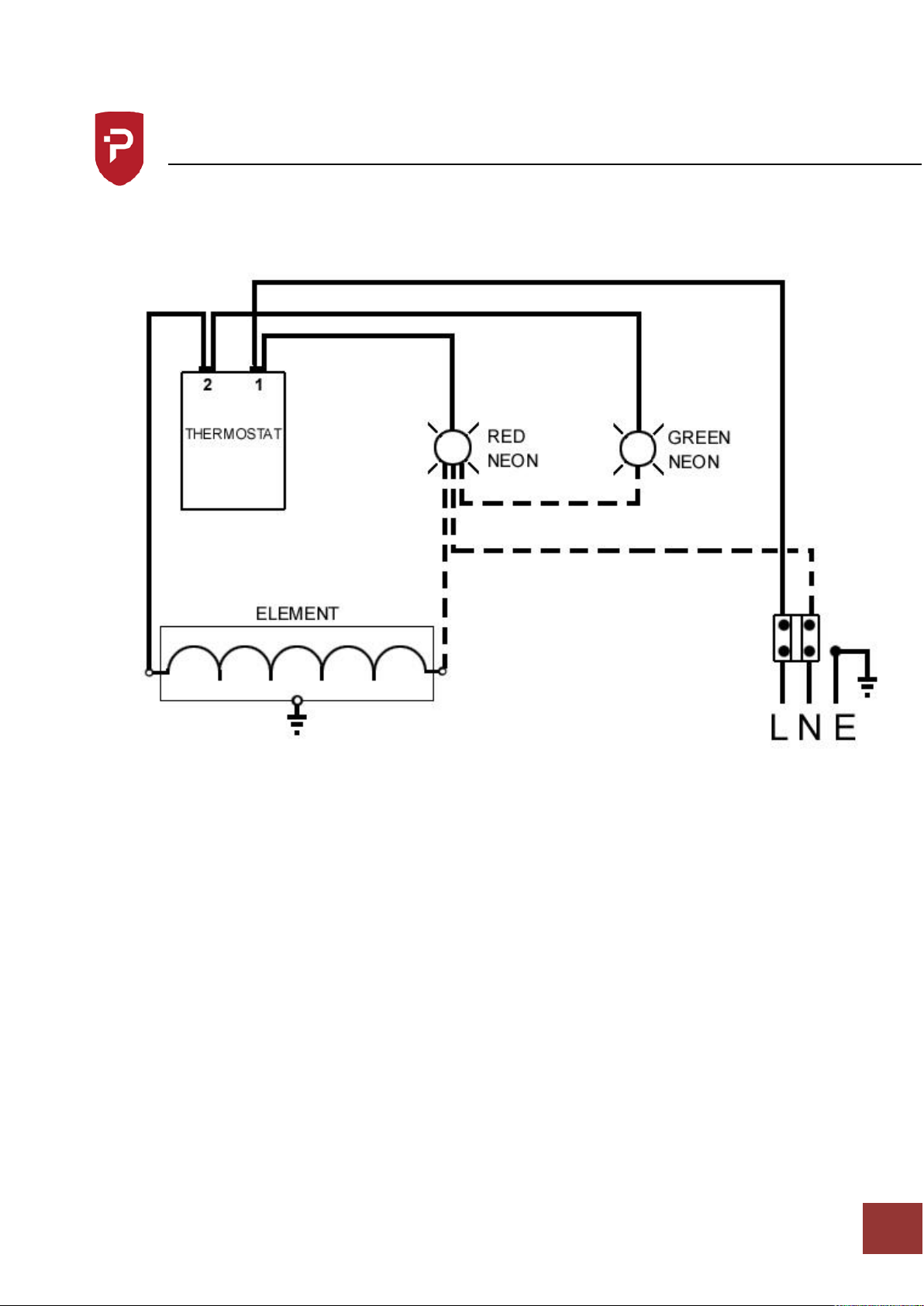

Wiring Diagram

Page 13

Parry-British Built for Purpose

IN125-1

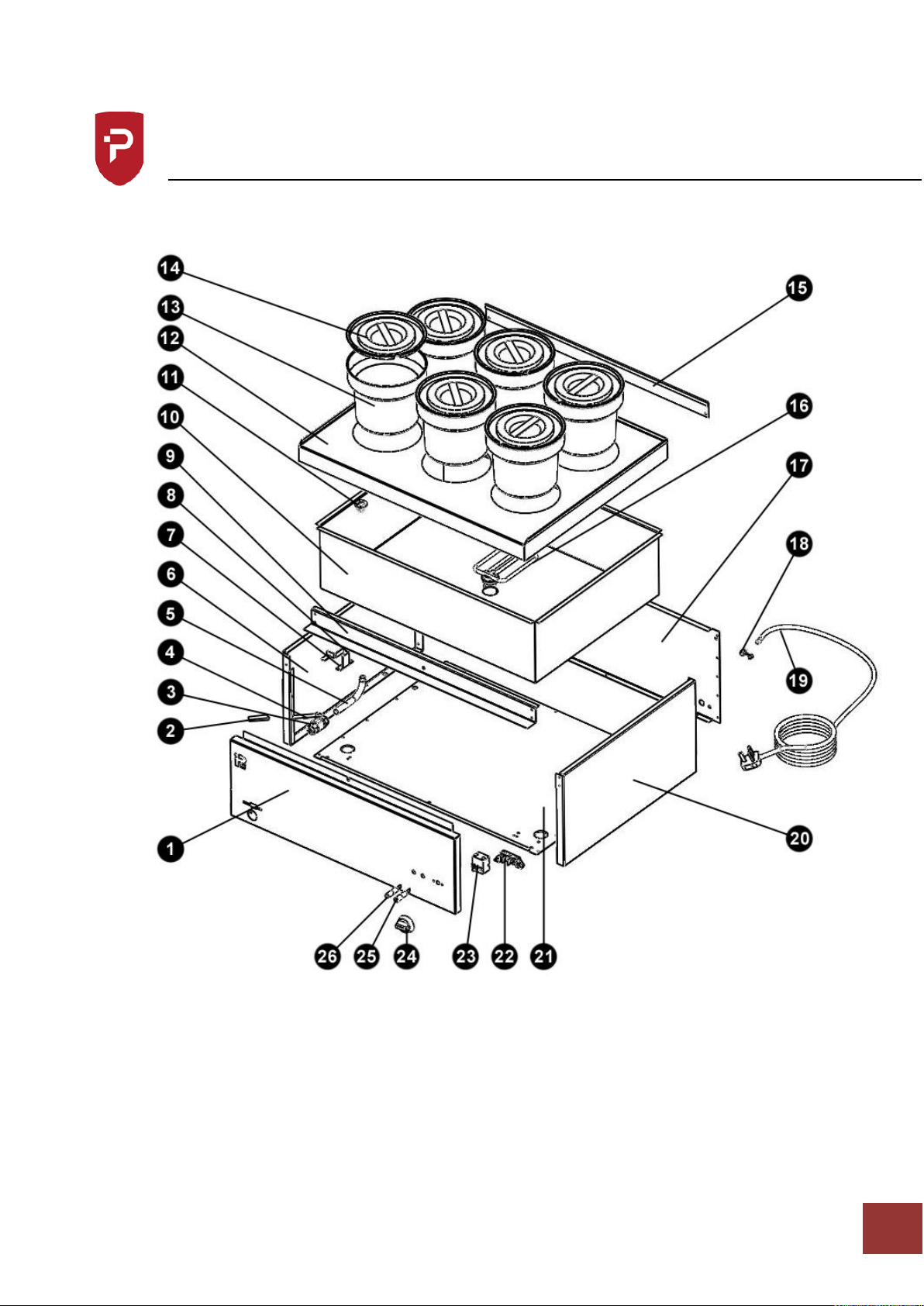

Exploded View

Page 14

Parry-British Built for Purpose

IN125-1

Parts List

Part

Number

Description

NPWB2

NPWB4

NPWB6

*Fascia

Tap Sleeve

HANDLESLEEVE

Ball Valve

VALVELB12

15mm Olive

OLIVE0015

Brass Bush

NUTMBSP12

Tap Handle

LCPTAPHANDL

Drain Tube

TUBEBEND4

*LH Side Panel

*Tap Latch

*Tap Latch Bracket

*Front Support

*Tank

Bowl Insert

BOWLINSSS

11a

Washer

WASS14022

11b

Nut

NUT4BOWLSSS

11c

15mm Olive

PLUGBSP12

11d

Brass Nut

PLUGBSP12

*Top

Pot

BAMA00018

Pot Lid

“ “ “

*Back Hook

Element

ELBW03000

*Back Panel

Strain Relief Bush

BUSR06003

Mains Lead

MLEAD25

*RH Side Panel

*Base

Page 15

Parry-British Built for Purpose

IN125-1

Parts List

Terminal Block

TB3POLETT

Thermostat

TMST5513015

Control Knob

KNOBPHEN

Red Neon

LNRE2211P

Green Neon

LNGN2211P

Rubber Feet

RUBBRFOOT

Drain Spout comprising of: -

COPPBEND01

OLIVE0015

NUTMBSP12

COPPBEND01

OLIVE0015

NUTMBSP12

COPPBEND01

OLIVE0015

NUTMBSP12

Blanking Plug

PLUGBSP12

*Metalwork Components

Page 16

Parry-British Built for Purpose

IN125-1

Warranty Information

Not covered under warranty

Fault due to incorrect installation, poor maintenance

or equipment abuse.

Resetting of equipment or circuit breakers. Faulty electrics – e.g. customer’s plug socket, plug,

wiring, junction box fault, wrong fuse.

Products must be serviced within the first 12

months to be eligible for the 2 year warranty

Product not covered by warranty if combustible

materials have been used, e.g. plastic trays.

Foil used on racks, blockages and lime scale issues.

Failure to grant access for pre-arranged service

call.

Equipment that has been set up or used incorrectly

e.g. dishwasher detergents, levelling and setting up of doors on a six burner cooker.

Excessive carbon build-up on griddle plates or

overuse of lava rock on chargrills. (Recommended use by Parry no more than 2kg.)

All of the above points are not covered by

warranty and any costs incurred, because of the above, will be forwarded to the parties responsible for placing the call.

The manufacturer’s warranty is only valid in the UK

mainland. Northern Ireland, Western Isles, Inner Hebrides and Islands are parts only warranty. Please be aware that the warranty starts from the date of purchase from Parry and not the sale or installation date of the equipment.

To be eligible for a 2 year warranty, products must be serviced at least once within the first 12 months of purchase.

All service calls will be carried out between 8am and 5pm, Monday to Friday.

Your warranty is invalid if your equipment has not been installed in accordance with the

manufacturer’s instructions. The misuse, alteration

or unauthorised repairs of the equipment will also invalidate the warranty.

During the warranty period it is at Parry’s

discretion whether to repair or replace the equipment. The warranty only applies if the equipment has been used in a professional manner following the

manufacturer’s instructions and maintenance

guidelines.

The warranty covers defects in the material and component failure only. We are not liable for trading loss, loss of perishable items, water damage or loss due to injury or fire damage.

Please ensure you have referred to the

manufacturer’s instruction before placing a warranty

call.

Contact our warranty department on 01332 875544 for technical assistance.

Please have your model number ready before calling.

All warranty requests must be submitted to

[email protected].

Failure to pay any warranty charges will result in your warranty being put on hold until the bill has been settled. Any issues regarding the raised charges should be put in writing to our warranty department for further investigation.

www.parry.co.uk

Page 17

Parry-British Built for Purpose

IN125-1

Disposal & Recycling

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product.

A symbol on the product, or on the documents accompanying the product, indicates that

this appliance may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in order to help conserve the environment.

At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not discard the unit or place it in the refuse bin.

You have several options:

Take the unit to an approved WEEE scheme company, there will be one in your area. Take the unit to an approved waste disposal site; many sites are managed by your local

authority.

Contact the units manufacturer, importer or their agent; the contact details will be on

the unit.

There will probably be a charge for this service which will depend on the physical size and location of the unit. You will be given a collection price for a curb side collection based on commercial rates prevailing at the time.

It should be noted that the unit to be collected should be suitably packed and sealed to prevent dangerous gases and fluids from escaping. The condition of the unit must also be clean to comply with health and safety regulations.
