Instruction Manual
HOB UNITS
N1870/N1871
Page 2
Page 3
Contents
Parry-British Built for Purpose
IN119-5
1
Contents ...................................................................................................................................... 1
Product Overview ....................................................................................................................... 2
Safety Instructions ....................................................................................................................... 3
Installation Instructions ............................................................................................................... 3
Operating Instructions ................................................................................................................. 4
Cleaning Instructions ................................................................................................................... 4
Maintenance Instructions............................................................................................................. 5
Fault Finding ............................................................................................................................... 6
Service Information...................................................................................................................... 7
Wiring Diagram ........................................................................................................................ 8-9
Exploded View ...................................................................................................................... 10-11
Parts List ................................................................................................................................... 12
Warranty Information ................................................................................................................ 13
Disposal & Recycling ................................................................................................................. 14
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN119-5
2
Product Overview
N1870
Versatile and powerful, the Parry N1870 single electric hob unit is ideal for use in
professional catering establishments where a separate hob unit is required, such as cafes,
takeaways, pubs and clubs. Made from high quality stainless steel, the exterior features an
indented top to prevent spillage, in turn making the boiling rings and surrounding areas
easier to clean. Each ring has individual heat controls with six heat settings, whilst being
thermally protected to reduce the temperature when pots and pans are removed.
N1871
Versatile and powerful, the Parry 1871 countertop four ring electric hob is ideal for use in
professional catering establishments where a separate hob unit is required, such as cafes,
takeaways, pubs and clubs. Made from high quality stainless steel, the exterior features a
formed top to prevent spillage, in turn making the boiling rings and surrounding areas easier
to clean. Each ring has individual heat controls with six heat settings, whilst being thermally
protected to reduce the temperature when pots and pans are removed.
Features
N1870
N1871
Unpacked weight (kg)
15
23
Dimensions (w x d x h) mm
300 x 610 x 217
600 x 610 x 217
Plug
1
Hard wired
Power rating
3kW
7kW
Single phase
30A
3 Phase & Neutral
Phase 1 = 15.2A
Phase 2 = 6.6A
Phase 3 = 8.7A
Warranty
2 years
2 years
These units lead the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Page 5
Parry-British Built for Purpose
IN119-5
3
Safety Instructions
IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE
This appliance has been designed to heat pans and therefore during its use parts of the
appliance will become very hot. All personnel must be given sufficient supervision and
training in the safe use of this appliance.
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE
FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the
Health and Safety at Work Act.
To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used
Installation Instructions

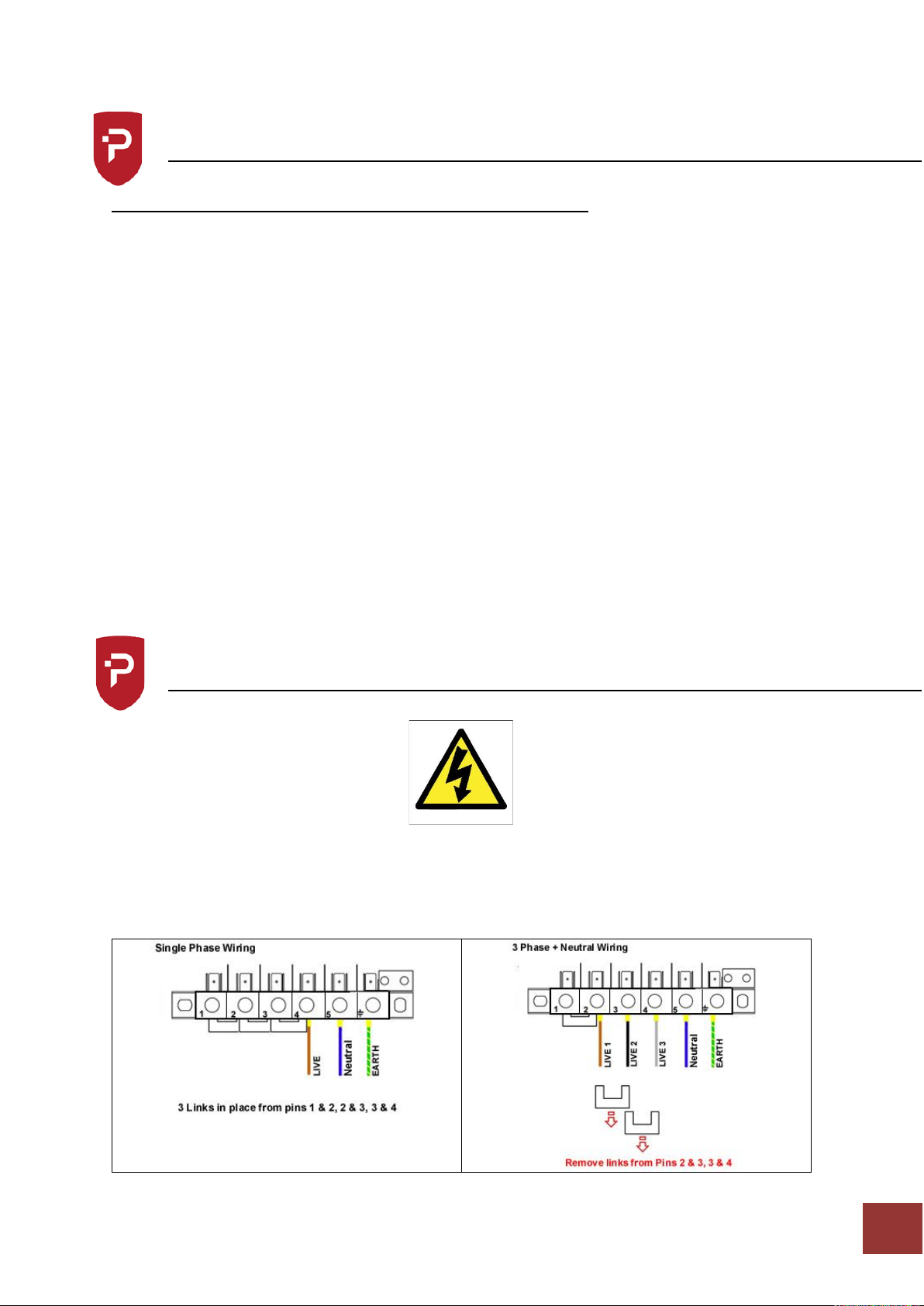

ELECTRICAL INSTALLATION
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE
FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.
Page 6
Parry-British Built for Purpose
IN119-5
4
Operating Instructions
Ensure all controls are in the off position, then turn on the power supply
Turn the appropriate energy regulator to the desired setting, 3 for boiling and reduce to
simmer, the red lamp for that particular hob will illuminate to indicate that there is power to
the hob and that the hob is on.
FOR MAXIMUM EFFICIENCY USE GOOD QUALITY PANS OF THE CORRECT SIZE, AS TOTAL
COVERAGE OF THE PLATE ENSURES ANY SPILLAGE WILL FLOW EASILY
Cleaning Instructions
The appliance should be cleaned after every use.
Allow unit to cool down before cleaning
Turn off unit at the mains power.
Wipe down the machine with a soft cloth, do not use abrasive materials.
Stainless steel cleaners maybe used and cleaning instructions on the product must be
adhered to.
Never clean the unit with water jets.
Page 7
Parry-British Built for Purpose
IN119-5
5
Maintenance Instructions
Ensure the appliance is isolated from the power supply before installing, cleaning or
maintaining the appliance.
Maintenance and service must only be undertaken by a qualified electrician.
If the supply cord becomes damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares
Page 8
Parry-British Built for Purpose
IN119-5
6
Fault Finding
Fault
Check
Solution
No power light when a hob
is turned on
Turn dial to a setting.
1870
Check that the unit is plugged in
and power is turned on.
1871
Check that the isolator switch is
turned on
1870 Only
Plug unit into another socket.
1870
Check fuse in plug.
1871
Check electrical trip
1870
If fuse is faulty replace.
Still no power, please contact
distributor
1871
Reset trip, If still no power,
please contact distributor
Power light on when
control selection is made,
but does not heat
Possible element fault.
Please contact distributor
Page 9
Parry-British Built for Purpose
IN119-5
7
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12 month warranty period will cause the 24 month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register you warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544
Page 10
Parry-British Built for Purpose
IN119-5
8
Wiring Diagram

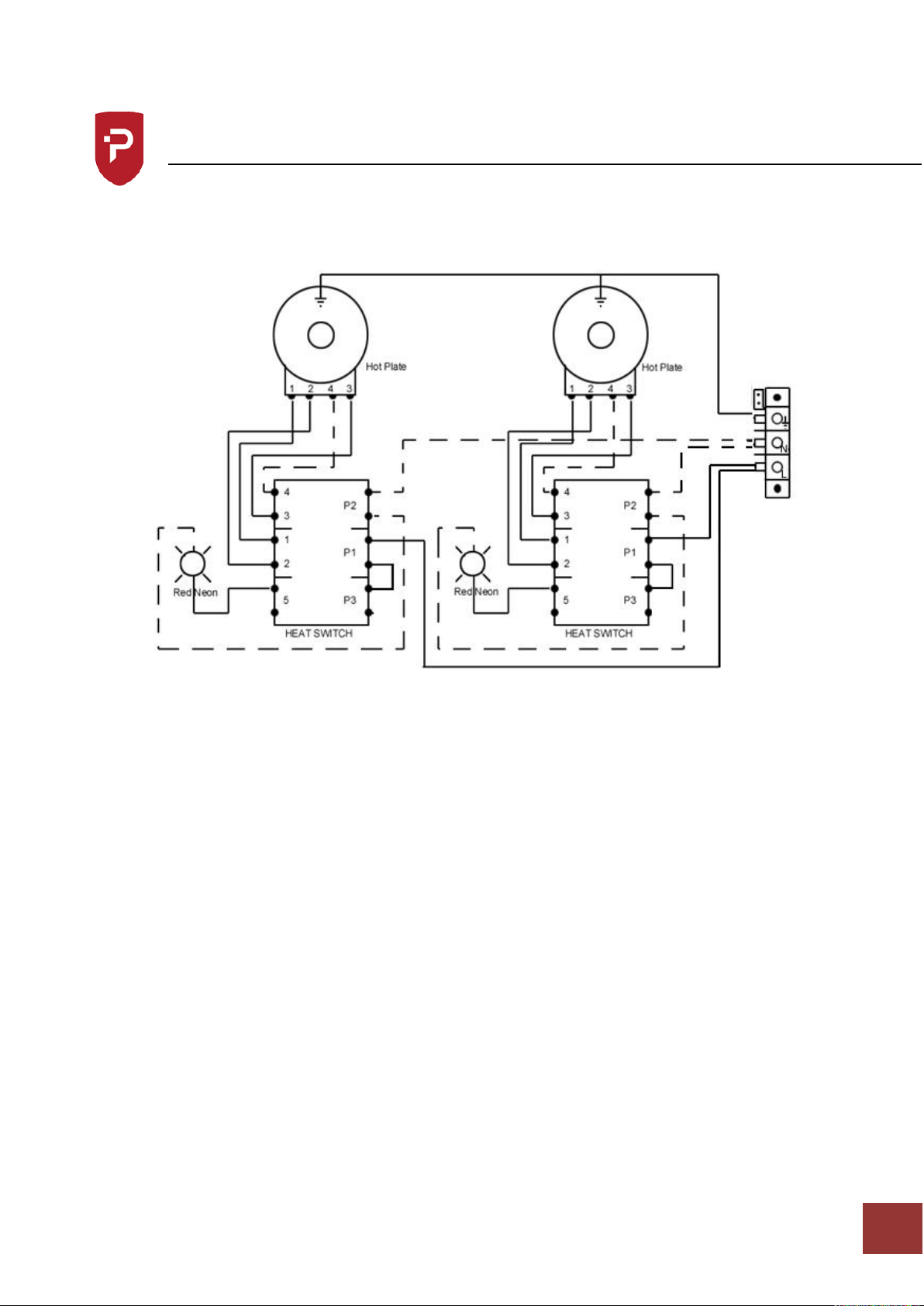

N1870
Page 11
Parry-British Built for Purpose
IN119-5
9
Wiring Diagram

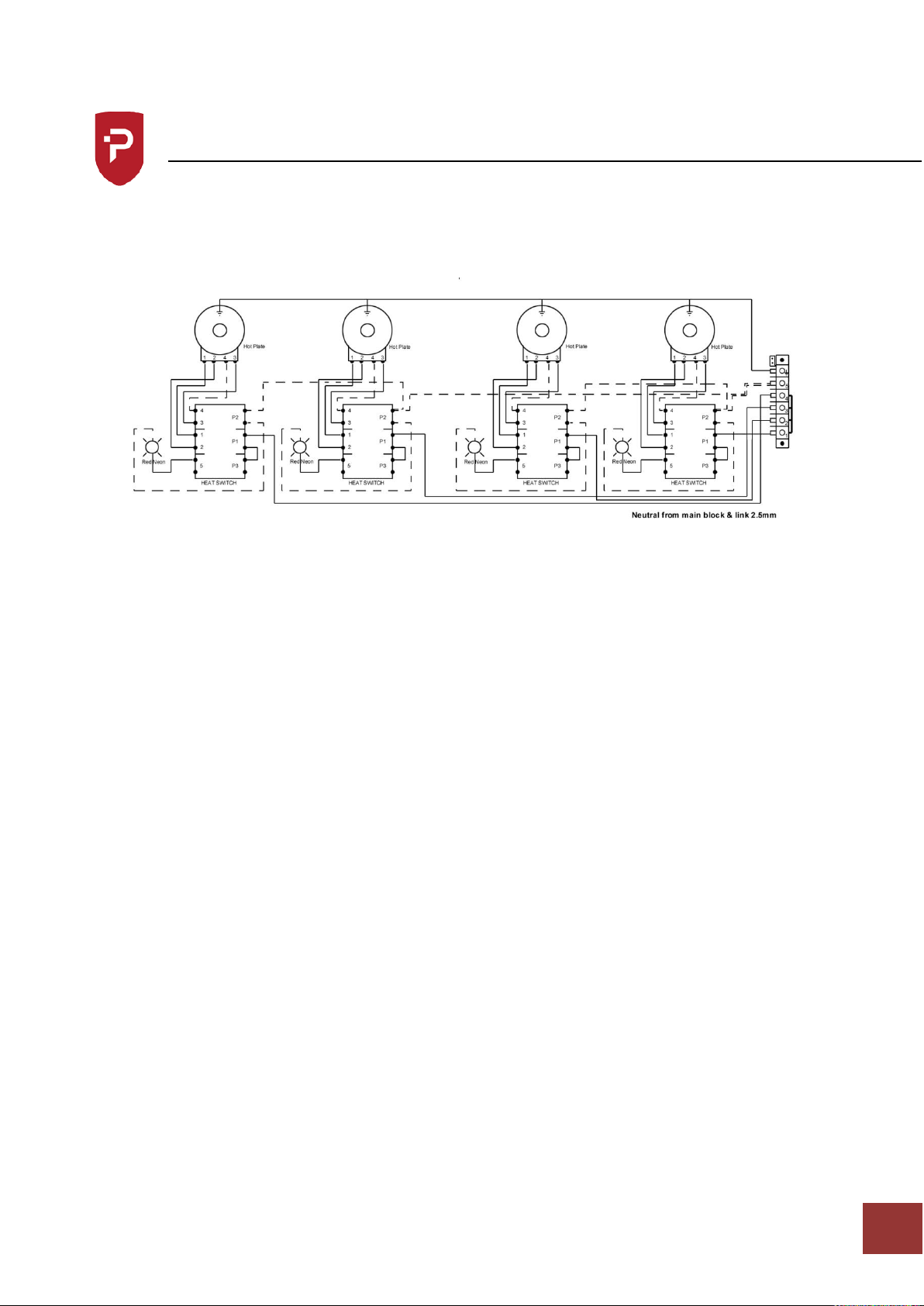

N1871
Page 12
Parry-British Built for Purpose
IN119-5
10

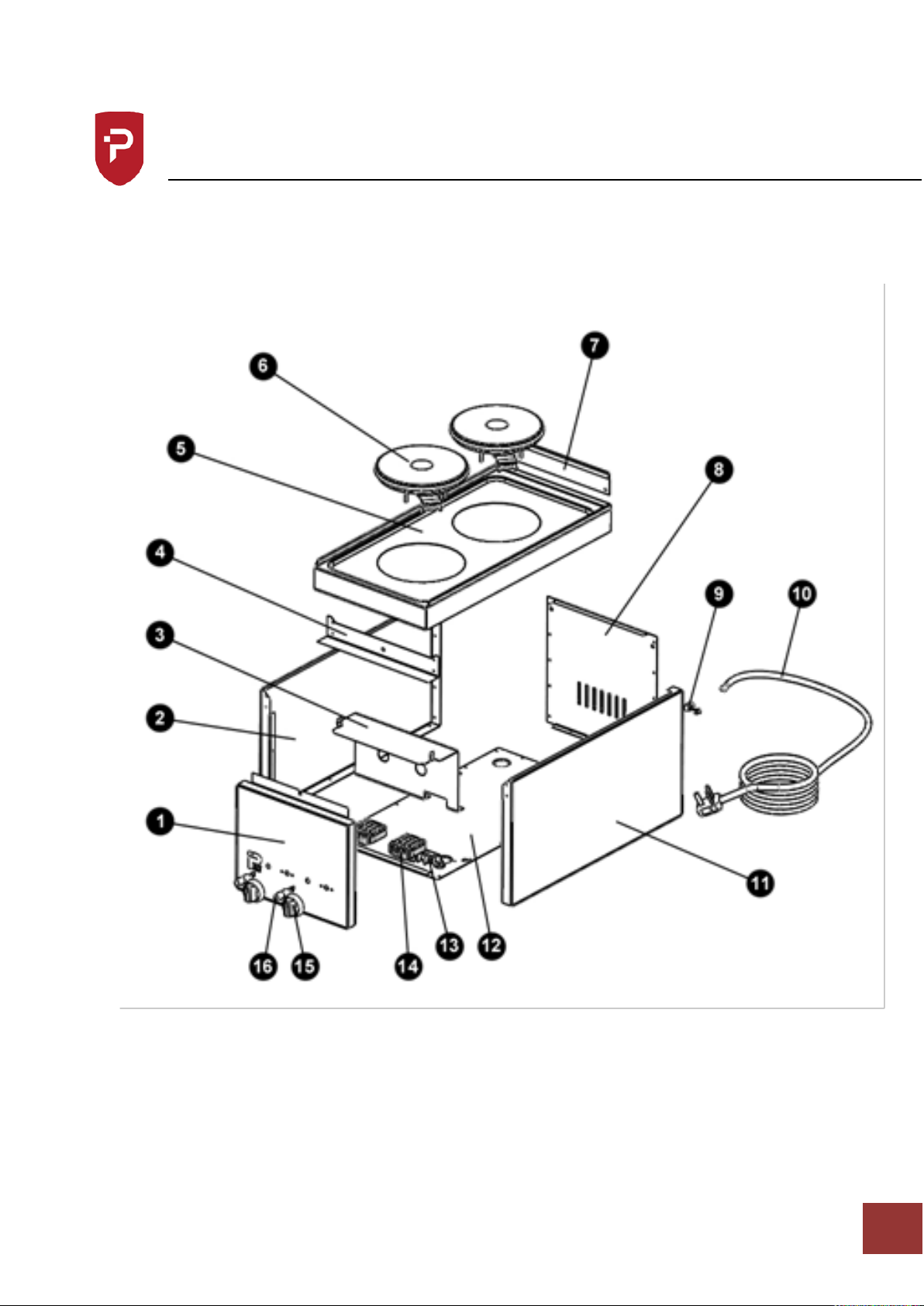

Exploded View
N1870
Page 13
Parry-British Built for Purpose
IN119-5
11

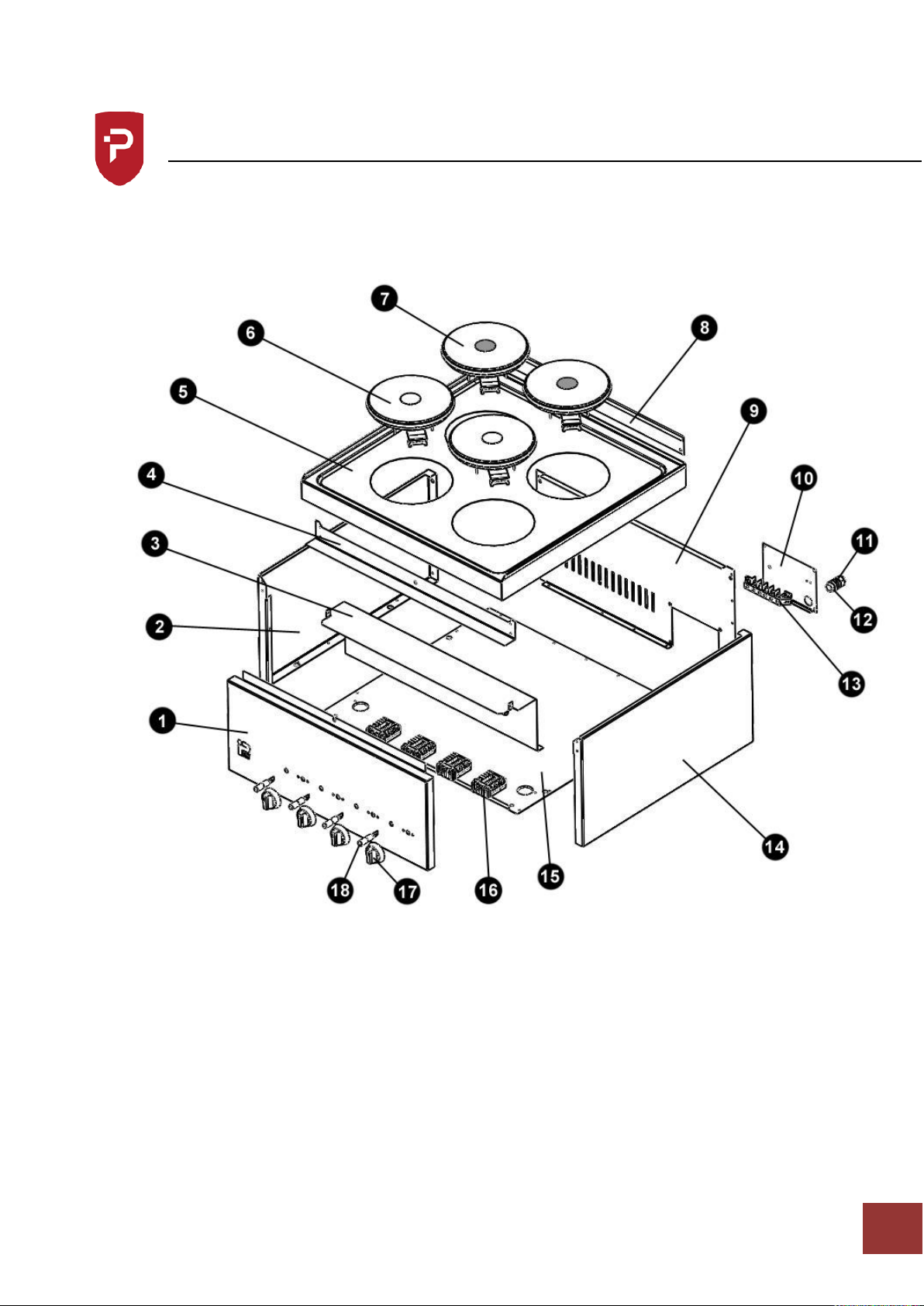

Exploded View
N1871
Page 14
Parry-British Built for Purpose
IN119-5
12
Parts List
Part Number
Description
N1870
N1871
1
*Fascia
NO CODE
NO CODE
2
*LH Side Panel
NO CODE
NO CODE
3
*Wire Guard
NO CODE
NO CODE
4
*Front Support
NO CODE
NO CODE 5 *Top
NO CODE
NO CODE
6
Heat Pad
PLHT18463
PLHT18463
7
Heat Pad
PLHT02000
PLHT02000
8
*Back Panel
NO CODE
NO CODE
9
Strain Relief Bush
BUSR06003
NO CODE
10
Mains Cable
MLEAD25
NO CODE
11
*RH Side Panel
NO CODE
GLAND0M16
12
*Base
NO CODE
LOCKNTM16
13
Terminal Block
TB3POLETB
TB6POLETB
14
Selector Switch
SWHT27266
NO CODE
15
Control Knob
KNOBPHEN
NO CODE
16
Red Neon
LNRE2211P
SWHT27266
17
Control Knob
N/A
KNOBPHEN
18
Red Neon
N/A
LNRE2211P
*Metalwork Components
Page 15
Parry-British Built for Purpose
IN119-5
13
Warranty Information
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2 year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service
call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2 year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 16
Parry-British Built for Purpose
IN119-5
14
Disposal & Recycling
This appliance is marked according to the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health which could otherwise be caused by
inappropriate waste handling of this product.
A symbol on the product, or on the documents accompanying the product, indicates that
this appliance may not be treated as household waste. Instead it should be
handed over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal
of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in
order to help conserve the environment.
At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not
discard the unit or place it in the refuse bin.
You have several options:
Take the unit to an approved WEEE scheme company, there will be one in your area.
Take the unit to an approved waste disposal site; many sites are managed by your local
authority.
Contact the units manufacturer, importer or their agent; the contact details will be on
the unit.
There will probably be a charge for this service which will depend on the physical size and
location of the unit. You will be given a collection price for a curb side collection based on
commercial rates prevailing at the time.
It should be noted that the unit to be collected should be suitably packed and sealed to
prevent dangerous gases and fluids from escaping. The condition of the unit must also be
clean to comply with health and safety regulations.
Loading...
