Instruction Manual
Mobile Wash Basin
MWBT/MWBTD/MWBTL/MWBTC
Extra suffixes to these codes denote unit colour
Page 2
Page 3
Contents
Parry-British Built for Purpose
IN262-4
1
Contents ...................................................................................................................................... 1
Product Overview ....................................................................................................................... 2
Safety Instructions ....................................................................................................................... 3
Installation Instructions ............................................................................................................... 4
Operating Instructions ................................................................................................................. 5
Cleaning Instructions ................................................................................................................... 6
Maintenance Instructions............................................................................................................. 6
Fault Finding ............................................................................................................................... 7
Service Information...................................................................................................................... 7
Wiring Diagram ........................................................................................................................... 8
Exploded View ............................................................................................................................. 9
Parts List .............................................................................................................................. 10-11
Warranty Information ................................................................................................................ 12
Disposal & Recycling ................................................................................................................. 13
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN262-4
2
Product Overview
Reliable, hygienic and easy to use, this fully transportable mobile wash basin is ideal for
outdoor occasions where there is no water connection available. The tank holds 15 litres of
water and the tap is operated by a foot pump, while fitted wheels allow for quick and easy
movement. The unit is available with or without a door (MWBT/MWBTD).
MWBT/MWBTD
MWBTL
MWBTC
Dimensions (w x d x h) mm
450 x 600 x 900
450 x 600 x 750
450 x 600 x 900
Water Tank Capacity
15 litre
12 litre
15 litre
Plug
Yes
N/A
Power rating
3kW
220-240V 50Hz ~
N/A
Warranty
2 years
The unit leads the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Page 5
Parry-British Built for Purpose
IN262-4
3
Safety Instructions
IMPORTANT: PLEASE READ INSTRUCTIONS FULLY BEFORE USE
Please be aware that surfaces on this machine may get warm during, and after use.
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE
FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the
Health and Safety at Work Act.
To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE INSTALLING,
CLEANING OR MAINTAINING THE APPLIANCE
Page 6
Parry-British Built for Purpose
IN262-4
4
Installation Instructions
This unit is supplied with a moulded plug
A = Splash Back
B = Soap Dispenser Holder
C = Paper Towel Holder
(all optional extras)
Optional Extra Fitting Instructions
Remove screws from handle (A).
Note above only o model prior to
10/6/2019
Remove both screws from each side
(B).
Place the splashback (C) on to unit and
replace screws from (B)
Fitting Soap / Towel holders
Loosen screws (D) in splashback.
Locate Soap holder / Towel holder on to the screws and tighten.
Page 7
Parry-British Built for Purpose
IN262-4
5
Operating Instructions
Position the mobile wash basin in the desired location
Remove water tank cover by turning the knob to gain access to the tank.
Fill with water to the maximum water level grooves as shown in the image below.
The lower set of grooves indicate the minimum amount of water required.
Ensure the waste bucket is in position and the waste pipe is placed inside the bucket.
MWBT/MWBTD/MWBTL (Warm Water Units Only)
Plug unit into a suitable 13amp protected supply.
Ensure the switch is in the ‘on’ position and that the red neon light is illuminated.
Allow 20 minutes for the water to reach temperature before use.
To fill the basin with water, use the foot pump at the front of the machine.
Do not attempt to overfill.
Do not move the unit when it is full of water.
The waste bucket should be emptied regularly.
Prior to moving the unit, all water needs to be drained using the tap located at the
bottom of the water tank. The unit must firstly be disconnected from the electrical
supply (Warm Water Units Only) before the water is drained.
>>>IMPORTANT NOTE>>>
Water must be drained from the tank after use.
Please note: The unit is protected from overheating by a control stat. Should the water
level in the tank become too low, a pressure switch will cut the electrical supply to the
element to prevent it boiling dry which would damage the element.
Maximum water level
Minimum water level
Page 8
Parry-British Built for Purpose
IN262-4
6
Cleaning Instructions
The appliance should be cleaned after every use.
>>>IMPORTANT NOTE>>>
Water must be drained from the tank after use.
Turn off unit at the mains power.
Wipe down the machine with a soft cloth, do not use abrasive materials.
Stainless steel cleaners maybe used and cleaning instructions on the product must be
adhered to.
Never clean the unit with water jets.
Maintenance Instructions
Ensure the appliance is isolated from the power supply before installing, cleaning or
maintaining the appliance.
Maintenance and service must only be undertaken by a qualified electrician.
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares
Page 9
Parry-British Built for Purpose
IN262-4
7
Fault Finding
Fault
Check
Solution
Mains lamp does not
illuminate
1. The socket is turned on
2. Try a different appliance
in the socket
3. Try the unit in a
different socket.
4. The fuse in the plug
If the problem continues please
contact your distributor
Foot pump fails to supply
water
Contact your distributor
Service Information
Enhanced 1 Year Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of one year
(including parts and labour) on all of the Parry manufactured
fabrication products. To take advantage of this you should register
your warranty by logging onto the company website and filling out our
simple form. www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544
Page 10
Parry-British Built for Purpose
IN262-4
8

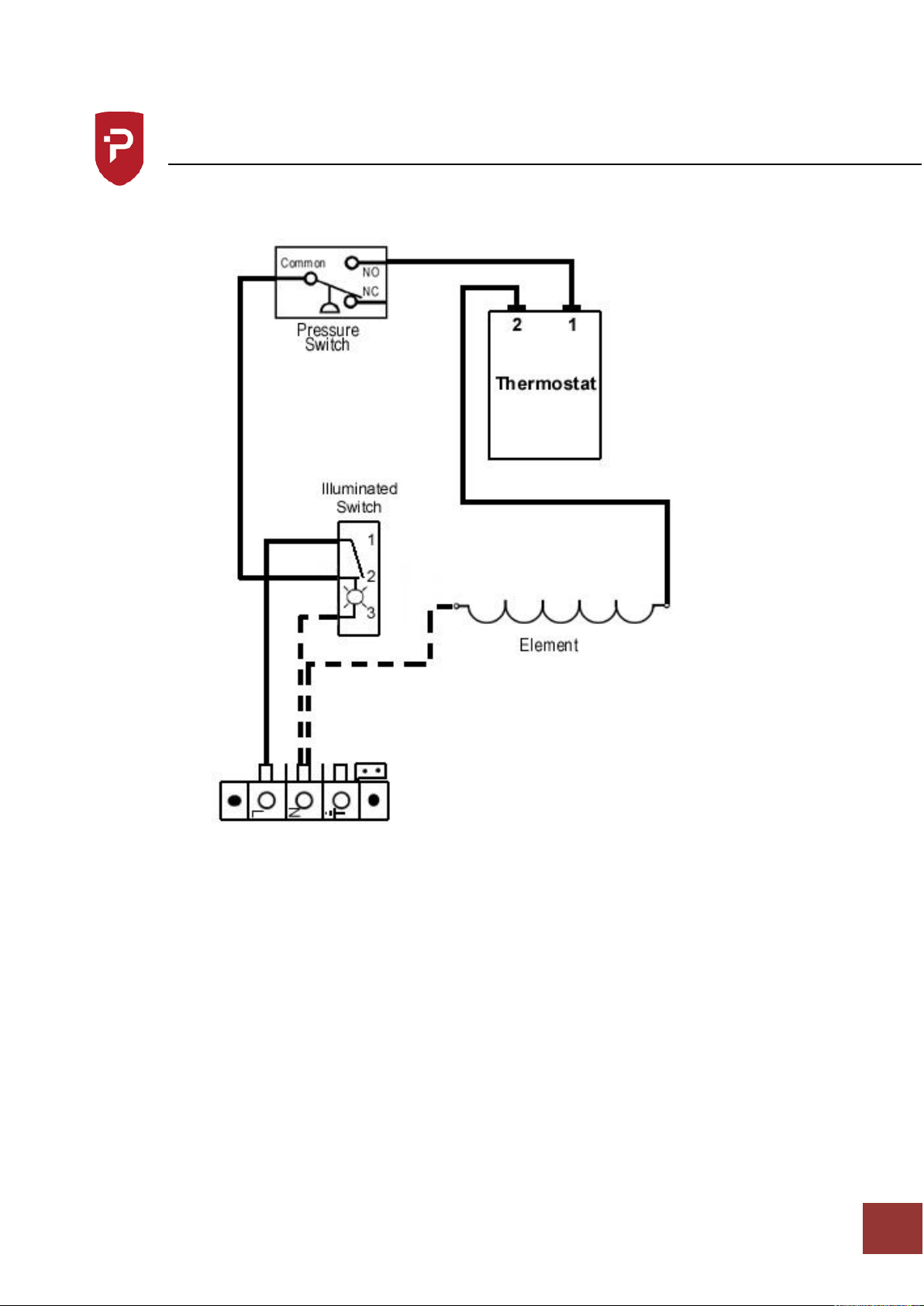

Wiring Diagram
MWBT/MWBTD/MWBTL
Page 11
Parry-British Built for Purpose
IN262-4
9

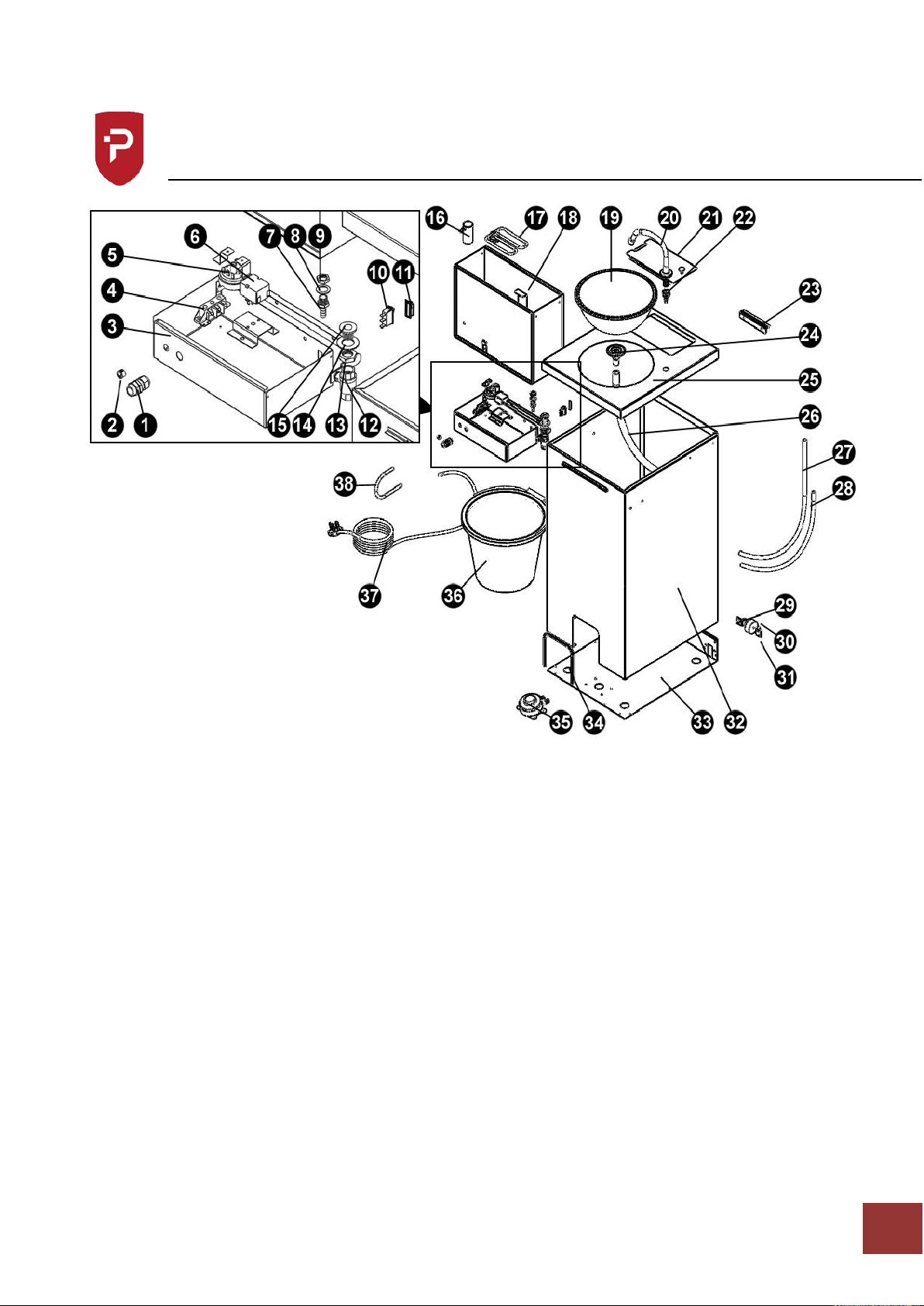

Exploded View
Page 12
Parry-British Built for Purpose
IN262-4
10
Parts List
Part
Number
Description
Code
1
M16 Gland & Nut
GLAND0M16
LOCKNTM16
2
Plastic Bush
BUPL50006
3
*Gear Tray
*NO CODE
4
Terminal Block
TB3POLETB
5
Pressure Switch
10706/A
6
Thermostat
MWB44CSTAT
7
Barbed Tail
MWBBSPTAIL
(Not required after serial No.
150060449 Date: 30/8/18)
8
Sealing Washer (x2)
MWBSEALWASH
(Not required after serial No.
150060449 Date: 30/8/18)
9
Brass Lock Nut
MWBLOCKNUT
(Not required after serial No.
150060449 Date: 30/8/18)
10
Switch
SWRE06165
11
Switch Cover
LE25COVER
12
Ball Valve
VALVEB12N
13
Nut for Bowl Insert
NUT4BOWLSSS
14
Washer for Bowl Insert
WASS14022
15
Bowl Insert
BOWLINSSL
16
*Air Tray Assembly
*NO CODE
17
Element
ELBW03000
18
*Tank Assembly
*NO CODE
19
Bowl
MWBBOWL
20
Swivel Tap
MWBSWTAPS
21
*Lid
*NO CODE
22
Tap Adaptor & O Ring
Please note MWBOEING is not require to be purchased as the
MWBTAPFITT design has changed to incorporate washer.
MWBTAPFITT
MWBORING
23
Pull Handle
Please note: No longer used 10/6/2019
P6BOHANDL
24
Waste Fitting
MWBWASTE
25
*Top
*NO CODE
Page 13
Parry-British Built for Purpose
IN262-4
11
Parts List
Part Number
Description
Code
26
Waste Tube (630mm Length)
MWB24TUBE
27
½” Tube (1060mm Length)
MWB1/2TUBE
28
½” Tube (770mm Length)
MWB1/2TUBE
29
Wheel Bracket (RH)
MWBWHBRKT
30
Castor Wheel
MWBWHEEL
31
Wheel Bracket (LH)
MWBWHBRKT
32
*Body
*NO CODE
33
*Base
*NO CODE
34
Trim (440mm Length)
CARTBLACKTRIM
35
Foot Pump
MWBFOOTPUMP
36
Waste Bucket
MWBUCKET
37
Mains Lead
MLEAD25
38
Vacuum Tube
MWBVACTUBE
Loom
W1 (x2)
W2 (x2)
W17 (x2)
*Metalwork Components
Page 14
Parry-British Built for Purpose
IN262-4
12
Warranty Information
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2 year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service
call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2 year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 15
Parry-British Built for Purpose
IN262-4
13
Disposal & Recycling
This appliance is marked according to the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health which could otherwise be caused by
inappropriate waste handling of this product.
A symbol on the product, or on the documents accompanying the product, indicates that
this appliance may not be treated as household waste. Instead it should be
handed over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal
of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in
order to help conserve the environment.
At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not
discard the unit or place it in the refuse bin.
You have several options:
Take the unit to an approved WEEE scheme company, there will be one in your area.
Take the unit to an approved waste disposal site; many sites are managed by your local
authority.
Contact the units manufacturer, importer or their agent; the contact details will be on
the unit.
There will probably be a charge for this service which will depend on the physical size and
location of the unit. You will be given a collection price for a curb side collection based on
commercial rates prevailing at the time.
It should be noted that the unit to be collected should be suitably packed and sealed to
prevent dangerous gases and fluids from escaping. The condition of the unit must also be
clean to comply with health and safety regulations.
Loading...
