Instruction Manual

Mobile Flat Top Serveries with/without gantries &

Mobile Bain Marie Serveries with/without gantries

MSF9/MSF12/MSF15/MSF18. MSF9G/MSF12G/MSF15G/MSF18G

MSB9/MSB12/MSB15/MSB18/MSB9G/MSB12G/MSB15G/MSB18G

Page 2

Page 3

Contents

Parry-British Built for Purpose

IN132-5

Contents ...................................................................................................................................... 1

Product Overview .................................................................................................................... 2-5

Safety Instructions ....................................................................................................................... 6

Installation Instructions ............................................................................................................ 6-7

Operating Instructions .............................................................................................................. 8-9

Cleaning Instructions ................................................................................................................... 9

Maintenance Instructions........................................................................................................... 10

Fault Finding ............................................................................................................................. 11

Service Information.................................................................................................................... 12

Wiring Diagram .................................................................................................................... 13-16

Exploded View ...................................................................................................................... 17-18

Parts List .............................................................................................................................. 19-20

Warranty Information ................................................................................................................ 21

Disposal & Recycling ................................................................................................................. 22

Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.

Sales Tel: 01332 875544

Page 4

Parry-British Built for Purpose

IN132-5

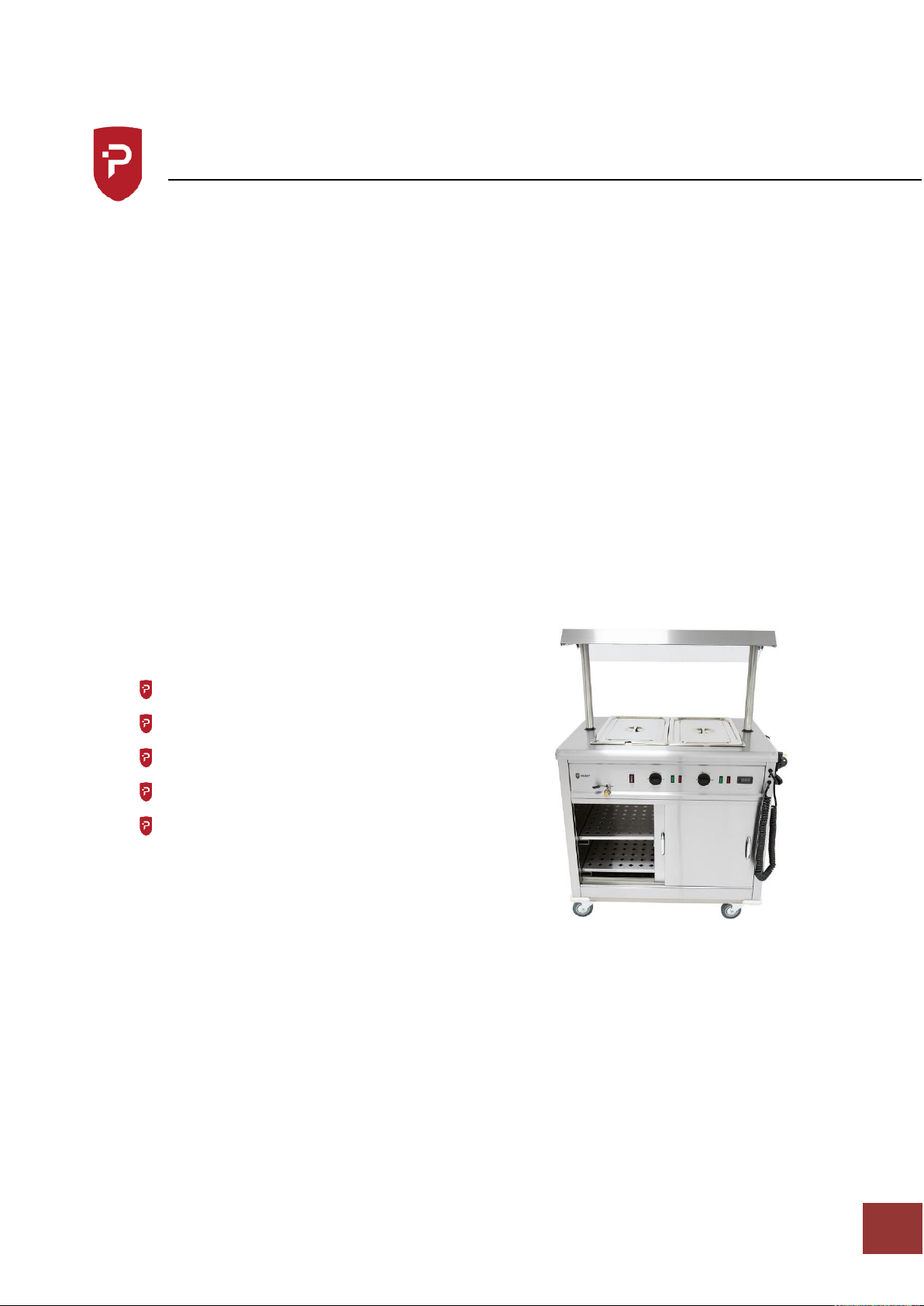

Product Overview

MSF/MSFG Models

The Parry flat top servery units are constructed from high grade stainless steel, which is both hygienic and incredibly robust. The units have four strong castors – two of which are lockable – and are built with removable sliding doors for easy cleaning. All the servery units come with thermostatically controlled hot cupboard with a temperature display. Gantry version available which will heat from above over the products placed on the top working surface.

MSB/MSBG Models

The Parry Bain Marie servery units are constructed from high grade stainless steel, which is both hygienic and incredibly robust and equipped with a wet or dry thermostatically controlled well that can take 150mm GN containers. The units have four strong castors – two of which are lockable – and are built with removable sliding doors for easy cleaning. All the servery units come with thermostatically controlled hot cupboard with a temperature display. Gantry version available which will heat from above over the products placed on the top working surface.

These units lead the industry in:

Design and aesthetic appeal Performance Power Functionality After sales support

Page 5

Parry-British Built for Purpose

IN132-5

Product Overview

MSF Models

Features

MSF9

MSF12

MSF15

MSF18

Unpacked weight (kg)

75.5

105

115

Packed Weight (kg)

92.5

116

125

135

Dimensions (w x d x h) mm (including handles and bumpers)

975 x 665 x

900

1275 x 665 x

900

1575 x 665 x

900

1875 x 665 x

900

No. of plated meals (based on 9 inch plate)

108

No of shelves

2 shelves (1 adjustable)

Cupboard temperature range

30°C – 80°C

Plug

1 Plug

Overall power rating

1.5kW

Warranty

2 years

MSFG Models

Features

MSF9G

MSF12G

MSF15G

MSF18G

Unpacked weight (kg)

72.5

105

115

Packed Weight (kg)

92.5

116

125

135

Dimensions (w x d x h) mm (including handles and bumpers)

975 x 665 x

900 (1356

with gantry)

1255 x 665 x

900 (1356

with gantry)

1575 x 665 x

900 (1356

with gantry)

1875 x 665 x

900 (1356

with gantry)

No. of plated meals (based on 9 inch plate)

108

No of shelves

2 shelves (1 adjustable)

Cupboard temperature range

30°C – 80°C

Plug

1 Plug

Overall power rating

2.1kW

2.4kW

2.7kW

Warranty

2 years

Page 6

Parry-British Built for Purpose

IN132-5

Product Overview

MSB Models

Features

MSB9

MSB12

MSB15

MSB18

Unpacked weight (kg)

75.5

79.5

105

115

Packed Weight (kg)

95.5

99.5

125

135

Dimensions (w x d x h) mm (including handles and bumpers)

975 x 665 x

900

1275 x 665 x

900

1575 x 665 x

900

1875 x 665 x

900

No. of plated meals (based on 9m inch plate)

108

No of shelves

2 shelves (1 adjustable)

Cupboard temperature range

30°C – 80°C

1/1GN containers spaces

2 3 4

Bain Marie temperature range

30°C – 80°C

Plug(s)

1 Plug

2 Plugs

Overall power rating

2.9kW

4.3kW

Warranty

2 years

Page 7

Parry-British Built for Purpose

IN132-5

Product Overview

MSBG Models

Features

MSB9G

MSB12G

MSB15G

MSB18G

Unpacked weight (kg)

75.5

79.5

105

115

Packed Weight (kg)

Dimensions (w x d x h) mm (including handles and bumpers)

975 x 665 x

900 (1356

with gantry)

1275 x 665 x

900 (1356

with gantry)

1575 x 665 x

900 (1356

with gantry)

1875 x 665 x

900 (1356

with gantry)

No. of plated meals (based on 9m inch plate)

108

No of shelves

2 shelves (1 adjustable)

Cupboard temperature range

30°C – 80°C

1/1GN containers spaces

2 3 4

Bain Marie temperature range

30°C – 80°C

Plug(s)

2 Plugs

Overall power rating

3.5kW

3.8kW

5.5kW

Warranty

2 years

Page 8

Parry-British Built for Purpose

IN132-5

Safety Instructions

IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE. ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE INSTALLING, CLEANING OR MAINTAINING.

This appliance has been designed to keep food warm and therefore during its use parts of the appliance will become very hot. All personnel must be given appropriate supervision and training in the safe use of this appliance.

ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS.

The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the Health and Safety at Work Act.

To prevent shocks, all appliances whether gas or electric, must be earthed.

To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed.

It is IMPORTANT that this protective film is peeled off before the equipment is used.

Installation Instructions

ELECTRICAL INSTALLATION

ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG MUST BE

FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH CURRENT REGULATIONS

Page 9

Parry-British Built for Purpose

IN132-5

Installation Instructions

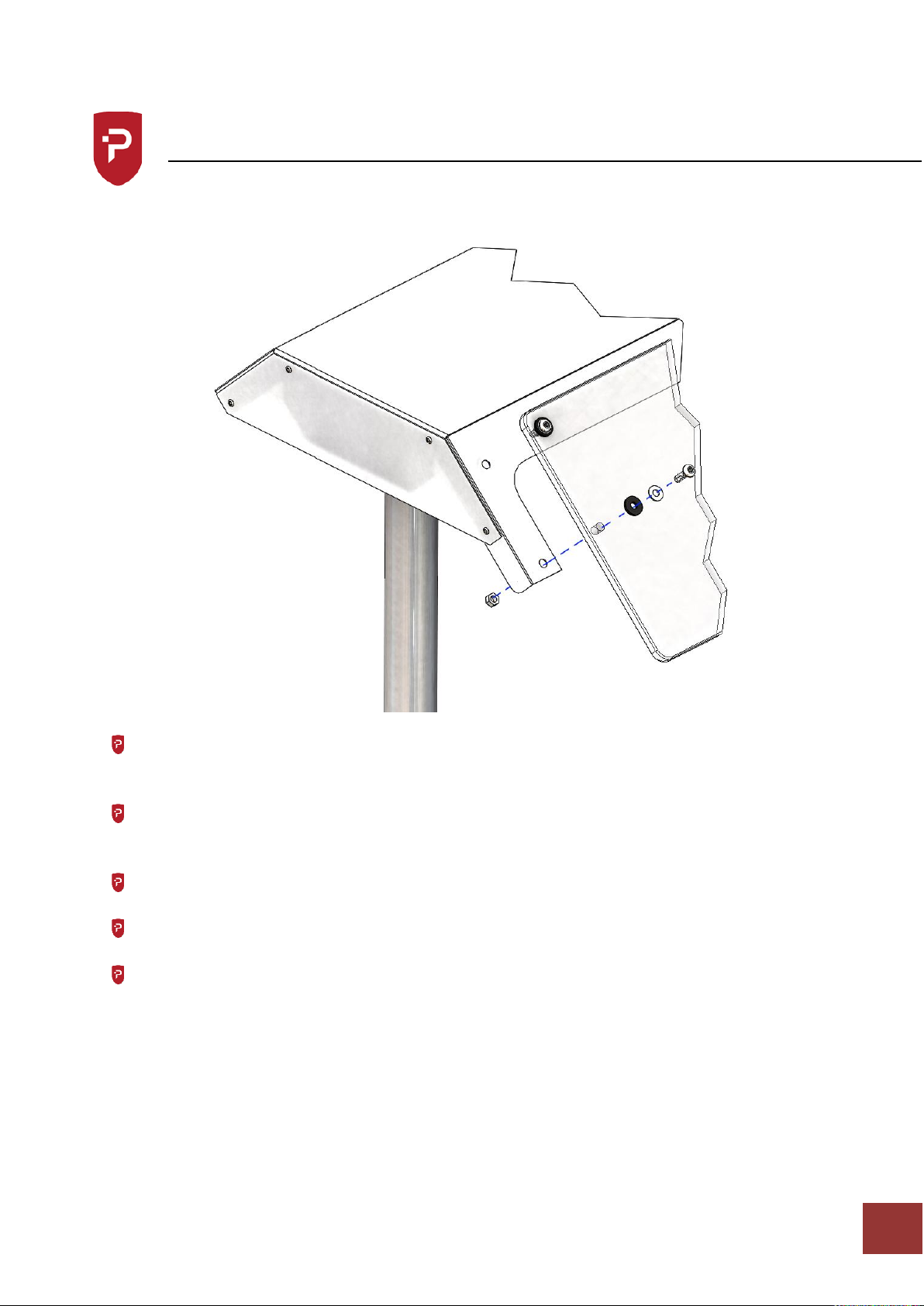

Fitting the glass to units with gantry

Using the kit of screws supplied (4 x Screws, 4 x Metal Washer, 4 x Rubber Washer, 4 x

Nuts per glass panel)

Place the screw thru the metal washer, then through the rubber washer through the

glass hole and then through the gantry.

Secure with the nut on the under side of the gantry. Using the allen key tighten the screw from the front. Repeat the steps for the remaining fixings.

Page 10

Parry-British Built for Purpose

IN132-5

Operating Instructions

Cabinet

Plug machine in to power supply. The red indicator light will show to indicate power

to the unit.

Turn the cabinet dial to the required setting, the right-hand side green lamp will

show indicating power to the element, this will extinguish when the desired temperature is reached.

This procedure will be repeated automatically as the thermostat maintains a constant temperature. The cabinet temperature is shown on the digital display on the fascia

When loading the machine please leave some space around the rack to give good airflow, never cover racks with tin foil, otherwise the efficiency of the machine will be reduced.

Quartz Lamp Gantry

Units which have a quartz lamp gantry, have two mains power cables.

Ensure both power cables are plugged in to the mains and turned on To turn on the lamp gantry use the on/off switch labelled lamp, on the fascia.

Bain Maries

If the unit has a bain marie it can be used either wet or dry.

Please note that if the bain marie is being used wet, please ensure the drain tap is closed before filling the bain marie tank with water.

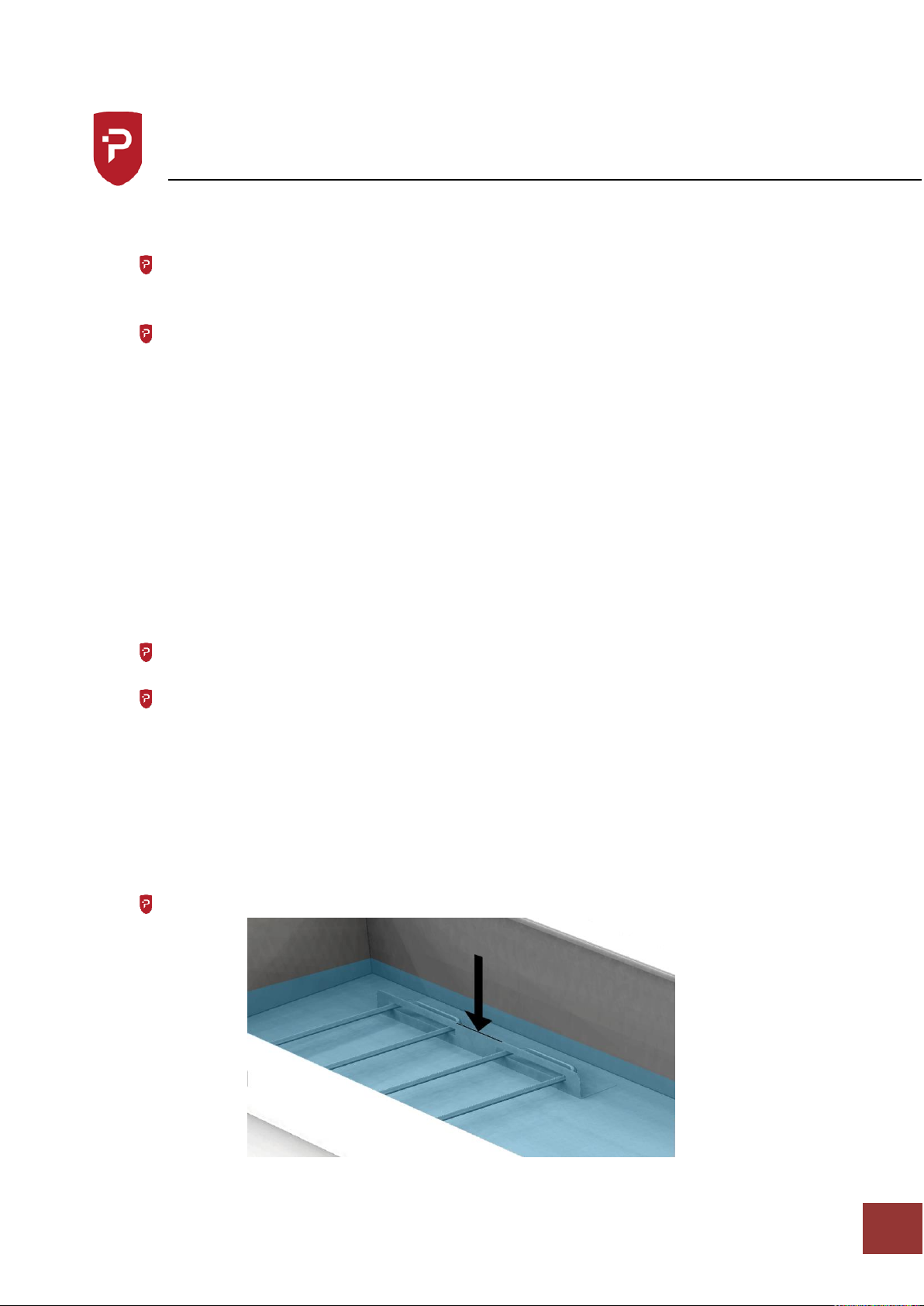

(Wet Only) Fill the bain marie tank to just over the rear element stand.

Page 11

Parry-British Built for Purpose

IN132-5

Operating Instructions

For initial heat up turn bain marie dial to the high setting until the green light

extinguishes (dry approximately 15 mins, wet approximately 60 mins)

The green lamp will illuminate showing there is power to the element, this will not

extinguish on this setting.

After this period turn the control to the desired heat setting, the green lamp will

extinguish when the desired temperature is reached. This procedure will be repeated automatically as the simmerstat maintains a constant temperature.

Place the hot food into the containers and replace the cover.

Customers are asked to note that the bigger the bain marie the longer it will take to heat up. The bain marie will heat up faster if used dry.

MSB18 will provide the best performance when used wet. On the 1800mm unit, if used wet the heat up time is expected to be around two hours. This process can be sped up by filling the bain marie with hot water.

Cleaning Instructions

The appliance should be cleaned after every use.

Allow unit to cool down before cleaning Turn off unit at the mains power. With the containers removed wipe down the machine with a soft cloth, do not use

abrasive materials.

Stainless steel cleaners maybe used and cleaning instructions on the product must be

adhered to

To clean inside the cabinet, the doors can be removed. Simply take hold of the handle

on the door and supporting the other side of the door lift the door upward until the bottom of the door clears the bottom rail of the cabinet. Then tilt the door so the bottom of the door comes forward, this allows the door to slide down and away from the unit

The inner shelves and element cover can be removed when both the doors have been

taken out. Please note that the element cover must be replaced before attempting to use the unit.

The drain tap on the front of the fascia can be used to drain the bain marie tank Never clean the unit with water jets.

Page 12

Parry-British Built for Purpose

IN132-5

Maintenance Instructions

Ensure the appliance is isolated from the power supply before installing, cleaning or maintaining the appliance.

Maintenance and service must only be undertaken by a qualified electrician.

Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts.

For more information on buying spares visit:

www.parry.co.uk/parry-commercial-catering-spares

Page 13

Parry-British Built for Purpose

IN132-5

Fault Finding

Fault

Check

Solution

Main lamp does not illuminate

1. Check unit is plugged

into mains supply and the socket is switched on.

2. Check the fuse in the

plug.

3. Try a different socket

4. If the unit has been

permanently connected to a fused switch, ask a qualified electrician or competent person to check the connections.

If the problem remains, please

contact your distributor

Page 14

Parry-British Built for Purpose

IN132-5

Service Information

This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void.

If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service

agent, or a similarly qualified person.

Enhanced 2 Years Warranty

Parry Catering (Midlands) Ltd offer an enhanced warranty of two years (including parts and labour) on all of the Parry manufactured products. To take advantage of this you should register you warranty by logging onto the company website and filling out our simple form.

www.parry.co.uk/the-parry-warranty

If you have any issues with your product and wish to request a warranty call you can contact our friendly team who will organize a Parry approved service engineer to attend and fix your problem.

All warranty requests can be sent to [email protected] alternatively call our warranty department for technical assistance on 01332 875544

Page 15

Parry-British Built for Purpose

IN132-5

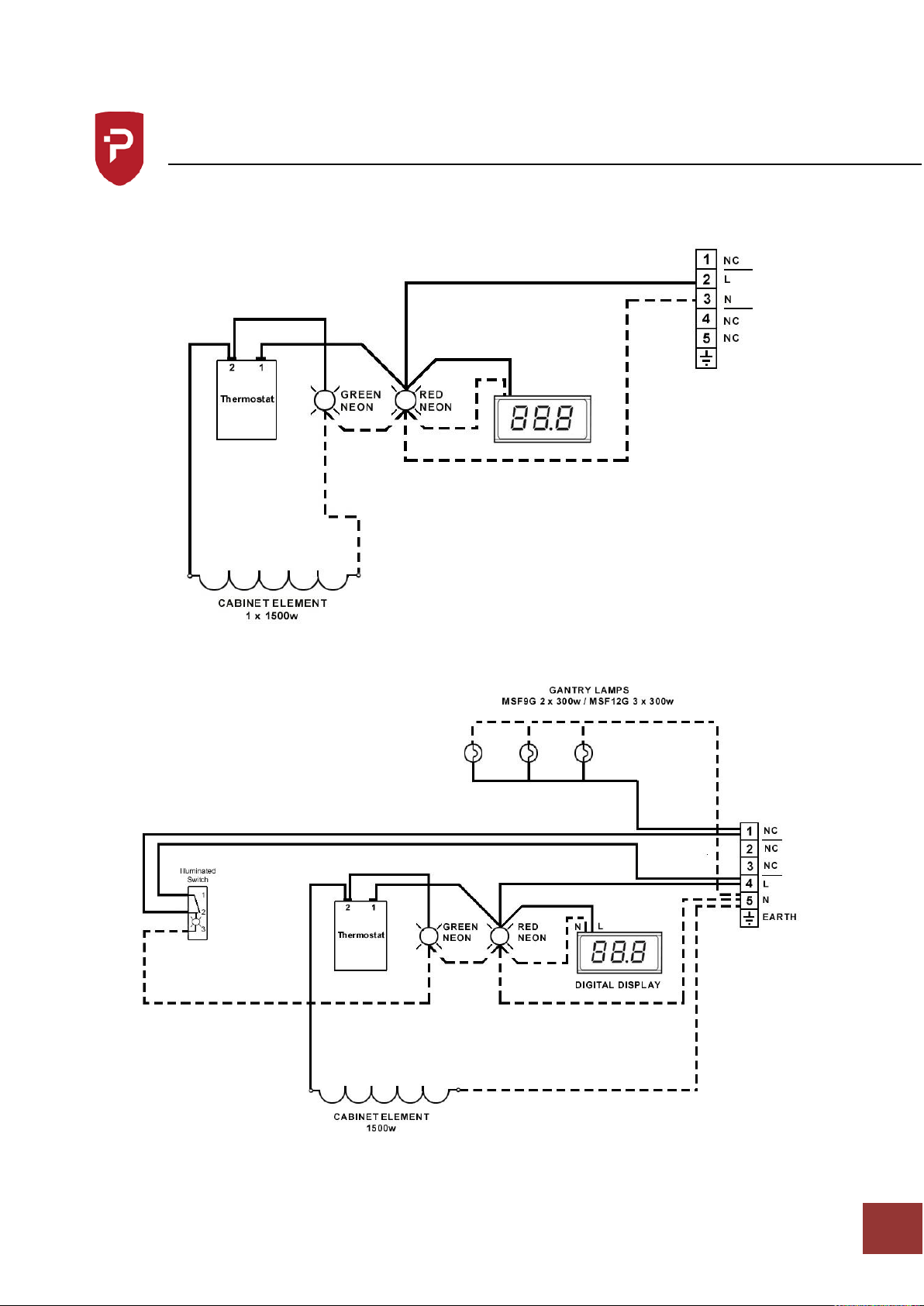

Wiring Diagram

Models: MSF9 /MSF12 / MSF15 / MSF18

Models: MSF9G / MSF12G

Page 16

Parry-British Built for Purpose

IN132-5

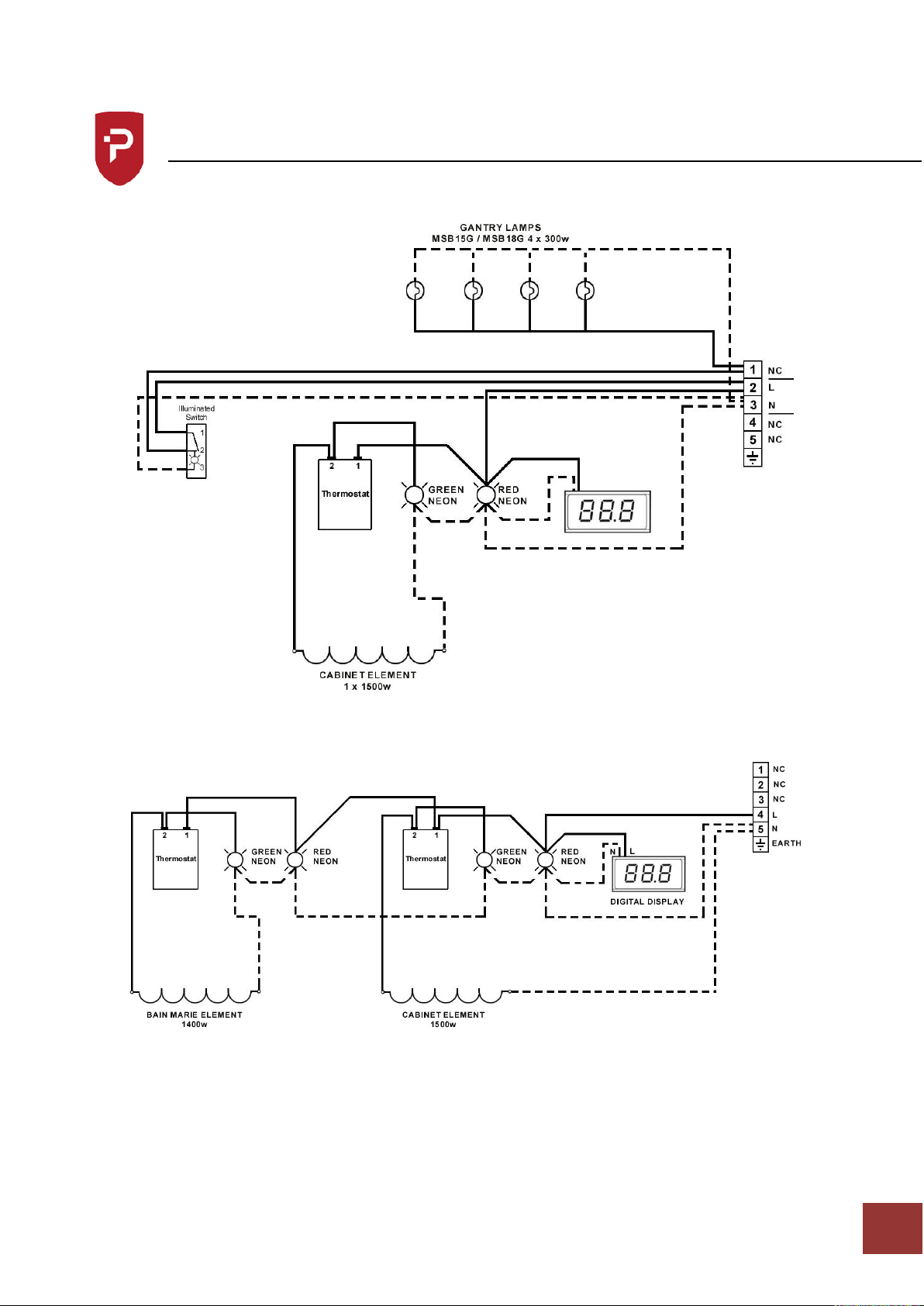

Wiring Diagram

Models: MSF15G / MSF18G

Models: MSB9 / MSB12

Page 17

Parry-British Built for Purpose

IN132-5

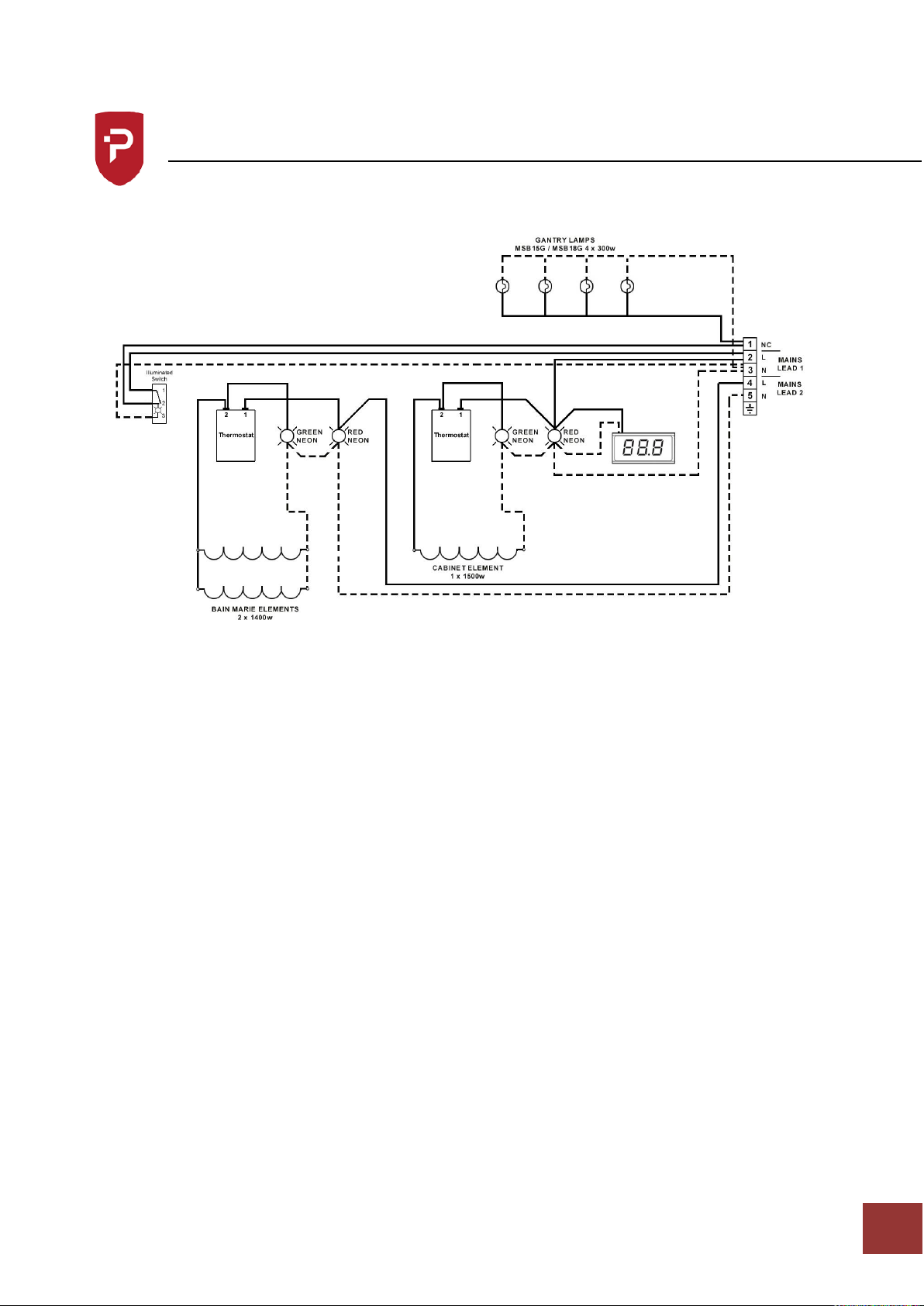

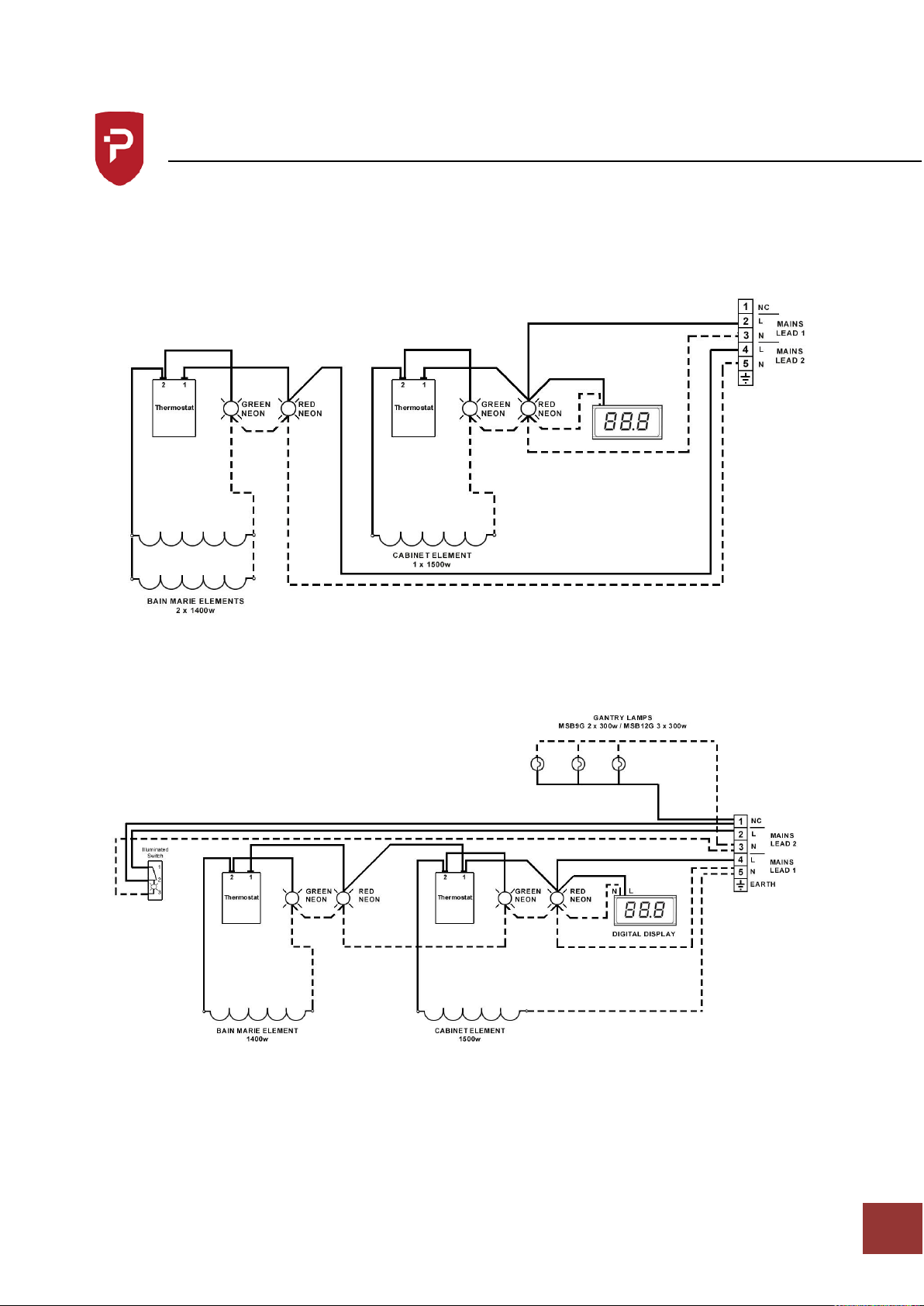

Wiring Diagram

Models: MSB15 / MSB18

Models: MSB9G / MSB12G

Page 18

Parry-British Built for Purpose

IN132-5

Wiring Diagram

Models: MSB15G / MSB18G

Page 19

Parry-British Built for Purpose

IN132-5

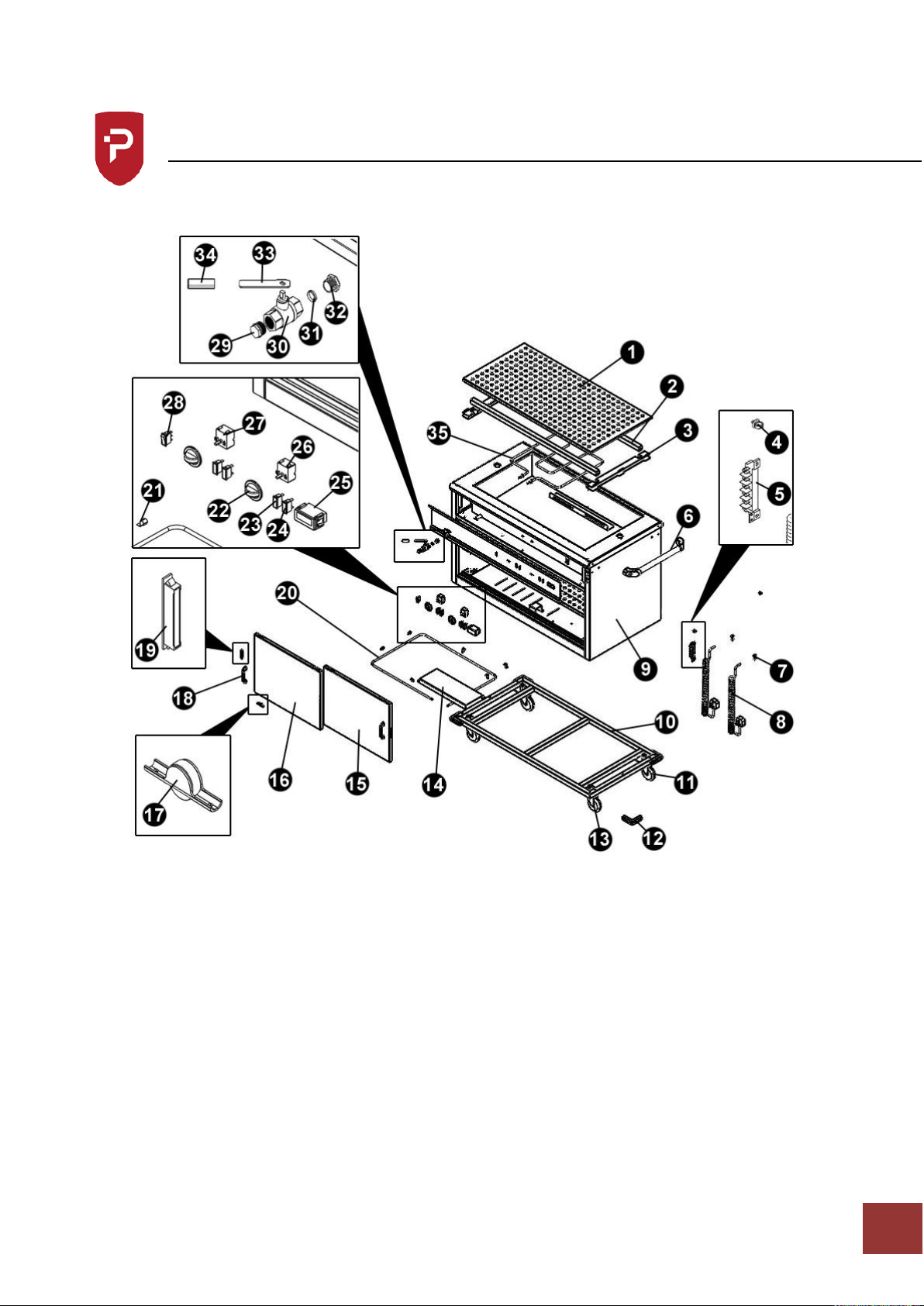

Exploded View

MSB12G Exploded View Show Below

Page 20

Parry-British Built for Purpose

IN132-5

Exploded View

MSB12G Exploded View Show Below

Page 21

Parry-British Built for Purpose

IN132-5

Parts List

MSB Range

Part

Number

Description

MSB9/MSF9

MSB12/MSF12

MSB15/MSF15

MSB18/MSF18

*Shelf

*No Code

*Shelf Support Bar

*No Code

Shelf Support

*No Code

Cable Clip

CABLECLIP

Terminal Block

TB6POLETB

Push Handle

PUSHHANDLE

Cable Bush

BUSR06003

As from 24/3/21

GLAND0M16 & LOCKNTM16

Coiled Mains Cable

FLEXBK13A

*Cabinet

*No Code

Chassis

CHASSIS1

CHASSIS2

CHASSIS4

CHASSIS6

Braked Castor

CASTOR100BHD

From Oct 2021 use

CASTOR100BHD/C

Corner Bumper

CORNBUMPER

Unbraked Castor

CASTOR100SHD

From Oct 2021 use

CASTOR100SHD/C

*Wire Guard

*No Code

*RH Door Assembly

*No Code

*LH Door Assembly

*No Code

Door Roller

DOOROLLER

Door Handle

HANDLEBMS

Magnet

DRCT00010

Cabinet Element

ELMT0001HC

Element Clip

AS2640ELC

Control Knob

KNOBMSB

Green Neon

LNGN06378

Red Neon

LNRE06178

Temperature Display

TEMPDISPLAY

Replaces TM103TN700 as of Dec 2022

25a

Probe

1KE02XE1500

Page 22

Parry-British Built for Purpose

IN132-5

Parts List

Parts list (Continued)

Part

Number

Description

MSB9/MSF9

MSB12/MSF12

MSB15/MSF15

MSB18/MSF18

Cabinet Thermostat

TMST13012

Bain Marie Thermostat

TMST5513015

Not Required on MSF units

Gantry Light Switch

SWRE06165

Not Required on if non G models

Drain Plug

PLUGBSP12

Not Required on MSF units

Drain Valve

VALVELB12

Not Required on MSF units

Olive

OLIVE0015

Not Required on MSF units

½” BSP Male Nut

NUTMBSP12

Not Required on MSF units

Valve Handle

LCB00041

Not Required on MSF units

Valve Handle Sleeve

HANDLESLEEVE

Not Required on MSF units

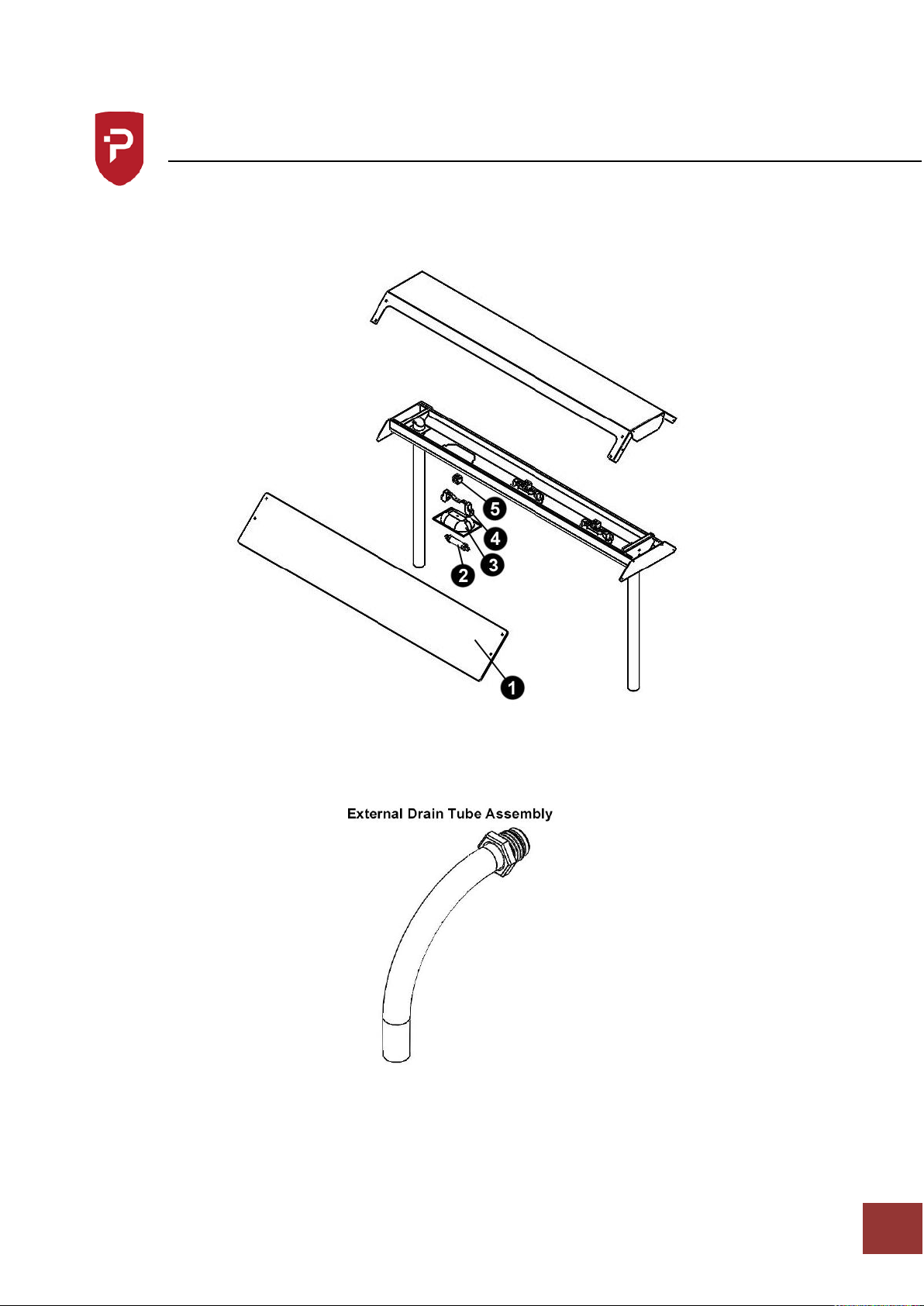

Bain Marie Element

ELBM02212

Not Required on MSF units

External Drain Tube

COPPERBEND01

NUTMBSP12

OLIVE0015

*Metalwork Components

Gantry Parts Only

Part

Number

Description

MSB9G/MSF9G

MSB12G/MSF12G

MSB15G/MSF15G

MSB18G/MSF18G

Glass Sneeze Screen

PLGL00894

PLGL01194

PLGLQLD3

PLGL00894

Qty 2 Per Unit

300W Quartz Lamp

CLICFIT300

Lamp Only as Spare = CLIC300LAMP

Reflector

Part of CLICKFIT300

Lamp Holder

Part of CLICFIT300

Ceramic Terminal Block

BTCER2WAY

*Metalwork Components

Page 23

Parry-British Built for Purpose

IN132-5

Warranty Information

Not covered under warranty

Fault due to incorrect installation, poor maintenance

or equipment abuse.

Resetting of equipment or circuit breakers. Faulty electrics – e.g. customer’s plug socket, plug,

wiring, junction box fault, wrong fuse.

Products must be serviced within the first 12

months to be eligible for the 2 year warranty

Product not covered by warranty if combustible

materials have been used, e.g. plastic trays.

Foil used on racks, blockages and lime scale issues.

Failure to grant access for pre-arranged service

call.

Equipment that has been set up or used incorrectly

e.g. dishwasher detergents, levelling and setting up of doors on a six burner cooker.

Excessive carbon build-up on griddle plates or

overuse of lava rock on chargrills. (Recommended use by Parry no more than 2kg.)

All of the above points are not covered by

warranty and any costs incurred, because of the above, will be forwarded to the parties responsible for placing the call.

The manufacturer’s warranty is only valid in the UK

mainland. Northern Ireland, Western Isles, Inner Hebrides and Islands are parts only warranty. Please be aware that the warranty starts from the date of purchase from Parry and not the sale or installation date of the equipment.

To be eligible for a 2 year warranty, products must be serviced at least once within the first 12 months of purchase.

All service calls will be carried out between 8am and 5pm, Monday to Friday.

Your warranty is invalid if your equipment has not been installed in accordance with the

manufacturer’s instructions. The misuse, alteration

or unauthorised repairs of the equipment will also invalidate the warranty.

During the warranty period it is at Parry’s

discretion whether to repair or replace the equipment. The warranty only applies if the equipment has been used in a professional manner following the

manufacturer’s instructions and maintenance

guidelines.

The warranty covers defects in the material and component failure only. We are not liable for trading loss, loss of perishable items, water damage or loss due to injury or fire damage.

Please ensure you have referred to the

manufacturer’s instruction before placing a warranty

call.

Contact our warranty department on 01332 875544 for technical assistance.

Please have your model number ready before calling.

All warranty requests must be submitted to

[email protected].

Failure to pay any warranty charges will result in your warranty being put on hold until the bill has been settled. Any issues regarding the raised charges should be put in writing to our warranty department for further investigation.

www.parry.co.uk

Page 24

Parry-British Built for Purpose

IN132-5

Disposal & Recycling

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product.

A symbol on the product, or on the documents accompanying the product, indicates that

this appliance may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in order to help conserve the environment.

At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not discard the unit or place it in the refuse bin.

You have several options:

Take the unit to an approved WEEE scheme company, there will be one in your area. Take the unit to an approved waste disposal site; many sites are managed by your local

authority.

Contact the units manufacturer, importer or their agent; the contact details will be on

the unit.

There will probably be a charge for this service which will depend on the physical size and location of the unit. You will be given a collection price for a curb side collection based on commercial rates prevailing at the time.

It should be noted that the unit to be collected should be suitably packed and sealed to prevent dangerous gases and fluids from escaping. The condition of the unit must also be clean to comply with health and safety regulations.
