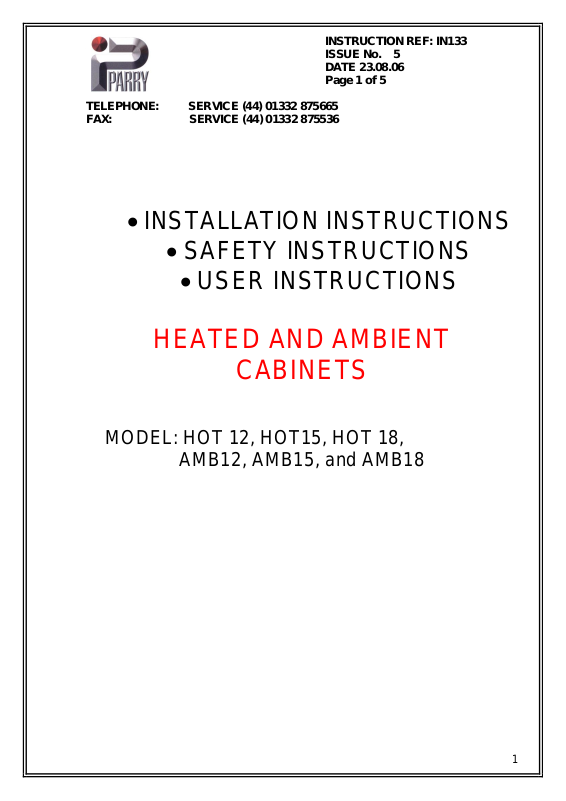

INSTALLATION INSTRUCTIONS
SAFETY INSTRUCTIONS
USER INSTRUCTIONS
HEATED AND AMBIENT
MODEL: HOT 12, HOT15, HOT 18,
AMB12, AMB15, and AMB18
CABINETS
Page 2
Page 2 of 5
2
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
WARNING
To avoid scratching the highly polished exterior surface of this equipment
whilst in transit, the protective film on the exterior surfaces has NOT been
removed.
It is IMPORTANT that this protective film is peeled off before the equipment is
used
OPERATING THE CABINET (not all units are heated)
1. Plug machine in to power supply. The red indicator light will show to indicate
power to the unit.
2. Turn the cabinet dial to the required setting, the right hand side green lamp will
show indicating power to the element, this will extinguish when the desired
temperature is reached.
This procedure will be repeated automatically as the thermostat maintains a constant
temperature.The cabinet temperature is shown on the digital display on the fascia
When loading the machine please leave some space around the rack to give good
airflow, never cover racks with tin foil, otherwise the efficiency of the machine will be
reduced.
OPERATING THE QUARTZ LAMP GANTRY (not all units come with gantry)
Units which have quartz lamp gantry have two mains power cables.
1. Ensure both of the power cables are plugged in to the mains and turned on
2. To turn on the lamp gantry use the on/off switch on the fascia.
CLEANING
Before cleaning any electrical unit always isolate the power supply.
1. Remove the containers, empty debris and clean in hot soapy water.
2. With the containers removed wipe down the machine with a soft cloth, do not
use abrasive materials.
3. Stainless steel cleaners maybe used and cleaning instructions on the product
must be adhered to.
INSTRUCTION REF: IN133
ISSUE No. 5
DATE 23.08.06
Page 3
Page 3 of 5
3
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
4. To clean inside the cabinet, the doors can be removed. Simply take hold of the
handle on the door and supporting the other side of the door lift the door
upward until the bottom of the door clears the bottom rail of the cabinet. Then
tilt the door so the bottom of the door comes forward, this allows the door to
slide down and away from the unit
5. The two bottom door rails can be easily lifted out to wipe down.
6. The inner shelves and element cover can be removed easily as they have
been designed in three sections. The element tray holds the doors in position
so it is advisable to take the doors out first. Please note that the element cover
must be replaced before attempting to use the unit.
Let the unit cool down before attempting to clean
FAULT FINDING
The most common fault is that the unit is not connected to with the mains supply, and
so the mains lamp will not illuminate, in this circumstance please try the following
before calling for service assistance.
1. Check unit is plugged into mains supply and the socket is switched on.
2. Check the fuse in the plug.
3. Try a different socket
4. If the unit has been permanently connected to a fused switch, ask a qualified
electrician or competent person to check the connections.
One of the above may cure your fault, if not contact your distributor
RATING
Hot 12 (Cheflink Alpha) 1500W, 6.25A, 240V (one mains plug)
Hot 12 SG/DG (Cheflink Alpha SG/DG) 2400W, 10A, 240V (one mains plug)
Hot 12 DG with extra shelf lit (Cheflink Alpha DG) 3300W, 13.75A, 240V (two
mains plugs)
Hot 15 (Cheflink Beta) 2500W, 10.41A, 240V (one mains plug)
Hot 15 SG/DG (Cheflink Beta SG/DG) 3700W, 15.41A, 240V (two mains plugs)
INSTRUCTION REF: IN133
ISSUE No. 5
DATE 23.08.06
Page 4
Page 4 of 5
4
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Hot 15 DG with extra shelf lit (Cheflink Beta DG) 4900W, 20.41A, 240V (two mains
plugs)
Hot 18 (Cheflink Delta) 3000W, 12.5A, 240V (two mains plugs)
Hot 18 SG/DG (Cheflink Delta SG/DG) 4500, 18.75A, 240V (two mains plugs)
Hot 18 DG with extra shelf lit (Cheflink Delta DG) 6000W, 25A, 240V (two mains
plugs)
AMB 12
AMB 12 SG/DG 900W, 3.75A, 240V (one mains plug)
AMB 12 DG with extra shelf lit 1800W, 7.5A, 240V (one mains plug)
AMB 15
AMB 15 SG/DG 1200W, 5A, 240V (one mains plug)
AMB 15 DG with extra shelf lit 2400W, 10A, 240V (one mains plug)
AMB 18
AMB 18 SG/DG 1500W, 6.25A, 240V (one mains plug)
AMB 18 DG with extra shelf lit 3000, 12.5A, 240V (one mains plug)
INSTRUCTION REF: IN133
ISSUE No. 5
DATE 23.08.06
Page 5
INSTRUCTION REF: IN133
5
ISSUE No. 5
DATE 23.08.06
Page 5 of 5
TELEPHONE: SERVICE (44) 01332 875665
FAX: SERVICE (44) 01332 875536
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste
disposal of electrical and electronic equipment (WEEE), Parry Catering are committed
to this policy in order to help conserve the environment.
At the end of this unit’s life you MUST dispose of it in an approved manner. You
MUST not discard the unit or place it in the refuse bin.
You have several options:
a) Take the unit to an approved WEEE scheme company, there will be one in
your area.
b) Take the unit to an approved waste disposal site; many sites are
managed by your local authority.
c) Contact the unit’s manufacturer, importer or their agent the contact
details will be on the unit.
There will probably be a charge for this service which will depend on the physical
location of the unit and size you will be given a collection price for a curb side
collection based on commercial rates prevailing at the time.
It should be noted that the unit to be collected should be suitably packed and sealed
to prevent dangerous gases and fluids from escaping. The condition of the unit must
also be clean to comply with health and safety regulations.
