Instruction Manual

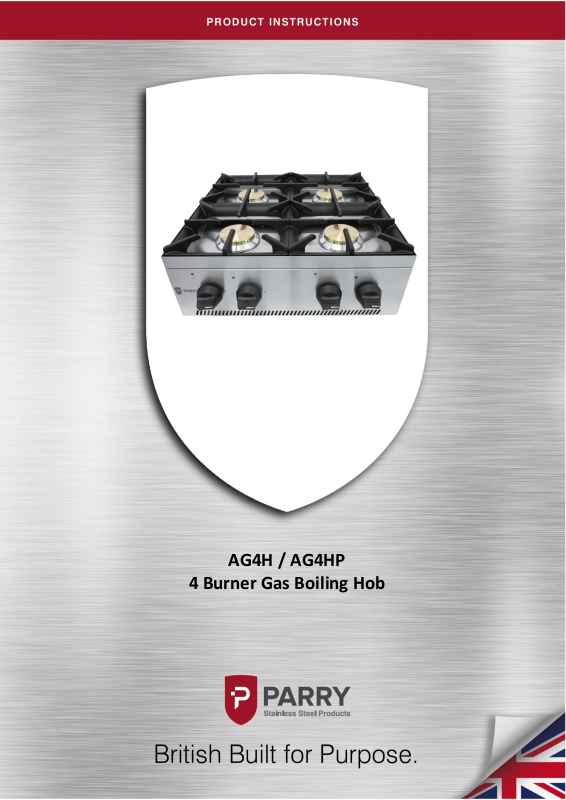

AG4H / AG4HP
4 Burner Gas Boiling Hob
Page 2
Page 3
Contents
Parry-British Built for Purpose
IN268-2
1
Contents ...................................................................................................................................... 1
Product Overview .................................................................................................................... 2-3
Safety Instructions ....................................................................................................................... 4
Installation Instructions ............................................................................................................ 5-6
Operating Instructions ................................................................................................................. 7
Cleaning Instructions ................................................................................................................ 7-8
Maintenance Instructions............................................................................................................. 8
Replacement Parts ...................................................................................................................... 9
Fault Finding ............................................................................................................................. 10
NAT Gas Conversion Instructions ................................................................................................ 11
LPG Gas Conversion Instructions ................................................................................................ 12
Conversion Procedure ........................................................................................................... 13-14
Technical Information ................................................................................................................ 15
Technical Information ............................................................................................................... 16
Exploded View ........................................................................................................................... 17
Parts List ................................................................................................................................... 18
Warranty Information ........................................................................................................... 19-20
Disposal & Recycling ................................................................................................................. 21
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN268-2
2
Product Overview

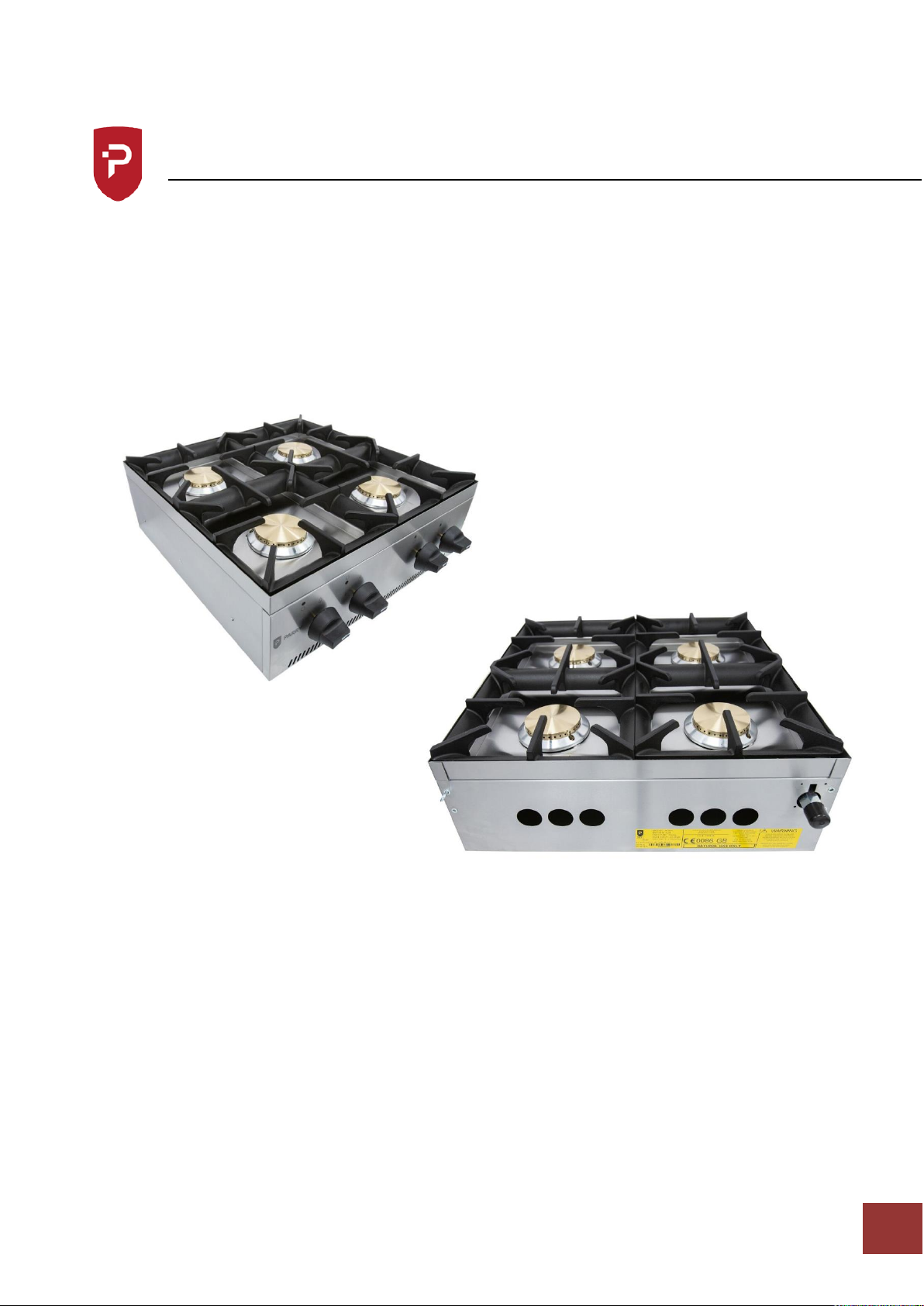

The AG4H/AG4HP models are perfect for high volume catering, the Parry four-burner gas
hobs are powerful and reliable. The precise adjustable thermostat controls make them
responsive and precise while the high quality stainless steel construction ensures the units
are both robust and easy to clean.
Page 5
Parry-British Built for Purpose
IN268-2
3
AG4H
AG4HP
Unpacked weight (kg)
16
16
Packet weight (kg)
20
20
Dimensions (w x d x h) mm
600 x 695 x 220
600 x 695 x 220
Warranty
2 Years
2 Years
KW – Natural
KW – Propane/Butane
22.2
n/a
n/a
17.4
BTU – Natural
BTU – Propane/Butane
75,746
n/a
n/a
59,369
Input Gas Connection
¾” BSP Male
¾” BSP Male
GAS INPUT PRESSURE – Natural
GAS INPUT PRESSURE – Propane
GAS INPUT PRESSURE – Propane/Butane
20mbar
n/a
n/a
n/a
37mbar
n/a
Can be converted using conversion kit?
Yes
Yes
It leads the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Page 6
Parry-British Built for Purpose
IN268-2
4
Safety Instructions
IMPORTANT
PLEASE READ INSTRUCTIONS FULLY BEFORE USE
INSTALLATION INSTRUCTIONS
THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND MUST ONLY BE USED BY QUALIFIED
PEOPLE.
Attention should be drawn to the fact that parts of this unit by necessity, will get VERY HOT,
and will cause burns if touched accidentally. Therefore, it is the responsibility of the
supervisor or equivalent to provide SUITABLE PROTECTIVE CLOTHING for the user.
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED FITTER BEFORE USE.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the Gas
Safety (Installation and Use) Regulations and the Health and Safety at Work Act.
All commercial gas catering equipment is recommended to be mounted below an extraction
canopy. Please consult a ventilation engineer or refer to Guidelines DW172 to calculate the
ventilation requirements for cooking areas containing different pieces of gas catering
equipment.
Each appliance requires a flow of fresh air for combustion. Under no circumstances should
air vents on the appliances, or air vents installed by the fitter in the room of the appliance to
supply combustion air, be altered or omitted in any way.
To prevent shocks, all appliances whether gas or electric, must be earthed.
ANY GAS CONVERSIONS NEEDED TO BE MADE TO THE PRODUCT MUST BE CARRIED OUT
BY A GAS SAFE REGISTERED ENGINEER
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
Page 7
Parry-British Built for Purpose
IN268-2
5
Installation Instructions
ALL APPLIANCES MUST BE FITTED AND OR CONVERTED BY A REGISTERED INSTALLER, IN
ACCORDANCE WITH CURRENT REGULATIONS.
INSTALLATION
Before installation check data plate on rear of unit to ensure appliance is suitable for gas
supply available.
During installation provision must be provided for combustion air to the appliance through
base and rear of appliance. This should not be blocked at any time. This appliance should be
installed with sufficient ventilation to prevent the occurrence of unacceptable
concentrations of substances harmful to health in the room in which it is installed.
POSITIONING
The appliance must not be installed on or against combustible surfaces – minimum
clearances must be:
Rear 150mm (6”)
Sides 150mm (6”)
Hotplate to combustible material 1525mm (60”)
All local fire regulations should be observed.
It is recommended that the appliance be sited below a ventilating hood preferably of the
extractor type incorporating a grease filter.
Page 8
Parry-British Built for Purpose
IN268-2
6
Installation Instructions
GAS CONNECTION
The size of the supply pipe should be no less than 3/4” B.S.P. and an easily accessible
isolation tap fitted close to the appliance in the gas line. Although a rigid connection is
recommended. An approved armoured flexible pipe may be used in conjunction with a
straining cable.
Before the appliance is commissioned the gas, safety regulations require that all
connections on the gas line are tested for gas soundness between the gas meter and the
appliance.
All packing and protective film must be removed from panels etc. prior to commissioning
the appliance.
All gas appliances must be fitted by a competent person to gas safety regulations in force.
Gas hoses used to connect the appliance to the gas supply must be of the correct
specification for the gas and pressure of the appliance. The gas hose must comply with the
national requirements in force, and be CE marked, of a metal braided construction suitable
for commercial catering equipment. The hoses should be periodically examined and
replaced as necessary
The tube or hose shall be fitted such that there are no sharp bends or torsional strain which
may cause damage or failure of the tube or hose, especially near the end fittings. Torsional
strain can be prevented by the use of internal unions, swivel joints, etc. The bend radius
should not exceed that stated by the Manufacturer. The hose should not touch the ground
and should be no longer than 1.5m long.
A manual valve should be positioned upstream of the tube or hose unless the connection
fitting incorporates a self-sealing quick release coupling.
Where a quick release coupling is used for horizontal travel such as in commercial catering
appliances it is advisable that the coupling is facing downwards to prevent the ingress of
debris and ensure the hose is formed in to a smooth curve.
All units should have a restraining cable fitted preventing the unit from being pulled away
from the wall and causing the gas hose to become disconnected accidentally.
Page 9
Parry-British Built for Purpose
IN268-2
7
Operating Instructions
FOR FITTING INSTRUCTIONS SEE INSTALLATION SECTION.
Operating the hob
All burners are fitted with flame failure devices.
1. To light hob unit turn knob to
2. Press in and ignite gas with a match, keep knob held in for 15-20 seconds.
3. Release knob, gas should stay lit, if gas goes out repeat stage 2
4. The burner is now on full gas, to turn gas down, turn knob anti-clockwise, this is the
lowest setting, which is factory set.
5. To turn burners off, turn knob clockwise all the way round.
Parry recommends that the hob is used only with pans that have a minimum diameter of
120mm, and up to a maximum of 295mm diameter. This ensures that there is satisfactory
combustion, and the pan is stable as it sits on the finger of the pan support.
We advise these appliances should not be left unattended while switched on.
These appliances are for professional use by qualified people only.
There are no user serviceable parts.
It is recommended that the sealed top plate is cleaned regularly to prevent build-up of fat
and grease.
Cleaning Instructions
It will be found that it takes less time and effort to clean the hob every time it has been
used, particularly whilst still warm before grease and spillages are burnt on. Proprietary
cleaners must be used with care – they are highly corrosive and may cause damage to
surfaces and components. The stainless outer panels require a wipe down with warm soapy
water.
DO NOT USE SCOURING PADS.
Page 10
Parry-British Built for Purpose
IN268-2
8
Maintenance Instructions
MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY REGISTERED FITTERS.
PLEASE NOTE THE LOW RATE ADJUSTER ON THE UNIT HAS BEEN FACTORY SET AND
SHOULD NOT BE ADJUSTED UNLESS BY A QUALIFIED ENGINEER IN WHICH CASE THE LOW
RATE ADJUSTER SHOULD BE RE-SEALED.
Parry recommends that this unit is serviced at least every 6 months
As part of a full service we recommend the following checks are carried out.
Before any maintenance isolate the appliance from the gas supply
Examine and clean all burner and flame retention ports.
Using a combination of brushes, remove dust and lint from within the primary air
ports venture and burners. Check the burner aeration to ensure it is clear of
debris.
Clean burner injectors ensuring orifices are not enlarged or damaged.
Stiff gas controls can in some instances be greased. Please ensure the correct
type or grease is used.
Check any ignition electrodes and high tension leads where fitted. Clean and
adjust where necessary
Check Door seal for damage and condition. (If Applicable)
Reconnect gas supply and test all disturbed gas connections for gas tightness
using a non-corrosive leak detection fluid.
Check the appliance burner operating pressure, heat input rating or where
necessary both.
Page 11
Parry-British Built for Purpose
IN268-2
9
Replacement Parts
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares
For Gas Safe Engineers only
HOB TAP- Remove pan supports and pull off control knobs and unclip fascia panel.
Disconnect burner supply tube and thermocouple. Undo the 2 screws securing the tap to
the rail. Check sealing washer and replace if necessary. Assemble in reverse order.
HOB BURNER/THERMOCOUPLE – Remove Pan Supports and Burner caps. Remove the solid
top tray.
Disconnect thermocouple from rear of tap. Undo locknut on burner mounting channel.
Assemble in reverse order.
Page 12
Parry-British Built for Purpose
IN268-2
10
Fault Finding
Fault
Check /Possible Cause
Solution
Incorrect flame picture, flame
lift or noisy burner
Incorrect burner pressure,
Blocked or partially blocked
injector.
Inadequate ventilation.
Burner faulty/corroded/blocked
Check/adjust burner pressure
Check /clean injector,
Check ventilation.
Check / clean burner and
replace as necessary.
Burners will not stay alight
Faulty connection at
thermocouple-valve, incorrectly
located
Remake connection, reposition
thermocouple
Burner goes out when turned
to “low”
Blockage in tap
Clean and re-grease
Irregular flame
Burner ring/cap not correctly
located, or low pressure
Relocate and check pressure at
test point.
Page 13
Parry-British Built for Purpose
IN268-2
11

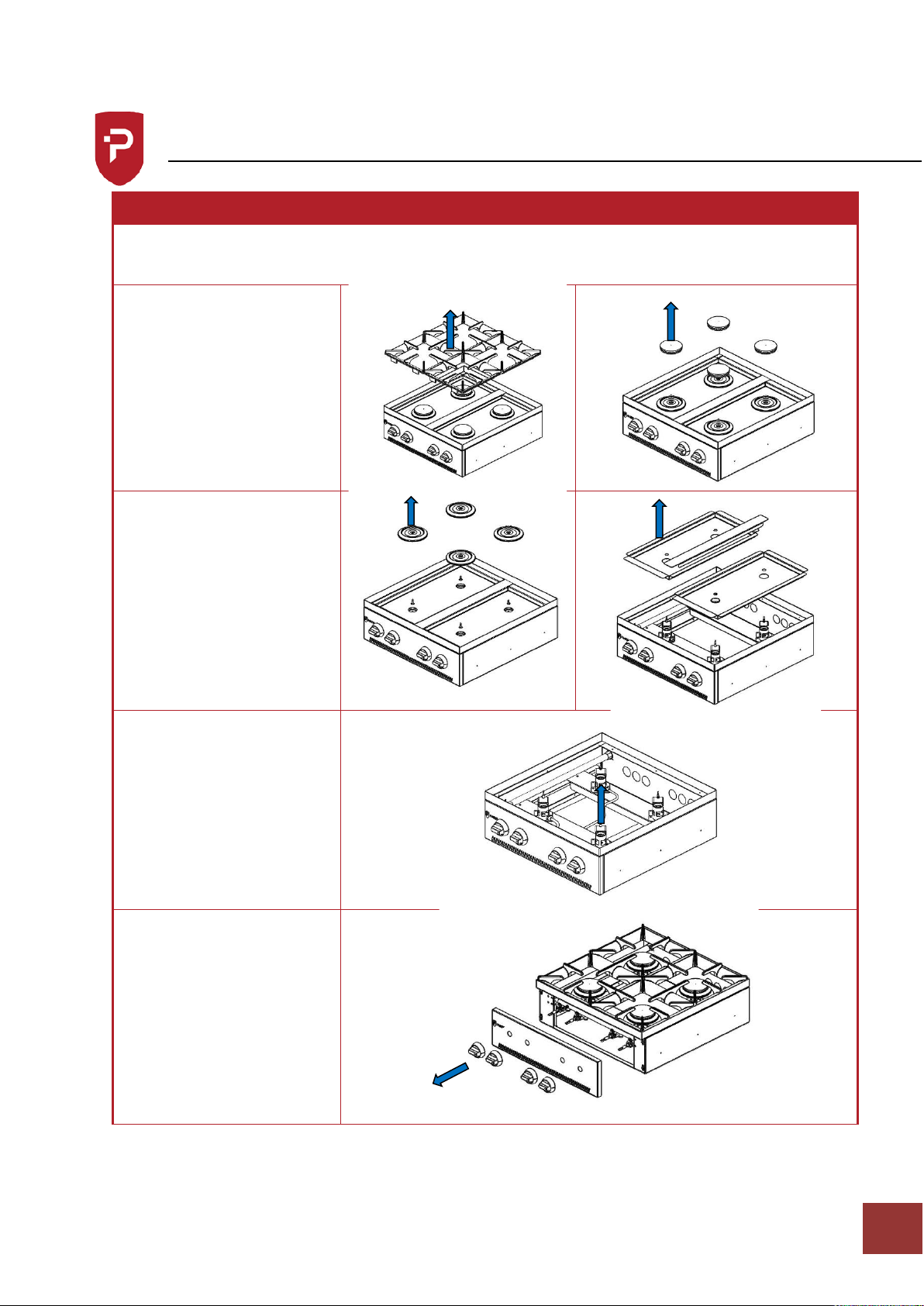

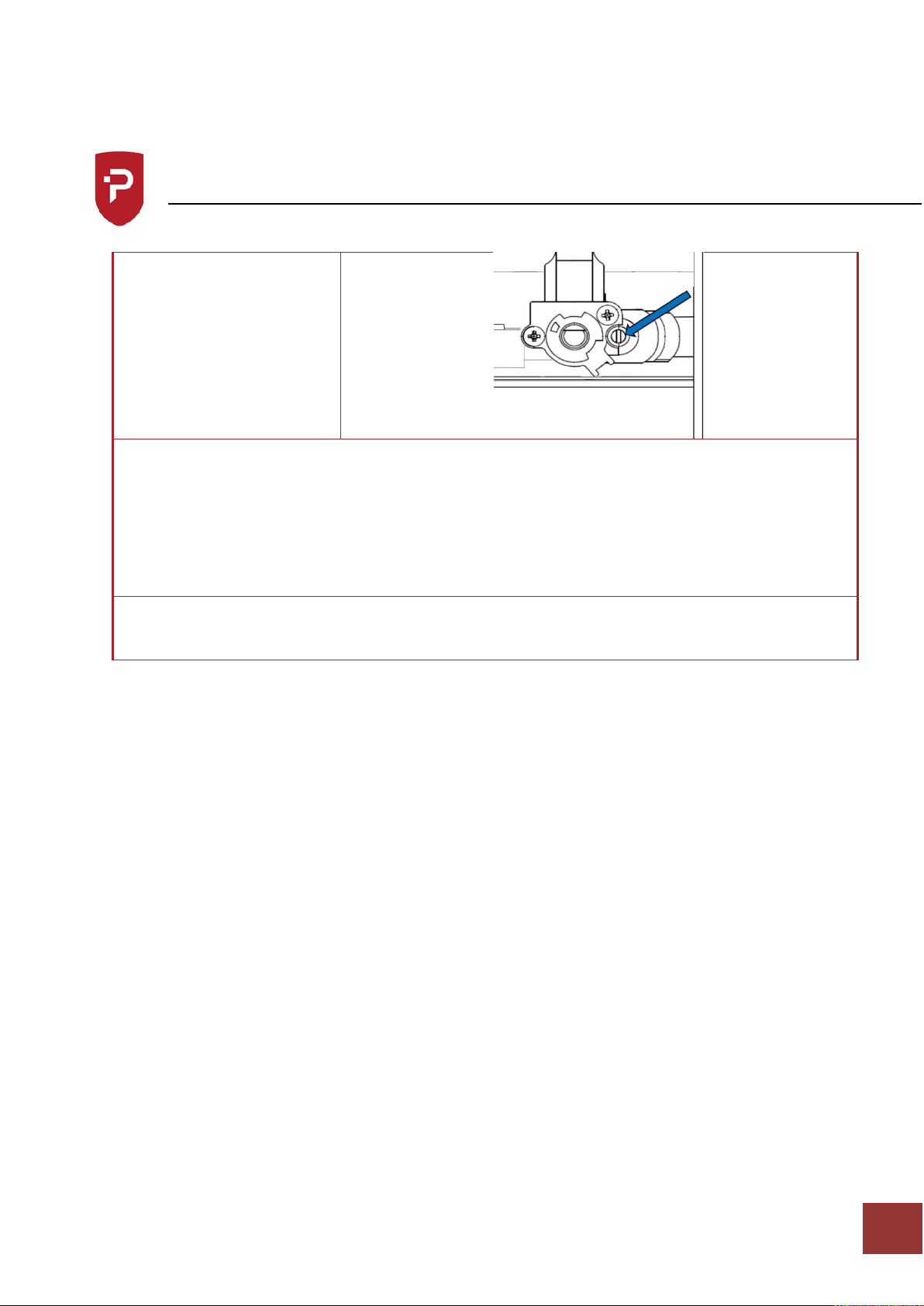

NAT – GAS Conversion Instructions
Product:
AG4HP – 4 Burner Gas Boiling Hob
These instructions can be used for converting from LPG to Natural Gas
LPG units are designed and tested in accordance with all current regulations enforced to run
on the following gases only
Nat Gas G20 @ 20mbar 8” W.G.
PLEASE NOTE
This conversion must be carried out by a Gas Safe Registered Engineer.
This conversion kit includes
Description
Product Code
Quantity
Hob valve
bypass screw
NAT GAS Hob valve bypass
screw stamped with 85
COPBPS - 85
4
Hob burner
injector
NAT GAS Hob Burner
Injector stamped with 185
HOBINJECT185
4
Labels
NAT. GAS ONLY + G20
1
Instructions
CONVIN23-4
Page 14
Parry-British Built for Purpose
IN268-2
12
LPG Conversion Instructions
Product
AG4H – 4 Burner Gas Boiling Hob
These instructions can be used for converting from Natural Gas to LPG
LPG units are designed and tested in accordance with all current regulations enforced to run on
the following gases only
Propane G31 @ 37mbar 14.8” W.G.
PLEASE NOTE
This conversion must be carried out by a Gas Safe Registered Engineer.
This conversion kit includes
Description
Product Code
Quantity
Hob valve bypass
screw
LPG hob valve bypass screw
stamped 50
COPBPS-50
4
Hob burner
injector
LPG hob burner injector stamped
105
HOBINJECT105
4
Labels
G31 ONLY,
1
Instructions
CONVIN22-4
Page 15
Parry-British Built for Purpose
IN268-2
13
Conversion Procedure
Conversion Procedure for AG4H
Warning
Ensure the appliance is isolated from the gas supply before commencing conversion
Remove pan supports and
burner caps.
Lift off aluminium burner
plates.
Remove the cover plate
and solid top plates.
Using an 10mm spanner
remove burner injector.
Replace with injector from
conversion kit.
Replace solid top plate,
aluminium burner plates
and burner caps.
Remove the tap knobs to
allow the fascia to unclip.
Page 16
Parry-British Built for Purpose
IN268-2
14
Conversion Procedure
Remove low rate screws in
tap body and replace with
low rate screw from the
conversion kit.
Connect the unit back to the gas supply.
Test for gas soundness.
Replace the facia and knobs accordingly
When conversion is complete addix new data label and gas type label supplied with the
conversion kit, detailing type of gas and pressure.
Page 17
Parry-British Built for Purpose
IN268-2
15
Technical Information
Per Hob Burner
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb / 8” W.G.
5.557 KW = 18959 Btu/h
PROPANE G31
37mb / 14.8” W.G.
4.351 KW = 14846 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.588 M³/HR
20.765 FT³/HR
PROPANE G31
0.178 M³/HR
6.286 FT³/HR
0.691 LB/HR
0.313 KG/HR
AIR FLOW RATE FOR COMBUSTION
20m3/HR
6.12 FT³/HR
BURNER LOW RATE
FLOWRATE
HEAT INPUT
NATURAL G20
0.126 M³/HR
1.176 KW
PROPANE G31
0.029 M³/HR
0.700 KW
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb / 8” W.G.
22.226 KW = 75836Btu/h
PROPANE G31
37mb / 14.8” W.G.
17.404 KW = 59384 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
2.352 M³/HR
83.060 FT³/HR
PROPANE G31
0.712 M³/HR
25.144 FT³/HR
2.763 LB/HR
1.253 KG/HR
AIR FLOW RATE FOR COMBUSTION
20m³/HR
24.48FT³/HR
BURNER LOW RATE
FLOWRATE
HEAT INPUT
NATURAL G20
0.505 M³/HR
4.713 KW
PROPANE G31
0.117 M³/HR
2.800 KW
INJECTORS
Natural G20 = HOBINJECT 185
Propane G31 = HOBINJECT 105
Page 18
Parry-British Built for Purpose
IN268-2
16
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12-month warranty period will cause the 24-month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register you warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544
Page 19
Parry-British Built for Purpose
IN268-2
17

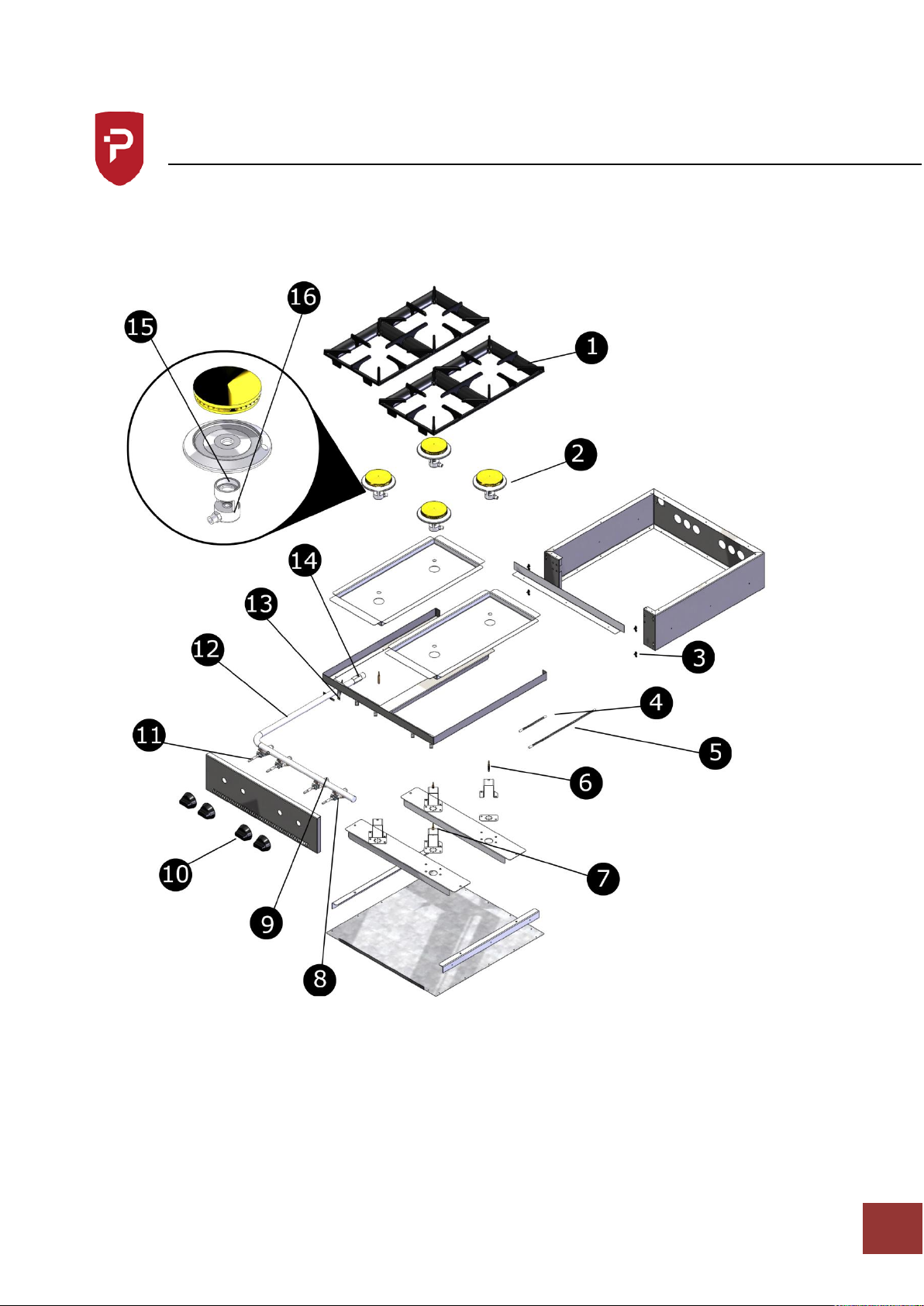

Exploded View
Page 20
Parry-British Built for Purpose
IN268-2
18
Parts List
Part Number
Description
Code
Quantity
1
CAST PAN SUPPORT
CASTPANSUPP
2
2
HOB BURNER
BURNRHOB
7
3
SPRING CATCH USE WITH
40301384704 stud
CATCH0AWB
4
4
ST/ST FLEX TUBE 200MM X
8MM
FLEXT200X8
2
5
ST/ST FLEX TUBE 500MM X
8MM
FLEXT500X8
2
6
600MM Thermocouple & 2 x
M8X1 Locknuts
THCP600ISP
2
7
320MM Thermocouple & 2 x
M8X1 Locknuts
THCP320ISP
2
8 - Nat
NAT GAS 09920909 C BP
COPBPS-85
4
8 - LPG
CPB 09902187
COPBPS-50
4
9
COPRECI M14 x 1.5 NUT
COPM14NUT
4
10
GAS KNOB 5/16” DIA SHAFT
ULYKNOB2
4
11
HOB GAS TAP PARAGON
RANGE
GASTAPHOB
4
12
GAS RAIL FOR AG4H / AG4HP
AG4HRAIL
1
13
Saddle 09707409
SADDLEBKT
10
14
Vinyl Round End Cap 26 mm
ID 25mm Inside Height
PASCAP26MM
1
15
AEM Injector Carriage part of
BURNRHOB
BURNRHOB
4
16 - Nat
Injector SP 8X100 185
HOBINJECT185
4
16 - LPG
Type SP 8x100 -105 Injector
HOBINJECT105
4
*Metalwork Components
Page 21
Parry-British Built for Purpose
IN268-2
19
Warranty Information
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2-year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 22
Parry-British Built for Purpose
IN268-2
20
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2-year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Extraction canopies are sold with parts only
warranty on the fans and speed controllers for 24
months. If parts are found to be faulty through lack
of cleaning of the extraction canopy the part will be
chargeable. The equipment should be installed by a
competent person. The equipment installer needs to
know the design, performance and the capacity of
the ventilation system, so they can ensure adequate
ventilation.
Failure to grant access for pre-arranged service call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six-burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
Appliances that have been installed in mobile
trailers are covered by parts only warranty for 24
months.
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
Page 23
Parry-British Built for Purpose
IN268-2
21
Disposal & Recycling
The packaging should be disposed of in accordance with the regulations in force.
Loading...
