Instruction Manual
AG2H / AG2HP
2 Burner Gas Boiling Hob
Page 2
Parry is one of the UK’s foremost manufacturers of high-quality Stainless Steel F abricated
Products with a 40-year heritage rooted in British craftsmanship.
At Parry, quality and service are second nature. Striving to exceed our customers’
expectations is not just our motto; it’s the very heartbeat of our business. Our
commitment to our customers is reflected in the Parry 4E Standard Inspection Body
stating that all our products are:
Our ranges of Stainless Steel Products have been speci fically designed with the consumer in mind
and are tailored and compliant to your specific industry sector . All our products are 4E Compliant
and meet EU & UK regulations, where applicable. The Parry brand stands for quality, reliability and
value.
Our Catering designed products have been created by our expert in-house development team and
manufactured to exacting standards using Industry specified grade of European stainless steel and
holding relevant EU & UK certification for all product.
ISO9001 certification and continual investment in the training and development of our highly
skilled, artisan workforce means that our clients have genuine peace of mind that they are buying
hand crafted, quality products supported by five-star customer service. All Parry products meet
EU regulations for their respective sector.
We are LEAN manufacturers, minimising waste, maximising productivity. We are proud to run a
carbon neutral operation and are committed to minimising our impact on the environment.
Our equipment and furniture are manufactured in our 45,000 sq ft manufacturing facility in Draycott,
Derbyshire in England’s industrial heartland. Products are made to order if not available in our stocked
items which means you can choose from 600 products, offering over 3,500 variants, with short lead
times to suit your specific needs. That means you get exactly what you need when you need it.
Our product information can be found here, in our brochure or on our website www.parry.co.uk.
You have my personal commitment that Parry will exceed your expectations. Should you have
any questions please contact your distributor. Alternatively, our customer services team
will be happy to help you on 01332 875544.
Welcome to Parry
Easy to use Easy to maintain Easy to clean Easy to repair
Mark Banton MBA
Managing Director
Page 3
Contents
Parry-British Built for Purpose
IN101-6
1
Contents ...................................................................................................................................... 1
Product Overview .................................................................................................................... 2-3
Safety Instructions ....................................................................................................................... 4
Installation Instructions ............................................................................................................ 5-6
Operating Instructions ................................................................................................................. 7
Cleaning Instructions ................................................................................................................ 7-8
Maintenance Instructions............................................................................................................. 8
Fault Finding ................................................................................................................................ 9
Replacement Parts ....................................................................................................................... 9
Natural Gas Conversion Instructions ........................................................................................... 10
LPG Conversion Instructions ...................................................................................................... 11
Conversion Procedure ........................................................................................................... 12-13
Technical Information ................................................................................................................ 14
Service Information.................................................................................................................... 15
Exploded View ........................................................................................................................... 16
Parts List ................................................................................................................................... 17
Warranty Information ........................................................................................................... 18-19
Disposal & Recycling ................................................................................................................. 20
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN101-6
2

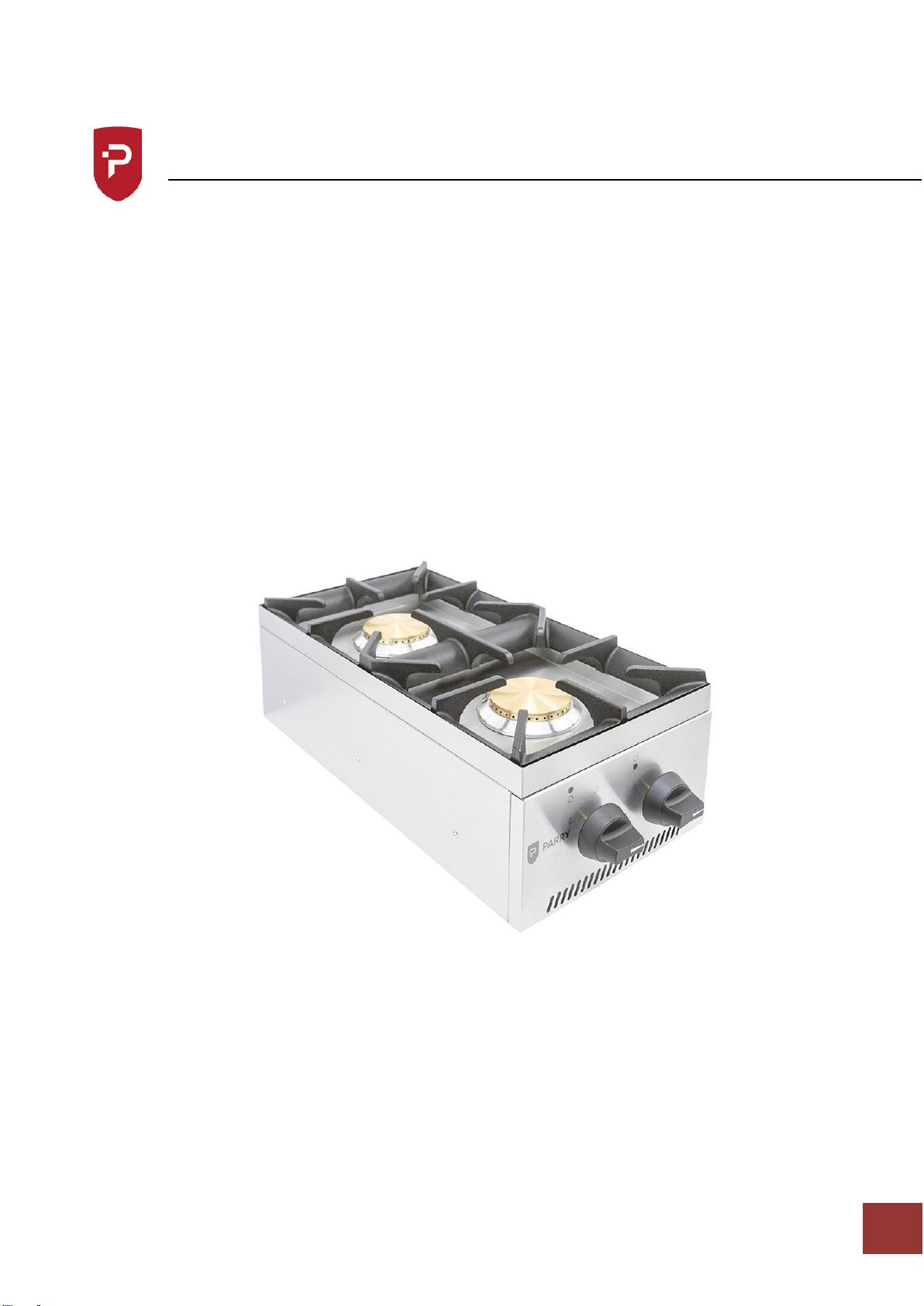

Product Overview
AG2H
The Parry natural gas two-burner hob is small yet powerful, making it the perfect appliance
for smaller commercial catering establishments. The heavy duty enamelled pan supports are
ideal for heavy pots and pans, while the high grade stainless steel is both durable and easy
to clean.
AG2HP
Ideal for smaller catering establishments, the Parry LPG gas two-burner hob is compact yet
powerful. Constructed from durable stainless steel, the 300mm wide hob has heavy duty
enamelled pan supports - perfect for the heavy pots and pans common in modern
commercial kitchens.
Page 5
Parry-British Built for Purpose
IN101-6
3
Product Overview
AG2H
AG2HP
Unpacked weight (kg)
10
10
Packet weight (kg)
15
15
Dimensions (w x d x h) mm
300 x 695 x 220
300 x 695 x 220
Warranty
2 Years
2 Years
KW – Natural
KW – Propane/Butane
11.1
n/a
n/a
8.7
BTU – Natural
BTU – Propane/Butane
37,873
n/a
n/a
29,864
Input Gas Connection
¾” BSP Male
¾” BSP Male
GAS INPUT PRESSURE – Natural
GAS INPUT PRESSURE – Propane
GAS INPUT PRESSURE – Propane/Butane
20mbar
n/a
n/a
n/a
37mbar
n/a
Can be converted using conversion kit?
Yes
Yes
It leads the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Page 6
Parry-British Built for Purpose
IN101-6
4
Safety Instructions
IMPORTANT
PLEASE READ INSTRUCTIONS FULLY BEFORE USE
INSTALLATION INSTRUCTIONS
THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND MUST ONLY BE USED BY QUALIFIED
PEOPLE.
Attention should be drawn to the fact that parts of this unit by necessity, will get VERY HOT,
and will cause burns if touched accidentally. Therefore, it is the responsibility of the
supervisor or equivalent to provide SUITABLE PROTECTIVE CLOTHING for the user.
THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED FITTER BEFORE USE.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and the
NATIONAL REGULATIONS in force at the time. Particular attention should be paid to the Gas
Safety (Installation and Use) Regulations and the Health and Safety at Work Act.
All commercial gas catering equipment is recommended to be mounted below an extraction
canopy. Please consult a ventilation engineer or refer to Guidelines DW172 to calculate the
ventilation requirements for cooking areas containing different pieces of gas catering
equipment.
Each appliance requires a flow of fresh air for combustion. Under no circumstances should
air vents on the appliances, or air vents installed by the fitter in the room of the appliance to
supply combustion air, be altered or omitted in any way.
To prevent shocks, all appliances whether gas or electric, must be earthed.
ANY GAS CONVERSIONS NEEDED TO BE MADE TO THE PRODUCT MUST BE CARRIED OUT
BY A GAS SAFE REGISTERED ENGINEER
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
Page 7
Parry-British Built for Purpose
IN101-6
5
Installation Instructions
ALL APPLIANCES MUST BE FITTED AND OR CONVERTED BY A REGISTERED INSTALLER, IN
ACCORDANCE WITH CURRENT REGULATIONS.
Before installation check data plate on rear of unit to ensure appliance is suitable for gas
supply available.
During installation provision must be provided for combustion air to the appliance through
base and rear of appliance. This should not be blocked at any time. This appliance should be
installed with sufficient ventilation to prevent the occurrence of unacceptable
concentrations of substances harmful to health in the room in which it is installed.
POSITIONING
The appliance must not be installed on or against combustible surfaces – minimum
clearances must be:
Rear 150mm (6”)
Sides 150mm (6”)
Hotplate to combustible material 1525mm (60”)
All local fire regulations should be observed.
It is recommended that the appliance be sited below a ventilating hood preferably of the
extractor type incorporating a grease filter.
Page 8
Parry-British Built for Purpose
IN101-6
6
Installation Instructions
GAS CONNECTION
The size of the supply pipe should be no less than 3/4” B.S.P. and an easily accessible
isolation tap fitted close to the appliance in the gas line. Although a rigid connection is
recommended. An approved armoured flexible pipe may be used in conjunction with a
straining cable.
Before the appliance is commissioned the gas, safety regulations require that all
connections on the gas line are tested for gas soundness between the gas meter and the
appliance.
All packing and protective film must be removed from panels etc. prior to commissioning
the appliance.
All gas appliances must be fitted by a competent person to gas safety regulations in force.
Gas hoses used to connect the appliance to the gas supply must be of the correct
specification for the gas and pressure of the appliance. The gas hose must comply with the
national requirements in force, and be CE marked, of a metal braided construction suitable
for commercial catering equipment. The hoses should be periodically examined and
replaced as necessary
The tube or hose shall be fitted such that there are no sharp bends or torsional strain which
may cause damage or failure of the tube or hose, especially near the end fittings. Torsional
strain can be prevented using internal unions, swivel joints, etc. The bend radius should not
exceed that stated by the Manufacturer. The hose should not touch the ground and should
be no longer than 1.5m long.
A manual valve should be positioned upstream of the tube or hose unless the connection
fitting incorporates a self-sealing quick release coupling.
Where a quick release coupling is used for horizontal travel such as in commercial catering
appliances it is advisable that the coupling is facing downwards to prevent the ingress of
debris and ensure the hose is formed into a smooth curve.
All units should have a restraining cable fitted preventing the unit from being pulled away
from the wall and causing the gas hose to become disconnected accidentally.
Page 9
Parry-British Built for Purpose
IN101-6
7
Operating Instructions
FOR FITTING INSTRUCTIONS SEE INSTALLATION SECTION.
Operating the hob
All burners are fitted with flame failure devices.
1. To light hob unit turn knob to
2. Press in and ignite gas with a match, keep knob held in for 15-20 seconds.
3. Release knob, gas should stay lit, if gas goes out repeat stage 2
4. The burner is now on full gas, to turn gas down, turn knob anti-clockwise, this is the
lowest setting, which is factory set.
5. To turn burners off, turn knob clockwise all the way round.
Parry recommends that the hob is used only with pans that have a minimum diameter of
120mm, and up to a maximum of 295mm diameter. This ensures that there is satisfactory
combustion, and the pan is stable as it sits on the finger of the pan support.
We advise these appliances should not be left unattended while switched on.
These appliances are for professional use by qualified people only.
There are no user serviceable parts.
It is recommended that the sealed top plate is cleaned regularly to prevent build-up of fat
and grease.
Cleaning Instructions
It will be found that it takes less time and effort to clean the hob every time it has
been used, particularly whilst still warm before grease and spillages are burnt on.
Proprietary cleaners must be used with care – they are highly corrosive and may
cause damage to surfaces and components.
The stainless outer panels require a wipe down with warm soapy water.
DO NOT USE SCOURING PADS.
Page 10
Parry-British Built for Purpose
IN101-6
8
Maintenance Instructions
MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY REGISTERED FITTERS.
PLEASE NOTE THE LOW RATE ADJUSTER ON THE UNIT HAS BEEN FACTORY SET AND
SHOULD NOT BE ADJUSTED UNLESS BY A QUALIFIED ENGINEER IN WHICH CASE THE LOW
RATE ADJUSTER SHOULD BE RE-SEALED.
Parry recommends that this unit is serviced at least every 6 months
As part of a full service we recommend the following checks are carried out.
Before any maintenance isolate the appliance from the gas supply
Examine and clean all burner and flame retention ports.
Using a combination of brushes, remove dust and lint from within the primary air
ports venture and burners. Check the burner aeration to ensure it is clear of
debris.
Clean burner injectors ensuring orifices are not enlarged or damaged.
Stiff gas controls can in some instances be greased. Please ensure the correct
type or grease is used.
Check any ignition electrodes and high tension leads where fitted. Clean and
adjust where necessary
Check Door seal for damage and condition.
Reconnect gas supply and test all disturbed gas connections for gas tightness
using a non-corrosive leak detection fluid.
Check the appliance burner operating pressure, heat input rating or where
necessary both.
Page 11
Parry-British Built for Purpose
IN101-6
9
Fault Finding
FAULT
POSSIBLE CAUSE
REMEDY
Incorrect flame picture,
flame lift or noisy burner
Incorrect burner pressure,
Blocked or partially blocked
injector.
Inadequate ventilation.
Burner faulty/corroded/blocked
Check/adjust burner pressure
Check /clean injector,
Check ventilation.
Check / clean burner and replace
as necessary.
Burners will not stay
alight
Faulty connection at
thermocouple-valve, incorrectly
located
Remake connection, reposition
thermocouple
Burner goes out when
turned to “low”
Blockage in tap
Clean and re-grease
Irregular flame
Burner ring/cap not correctly
located, or low pressure
Relocate and check pressure at
test point.
Replacement Parts
For Gas Safe Engineers only
HOB TAP- Remove pan supports, pull off control knobs and unclip fascia panel.
Disconnect burner supply tube and thermocouple. Undo the 2 screws securing the tap to
the rail. Check sealing washer and replace if necessary. Assemble in reverse order.
HOB BURNER/THERMOCOUPLE – Remove Pan Supports and Burner caps. Remove the solid
top tray.
Disconnect thermocouple from rear of tap. Undo locknut on burner mounting channel.
Assemble in reverse order.
Replacement Parts
Page 12
Parry-British Built for Purpose
IN101-6
10
Natural Gas Conversion Instructions
Please note conversion kits sold separately
Product:
AG2HP – 2 Burner Gas Boiling Hob LPG
These instructions can be used for converting from LPG to Natural Gas
LPG units are designed and tested in accordance with all current regulations enforced to run
on the following gases only
Nat Gas G20 @ 20mbar 8” W.G.
PLEASE NOTE
This conversion must be carried out by a Gas Safe Registered Engineer.
This conversion kit includes
Description
Product Code
Quantity
Hob valve
bypass screw
NAT GAS Hob valve bypass
screw stamped with 85
COPBPS - 85
2
Hob burner
injector
NAT GAS Hob Burner
Injector stamped with 185
HOBINJECT185
2
Labels
NAT. GAS ONLY + G20
1
Instructions
CONVIN21-4
Page 13
Parry-British Built for Purpose
IN101-6
11
LPG - Conversion Instructions
Please note conversion kits sold separately
Product
AG2H – 2 Burner Gas Boiling Hob
These instructions can be used for converting from Natural Gas to LPG
LPG units are designed and tested in accordance with all current regulations enforced to run on
the following gases only
Propane G31 @ 37mbar 14.8” W.G.
PLEASE NOTE
This conversion must be carried out by a Gas Safe Registered Engineer.
This conversion kit includes
Description
Product Code
Quantity
Hob valve bypass
screw
LPG hob valve bypass screw
stamped 50
COPBPS-50
2
Hob burner
injector
LPG hob burner injector stamped
105
HOBINJECT105
2
Labels
G31 ONLY,
1
Instructions
CONVIN20-4
Page 14
Parry-British Built for Purpose
IN101-6
12

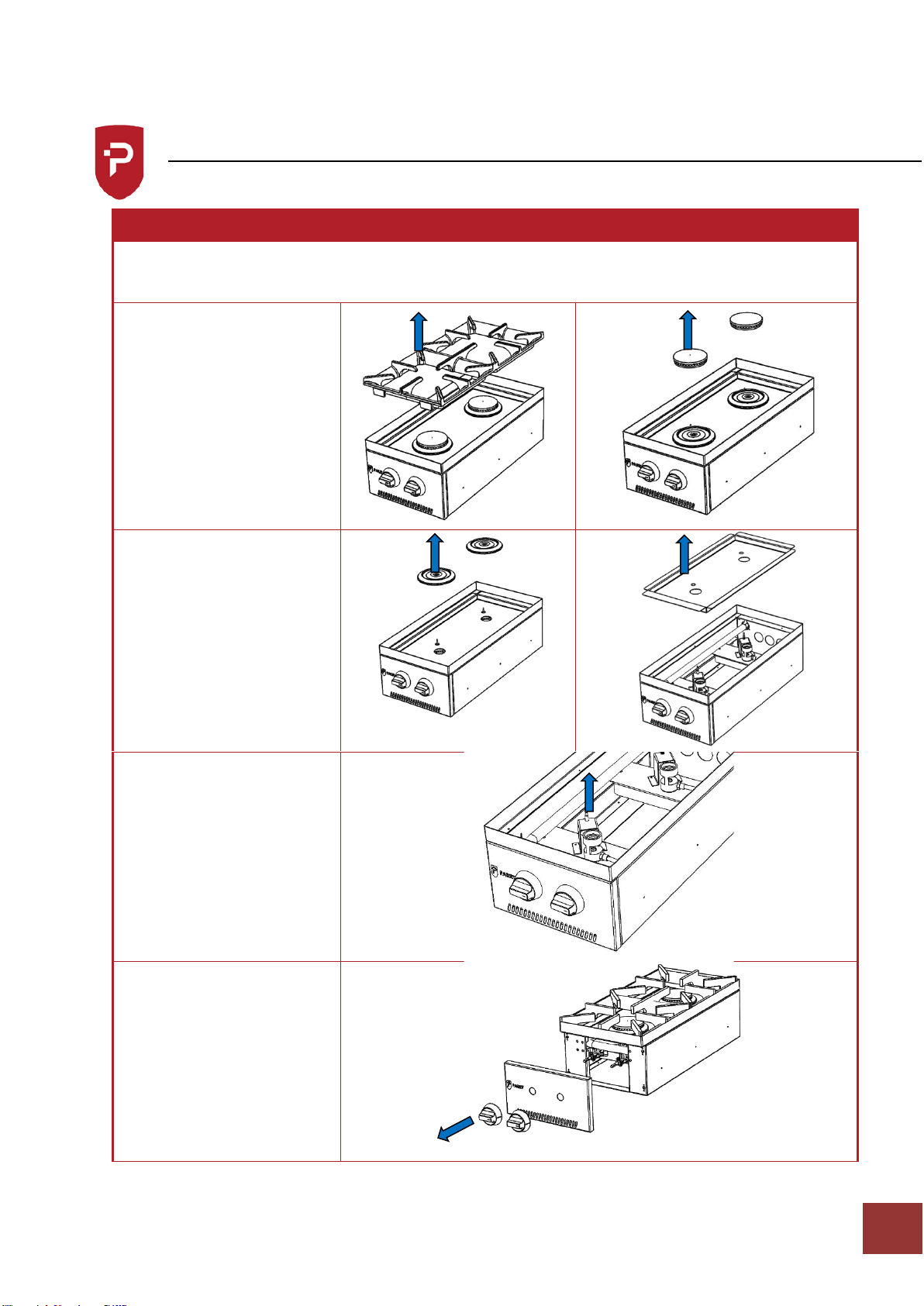

Conversion Procedure
Conversion Procedure for AG2H
Warning
Ensure the appliance is isolated from the gas supply before commencing conversion
Remove pan support and
burner caps.
Lift off aluminium burner
plates.
Remove the solid top plate.
Using an 10mm spanner
remove burner injector.
Replace with injector from
conversion kit.
Replace solid top plate,
aluminium burner plates
and burner caps.
Remove the tap knobs to
allow the fascia to unclip.
Page 15
Parry-British Built for Purpose
IN101-6
13
Conversion Procedure

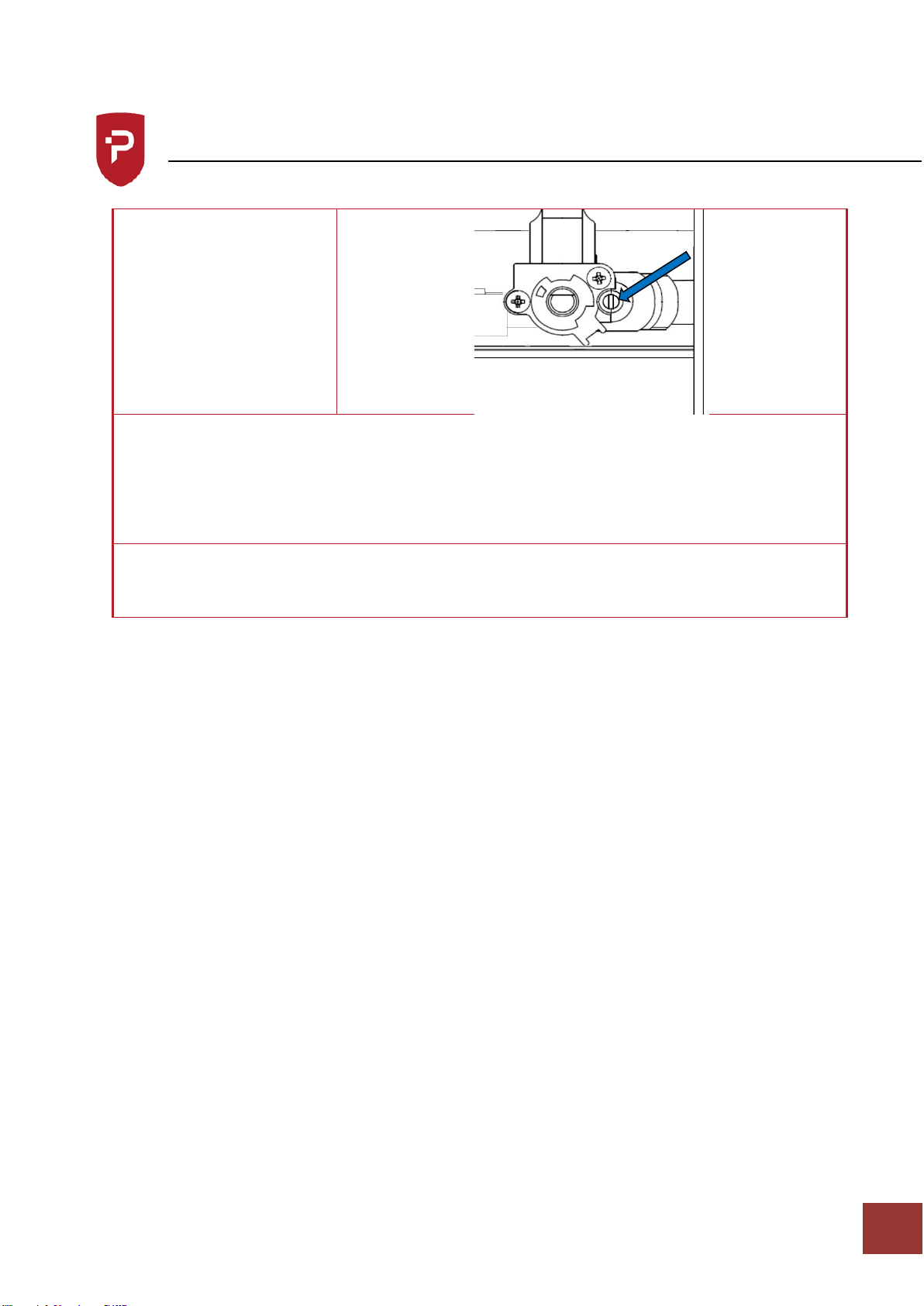

Remove low rate screws in
tap body and replace with
low rate screw from the
conversion kit.
Connect the unit back to the gas supply
Test for gas soundness
Replace the facia and knobs accordingly
When comversion is complete addix new data label and gas type label supplied with the
conversion kit, detailing type of gas and pressure.
Page 16
Parry-British Built for Purpose
IN101-6
14
Technical Information
Per Hob Burner
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb / 8” W.G.
5.557 KW = 18959 Btu/h
PROPANE G31
37mb / 14.8” W.G.
4.351 KW = 14846 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
0.588 M³/HR
20.765 FT³/HR
PROPANE G31
0.178 M³/HR
6.286 FT³/HR
0.691 LB/HR
0.313 KG/HR
AIR FLOW RATE FOR COMBUSTION
20m3/HR
6.12 FT³/HR
BURNER LOW RATE
FLOWRATE
HEAT INPUT
NATURAL G20
0.126 M³/HR
1.176 KW
PROPANE G31
0.029 M³/HR
0.700 KW
Total Unit
GAS
OPERATING PRESSURE
TOTAL HEAT INPUT
NATURAL G20
20mb / 8” W.G.
11.113 KW = 37918 Btu/h
PROPANE G31
37mb / 14.8” W.G.
8.702 KW = 29692 Btu/h
GAS RATE
M³/HR
FT³/HR
LB/HR
KG/HR
NATURAL G20
1.176 M³/HR
41.530 FT³/HR
PROPANE G31
0.356 M³/HR
12.572 FT³/HR
1.382 LB/HR
0.627 KG/HR
AIR FLOW RATE FOR COMBUSTION
20m³/HR
12.24FT³/HR
BURNER LOW RATE
FLOWRATE
HEAT INPUT
NATURAL G20
0.253 M³/HR
2.357 KW
PROPANE G31
0.058 M³/HR
1.400 KW
INJECTORS
Natural G20 = HOBINJECT 185
Propane G31 = HOBINJECT 105
Page 17
Parry-British Built for Purpose
IN101-6
15
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12-month warranty period will cause the 24-month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register you warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544
Page 18
Parry-British Built for Purpose
IN101-6
16

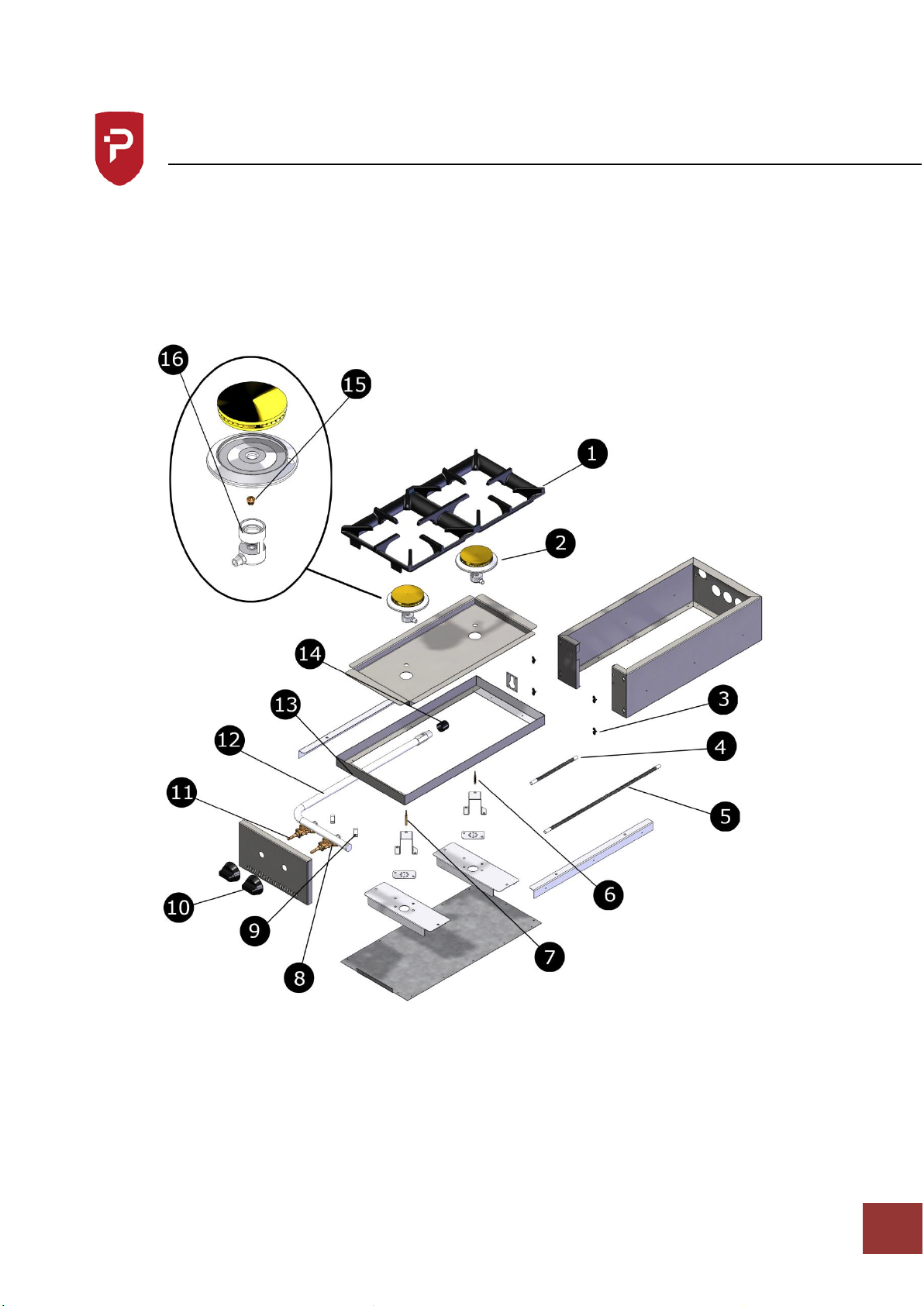

Exploded View
Page 19
Parry-British Built for Purpose
IN101-6
17
Parts List
Part Number
Description
Code
Quantity
1
CAST PAN SUPPORT
CASTPANSUPP
2
2
HOB BURNER
BURNRHOB
7
3
SPRING CATCH USE WITH
40301384704 stud
CATCH0AWB
4
4
ST/ST FLEX TUBE 200MM X
8MM
FLEXT200X8
2
5
ST/ST FLEX TUBE 500MM X
8MM
FLEXT500X8
2
6
600MM Thermocouple & 2 x
M8X1 Locknuts
THCP600ISP
2
7
320MM Thermocouple & 2 x
M8X1 Locknuts
THCP320ISP
2
8 - Nat
NAT GAS 09920909 C BP
COPBPS-85
4
8 - LPG
CPB 09902187
COPBPS-50
4
9
COPRECI M14 x 1.5 NUT
COPM14NUT
4
10
GAS KNOB 5/16” DIA SHAFT
ULYKNOB2
4
11
HOB GAS TAP PARAGON
RANGE
GASTAPHOB
4
12
GAS RAIL FOR AG4H / AG4HP
AG4HRAIL
1
13
Saddle 09707409
SADDLEBKT
10
14
Vinyl Round End Cap 26 mm
ID 25mm Inside Height
PASCAP26MM
1
15 - Nat
Injector SP 8X100 185
HOBINJECT185
4
15 - LPG
Type SP 8x100 -105 Injector
HOBINJECT105
4
16
AEM Injector Carriage part of
BURNRHOB
BURNRHOB
4
Page 20
Parry-British Built for Purpose
IN101-6
18
Warranty Information
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2-year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 21
Parry-British Built for Purpose
IN101-6
19
Warranty Information
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2-year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six-burner cooker
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
Appliances that have been installed in mobile trailers
are covered by parts only warranty for 24 months
Extraction canopies are sold with parts only
warranty on the fans and speed controllers for 24
months. If parts are found to be faulty through lack
of cleaning of the extraction canopy the part will
be chargeable. The equipment should be installed
by a competent person. The equipment installer
needs to know the design, performance and the
capacity of the ventilation system, so they can
ensure adequate ventilation.
All the above points are not covered by warranty
and any costs incurred, because of the above, will
be forwarded to the parties responsible for placing
the call.
Page 22
Parry-British Built for Purpose
IN101-6
20
Disposal & Recycling
The packaging should be disposed of in accordance with the regulations in force.
Loading...
