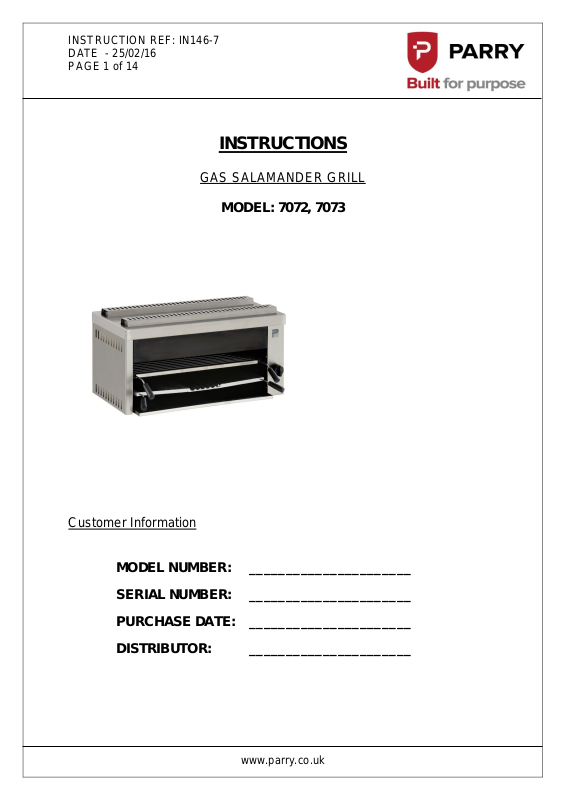

PARRY 7072, 7073 Instructions Manual

INSTRUCTION REF: IN146-7

MODEL NUMBER:

______________________

SERIAL NUMBER:

______________________

PURCHASE DATE:

______________________

DISTRIBUTOR:

______________________

DATE - 25/02/16
PAGE 1 of 14

GAS SALAMANDER GRILL

INSTRUCTIONS

MODEL: 7072, 7073

Customer Information

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 2 of 14

CONTENTS

 SAFETY INSTRUCTIONS
 INSTALLATION INSTRUCTIONS
 OPERATION INSTRUCTIONS
 MAINTENANCE INSTRUCTIONS
 CONVERSION INSTRUCTIONS
 TECHNICAL DETAILS

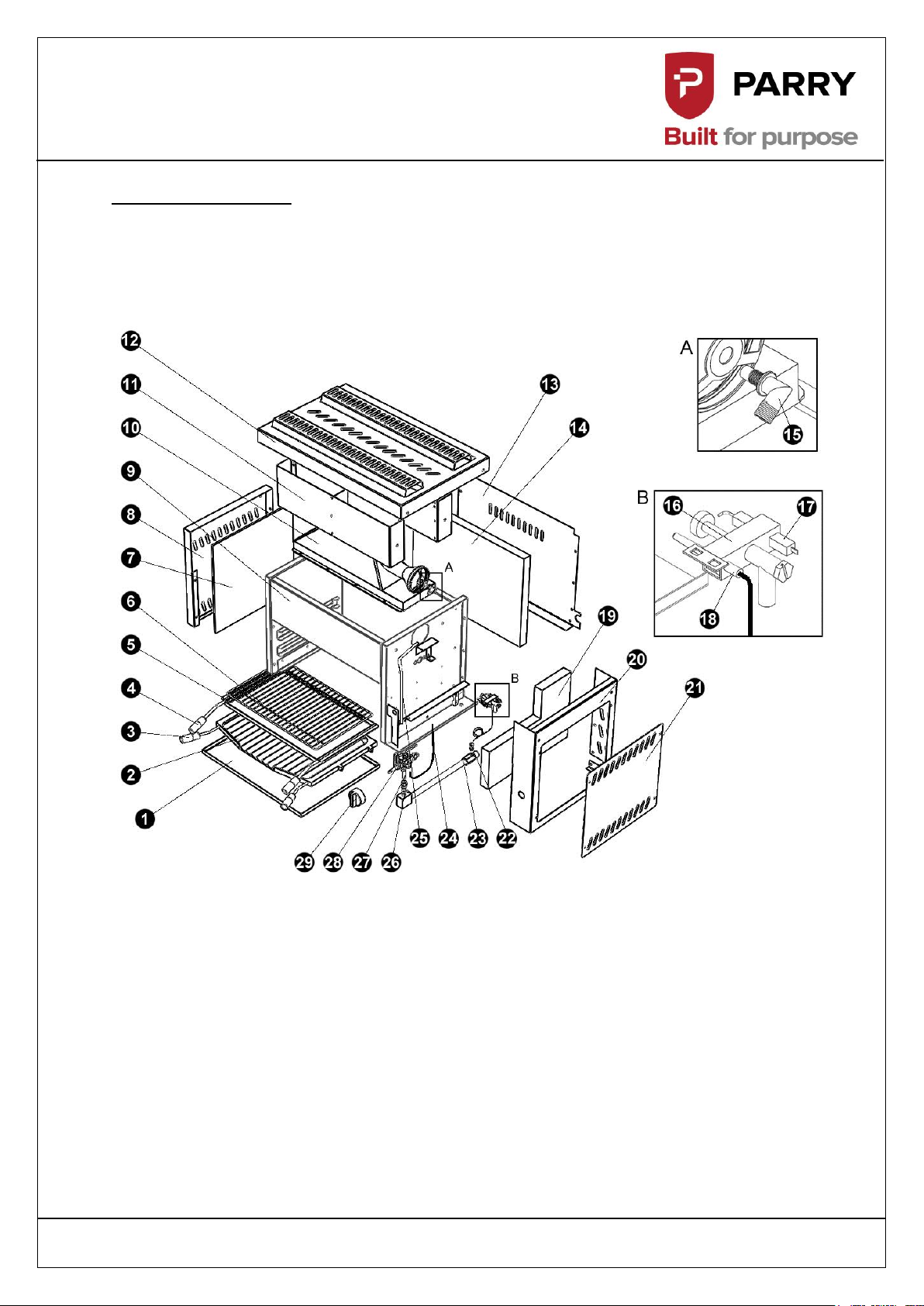

 PARTS LIST
 SPARES LIST
 WARRANTY INFORMATION

MODEL

7072 & 7073 Gas Salamander Grill
The products stated above are designed and built to comply with the following

standards:

BS EN 203-1
BS EN 203-2-7

The products have been CE-marked in compliance with the European Gas
Directive (90/396/EEC)

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 3 of 14

SAFETY INSTRUCTIONS

IMPORTANT, PLEASE READ INSTRUCTIONS FULLY BEFORE USE

THIS APPLIANCE IS ONLY FOR PROFESSIONAL USE AND MUST ONLY BE
USED BY QUALIFIED PEOPLE.

THIS APPLIANCE MUST BE FITTED AND TESTED BY A REGISTERED FITTER
BEFORE USE. ANY GAS CONVERSIONS NEEDED TO BE MADE TO THE
PRODUCT MUST BE CARRIED OUT BY A REGISTERED ENGINEER

The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS
and the NATIONAL REGULATIONS in force at the time. Particular attention should
be paid to the Gas Safety (Installation and Use) Regulations and the Health and
Safety at Work Act.

Attention should be drawn to the fact that parts of this unit by necessity, will get
VERY HOT, and will cause burns if touched accidentally. Therefore it is the
responsibility of the supervisor or equivalent to provide SUITABLE PROTECTIVE
CLOTHING for the user. Users too should be aware of the regulations governing the
use of gas appliances, particularly with respect to the need for regular servicing
(recommended annually).

Each appliance requires a flow of fresh air for combustion. Under no circumstances
should air vents on the appliances, or air vents installed by the fitter in the room of
the appliance to supply combustion air, be altered or omitted in any way. This
appliance must be installed and used in a well ventilated area.

To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in

transit, the protective film on the exterior surfaces has NOT been removed. It is
IMPORTANT that this protective film is peeled off before the equipment is used.

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 4 of 14

INSTALLATION INSTRUCTIONS

ALL APPLIANCES MUST BE FITTED AND OR CONVERTED BY A REGISTERED
INSTALLER, IN ACCORDANCE WITH CURRENT REGULATIONS.

INSTALLATION

Before installation check data plate on rear of unit to ensure appliance is suitable for
gas supply available.

Appliances are supplied for use with either Natural Gas or LPG. The required gas
type must be specified at the point of order. Natural Gas appliances have an LPG
conversion kit included as standard. LPG Gas appliances have an Natural
conversion kit included as standard.

Your attention is drawn to the gas safety regulations current issue and rules in force.
This appliance must only be installed and used in a well ventilated area.

This appliance MUST be installed by a competent person in accordance with these
and any other relevant regulations. Users too should be aware of the regulations
governing the use of gas appliances, particularly with respect to the need for regular
servicing (recommended annually)

During installation provision must be provided for combustion air to the appliance
through the right hand side and rear of appliance. This should not be blocked at any
time.

This appliance should be installed with sufficient ventilation to prevent the
occurrence of unacceptable concentrations of substances harmful to health in the
room in which it is installed.

POSITIONING

The appliance must not be installed on or against combustible surfaces – minimum
clearances must be :
CEILING/SHELF 900mm
REAR 75mm
SIDES 75mm

The appliance must be fitted securely on a non-combustible shelf or surface.
Parry sell a wall shelf, bench stand and floor stand to accompany these units

All local fire regulations should be observed.

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 5 of 14

GAS CONNECTION

The size of the supply pipe should be no less than ½” B.S.P. and an easily

accessible isolation tap fitted close to the appliance in the gas line. Although a rigid
connection is recommended. An approved armoured flexible pipe may be used in
conjunction with a straining cable.

Before the appliance is commissioned the gas safety regulations require that all
connections on the gas line are tested for gas soundness between the gas meter
and the appliance.

All packing and protective film must be removed from panels etc. prior to
commissioning the appliance.

All gas appliances must be fitted by a competent person to gas safety regulations in
force.

Ensure whoever is operating appliance is fully conversant with its operation and
aware of dangers involved in incorrect operation and cleaning, especially the danger
of burns or scalds from the cooking medium and hot surfaces of working areas.

OPERATION INSTRUCTIONS

ALL WALL GRILLS ARE FITTED WITH SPARK IGNITION TO PILOT AND FLAME
FAILURE DEVICE FOR SAFETY.

TO LIGHT PILOT:­Push in and turn knob to spark position, pilot should light, if not repeat; hold in for 15-

20 seconds then release, pilot should stay lit.
TO LIGHT BURNER:-

After pilot is lit turn knob to large flame symbol , main burner will ignite; the
smaller flame symbol is lower rate setting.

To turn burner off, turn knob in clockwise direction a slight stop will be felt when back
to pilot position, press in slightly to turn to off.

We advise this appliance should not be left unattended when switched on.
This appliance is for use by qualified people only,
There are no user serviceable parts.

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 6 of 14

It is recommended the Grill be given approximately 10 minutes on full rate to warm
up. Then cooking may commence. The Grill is best used on full rate and cooking
varied by using shelf positions.

COOKING GUIDE

The centre of the burner plaques are intentionally blank to create an even heat
distribution.

There are 4 shelf positions for the grill pan, numbered 1-4, No1 being the nearest to
the burner. This shelf is normally only used for rare cooking and searing the surface
of meat.

Toast is normally done on the shelf positions 2 or 3 where a better distribution is
obtained: the time for toast is approximately 1 minute per side.

Parry recommend that the maximum load, in respect of the loading of accessories
used with the 7072 and 7073 Salamander Grills is a total of 20KG

Operators should take care to systematically check and clean the cooking zone in
particular the grill pan and receptacles before lighting to avoid the risk of fire.
It will be found that it takes less time and effort to clean the unit every time it has
been used, particularly whilst still warm before grease and spillages are burnt on.
Proprietary cleaners must be used with care – they are highly corrosive and may
cause damage to surfaces and components. The stainless outer panels require a
wipe down with warm soapy water.

DO NOT USE SCOURING PADS.

MAINTENANCE INSTRUCTIONS

MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY
REGISTERED FITTERS.

Parry recommends that this unit is serviced at least every 12 month

PLEASE NOTE THE LOW RATE ADJUSTER ON THE PILOT HAS BEEN
FACTORY SET AND SHOULD NOT BE ADJUSTED UNLESS BY A QUALIFIED
ENGINEER IN WHICH CASE THE LOW RATE ADJUSTER SHOULD BE RE­SEALED.

Before commencing any maintenance or repair isolate appliance and disconnect
from gas supply.

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 7 of 14

To gain entry to components­Remove top flue cover (4 screws on top), next remove 2 screws from front of right
hand side panel, pull off gas control knob, remove 3 screws from rear of side panel
and panel will lift off.

To change the thermocouple­Thermo-couple is retained by pilot/ignition bracket. Loosen the 2 screws on this
bracket, to withdraw thermocouple disconnect nut on back of gas tap to remove
thermocouple, assemble in reverse.

To replace ignition electrode­Loosen the 2 screws on pilot/ignition bracket and withdraw electrode, disconnect
lead.

To clean pilot injector-
Remove the 2 screws on bracket. Remove pilot head from inside cooking area.
Clean and reassemble in reverse order.

To replace gas tap/ffd unit­Undo inlet and outlet unions, remove thermocouple from rear of tap unit, undo
locknut on tap bracket and remove tap/ffd. Reassemble in reverse order.

Check for gas soundness and correct operation of flame failure unit. Refit side panel
and flue cover.

PLEASE NOTE:
IF THE BURNER PLAQUES ARE CRACKED THEY WILL NOT BE COVERED BY

WARRANTY

www.parry.co.uk

INSTRUCTION REF: IN146-7

Model

Injector Code

7072

Butane G30 @28mbar 11.2” W.G.
Propane G31 @ 37mbar 14.8” W.G.

INJECT119

7072

Nat Gas G20 @ 20mbar 8” W.G.
Nat Gas G25 @ 25mbar 10” W.G.

INJECT193

7073

Butane G30 @28mbar 11.2” W.G.
Propane G31 @ 37mbar 14.8” W.G.

INJECT135

7073

Nat Gas G20 @ 20mbar 8” W.G.
Nat Gas G25 @ 25mbar 10” W.G.

INJECT220

DATE - 25/02/16
PAGE 8 of 14

CONVERSION INSTRUCTIONS

This conversion must only be carried out by a Gas Registered engineer.

Natural to LPG

Remove side cover. (4 screws)
Disconnect the gas feed at injector elbow
Undo back nut holding injector to burner
Remove existing injector and replace with LPG injector supplied
Adjust pilot throttle to give an appropriate sized flame, by adjusting screw on end of
pilot assembly. Check visually that the thermocouple sits within the flame.
Replace the existing labels with LPG labels provided.
Re-assemble in reverse order (5-1)

LPG to Natural

Remove side cover (4 screws)
Disconnect the gas feed at injector elbow
Undo back nut holding back nut to burner
Remove existing injector and replace with NAT injector supplied
Adjust pilot throttle to give an appropriate sized flame, by adjusting screw on end of
pilot assembly. Check visually that the thermocouple sits within the flame.
Replace the existing labels with NAT labels provided.
Re-assemble in reverse order (5-1)

Connect to gas, and soundness test

www.parry.co.uk

INSTRUCTION REF: IN146-7

GAS

OPERATING PRESSURE

HEAT INPUT

NATURAL G20

20mb/8” W.G.

5.43 KW = 18527 Btu/h

BUTANE G30

29mb/11.2” W.G.

5.43 KW = 18527 Btu/h

PROPANE G31

37mb/14.8” W.G.

5.43 KW = 18527 Btu/h

G25

25mb/10” W.G.

5.6 KW = 19107 Btu/h

GAS RATE

NATURAL G20

0.5 M³/HR

= 17.95 FT³/HR

BUTANE G30

0.397 kg/HR

= 0.875 Lb/HR

PROPANE G31

0.391 kg/HR

= 0.862 Lb/HR

G25 @ 25mb

0.62 M³/HR

= 22.32 FT³/HR

AIR FLOW RATE FOR COMBUSTION 20m³/HR

= 5 M³/HR – 180 FT³/HR

LOW RATE

NATURAL G20

0.332 M³/HR

BUTANE G30

0.480 Kg/HR

PROPANE G31

0.480 Kg/HR

G25 @ 25mb

0.332 M³/HR

DATE - 25/02/16
PAGE 9 of 14

TECHNICAL DETAILS

MODEL: 7072 SALAMANDER GRILL
Total Unit

INJECTORS
Natural G20 = INJECT193
Butane G30 = INJECT119
Propane G31 = INJECT119
G25 @ 25mb = INJECT193

www.parry.co.uk

INSTRUCTION REF: IN146-7

GAS

OPERATING PRESSURE

HEAT INPUT

NATURAL G20

20mb/8” W.G.

6.87 KW = 23500 Btu/h

BUTANE G30

29mb/11.2” W.G.

7.26 KW = 24800 Btu/h

PROPANE G31

37mb/14.8” W.G.

7.03 KW = 24000 Btu/h

G25

25mb/10” W.G.

7.22 KW

GAS RATE

NATURAL G20

0.633 M³/HR

= 22.35 FT³/HR

BUTANE G30

0.522 Kg/HR

= 1.149 Lb/HR

PROPANE G31

0.506 Kg/HR

= 1.113 Lb/HR

AIR FLOW RATE FOR COMBUSTION 20m³/HR

= 6.5 M³/HR – 225 FT³/HR

LOW RATE

NATURAL G20

0.360 M³/HR

BUTANE G30

0.549 Lb/HR

PROPANE G31

0.549 Lb/HR

G25 @ 25mb

0.360 M³/HR

DATE - 25/02/16
PAGE 10 of 14

MODEL 7073 SALAMANDER GRILL
Total Unit

INJECTORS
Natural G20 = INJECT220
Butane G30 = INJECT135
Propane G31 = INJECT135
G25 @ 25mb = INJECT220

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 11 of 14

EXPLODED VIEW

www.parry.co.uk

INSTRUCTION REF: IN146-7

IDENT

DESCRIPTION

7072

7073

1

*Drip Tray

2

Branding Plate

PLBR00001

PLBR07074

3

Handle

HAND01306

HAND01306

4

Handle

HAND01306

HAND01306

5

*Grill Pan Crumb Tray
Assembly

6

Grill Pan Grid

TRWG00001

GRIDGRPAN

7

LH Side Insulation

ASPC07072

ASPC07072

8

*LH Side Panel

9

*Vitreous Enamel Wall Parts

10

Burner

BURNR7072

BURNR7073

11

*Inner Flue Assembly

12

*Exterior Top

13

*Back Panel

14

Insulation Rear

RKWL07072

RKWL07072

15

Elbow Injector CW nut

INJECT119 (LPG)
INJECT193 (NAT)

INJECT135 (LPG)
INJECT220 (NAT)

15a

8mm Olive

OLVCOMPR8

OLVCOMPR8

16

Pilot Assembly

PILOT3WAY

PILOT3WAY

17

Electrode

ELECTRODE

ELECTRODE

18

Thermocouple

THCP450MM

THCP450MM

18a

M9 Split Nut

GWBSPLITNUT

GWBSPLITNUT

19

Insulation RH Side

RKWL07072

RKWL07072

20

*RH Side Panel

21

*Inspection Cover

22

Pressure Test Nipple

PRESSNIPP

PRESSNIPP

23

Gas Rail 3/4" Connection

TUBES7072

TUBES7072

24

4mm Soft Copper Tube

COPTUB4MM

COPTUB4MM

25

8mm Bundy Tube from Tap to
Burner

PIPE70723

PIPE70723

26

8mm x ¼” BSP Taper

Compression Coupling

COUPLE8MM

COUPLE8MM

27

8mm Bundy Tube from Tap to
Burner

PIPE70723

PIPE70723

28

Gas Valve CW Ignition and HT
Lead

GWBGASVALVE

GWBGASVALVE

29

Control Knob

KNOBPRO07

GWBGASVALVE

DATE - 25/02/16
PAGE 12 of 14

Parts List

*Metal work components

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 13 of 14

WARRANTY POLICY

The manufacturer’s warranty is only valid in the UK mainland. Northern Ireland,

Western Isles, Inner Hebrides and Islands are parts only warranty.
All service calls will be carried out between the hours of 8.00am – 5.00pm Monday to
Friday only.

We accept no responsibility for delays in replacing or repairing the equipment due to
circumstances beyond our control.

Your warranty can be immediately invalid if the installation of the equipment has not
been installed in accordance with the manufactures instruction. (See installation
details). Also the miss-use, alteration or unauthorized repairs of the equipment will
invalidate the warranty.

During the warranty period it is at Parry’s discretion to repair or replace the

equipment.
Warranty only applies if the equipment has been used in a professional manor

following the manufactures instructions and maintenance guide lines.
The warranty covers defects in the material and component failure only. We are not
liable for trading loss, loss of perishable items, water damage, loss due to injury or
fire damage.

Please be aware that the warranty starts from the date of purchase from Parry and
not the sale or installation date of the equipment.

WARRANTY REQUEST

Please ensure you have referred to the manufacturers’ instruction before placing a
warranty call. Or contact our warranty department on 01757 213909 for technical
assistance, ensure you obtain the model number before calling.

Please ensure you have read the section not covered under warranty to avoid any
unnecessary warranty charges.

It’s vital that all warranty requests be submitted to Parry via email to

[e-mail]

It is at the discretion of PARRY whether to honour a service call which is out of the
warranty period.

Not Covered Under Warranty

• Fault due to poor maintenance.

• Resetting of equipment or circuit breakers.

www.parry.co.uk

INSTRUCTION REF: IN146-7
DATE - 25/02/16
PAGE 14 of 14

• Abuse of the equipment

• Foil should never be used on racks

• Blockages eg, drains, condensers, pumps etc

• Lime scale related issues

• Installed incorrect

• Access arranged for service call and engineer refused access or customer not

there.

• No faults with the machine.

• Setting up of equipment eg, dishwasher detergents, levelling and setting up of

doors on a 6 burner cooker.

• Excessive carbon build up on griddle plates.

• Over use of lava rock on the chargrills recommended use by Parry 2kg only.

• Faulty electrics – eg, customers plug socket, plug, wiring, junction box fault, wrong

fuse.

• Any damages caused by the customer.

• Lamps, glass, door gaskets, Perspex, baskets, knobs all perishable items are not

covered.

This appliance should be routinely serviced to prolong it’s lifetime. Parry

Recommends that the appliance is serviced every 12 months by a Parry authorised
engineer. Failure to service your product within the initial 12 month warranty period,
will cause the 24 month warranty to become void.

www.parry.co.uk

Parry Group Ltd,
Town End Road,

Draycott,

Derby,

England,

DE72 3PT

www.parry.co.uk
