Page 1
Instruction Manual
Wall Mounted Salamander Grill
1872
Page 2
Page 3
Contents
Parry-British Built for Purpose
IN168-4
1
Contents ...................................................................................................................................... 1
Product Overview ....................................................................................................................... 2
Safety Instructions ....................................................................................................................... 3
Installation Instructions ............................................................................................................... 4
Operating Instructions ................................................................................................................. 5
Cleaning Instructions ................................................................................................................... 5
Maintenance Instructions............................................................................................................. 6
Fault Finding ............................................................................................................................... 7
Service Information...................................................................................................................... 8
Wiring Diagram ........................................................................................................................... 9
Warranty Information ................................................................................................................ 10
Disposal & Recycling ................................................................................................................. 11
Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.
Sales Tel: 01332 875544
Page 4
Parry-British Built for Purpose
IN168-4
2
Product Overview
Ideal for grilling a wide variety of food including meat, fish and vegetables, the Parry
salamander grill can be wall mounted or used as a tabletop unit. Made with high grade
stainless steel, the unit is supplied with both a grill pan and toasting rack. The solid heating
elements deliver high quality with consistent cooking results.
It leads the industry in:
Design and aesthetic appeal
Performance
Power
Functionality
After sales support
Unpacked weight (kg)
23
Packed weight (kg)
26
Dimensions (w x d x h) mm (including
handle of grill pan)
605 x 490 x 340
Element Type
Solid heating element
Plug
Yes
Power rating
2.5kW
Warranty
2 years
Page 5
Parry-British Built for Purpose
IN168-4
3
Safety Instructions
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
WARNING
All electrical appliances/parts must be earthed.
No user-serviceable parts.
Isolate power supply before carrying out any installation work.
Page 6
Parry-British Built for Purpose
IN168-4
4
Installation Instructions
Choose a suitable site for your machine taking into consideration its, use, and any heat that
may be generated whilst in service.
Remove all protective film and packaging material then inspect for any damage
which may affect the machine’s electrical safety.
All appliances with an electrical loading above 3 kilowatts must be connected to a
suitable supply by qualified electrician, who should ensure that
Precaution is taken during installation regarding leakage current,
The means of isolation has a contact separation of at least 3mm on all poles
The unit is installed in accordance with Health and Safety at Work Act, BS
Codes of Practice, IEE Wiring Regulations and Building and Local Authority
Standards.
IMPORTANT
Where these appliances are to be placed in close proximity to a wall, partitions, kitchen
furniture, decorative finishes etc., it is recommended that they be made of non-combustible
heat insulating material, and that close attention is paid to fire prevention regulations.
Page 7
Parry-British Built for Purpose
IN168-4
5
Operating Instructions
Switch on power supply, the red lamp will indicate the power is ON
Turn the temperature dial to the required setting (1-2 ½ can be used for
simmering and 3 for maximum continuous heat). The green lamp will show,
indicating power to the element, and will extinguish when the desired
temperature is reached.
This procedure will be repeated automatically as the thermostat maintains a constant
temperature.
Note: Cast alloy Branding Plates (1876) and stainless steel wall mounting brackets (1875)
can be supplied as optional extras for this machine.
Cleaning Instructions
The appliance should be cleaned after every use.
Allow unit to cool down before cleaning
Turn off unit at the mains power.
Wipe down the machine with a soft cloth, do not use abrasive materials.
Stainless steel cleaners maybe used and cleaning instructions on the product must be
adhered to.
Never clean the unit with water jets.
Page 8
Parry-British Built for Purpose
IN168-4
6
Maintenance Instructions
Ensure the appliance is isolated from the power supply before installing, cleaning or
maintaining the appliance.
Maintenance and service must only be undertaken by a qualified electrician.
Parry Catering provides a complete after-sales service by offering the sales of spare parts
directly to customers. Buying spares straight from the manufacturer allows customer to
experience exceptional value and speedy delivery on all spare parts.
For more information on buying spares visit:
www.parry.co.uk/parry-commercial-catering-spares
Page 9
Parry-British Built for Purpose
IN168-4
7
Fault Finding
Fault
Check
Solution
Mains lamp does not
illuminate
1. The socket is switched
on.
2. Try a different appliance
in the socket.
3. The fuse in the plug.
4. Try the appliance in a
different socket.
If the problem continues please
contact your distributor.
Page 10
Parry-British Built for Purpose
IN168-4
8
Service Information
This appliance should be routinely serviced to prolong its lifetime. Parry recommends that
the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service
your product within the initial 12 month warranty period will cause the 24 month warranty
to become void.
If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service
agent, or a similarly qualified person.
Enhanced 2 Years Warranty
Parry Catering (Midlands) Ltd offer an enhanced warranty of two
years (including parts and labour) on all of the Parry manufactured
products. To take advantage of this you should register you warranty
by logging onto the company website and filling out our simple form.
www.parry.co.uk/the-parry-warranty
If you have any issues with your product and wish to request a
warranty call you can contact our friendly team who will organize a
Parry approved service engineer to attend and fix your problem.
All warranty requests can be sent to [email protected]
alternatively call our warranty department for technical
assistance on 01332 875544
Page 11
Parry-British Built for Purpose
IN168-4
9

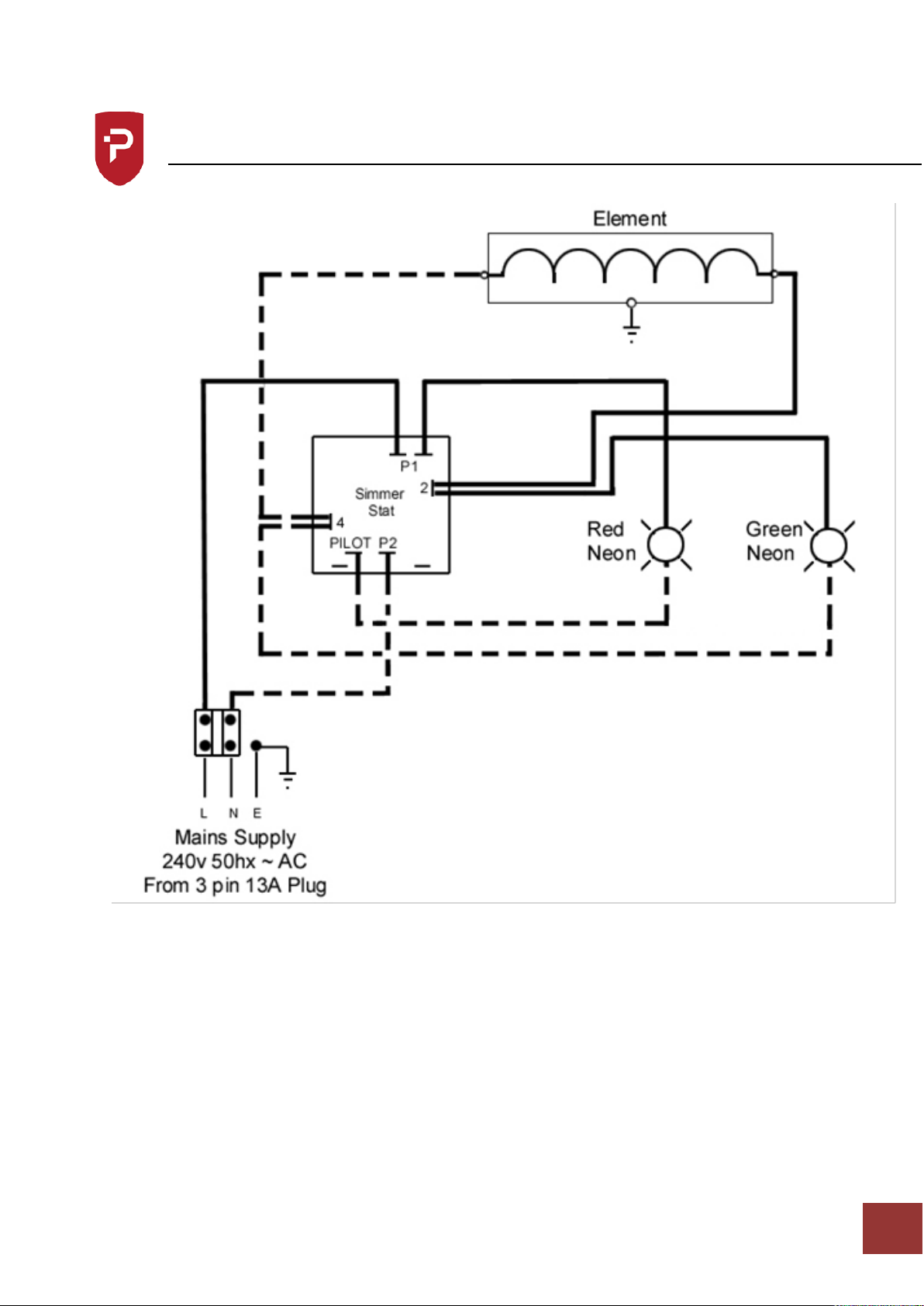

Wiring Diagram
Page 12
Parry-British Built for Purpose
IN168-4
10
Warranty Information
Not covered under warranty
Fault due to incorrect installation, poor maintenance
or equipment abuse.
Resetting of equipment or circuit breakers.
Faulty electrics – e.g. customer’s plug socket, plug,
wiring, junction box fault, wrong fuse.
Products must be serviced within the first 12
months to be eligible for the 2 year warranty
Product not covered by warranty if combustible
materials have been used, e.g. plastic trays.
Foil used on racks, blockages and lime scale issues.
Failure to grant access for pre-arranged service
call.
Equipment that has been set up or used incorrectly
e.g. dishwasher detergents, levelling and setting up
of doors on a six burner cooker.
Excessive carbon build-up on griddle plates or
overuse of lava rock on chargrills. (Recommended
use by Parry no more than 2kg.)
All of the above points are not covered by
warranty and any costs incurred, because of the
above, will be forwarded to the parties responsible
for placing the call.
The manufacturer’s warranty is only valid in the UK
mainland. Northern Ireland, Western Isles, Inner
Hebrides and Islands are parts only warranty. Please
be aware that the warranty starts from the date of
purchase from Parry and not the sale or installation
date of the equipment.
To be eligible for a 2 year warranty, products must be
serviced at least once within the first 12 months of
purchase.
All service calls will be carried out between 8am
and 5pm, Monday to Friday.
Your warranty is invalid if your equipment has not
been installed in accordance with the
manufacturer’s instructions. The misuse, alteration
or unauthorised repairs of the equipment will also
invalidate the warranty.
During the warranty period it is at Parry’s
discretion whether to repair or replace the
equipment.
The warranty only applies if the equipment has
been used in a professional manner following the
manufacturer’s instructions and maintenance
guidelines.
The warranty covers defects in the material and
component failure only. We are not liable for trading
loss, loss of perishable items, water damage or loss
due to injury or fire damage.
Please ensure you have referred to the
manufacturer’s instruction before placing a warranty
call.
Contact our warranty department on 01332 875544
for technical assistance.
Please have your model number ready before calling.
All warranty requests must be submitted to
Failure to pay any warranty charges will result in your
warranty being put on hold until the bill has been
settled. Any issues regarding the raised charges should
be put in writing to our warranty department for
further investigation.
Register your product by visiting our website
www.parry.co.uk
Page 13
Parry-British Built for Purpose
IN168-4
11
Disposal & Recycling
This appliance is marked according to the European Directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health which could otherwise be caused by
inappropriate waste handling of this product.
A symbol on the product, or on the documents accompanying the product, indicates that
this appliance may not be treated as household waste. Instead it should be
handed over to the applicable collection point for the recycling of electrical
and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal
of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in
order to help conserve the environment.
At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not
discard the unit or place it in the refuse bin.
You have several options:
Take the unit to an approved WEEE scheme company, there will be one in your area.
Take the unit to an approved waste disposal site; many sites are managed by your local
authority.
Contact the units manufacturer, importer or their agent; the contact details will be on
the unit.
There will probably be a charge for this service which will depend on the physical size and
location of the unit. You will be given a collection price for a curb side collection based on
commercial rates prevailing at the time.
It should be noted that the unit to be collected should be suitably packed and sealed to
prevent dangerous gases and fluids from escaping. The condition of the unit must also be
clean to comply with health and safety regulations.
