Instruction Manual

CABINETS & PLATE WARMERS

MODEL: 1832/1863/1868/1869/9214

Page 2

Page 3

Contents

Parry-British Built for Purpose

IN111-4

Contents ...................................................................................................................................... 1

Product Overview .................................................................................................................... 2-3

Safety Instructions ....................................................................................................................... 4

Installation Instructions ............................................................................................................... 5

Operating Instructions ................................................................................................................. 6

Cleaning Instructions ................................................................................................................... 6

Maintenance Instructions............................................................................................................. 7

Fault Finding ............................................................................................................................... 8

Service Information...................................................................................................................... 9

Wiring Diagram ......................................................................................................................... 10

Exploded View ...................................................................................................................... 11-12

Parts List .............................................................................................................................. 13-15

Warranty Information ................................................................................................................ 16

Disposal & Recycling ................................................................................................................. 17

Parry Catering Equipment (Midlands) Ltd, Town End Road, Draycott, Derby, DE72 3PT.

Sales Tel: 01332 875544

Page 4

Parry-British Built for Purpose

IN111-4

Product Overview

1832 – TALL SINGLE DOOR ELECTRIC PLATE WARMER

Ideal for buffets, canteens and event catering, the Parry 1832 tall single door electric plate warmer stocks an impressive 120 plates across its chrome wire shelves. The thermostatically controlled heater allows the unit to heat to 80°C, providing a warm plate to every customer.

1863 – TALL DOUBLE DOOR ELECTRIC PLATE WARMER

Heating up to 240 plates, the Parry 1863 tall double door electric plate warmer is the perfect solution for buffets, canteens and event catering. Constructed from high grade stainless steel with four wire chrome shelves, the thermostatically controlled heater is simple to operate.

1868 – SHORT SINGLE DOOR ELECTRIC PLATE WARMER

Discover handy under-counter warming space for stacked plates with this compact Parry 1868 short single door electric plate warmer. Holding 90 stacked plates, this warmer works well in tight or crowded kitchens that lack foot room. With a maximum holding temperature of 80°C, temperature is easily modified through the thermostat at the top of the unit.

1869 – SHORT DOUBLE DOOR ELECTRIC PLATE WARMER

Providing discrete under counter-storage for heated plates, the Parry 1869 plate warmer is compact, reliable and easy to use. Accommodating up to 180 plates, the two door frame provides access to bulk stacks of crockery, while the internal temperature can be thermostatically controlled from the outside.

9214 – DOUBLE DOOR ELECTRIC PLATE WARMER

Sturdy and reliable, the Parry 9214 electric plate warmer provides an easy storage solution for commercial catering establishments. Constructed from easy-to-clean and attractive stainless steel, the cupboard has the capacity to store up to 240 plates at adjustable temperatures up to 80°C. For further functionality, the two shelves are easily removed for cleaning.

Page 5

Parry-British Built for Purpose

IN111-4

Product Overview

1832

1863

1868

1869

9214

Unpacked weight (kg)

29.5

Packed Weight (kg)

49.5

Dimensions (w x d x h) mm

375 x 595 x

1075

605 x 595 x

1075

375 x 595 x

905

605 x 595 x

905

1000 x

592 x

825

No. of plated meals

120

Up to 240

Up to 180

Up to 240

Plug 1 1 1 1

Overall power rating

2kW

Warranty

2 years

These unit lead the industry in:

Design and aesthetic appeal Performance Power Functionality After sales support

Page 6

Parry-British Built for Purpose

IN111-4

Safety Instructions

Please read these instructions before you attempt to use the equipment. Keep these instructions for future reference.

To avoid scratching the highly polished exterior surface of this equipment whilst in transit, the protective film on the exterior surfaces has NOT been removed.

It is IMPORTANT that this protective film is peeled off before the equipment is used.

WARNING:

All electrical appliances/parts must be earthed.

No user-serviceable parts.

Isolate power supply before carrying out any installation work.

Page 7

Parry-British Built for Purpose

IN111-4

Installation Instructions

Choose a suitable site for your machine taking into consideration its, use, and any heat that may be generated whilst in service.

Remove all protective film and packing material, inspect for any damage which may affect the machine’s electrical safety.

All appliances with an electrical loading above 3 kilowatts must be connected to a suitable supply by a qualified electrician, who should ensure that

Precaution is taken during installation regarding leakage current The means of isolation has a contact separation of at least 3mm on all poles It is installed in accordance with Health and Safety at Work Act, BS Codes of Practice,

IEE Wiring Regulations and Building and Local Authority Standards.

Ensure that all shelves are firmly in place.

All items that are fitted with a 13amp plug, plug unit into a socket and turn on the supply.

Page 8

Parry-British Built for Purpose

IN111-4

Operating Instructions

Important Notice: Never place plastic containers within the unit.

Switch on power supply, the red lamp will indicate the power is ON Turn the temperature dial to the required heat setting, the green lamp will show

indicated power to the element and will extinguish when the desired temperature is reached.

This procedure will be repeated automatically as the thermostat maintains a

constant temperature.

For the best results from your new plate warmer, pre-heat the machine by turning the thermostat to maximum (80°C) for approximately 20 minutes. We recommend that you load each shelf with a maximum of 20 or 40 plates, depending on the width of the machine, giving a total machine load of 80 or 160 plates. Anything above our advised limits may reduce the efficiency of this machine

Cleaning Instructions

The appliance should be cleaned after every use.

Allow unit to cool down before cleaning Turn off unit at the mains power. Wipe down the machine with a soft cloth, do not use abrasive materials. Stainless steel cleaners maybe used and cleaning instructions on the product must be

adhered to.

Never clean the unit with water jets.

Page 9

Parry-British Built for Purpose

IN111-4

Maintenance Instructions

Ensure the appliance is isolated from the power supply before installing, cleaning or maintaining the appliance.

Maintenance and service must only be undertaken by a qualified electrician.

Parry Catering provides a complete after-sales service by offering the sales of spare parts directly to customers. Buying spares straight from the manufacturer allows customer to experience exceptional value and speedy delivery on all spare parts.

For more information on buying spares visit:

www.parry.co.uk/parry-commercial-catering-spares

Page 10

Parry-British Built for Purpose

IN111-4

Fault Finding

Fault

Check

Solution

No power light

Check that the unit is plugged in

and power is turned on.

Plug unit into another socket.

Check fuse in plug.

If fuse is faulty replace.

Still no power. Contact

distributor.

Power light on but green light

does not illuminate when

turning thermostat

Possible thermostat fault.

Contact distributor.

Power light is on and green

indicator light illuminates, but

the cabinet does not get

warm.

Possible element fault.

Contact distributor.

Page 11

Parry-British Built for Purpose

IN111-4

Service Information

This appliance should be routinely serviced to prolong its lifetime. Parry recommends that the appliance is serviced every 12 months by a Parry authorised engineer. Failure to service your product within the initial 12 month warranty period will cause the 24 month warranty to become void.

If the supply cord becomes damaged, it must be replaced by the manufacturer, it’s service

agent, or a similarly qualified person.

Enhanced 2 Years Warranty

Parry Catering (Midlands) Ltd offer an enhanced warranty of two years (including parts and labour) on all of the Parry manufactured products. To take advantage of this you should register you warranty by logging onto the company website and filling out our simple form.

www.parry.co.uk/the-parry-warranty

If you have any issues with your product and wish to request a warranty call you can contact our friendly team who will organize a Parry approved service engineer to attend and fix your problem.

All warranty requests can be sent to [email protected] alternatively call our warranty department for technical assistance on 01332 875544

Page 12

Parry-British Built for Purpose

IN111-4

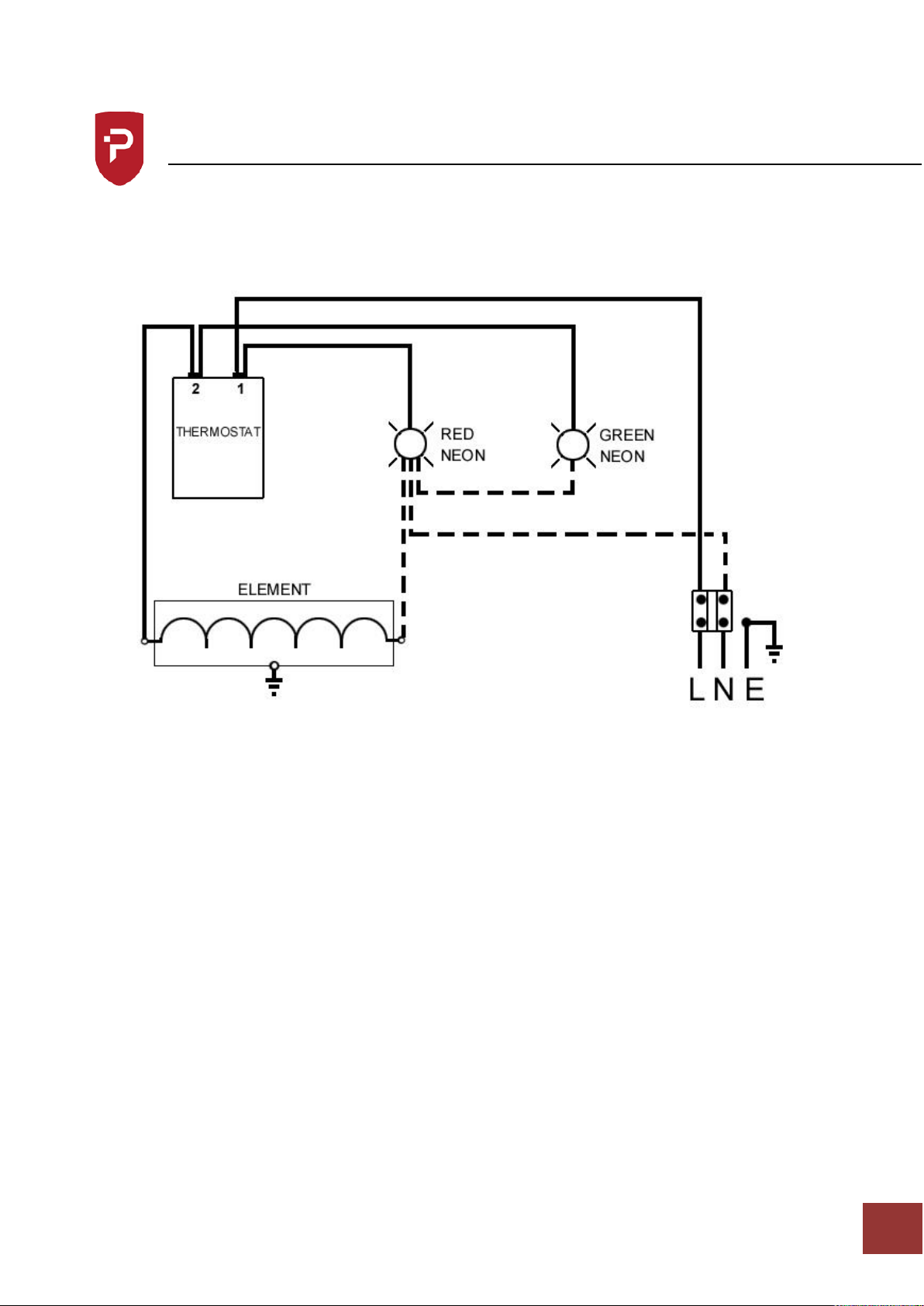

Wiring Diagram

1832/1863/1868/1869/9214

Page 13

Parry-British Built for Purpose

IN111-4

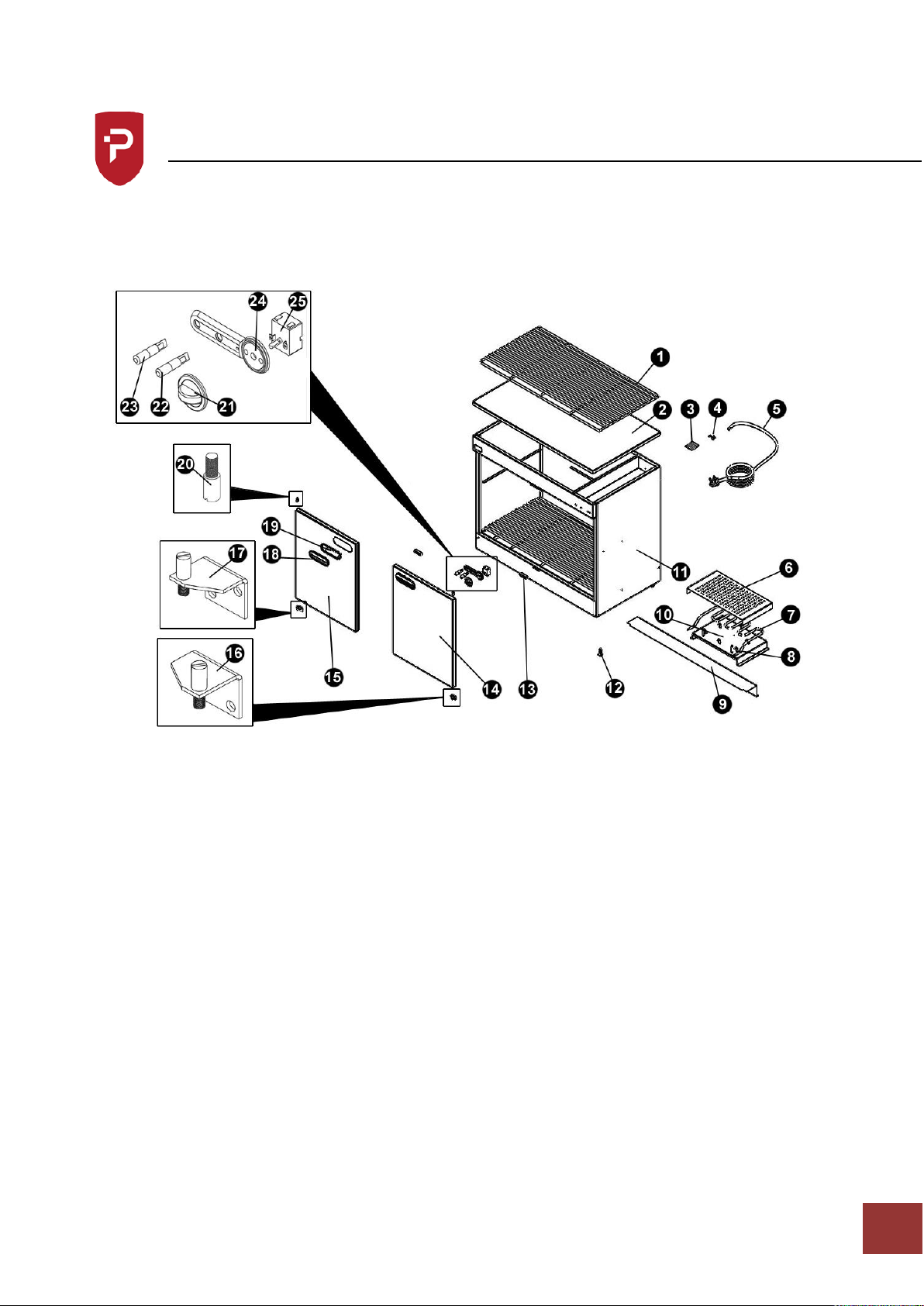

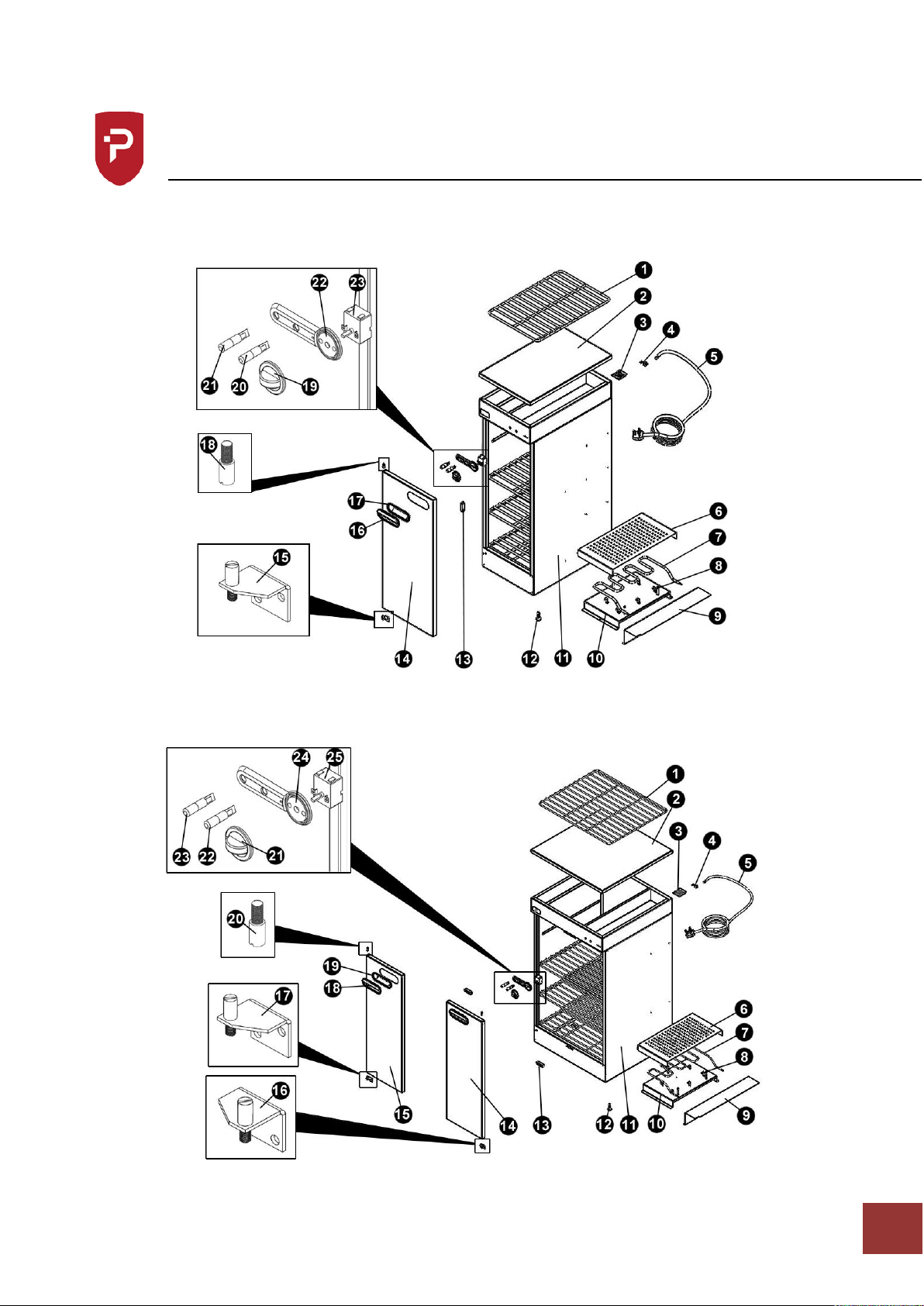

Exploded View

1832/1868 Exploded View (1832 exploded view shown)

1863/1869 Exploded View (1863 exploded view shown)

Page 14

Parry-British Built for Purpose

IN111-4

Exploded View

9214 Exploded View

Page 15

Parry-British Built for Purpose

IN111-4

Parts List

1832/1868 Parts List

Number

Description

Part Code

Wire Rack

TRPW00525

*Top

*No Code

Terminal Block

TERMBRKT1

Cable Bush

BUSR06003

Mains Cable

MAINSLEAD

*Plate Warmer Mesh

*No Code

Element

ELPW02000/1

Element Clip

AS2640ELC

*Wire Guard

*No Code

*Element Stand

*No Code

*Body

1832 = *No Code 1868 = *No Code

Adjustable Foot

INBK025SG

Magnet

DRCT00010

*Door Assembly

1832 = *No Code 1868 = *No Code

Hinge Bracket

LCB00028

15a

Hinge Pin

PNST00127

15b

M5 Nyloc Nut

*No Code

Door Handle Outer

HANDLECAB

Door Handle Inner

Part of above

Hinge Pin

PNST00127

Control Knob

KNOBTYPEB

Red Neon

LNRE2211P

Green Neon

LNGN2211P

Bezel

BEZELCBOX

Thermostat

TMST13012

Thermostat Probe Clip

LCB00007

*Metalwork Components

Page 16

Parry-British Built for Purpose

IN111-4

Parts List

1863/1869 Parts List

Number

Description

Part Code

Wire Rack

TRWC00600

*Top

*No Code

Terminal Block

TERMBRKT1

Cable Bush

BUSR06003

Mains Cable

MAINSLEAD

*Plate Warmer Mesh

*No Code

Element

ELPW02000/1

Element Clip

AS2640ELC

*Wire Guard

*No Code

*Element Stand

*No Code

*Body

1863 = *No Code 1869 = *No Code

Adjustable Foot

INBK025SG

Magnet

DRCT00010

*RH Door Assembly

1863 = *No Code 1869 = *No Code

*LH Door Assembly

1863 = *No Code 1869 = *No Code

RH Hinge Bracket

LCB00027

16a

Hinge Pin

PNST00127

16b

M5 Nyloc Nut

*No Code

LH Hinge Bracket

LCB00028

17a

Hinge Pin

PNST00127

17b

M5 Nyloc Nut

*No Code

Door Handle Outer

HANDLECAB

Door Handle Inner

Part of above

Hinge Pin

PNST00127

Control Knob

KNOBTYPEB

Red Neon

LNRE2211P

Page 17

Parry-British Built for Purpose

IN111-4

Parts List

1863/1869 Parts List (continued)

Number

Description

Part Code

Green Neon

LNGN2211P

Bezel

BEZELCBOX

Thermostat

TMST13012

Thermostat Probe Clip

LCB00007

*Metalwork Components

9214 Parts List

Number

Description

Part Code

Wire Rack

TRWC001000

*Top

*No Code

Terminal Block

TERMBRKT1

Cable Bush

BUSR06003

Mains Cable

MAINSLEAD

*Plate Warmer Mesh

*No Code

Element

ELPW02000/1

Element Clip

AS2640ELC

*Wire Guard

*No Code

*Element Stand

*No Code

*Body

*No Code

Adjustable Foot

INBK025SG

Magnet

DRCT00010

*RH Door Assembly

No Code

*LH Door Assembly

No Code

RH Hinge Bracket

LCB00027

16a

Hinge Pin

PNST00127

16b

M5 Nyloc Nut

*No Code

LH Hinge Bracket

LCB00028

Page 18

Parry-British Built for Purpose

IN111-4

Parts List

9214 Parts list (Continued)

Number

Description

Part Code

17a

Hinge Pin

PNST00127

17b

M5 Nyloc Nut

*No Code

Door Handle Outer

HANDLECAB

Door Handle Inner

Part of above

Hinge Pin

PNST00127

Control Knob

KNOBTYPEB

Red Neon

LNRE2211P

Green Neon

LNGN2211P

Bezel

BEZELCBOX

Thermostat

TMST13012

Thermostat Probe Clip

LCB00007

*Metalwork Components

Page 19

Parry-British Built for Purpose

IN111-4

Warranty Information

Not covered under warranty

Fault due to incorrect installation, poor maintenance

or equipment abuse.

Resetting of equipment or circuit breakers. Faulty electrics – e.g. customer’s plug socket, plug,

wiring, junction box fault, wrong fuse.

Products must be serviced within the first 12

months to be eligible for the 2 year warranty

Product not covered by warranty if combustible

materials have been used, e.g. plastic trays.

Foil used on racks, blockages and lime scale issues.

Failure to grant access for pre-arranged service

call.

Equipment that has been set up or used incorrectly

e.g. dishwasher detergents, levelling and setting up of doors on a six burner cooker.

Excessive carbon build-up on griddle plates or

overuse of lava rock on chargrills. (Recommended use by Parry no more than 2kg.)

All of the above points are not covered by

warranty and any costs incurred, because of the above, will be forwarded to the parties responsible for placing the call.

The manufacturer’s warranty is only valid in the UK

mainland. Northern Ireland, Western Isles, Inner Hebrides and Islands are parts only warranty. Please be aware that the warranty starts from the date of purchase from Parry and not the sale or installation date of the equipment.

To be eligible for a 2 year warranty, products must be serviced at least once within the first 12 months of purchase.

All service calls will be carried out between 8am and 5pm, Monday to Friday.

Your warranty is invalid if your equipment has not been installed in accordance with the

manufacturer’s instructions. The misuse, alteration

or unauthorised repairs of the equipment will also invalidate the warranty.

During the warranty period it is at Parry’s

discretion whether to repair or replace the equipment. The warranty only applies if the equipment has been used in a professional manner following the

manufacturer’s instructions and maintenance

guidelines.

The warranty covers defects in the material and component failure only. We are not liable for trading loss, loss of perishable items, water damage or loss due to injury or fire damage.

Please ensure you have referred to the

manufacturer’s instruction before placing a warranty

call.

Contact our warranty department on 01332 875544 for technical assistance.

Please have your model number ready before calling.

All warranty requests must be submitted to

[email protected].

Failure to pay any warranty charges will result in your warranty being put on hold until the bill has been settled. Any issues regarding the raised charges should be put in writing to our warranty department for further investigation.

www.parry.co.uk

Page 20

Parry-British Built for Purpose

IN111-4

Disposal & Recycling

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product.

A symbol on the product, or on the documents accompanying the product, indicates that

this appliance may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Parry Catering recognises our obligations to the EU DIRECTIVE covering the waste disposal of electrical and electronic equipment (WEEE). Parry Catering are committed to this policy in order to help conserve the environment.

At the end of this unit’s life you MUST dispose of it in an approved manner. You MUST not discard the unit or place it in the refuse bin.

You have several options:

Take the unit to an approved WEEE scheme company, there will be one in your area. Take the unit to an approved waste disposal site; many sites are managed by your local

authority.

Contact the units manufacturer, importer or their agent; the contact details will be on

the unit.

There will probably be a charge for this service which will depend on the physical size and location of the unit. You will be given a collection price for a curb side collection based on commercial rates prevailing at the time.

It should be noted that the unit to be collected should be suitably packed and sealed to prevent dangerous gases and fluids from escaping. The condition of the unit must also be clean to comply with health and safety regulations.
