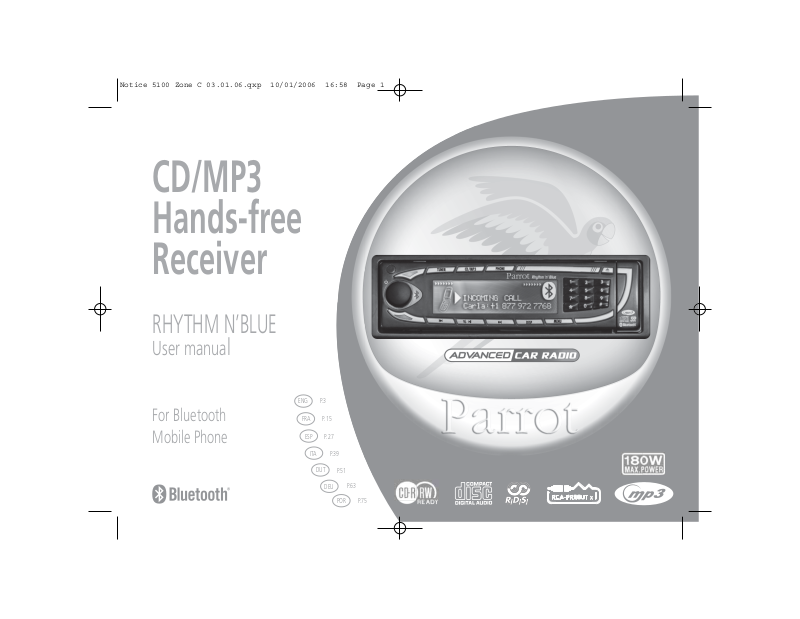

CD/MP3 Hands-free Receiver

RHYTHM N’BLUE

User manua

For Bluetooth Mobile Phone

ENG

FRA

ESP

ITA

P. 3

DUT

P.15

P.27

DEU

P.39

P.51

POR

P.63

P.75

Warning

The manufacturer Parrot S.A. and its affiliates should not be held liable towards end users or third parties to prejudice caused by misusage of the product, nor for usage that would be in violation of local traffic regulations and laws.

Disclaimer

The information in this document is subject to change without notice and does not represent a commitment on the part of vendor. No warranty or representation, either expressed or implied, is made with respect of quality, accuracy or fitness for any particular purpose of this document. The associated with it at any time without obligation to notify any person or organisation of such changes. In no event will the manufacturer to liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains material protected by copyright. All right are reserved. No part of this manual may be reproduced or transmitted in any forme, by any means or for any purpose without express written consent. Product names appearing in this document are mentioned for identification purposes only. All trademarks, product names appearing in this document are registred property of their respective owners.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

We, Parrot S.A. of 174 quai de Jemmapes, 75010 Paris, France, declare under our sole responsibility that our product, the Parrot Rhythm n’ Blue, to which this declaration relates is in conformity with appropriate standards EN300328, EN301489-17, EN 60950 following the provision of Radio Equipment and Telecommunication Equipment directive, with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC.

Bluetooth®

The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. and any use of such marks by Parrot S.A. is under license. Other trademarks and trade names are

those of their respective owners.

Correct Disposal of This Product ( Waste Electrical & Electronic Equipment )

(Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its literature, indica

tes that it should not be disposed with other household wastes at the end of its working life.To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environ, mentally safe recycling. Business users should contract their supplier and the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 2

Français

EspañolItaliano

Deutsch

Português

Dutch

Rhythm n'Blue Directions for use

English

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 3

SAFETY INFORMATION

PRECAUTIONS

Only use on a 12 V electrical system with a negative earth. When replacing the fuse, use one with the same amp rating. Using a fuse with a higher amp rating could damage the system. Do not dismantle the system. The laser beam of the CD player is dangerous for your eyes. Ensure that foreign objects are not inserted into the system: they could cause the system to malfunction or jeopardise your safety, such as electrocutions or exposure to the laser. If your vehicle has been exposed to very high or very low temperatures for a prolonged period, wait until the inside of the car has returned to a normal temperature before using the device. The sound volume of the car stereo should not be too loud: you should be able to hear outside warning signals or sirens.

NOTES ON CDs

Playing a damaged or dusty CD could result in the disc jumping during playback. Hold CDs as shown in the illustration opposite. Do not touch the unprinted side. Avoid getting any types of marks on the readable side of the CD. Do not expose a CD to direct sunlight or excessive temperatures. Wipe dirty CDs from the centre outwards with an appropriate cloth. Never use solvents, such as benzene or alcohol. This car stereo cannot read 3" CDs (8 cm). Never use 3" CDs or discs with an irregular shape. They could get stuck and cause the unit to malfunction.

BEFORE SWITCHING ON

Do not set the volume too high - doing so might prevent you from hearing sounds outside the car. The car must be stationary before working on the system.

CAUTION

Do not remove the unit's cover. Do not repair the system yourself. Please contact your retailer or a specialist technician.

PRESENTATION

Thank you for choosing a Parrot car stereo.

You can now take full advantage of a Bluetooth®CD/MP3 car stereo with a built-in hands-free kit. All the features sported by a top-of-the-range hands-free kit are available: phonebook synchronisation, caller ID display, exceptional audio quality inside the car, dual call management, compatibility with all Bluetooth

phones, and much more.

YOUR CAR STEREO'S BLUETOOTH® FEATURES

This system is equipped with the Bluetooth®technology, which enables the wireless exchange of data between electronic systems. In the present case, your Bluetooth® phone is connected to the car stereo. Depending on your phone (*), this synchronises the phone's phonebook in the car stereo's memory, which will subsequently allow you to call people directly from the phonebook, see the caller's name displayed, and so on. You can also answer calls, hang up and control the call volume with the car stereo's green and red buttons and the scroll wheel. The built-in voice recognition feature allows you to use several functions without taking your hands off the wheel.

(*): Applies to certain phones. For further information, visit our website: "www.parrot.biz, at the section entitled Technical Support, User Guides"

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 4

FRONT PANEL

To turn the car stereo on, press the rotary button. To turn the car stereo off, hold down the same button for two seconds.

Infrared sensor for the remote

Tuner

CD/MP3

Phone

Fast-forward

Rewind

Pause/Play/Mute

DISP

Eject button

Keypad

Français

EspañolItaliano

Deutsch

Português

Dutch

English

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 5

ANTI-THEFT SYSTEM

Without the detachable front panel, the system cannot be used.

Removing the front panel

z Press the eject button (in the top right) to tip the front panel.

z Move the panel sideways to the left.

z Pull the right side of the panel away from the car stereo and then the left side.

z Store the panel in the carry case and take it with you.

Replacing the front panel

z Insert the left side of the front panel into the car stereo.

z Then insert the right side of the panel into the car stereo.

z Push the panel up until you hear a click.

Removing the entire stereo

z Remove the car stereo's front panel and casing.

z Insert the keys into the appropriate holes until they remain stuck.

z Pull the stereo towards you.

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 6

INSTALLATION GUIDE

Note: to ensure that your settings are memorised, check that the ignition 12 V and the constant 12 V supply are not reversed.

Otherwise, you will have to enter all your settings again.

Français

EspañolItaliano

Deutsch

Português

Dutch

English

Notice 5100 Zone C 03.01.06.qxp 10/01/2006 16:58 Page 7

Purple/ Black

Purple Gray White Green

Stripe

(+) (-) (+) (-)(+) (-)

Right Speaker

(Rear)

Gray/ Black Stripe

Right Speaker

(Front)

White/ Black Stripe

(+) (-)

Left Speaker

(Front)

1357

2468

24 8

ISO Connector

Red

Black

Blue

Yellow

Green/ Black Stripe

Left Speaker

(Rear)

To car battety (+) Continuous + 12V DC

Ground Lead

Motor/Electric Antenna relay control Lead Amplifier relay control Lead

Ignition key + 12 V DC When ON/ACC

External microphone

Fuse 15A

Connector

Rear Line-out (Gray)

R (Red)

L (White)

Amplifier

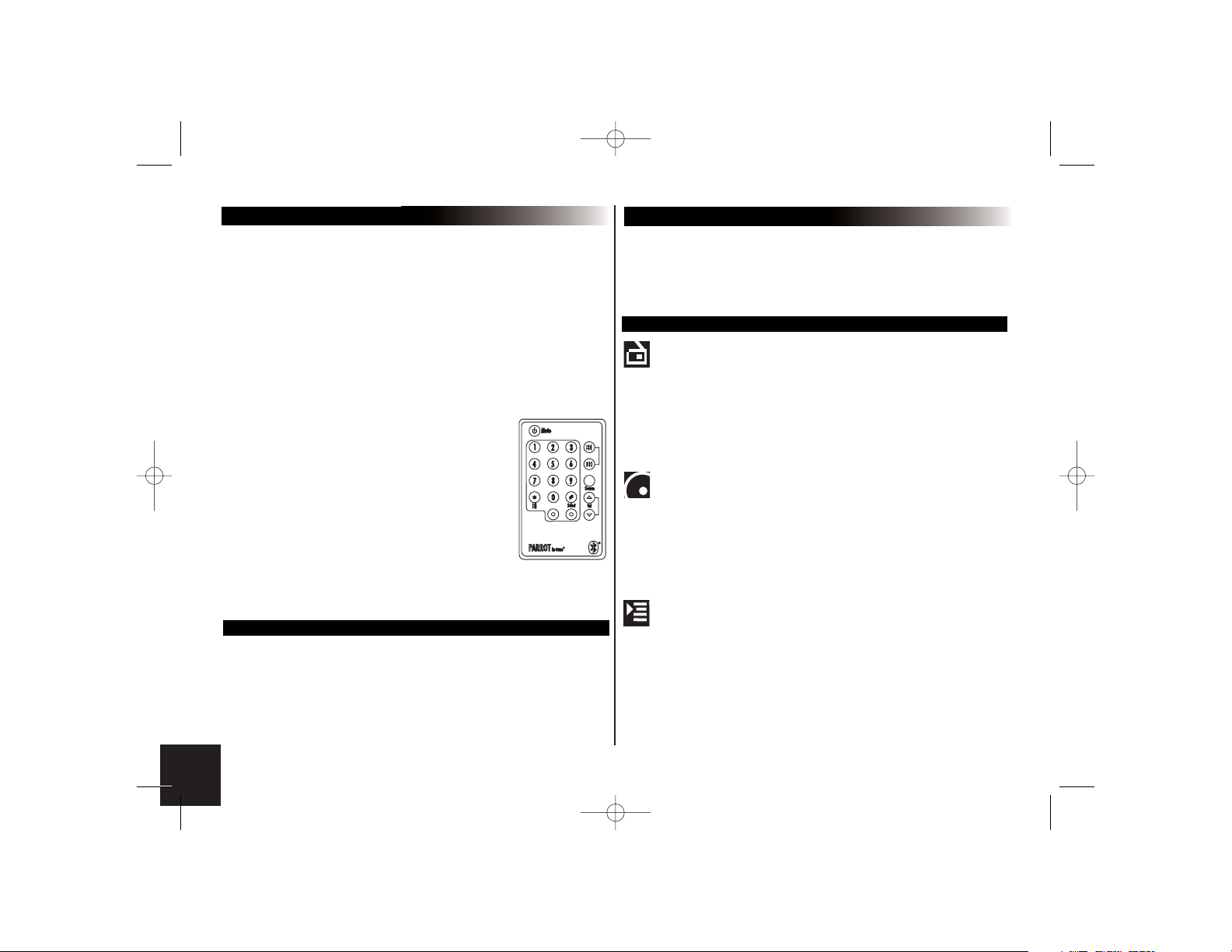

REMOTE CONTROL

Using the remote control

- The on/off button is used to turn the car stereo on and off.

- Source is used to change from one mode to another: Tuner, CD/MP3 and then Phone.

- In CD/MP3 mode, the fast-forward and rewind arrows let you skip from one track to another by means of a quick press. They are also used to simply go for wards/back wards in a track. In Tuner mode, they allow you to skip from one radio station to ano ther.

- The play/pause button is used for playing CDs.

- When you receive an incoming call, press the green button to answer and the red but ton to hang up.

- You can also dial a phone number on the remote control. To do so, change to Phone mode (via the Source button or by pressing the Phone button directly on the car stereo's front panel) and then dial the num ber on the keypad. Once the number has been dialled, press the green button to call.

Note:

the "+" prefix can be obtained by pressing the zero button for two seconds.

Replacing the battery in the remote control When the remote control no longer works properly or you experience problems controlling the car stereo with the remote control, replace the remote control's battery. Ensure that the battery is facing the correct polarity when fitting the replacement.

1. Remove the battery cover by pressing the button.

2. Insert the new battery with the (+) side facing you. Replace the cover.

CAUTION :

The battery must be stored out of the reach of children. If a child accidentally swallows the battery, seek medical advice immediately. Do not recharge, open, heat or throw onto a heat source. Any of these actions could cause sparks and start a fire. Do not store the battery with other metallic materials. This could cause sparks and start a fire. Do not handle the battery with tweezers. This could cause sparks and start a fire.

DIFFERENT FEATURES MODE

First of all, turn the car stereo on. To do so, press the rotary button. To turn the car stereo off, hold down the same button for two seconds.

There are three major features, which can be accessed directly via the car stereo's front panel: Tuner, CD/MP3 and Phone mode

EACH MODE ENABLES THE CAR STEREO TO BE USED IN A DIFFERENT WAY:

TUNER (OR RADIO) MODE

Press the Tuner button to listen to the radio. The fast-forward and rewind arrows let you search for stations on a step-by-step basis. If you hold down either arrow, the system will automatically search for the next station. When you are tuned into a station, hold down a number on the front panel's keypad (long press) to assign a shortcut number. Subsequently, to go straight to a memorised station, simply press the corresponding number. When the station is memorised, the assigned shortcut number is displayed at the same time as the station's frequency.

CD/MP3 (

OR DISC PLAYBACK) MODE

Press CD/MP3 to listen to a CD. You can move from one track on the CD to another by pressing fast-forward or rewind. To move quickly forwards or backwards in a track, hold down the fast-forward or rewind button for more than half a second. When playing an MP3 disc, the LCD screen successively displays the following information: title of the song, album and artist, and always the time elapsed. You can also select the track directly on the CD via the keypad.

HONE MODE

Press Phone to change the system to phone mode. Once connected with your Bluetooth® phone, you will be given information on your mobile phone's battery and signal levels. Your operator is also displayed (*). You can access your phonebook simply by turning the scroll wheel. You can then browse through the alphabet. Select the corresponding letter for the required contacts. If your contacts have more than one phone number, press the scroll wheel again to access the numbers and then the green button to call. To view your call records, press the rotary button. All the calls made, missed and received are displayed.

(*) These features depend on your phone.
