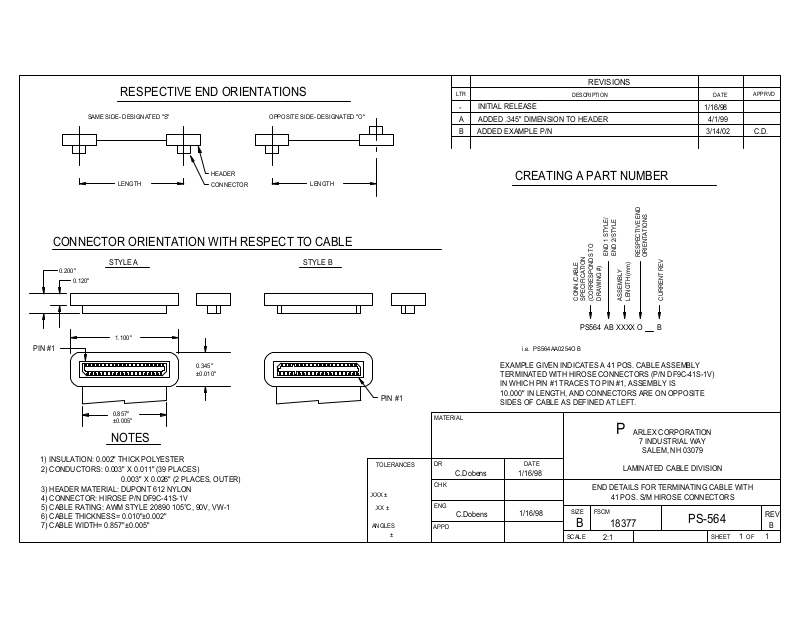

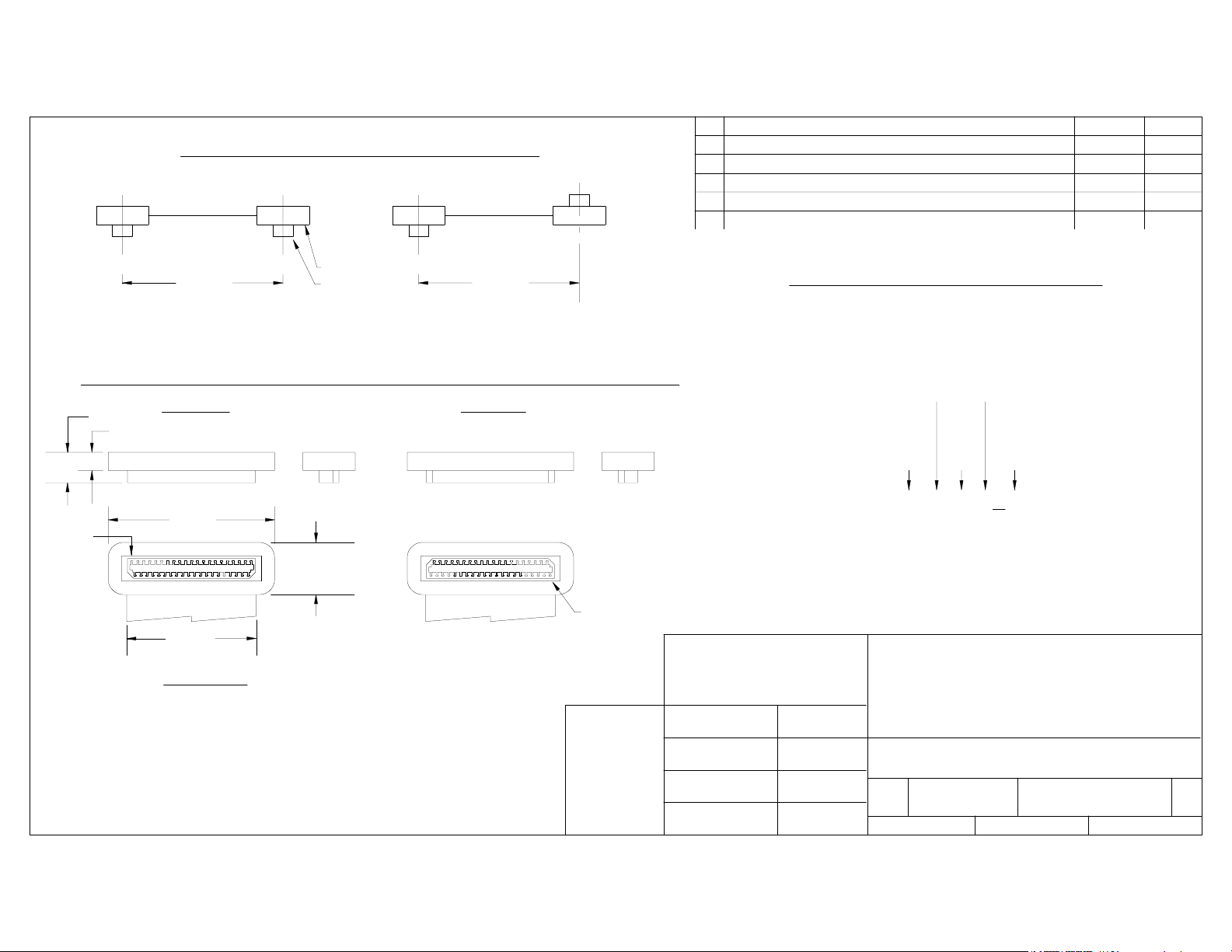

RESPECTIVE END ORIENTATIONS
SAME SIDE- DESIGNATED "S"
OPPOSITE SIDE- DESIGNATED "O"
LTR
INITIAL RELEASE
-
ADDED .345" DIMENSION TO HEADER
A
B ADDED EXAMPLE P/N
REVISIONS
DESCRIPTION DATE
1/16/98
4/1/99
3/14/02
APPRVD
C.D.
HEADER
LENGTH LENGTH
CONNECTOR
CONNECTOR ORIENTATION WITH RESPECT TO CABLE
0.200"
0.120"
PIN #1
STYLE A STYLE B
1.100"
0.345"
±0.010"
0.857"
±0.005"
NOTES
1) INSULATION: 0.002" THICK POLYESTER
2) CONDUCTORS: 0.003" X 0.011" (39 PLACES)
3) HEADER MATERIAL: DUPONT 612 NYLON
4) CONNECTOR: HIROSE P/N DF9C-41S-1V
5) CABLE RATING: AWM STYLE 20890 105°C, 90V, VW-1
6) CABLE THICKNESS= 0.010"±0.002"
7) CABLE WIDTH= 0.857"±0.005"
0.003" X 0.026" (2 PLACES, OUTER)
PIN #1
TOLERANCES
.XXX ±
.XX ±
ANGLES
±
MATERIAL
DR
C.Dobens
CHK
ENG
C.Dobens
APPD
CREATING A PART NUMBER
END 2/STYLE
END 1 STYLE/
CONN./CABLE
SPECIFICATION
(CORRESPONDS TO
DRAWING #)
PS564
i.e. PS564AA0254O B
EXAMPLE GIVEN INDICATES A 41 POS. CABLE ASSEMBLY
TERMINATED WITH HIROSE CONNECTORS (P/N DF9C-41S-1V)
IN WHICH PIN #1 TRACES TO PIN #1, ASSEMBLY IS
10.000" IN LENGTH, AND CONNECTORS ARE ON OPPOSITE
SIDES OF CABLE AS DEFINED AT LEFT.
DATE
1/16/98
END DETAILS FOR TERMINATING CABLE WITH
1/16/98
SIZE FSCM
B
SCALE
2:1
RESPECTIVE END
ORIENTATIONS
XXXX OAB
P
ASSEMBLY
LENGTH (mm)
CURRENT REV
B
ARLEX CORPORATION
7 INDUSTRIAL WAY
SALEM, NH 03079
LAMINATED CABLE DIVISION
41 POS. S/M HIROSE CONNECTORS
18377
PS-564
SHEET OF
REV
B
1
1
