Park Tool Truing Stand Base User Manual

TSB-2 Tilting Truing Stand Base

Park Tool Co.

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com

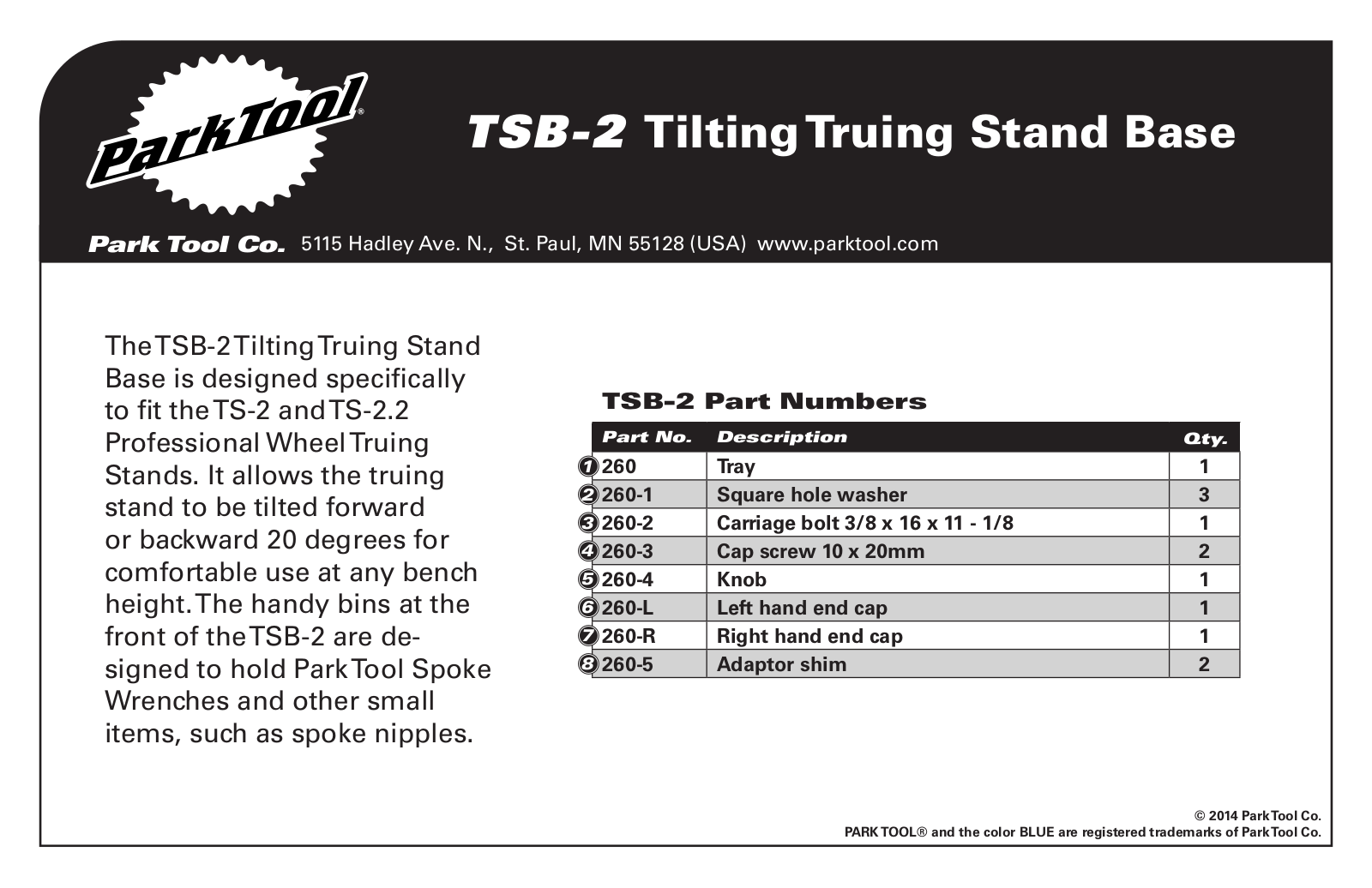

The TSB-2 Tilting Truing Stand
Base is designed specifically
to fit the TS-2 and TS-2.2
Professional Wheel Truing
Stands. It allows the truing
stand to be tilted forward
or backward 20 degrees for
comfortable use at any bench
height. The handy bins at the
front of the TSB-2 are de­signed to hold Park Tool Spoke
Wrenches and other small
items, such as spoke nipples.

TSB-2 Part Numbers

Part No. Description

1

260 Tray 1

2

260-1 Square hole washer 3

3

260-2 Carriage bolt 3/8 x 16 x 11 - 1/8 1

4

260-3 Cap screw 10 x 20mm 2

5

260-4 Knob 1

6

260-L Left hand end cap 1

7

260-R Right hand end cap 1

8

260-5 Adaptor shim 2

PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.

Qty.

© 2014 Park Tool Co.

TSB-2 Tilting Truing Stand Base

Park Tool Co.

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com

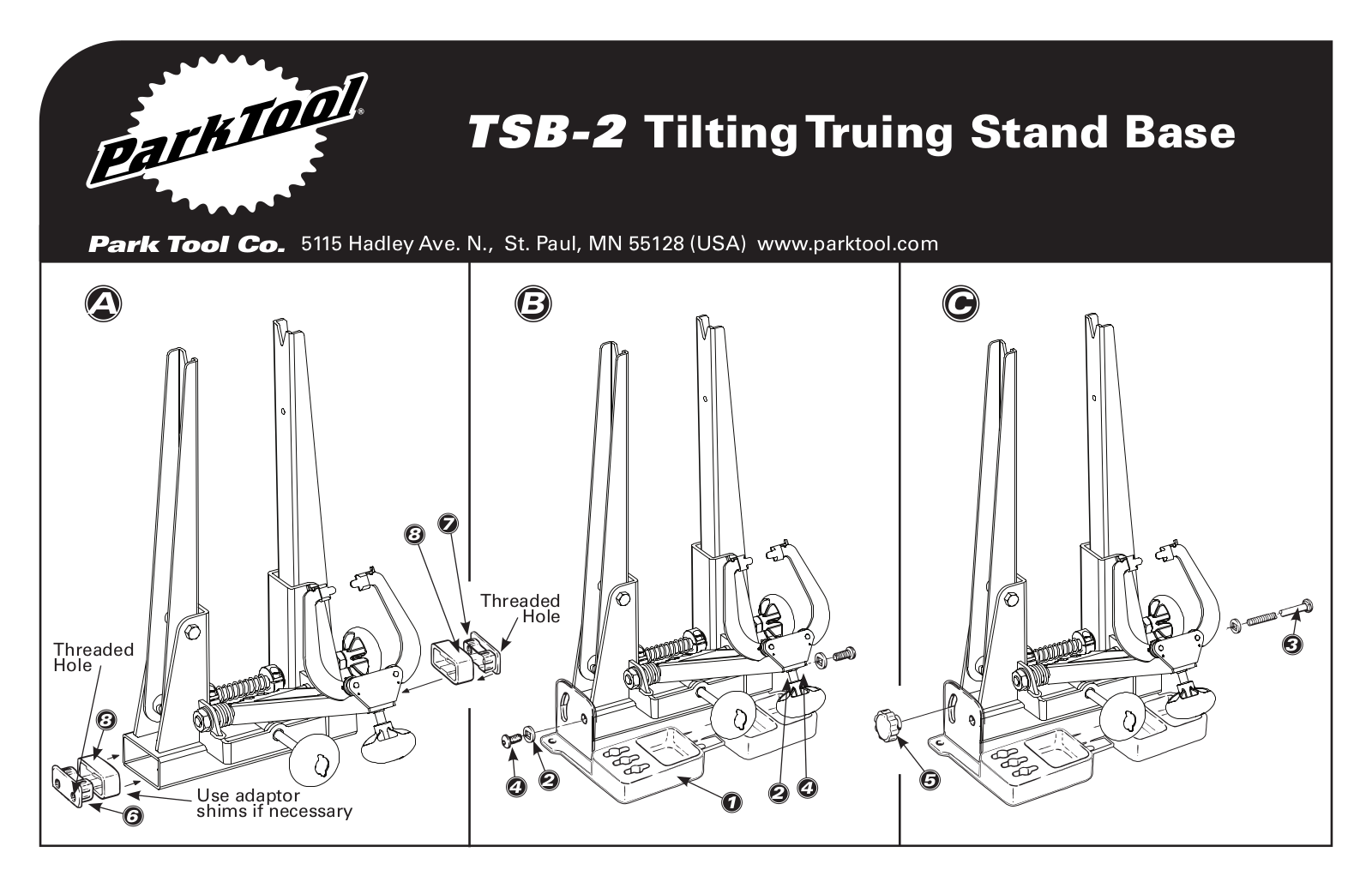

A B C

7

8

Threaded

Hole

Threaded
Hole

8

2

Use adaptor

6

shims if necessary

4

1

4

2

3

5
