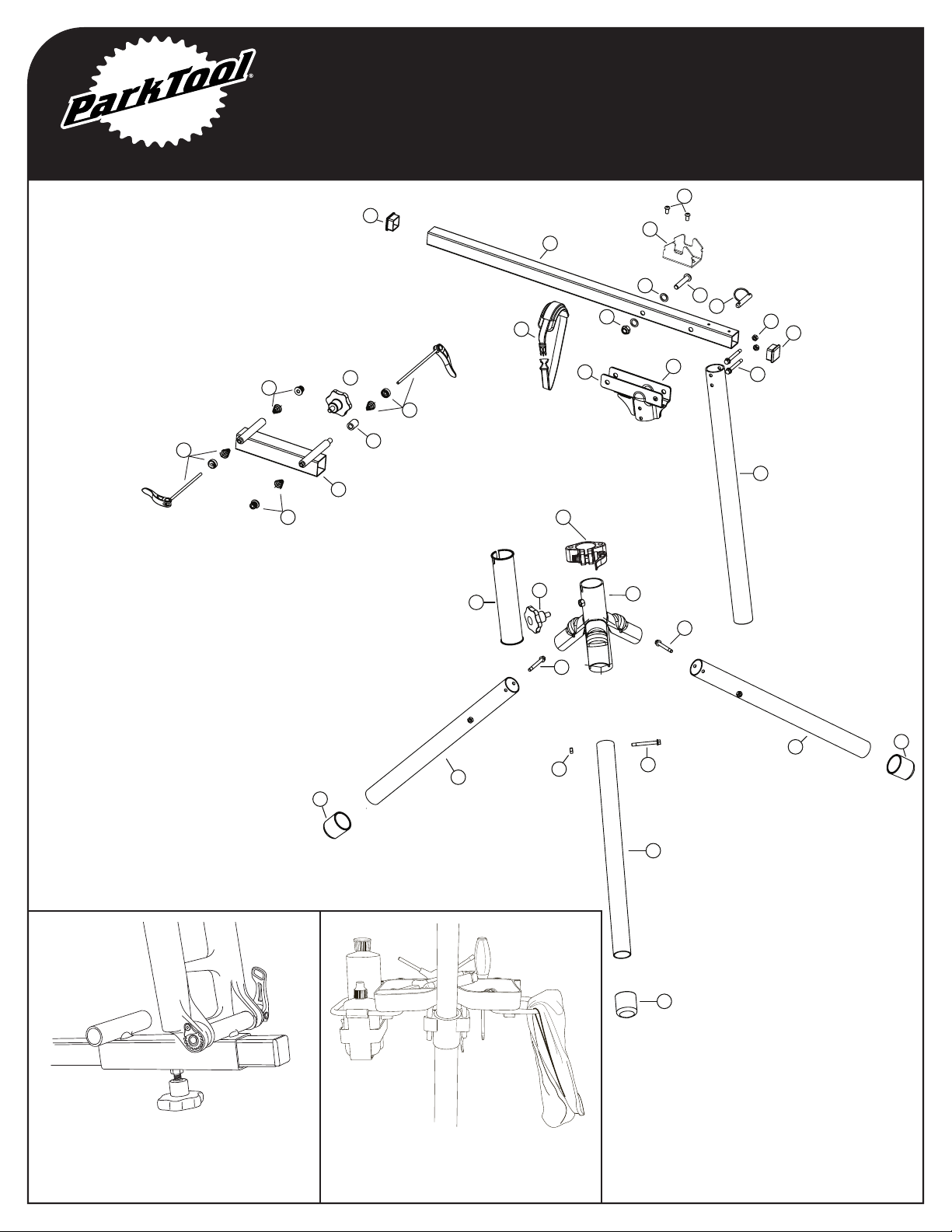

PRS-20, PRS-21
Team Race Stand
Park Tool Co.
5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
The PRS-20 Team Race Stand and PRS-21
Super Lite Team Race Stand are compact,
folding workstands that securely hold the
bike without clamping the frame tubes
or seat post. Used by professional race
mechanics around the world.
3 4 5
Assembly
1 2
15
14
18
22
23
24
6
17
12
19
20
Open
Lock
10
11
13
6
5
1
2
6 7 8
8
3
9
16
Mounting Bike in PRS-20 / PRS-21
Lock
Unlock
Folding for Storage
1
2 3 4
Open
Lock
Unfolding for Use
1 2 3
Pull
Hitch
Pin
Pull
Hitch
Pin
4
Open
Lock
PRS-20, PRS-21
Team Race Stand
Park Tool Co.
1
5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
6
7
16
1
2
5
2
4
3
21
5
13
14
20
22
8
9
12
10
11
15
23
17
6
18
19
24
25
Optional Accessories for PRS-20/21 Team Race Stand
23
24
26
23
24
25
25
1728-TA Sliding Thru Axle Adaptor
Converts any PRS-20, PRS-21 or PRS-23
to accept 15mm and 20mm thru axle
wheeled bikes
106 Tool Tray
Keeps tools, lubes and parts right
at your fingertips.
PRS-20, PRS-21
Team Race Stand
Park Tool Co.
5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
Part No. Description
1
1729A Front Quick Release Assembly 1
2
1722A Rear Quick Release Assembly 1
3
1728 Slider Tube Weldment 1
4
1721 Slider Rear Axle Extension 1
5
1706-2 Knob and Shaft 2
6
1715-2 Horizontal Beam End Cap 2
7
1716R Horizontal Beam Tube (PRS-20 only) 1
7
1734R Aluminum Horizontal Beam Tube (PRS-21 only) 1
8
1257-2 Saddle Button Head Socket Cap Screw 1/4 - 20 x 3/8” 2
9
1711R Bottom Bracket Saddle 1
10
1283X Pivot Button Head Socket Cap Screw M10 x 50 1
11
1723 Hitch Pin 1
Qty.
12
1724-2 Bracket Washer 2
13
1285X Pivot Screw Nylok Nut 1
14
1709L Left Upright Bracket 1
15
1709R Right Upright Bracket 1
16
1709S Buckle & Strap Assembly 1
290 Nylok Nut 2
17
18
1709-2 Upright Bracket Bolt 2
1708 Upright Tube (PRS-20 only) 1
19
1733 Aluminum Upright Tube (PRS-21 only) 1
19
20
1707.2 Clamping Collar Quick Release Assembly 1
21
1701 Upright Sleeve 1
1705 Yoke Weldment (PRS-21 only) 1
22
22
1705-20 Yoke Weldment (PRS-20 only) 1
479-6 Leg Bolt 1/4 - 20 x 2” 3
23
24
1700-3 Leg Tube (PRS-20 only) 3
24
1732-3 Aluminum Leg Tube (PRS-21 only) 3
25
1780-2 Leg Cap 3
26
480-6 Leg Nylok Nut 1/4 - 20” 3
Note: Washers should be used as required to account for variations in casting taper.
© 2013 Park Tool Co. / PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
