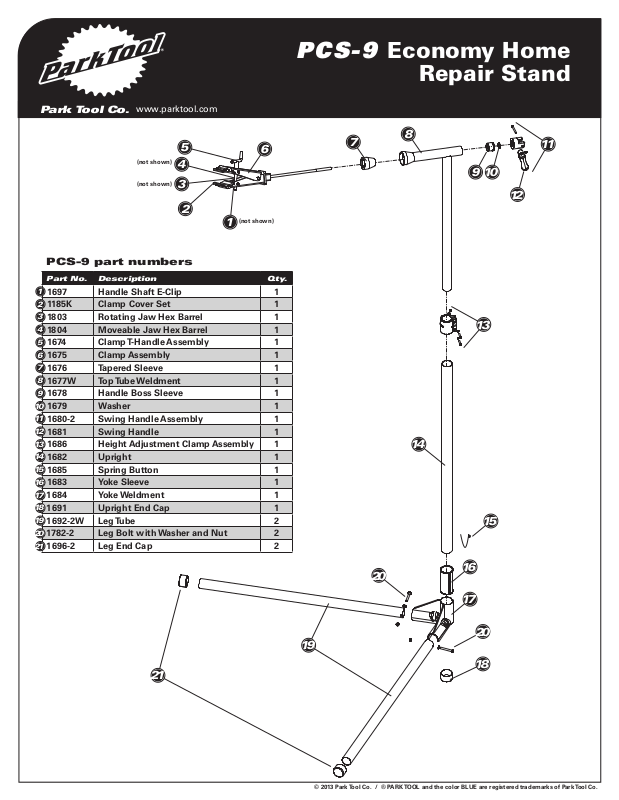

PCS-9 Economy Home
Repair Stand
Park Tool Co. www.parktool.com
5 |
|
7 |
8 |
6 |
|
||
|
|
||
(not shown) 4 |
|
|
|
(not shown) 3 |
|
|
|
2
1 (not shown)
PCS-9 part numbers
|
Part No. |
Description |
Qty. |
|
|
|
|
|
|
1 |
1697 |
Handle Shaft E-Clip |
1 |
|
2 |
1185K |
Clamp Cover Set |
1 |
|
3 |
1803 |
Rotating Jaw Hex Barrel |
1 |
|
4 |
1804 |
Moveable Jaw Hex Barrel |
1 |
|
5 |
1674 |
ClampT-Handle Assembly |
1 |
|
6 |
1675 |
Clamp Assembly |
1 |
|
7 |
1676 |
Tapered Sleeve |
1 |
|
8 |
1677W |
TopTube Weldment |
1 |
|
9 |
1678 |
Handle Boss Sleeve |
1 |
|
10 |
1679 |
Washer |
1 |
|
11 |
1680-2 |
Swing Handle Assembly |
1 |
|
12 |
1681 |
Swing Handle |
1 |
|
13 |
1686 |
Height Adjustment Clamp Assembly |
1 |
14 |
14 |
1682 |
Upright |
1 |
|
15 |
1685 |
Spring Button |
1 |
|
16 |
1683 |
Yoke Sleeve |
1 |
|
17 |
1684 |
Yoke Weldment |
1 |
|
18 |
1691 |
Upright End Cap |
1 |
|
19 |
1692-2W |
LegTube |
2 |
|
20 |
1782-2 |
Leg Bolt with Washer and Nut |
2 |
|
21 |
1696-2 |
Leg End Cap |
2 |
|
11 |
9 10
12
13 |
15
20 |
16 |
|
|
|
17 |
20
19 |
18
21
