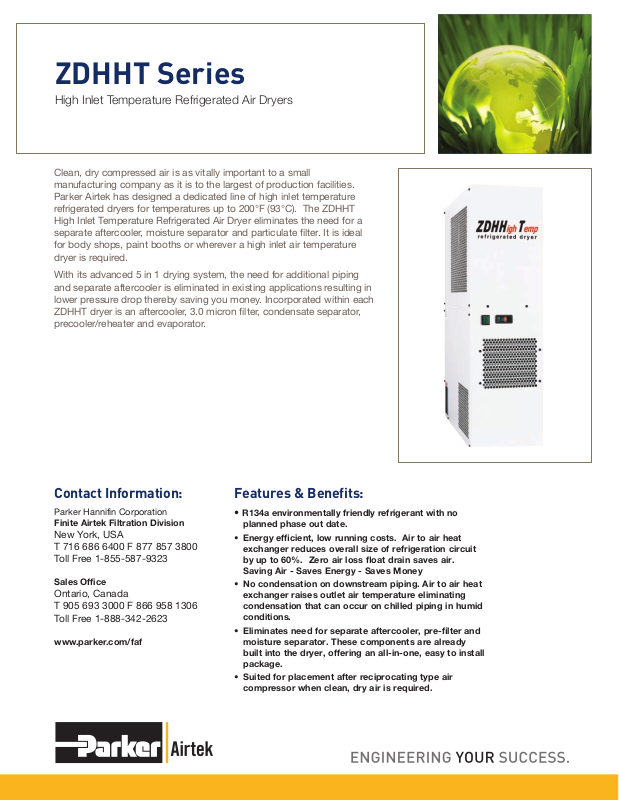

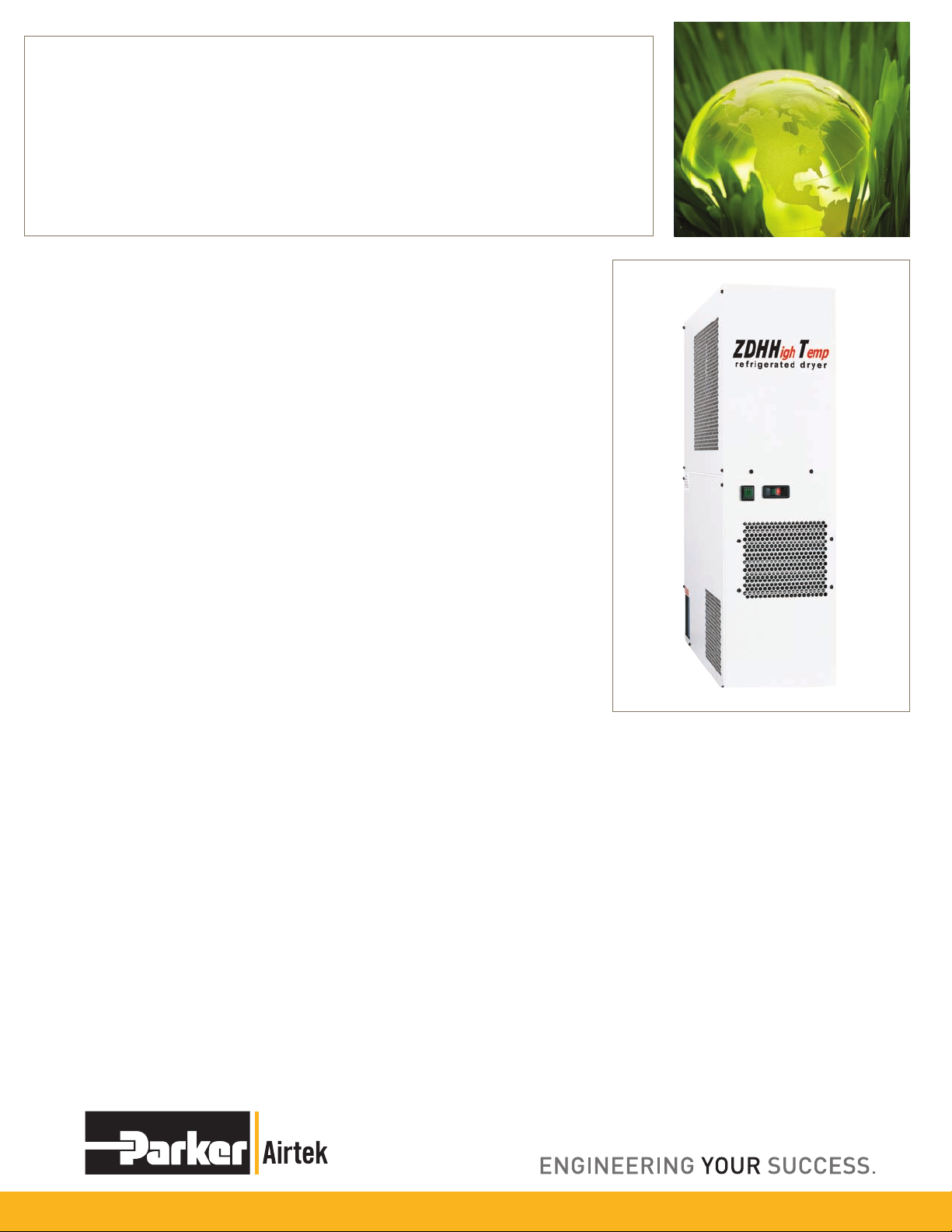

ZDHHT Series
High Inlet Temperature Refrigerated Air Dryers
Clean, dry compressed air is as vitally important to a small
manufacturing company as it is to the largest of production facilities.
Parker Airtek has designed a dedicated line of high inlet temperature
refrigerated dryers for temperatures up to 200°F (93°C). The ZDHHT
High Inlet Temperature Refrigerated Air Dryer eliminates the need for a
separate aftercooler, moisture separator and particulate lter. It is ideal
for body shops, paint booths or wherever a high inlet air temperature
dryer is required.
With its advanced 5 in 1 drying system, the need for additional piping
and separate aftercooler is eliminated in existing applications resulting in
lower pressure drop thereby saving you money. Incorporated within each
ZDHHT dryer is an aftercooler, 3.0 micron lter, condensate separator,
precooler/reheater and evaporator.
Contact Information:
Parker Hannifin Corporation
Finite Airtek Filtration Division
New York, USA
T 716 686 6400 F 877 857 3800
Toll Free 1-855-587-9323
Sales Office
Ontario, Canada
T 905 693 3000 F 866 958 1306
Toll Free 1-888-342-2623
www.parker.com/faf
Features & Benefits:
• R134a environmentally friendly refrigerant with no
planned phase out date.
• Energy efficient, low running costs. Air to air heat
exchanger reduces overall size of refrigeration circuit
by up to 60%. Zero air loss float drain saves air.
Saving Air - Saves Energy - Saves Money
• No condensation on downstream piping. Air to air heat
exchanger raises outlet air temperature eliminating
condensation that can occur on chilled piping in humid
conditions.
• Eliminates need for separate aftercooler, pre-filter and
moisture separator. These components are already
built into the dryer, offering an all-in-one, easy to install
package.
• Suited for placement after reciprocating type air
compressor when clean, dry air is required.
Page 2

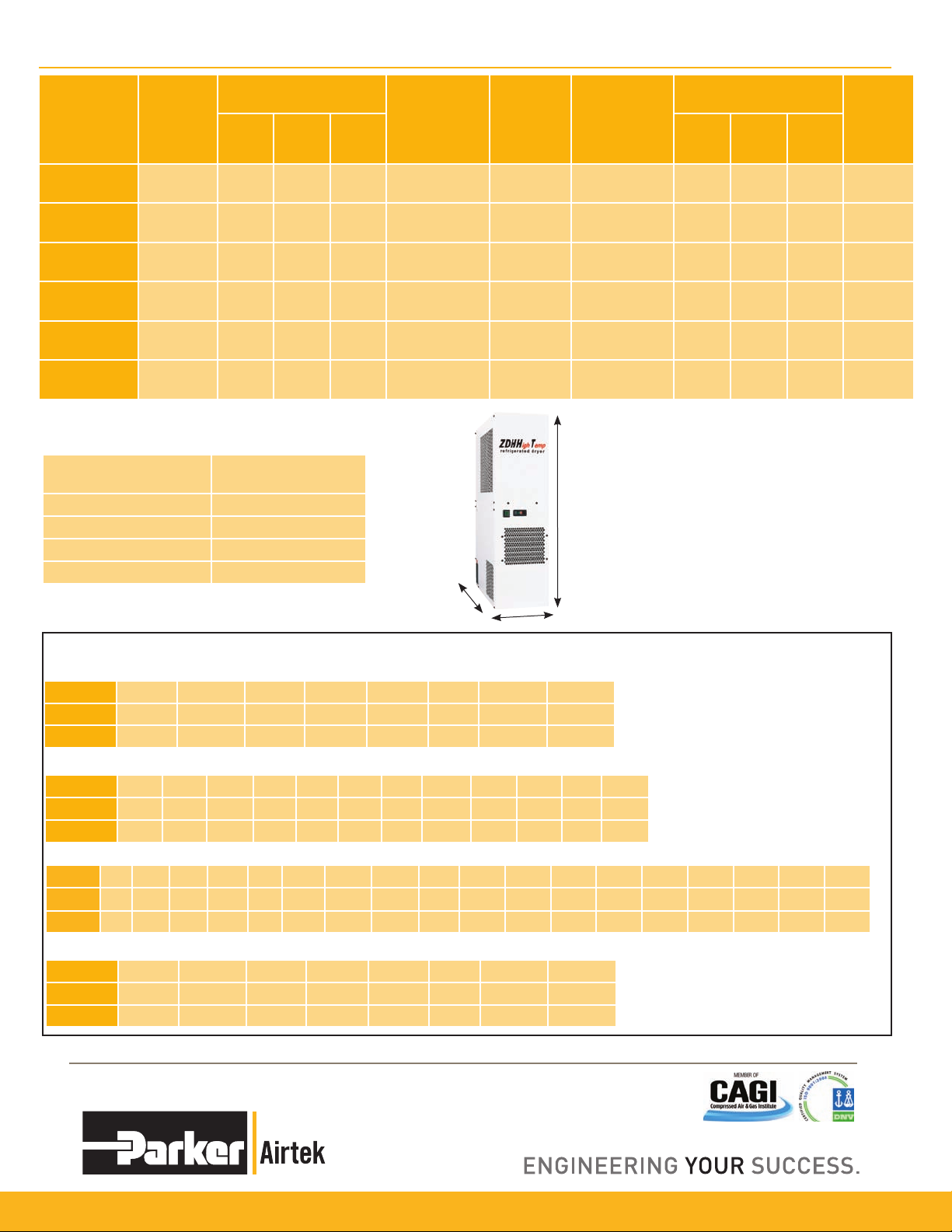

Engineering Data Specifications
Nominal flow*
scfm (m3/hr)
Model Pipe Size
ZDHHT15 3/8”
ZDHHT25 1/2”
ZDHHT35 1/2”
ZDHHT50 3/4”
ZDHHT75 3/4”
ZDHHT100 3/4”
*Capacities are based upon: Ambient Temperature 95˚F (35˚C), Inlet Temperature
**Kit includes replacement filter element, filter drain and associated ‘o’ ring seals.
180˚F (82˚C), Working Pressure 125 psi g (8.5 bar g)
NPT-F 12.3 15 18.1 115V/1ph/60Hz 0.26 398H473344
NPT-F 19.6 25 31.7 115V/1ph/60Hz 0.34 398H473345
NPT-F 28.2 35 42.7 115V/1ph/60Hz 0.34 398H473345
NPT-F 40 50.1 60.6 115V/1ph/60Hz 0.70 398H473345
NPT-F 62 75 89.2 115V/1ph/60Hz 0.88 398H473346
NPT-F 83.9 100 116.8 115V/1ph/60Hz 1.22 398H473346
Max. Ambient
Temperature
41°F
(5°C)
50°F
(10°C)
115°F (46°C)
59°F
(15°C)
Primary
Voltages
Max. Inlet Temperature 200°F (93°C)
Max. Inlet Pressure 232 psi g (16 bar g)
Electrical Supply 115V/1ph/60Hz
Refrigerant R134a
Absorbed
Power at
50°F
(10°C )
(KW)
Annual
Maintenance
Kit**
H
Dimensions in (mm)
H W D
32
(813)
39
(990)
39
(990)
47.7
(1212)
47.7
(1212)
47.7
(1212)
9.8
(249)
11.1
(282)
11.1
(282)
13.9
(353)
13.9
(353)
13.9
(353)
17.7
(450)
23.6
(600)
23.6
(600)
27.6
(700)
27.6
(700)
27.6
(700)
Weight
lbs
(kg)
55 (25)
93 (42)
95 (43)
134 (61)
154 (70)
161 (73)
D
W
Correction Factors (to obtain dryer capacity at new conditions multiply nominal capacity* x C1 x C2 x C3 x C4)
Ambient Temperature (C1)
°F 60 70 80 90 95 100 110 115
°C 16 21 27 32 35 38 43 46
CF 1.93 1.67 1.38 1.12 1.00 0.89 0.69 0.61
Inlet Temperature (C2)
°F 90 100 110 120 130 140 150 160 170 180 190 200
°C 32 38 43 49 54 60 66 71 77 82 88 93
CF 1.31 1.27 1.23 1.19 1.15 1.11 1.06 1.03 1.01 1.00 0.99 0.98
Inlet Pressure (C3)
psi g 50 60 70 80 90 100 120 125 135 150 160 170 180 190 200 210 220 232
bar g 3.5 4.1 4.8 5.5 6.2 6.9 8.3 8.6 9.3 10.3 11.0 11.7 12.4 13.1 13.8 14.5 15.2 16.0
CF .78 .83 .87 .90 .93 .95 .99 1.00 1.01 1.04 1.05 1.06 1.07 1.08 1.08 1.10 1.12 1.13
Dewpoint (C4)
°F 38 42 46 50 56 60 66 70
°C 3 6 8 10 13 16 19 21
CF 0.62 0.84 0.92 1.00 1.13 1.22 1.37 1.47
