OWNER’S MANUAL
PARK AUDIO
PROFESSIONAL BUILT-IN
THREE-CHANNEL POWER AMPLIFIERS WITH DSP
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
CAUTION!
The amplifier runs on 230V AC voltage. Removing the cover will expose you to a
potentially dangerous voltage! Do not use the unit if the electrical power cord is frayed or
broken. Power is supplied from 230 V AC single-phase grounded 50/60 Hz source!
CAUTION!
The amplifier can yield dangerous output voltage! Do not install an energized unit into the
speaker system. Do not touch the non-insulated cable parts connected to the unit in
operation!
CAUTION!
The high sound pressure level of speaker systems generated by high output power
delivered by the amplifier may be hazardous to your hearing. Please, take adequate
safety precautions.
WARNING!
The amplifier yields high output power. The manufacturer shall not be held responsible for
any damage to the speakers caused by excessive power from the unit.
WARNING SIGNS:
Important information! Intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in the Owner’s Manual
accompanying the product.
Hazardous voltage inside! Intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
INTRODUCTION
The DX1000T DSP, DX1400T DSP, DX2100T DSP three-channel amplifiers are
designed for installation inside subwoofer which is a part of the active set – subwoofer plus
2 satellites.
One amplifier channel is used to connect the subwoofer, the other two – for satellites.
To create the necessary signal processing path, including crossovers, EQ and
dynamic processing, the DSP engine is used in the amplifier.
The digital power amplifier inside the DX1000T DSP, DX1400T DSP, DX2100T DSP
amplifiers ensures high reliability and perfect sound both at the minimum level of the input
signal and in the overload mode.
The full name of the model is on the label on the rear of the amplifier case.
ATTENTION! Unless specified otherwise, the word «amplifier» hereinafter applies to
any of the above models.
UNPACKING
The manufacturer’s quality control system provides for careful examination of each
product before it leaves the factory to ensure its flawless appearance. After unpacking,
please, check the unit for any physical damage. In case of damage, please, contact
your local dealer. Keep the shipping carton and all packing material, as you may
require them for reshipment of the unit.
ACCESSORIES:
1. Power cord
2. Software CD
3. Owner’s Manual
4. Warranty
DESIGN AND FUNCTIONAL FEATURES
Design
The built-in power amplifier is designed as a mono-block unit. All its components are
installed on a single bearing panel placed inside the case which protects the unit and ensures
its deep placement into the body of a speaker system.
Power to the built-in power amplifier is supplied via a removable power cord.
Power Supply Unit
Switchable. Made to minimize the weight of the amplifier.
Power Factor Correction (only in models with index «PFC»)
The amplifier has power supply with Power Factor Corrector, which significantly
reduces load to the mains and also reduces noise and distortion in the mains. What is more
important, the amplifier output power is no longer rigorously dependent on the mains voltage.
The amplifier provides full power at the mains from ~160 to 280 V (with no need to use
external AC voltage stabilizer).
Output Stage
The power amplifier is designed according to Class D technology to deliver high efficiency and least heat. The high switching rate ensures the high sound quality comparable
with the best analogue amplifiers. The power amplifier is installed to the cooling radiator,
common with the power supply.
Cooling System
The amplifier is cooled down with a fan. The cooling system ensures reliable cooling
of the amplifier within the whole operating temperature range (5 to 35°Ñ). The cooling
system is a double-level system which ensures a smooth rise of the cooling intensity rate in
the fan-ON mode. At a normal temperature and low output level the fan is OFF, thus generating no noise. When the amplifier is set to deliver a high output power, as well as when the
ambient temperature is higher than normal and when the heat sink becomes too hot, the
fan goes ON, and the cooling intensity rate changes smoothly as the temperature rises.
Input Section
The input section includes:
– Left and Right Channels line inputs (XLR female);
– Left and Right Channels line outputs (XLR female, parallel to the line inputs);
– Input Level Control Knob (one for both channels);
– Subwoofer Level Control Knob;
– DSP preset switch for the subwoofer channel;
– DSP preset switch for the satellites channel;
– USB port (USB B).
The amplifier inputs are balanced.
The line input and output connectors are parallel (connected in pairs), i.e. the contacts of the output connector match the respective contacts of the input connector.
2
3
The DSP preset switch enables choosing various settings for the subwoofer and
satellite channel, created by the DSP sound proceeding.
USB interface enables changing the parameters and presets overwriting.
Overload and Short-Circuit Protection
This protective system becomes active in case of short-circuited output or overload
caused by reduced load impedance. It disables the output signal of the respective
channel for 0.5 second and then the amplifier gradually resumes its delivery.
DC Output Protection
The amplifier’s schematic precludes transit of any clicks or noise during the power-on/
off transition process. Moreover, the amplifier protects the speaker systems against damage
by DC voltage or powerful LF fluctuations in case of their occurrence on the output of the
amplifier. In this case its power supply unit goes OFF and all LEDs go OFF too, including the
POWER LED.
The power amplifier can be restarted by consecutive switching OFF and ON with the
POWER switch. If the DC is an occasional problem (which is unlikely) the amplifier goes ON
and resumes its normal functioning. If, otherwise, the DC output problem persists through
the fault of the amplifier, then upon switching, the amplifier goes ON but in a short while the
DC output protection system disables the power supply unit.
Thermal Protection
The signal may be cut off only in case of the fan breakdown or blocked air flow. If this
is the case, the thermal protection system disables the input signal when the heat sink
temperature has reached 85°С, this fact being notified by the CLIP/THERMAL LED.
The amplifier resumes its operation in the reverse order as soon as it has cooled
down, gradually regaining its gain rate level up to the set value.
DSP engine
Built-in DSP engine accurately handles the audio signal due to its functions of EQ,
filtering, delay and limiter.
DSP enables users to choose between 3 presets for subwoofer and satellite channels
(9 presets in total). Preset parameters are listed in the attachment in the Owner’s Manual.
Any of presets can be modified, using a computer connected via USB interface
(software – SigmaStudio by Analog Devices, Inc.).
The installation package of the SigmaStudio ver.3.10 software (32-bit and 64-bit
program versions available) and user manual can be found on the disk or flash-drive,
supplied with the amplifier.
The SigmaStudio ver.3.10 installation package can also be downloaded from the site
parkaudio.ua (Download section on the pages of the corresponding amplifiers). Moreover,
in the Download section you can find:
SigmaStudio User Manual – user guide on setting built-in amplifiers with DSP by
SigmaStudio (SigmaStudio_for_DF_dsp_UM_en.pdf).
SigmaStudio Video Tutorial – video tutorial about setting amplifiers with DSP by
SigmaStudio.
4
Limiter’s User Manual – recommendations on limiters setting in signal processing
tracts (Limiter_UM_en.pdf);
Project Templates – SigmaStudio project template for amplifiers with DSP
(Project_DX_T_dsp.zip );
Factory DSP Presets – DSP preset settings description (DSP setting _DX_T_dsp.xls).
Limiter’s Setting Calculations – simple calculator (Excel) to calculate the parame-
ters of the limiter (Limiters_calculation.xls).
5
BLOCK DIAGRAM
INPUT
SUB CHANNELOUTPUT
DSP
Out 0
In 0
Out 2
THROUGH
USB Por
t
1 2 3
SUB PRE SET
USB
Interface
Out 1
SAT L CHANNELOUTPUTSAT R CHANNELOUTPU
T
INPUT
THROUGH
In 1
1 2 3
SAT PRE SET
Sat L ChannelSat R ChannelSub ChannelPower Amplifie
r
MASTE
R
LEVEL
SUBWOOFER
LEVEL
LEFTLEFT
RIGHT
6
CONTROLS AND CONNECTORS
POWER – power switch.
TO SATELLITE LEFT – left satellite channel output.
MAINS IN – power cable socket.
ATTENTION! The mains parameters are indicated below the power cord socket:
– for the amplifiers without PFC: ~230V AC 50/60Hz;
– for the amplifiers with PFC: ~160-250V AC 50/60Hz.
ATTENTION! The power to the amplifier is supplied from single-phase AC power
mains 230 V and ~50/60Hz with protective grounding. To connect the amplifier to a wall
outlet, first insert the power cord into the power cord socket and then plug it into the
wall outlet.
INPUT R – Right Channel input (XLR, balanced).
INPUT L – Left Channel input (XLR, balanced).
POWER LED.
MASTER LEVEL – input level control knob.
SAT PRESET – DSP presets switch for satellites channels.
CLIP/THERMAL – overload/thermal protection LED.
Indicating:
– overload condition, characterized by sound distortion and optoelectronic clip-
limiter active mode;
– thermal protection active condition in case of overheating of the output section.
SUB PRESET – DSP presets switch for subwoofer channels.
SUBWOOFER LEVEL – subwoofer level control knob.
USB – USB port for connection to the PC (personal computer).
THROUGH L – Left Channel line output (XLR male, parallel to Left Channel input).
THROUGH R – Right Channel line output (XLR male, parallel to Left Channel input).
TO SATELLITE LEFT – Right satellite channel output.
7
8
CABLE REQUIREMENTS
Input Cables
Make sure to use only shielded cables whether balanced or unbalanced. As a rule,
unbalanced lines of over 3 meters long are not acceptable. Shielding, when properly
grounded, protects a signal against external radio interference, interference generated by
dimmers and other electric noise. Avoid placing input cables close to power cords or power
transformers.
Output Cables
The amplifier is capable of delivering high level output current; therefore, the wire
gauge used for speaker cables is particularly important. Inadequate wire gauge adds
significant resistance to the speaker’s own impedance, reducing the power which is
actually delivered to the speaker. It will also result in a decreased damping factor and
possible fire hazard.
Since the power applied to the loudspeaker is of primary concern in system design,
we have included the table below to allow you determine the appropriate wire gauge for
your application.
The table shows the percentage of the power loss in a 10-meter 2-conductor copper
cable. This table reflects the power loss as a percentage of the output power of the amplifier, applied to the load.
Use this table to determine the power loss to the load for other cable lengths. For
example, if you plan to deliver 100 Watts to 8-Ohm load through 20-m cable of 0.75 mm
2
gauge, the power loss in the cable would be 5.8 % x 2=11.6 % of 100 W or 11.8 W lost in the
cable.
Power Loss in a 10-meter Cable
Wire Gauge, mm
2
Cable
Resistance,
Ohm
Cable Power Loss
4 Ohm Load 8 Ohm Load
0.50
0.75
1.00
1.50
2.00
2.50
4.00
0.72
0.49
0.36
0.24
0.18
0.15
0.09
15.4 %
10.9 %
8.3 %
5.7 %
4.3 %
3.6 %
2.3 %
8.3 %
5.8 %
4.3 %
2.9 %
2.2 %
1.8 %
1.1 %
9
NL2FC
Output (+)
Output (–)
Output (+)
Output (–)
NL4FC
2
1
3
213
XLR (male)
Shield (Ground)
Cold (–)
Hot (+)
Shield (Ground)
Cold (–)
Hot (+)
XLR (female)

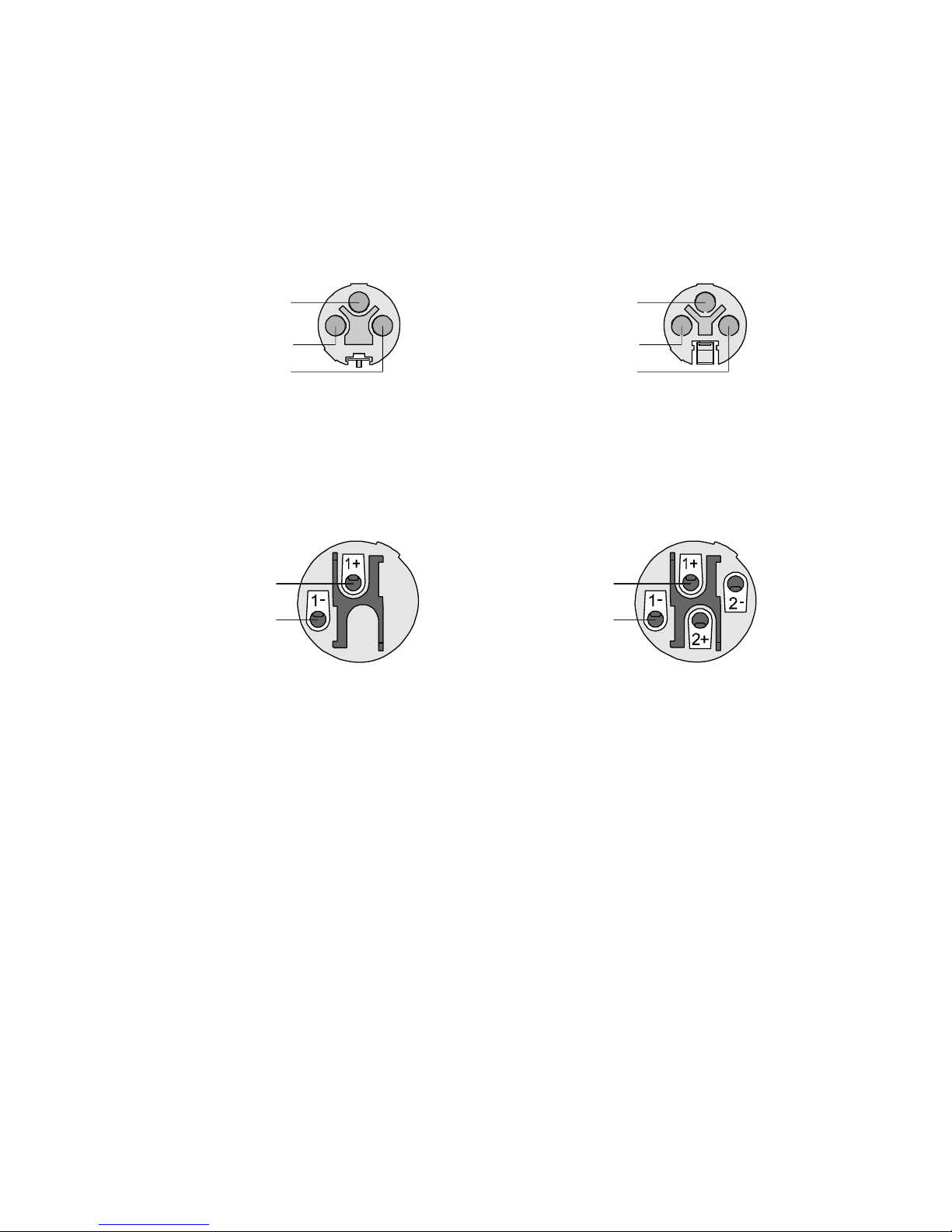

CONNECTORS
Input Connectors
Use XLR (male) connectors to connect to the line inputs and XLR (female) connectors
to the line outputs.
See the connectors wiring below.
Output connectors
Use SpeakON NL2FC or NL4FC connector to connect the loudspeaker-satellite to the
amplifier output.
See the connector wiring below.
10
AC POWER REQUIREMENTS
The amplifier is supplied with a three-conductor grounded AC power cord, and
should be plugged into a standard 3-wire grounded electrical outlet, which supplies 230V AC
50/60 Hz.
The amplifier with PFC operates at the mains voltage range from 160 V to 280 V, giving
the full rated output power.
In case of line voltage sag, the amplifier without PFC will continue to operate normally,
albeit with less power. The amplifier retains its operability at the voltage not less than 160 V.
The amplifier is connected to the mains via cable, supplied with the amplifier. When
connecting to mains, make sure that no other devices with high power consumption are
connected to it, as the normal operation of several such devices may be impossible.
The actual AC current consumption depends on the audio signal level and the load
impedance. For system design purposes it must be noted, that for typical audio program
material the amplifiers, driving all channels at nominal impedance, just peaking at the clipping
level, have the following average power consumption:
– 2.25 A* for amplifier DX1000T DSP;
– 3 A* for amplifier DX1400T DSP;
– 4.5 A* for amplifier DX2100T DSP.
* At the mains voltage 230V AC. For the amplifiers with PFC in the low mains voltage, the current
consumption increases.
In order to reduce the AC hum, please, plug all sound equipment, interconnected with
signal cables, into the same power mains outlet.
INSTALLATION INTO A LOUDSPEAKER
Insert the amplifier into a cutout in the rear panel of a loudspeaker.
For installation of the amplifier we recommend a cutout of the following size:
– for amplifiers DX1000T DSP, DX1400T DSP: width 158mm, height 369mm;
– for amplifier DX2100TDSP: width 158mm, height 435mm.
The amplifier is designed to be operated under permanent vibration conditions and
does not require special tight sealing of the compartment where the unit is to be installed.
However, to improve the sound quality of the speaker system and reliability, the manufacturer
recommends to install the amplifier into a sealed compartment.
Polarity of the subwoofer speaker is on the label on the rear of the amplifier case.
11
SPECIFICATION
Output Power *:
– DX1000T DSP 350 W (subwoofer channel, 8 Ohms)
2 х 350 W (satellite channels, 8 Ohms)
– DX1400T DSP 700/380W (subwoofer channel, 4 / 8 Ohms)
2 х 350 W (satellite channels, 8 Ohms)
– DX2100T-4 DSP 1400 / 800W (subwoofer channel, 4 / 8 Ohms)
2 х 350 / 210 W (satellite channels, 4 / 8 Ohms)
– DX2100T- 8 DSP 1400W (subwoofer channel, 8Ohms)
2 х 350 W (satellite channels, 8 Ohms)
Frequency Response **:
– subwoofer channel 45 – 140 W (Pnom., Rnom.)
– satellite channel 140 Hz – 20 kHz (Pnom., Rnom.)
Total
Harmonic Distortion *** 0.05% (Pnom., Rnom.)
Slew Rate 20V/µs
Damping Factor 200 (200 Hz, 8 Ohms)
Signal-to-Noise Ratio 98dB (unweighted)
Sensitivity **** 775mV
Power Requirements ~230V, 50/60 Hz
Weight:
– DX1000T DSP, DX1400T DSP 4.3 kg
– DX1000T DSP PFC, DX1400T DSP PFC 4.6 kg
– DX2100T DSP 4.7 kg
– DX2100T DSP PFC 5 kg
Dimensions:
– DX1000T DSP, DX1400T DSP 198 mm (W), 438mm (H), 104 mm (D)
– DX2100TDSP 198 mm (W), 474мм (H), 104 мм (D)
Note.
* At mains:
– ~230 V for amplifiers without power factor correction (PFC);
– ~160-280 V for amplifiers with power factor correction (PFC).
* * The subwoofer and sattelites channels range are determined by the DSP settings.
*** In the operating frequency range of the corresponding channels.
**** Basic setting. Can be changed by DSP.
12
DIMENSIONS
149.5
8
27
272.5
395
422
438
91
8
182
198
235392397 max
102223
14
152
14 max
156 max
DX1000T DSP, DX1400T DSP
128
8
27
330
431
458
474
91
8
182
198
273428433 max
102223
16
152
14 max
157 max
229
DIMENSIONS
DX2100T DSP
PARK AUDIO II, Ltd. Ukraine, Vinnytsia
parkaudio.ua
e-mail: park@parkaudio.ua
Loading...
