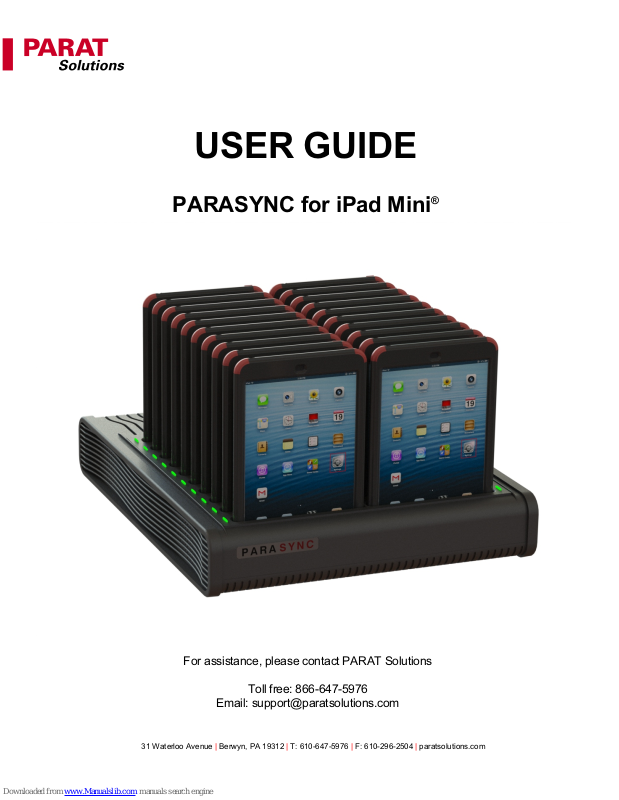

USER GUIDE
PARASYNC for iPad Mini®
20-unit Charging and Synchronization Dock
For assistance, please contact PARAT Solutions
Toll free: 866-647-5976
Email: support@paratsolutions.com
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
PARASYNC for iPad Mini®
20-unit Charging and Synchronization Dock
Product description:
Charge and sync up to 20 Apple iPad Mini devices. Two auxiliary USB ports may be
used to attach USB peripherals.
Power Switch
Do Not Block
Air Vents
Power Connector
USB Port for
Auxiliary USB Ports
Computer Connection
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
CAUTION
1. If using a case, use only the approved PARASYNC iPad Mini case with the
PARASYNC dock. An unapproved case can result in damage to the iPad Mini
and/or dock. An un-cased iPad Mini can be inserted into the dock.
Refer to the table below for approved case part numbers:
Model Approved PARASYNC PROTECTOR case
iPad Mini Parat Solutions MN89, MN89NH
2. A PARASYNC dock loaded with Twenty encased iPad Minis can weigh up to 31
pounds. Ensure that the surface holding the dock(s) can safely support 31 pounds
per dock.
3. Insert and remove each encased iPad Mini in a vertical direction oriented as shown:
4. Do not stack items on top of the dock:
X
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
CASE ASSEMBLY
1. Open the case.
2. Insert the flexible cover into the case bottom.
Place the Ipad Mini into the flexible cover oriented as shown.
Install the case top insuring all snaps are fully engaged.
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
CASE DISASSEMBLY
To remove the Ipad Mini:
Insert a small flat blade screwdriver into each snap location
and turn to release the snap.
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
OPERATION
Recommended device settings:
Model Recommended settings when syncing with PARASYNC
iPad Mini Set “ ” option Open iTunes when this iPad Mini is connected
listed in iTunes on the Summary tab
To charge devices:
1. Connect the AC power cord to the dock and plug into a wall outlet providing 100-240VAC,
50/60Hz, 3.5 Amps.
2. Turn Power switch to the “ON” position.
3. Turn off each iPad Mini and then insert FIRMLY into a slot.
Note: Each socket has a status indicator. Refer to section “Status Indications” below
for more information.
To sync devices:
1. If the dock is already charging devices without a computer connection, skip to step 3.
2. Follow steps 1 through 3 from section “To charge devices”.
3. Connect the included USB cable from an Apple computer USB port to the USB port for
computer connection on the dock.
4. Use Apple iTunes® or Apple Configurator® to sync devices.
Note: The devices may not charge while a computer is connected to the dock. You can
charge the units without a computer by simply unplugging the USB cable to the
computer after syncing completes.
Each socket has a status indicator. Refer to section “Status Indications” below for
more information.
To turn the dock off:
1. If the dock is connected to a computer, verify that syncing operations are complete and
then disconnect the dock from the computer.
2. Turn Power Switch to the “OFF” position.
Status Indications:
Status Display Function
Steady Red Charging
Steady Green Charged/Socket Available
Blinking Violet Computer connection/disconnection detected
Blinking Blue Computer connection active
31 Waterloo Avenue | Berwyn, PA 19312 | T: 610-647-5976 | F: 610-296-2504 | paratsolutions.com
SECURE MOUNTING
The PARASYNC for iPad Mini dock has features that allow for optional secure mounting to a firm
surface.
To securely mount the dock:
1. Verify that the mounting surface can safely support 31 pounds per mounted dock.
2. Drill four holes in the mounting surface that line up with the four #6-32 threaded inserts on the
bottom of the dock (see below for locations and dimensions in inches):
3. To secure the dock to the mounting surface:
A. Remove the four screws from the mounting feet.
B. Insert four #6-32 screws through the holes drilled in the mounting surface from step 2
C. Install screws into the threaded inserts on the bottom of the dock leaving the mounting
feet in place.
NOTE: Maximum screw penetration into the dock measured from the bottom surface is ¼".
Z410097 REV B
