User's Manual
PRO-LCD
Series UPS
Para Systems, Inc.
1455 Lemay Dr.
Carrollton, TX 75007
Phone: 1-972-446-7363
Fax: 1-972-446-9011
Internet: minutemanups.com
UPS Sizing: sizemyups.com
PN - 34000407 R2
1
© Copyright 2011
All rights reserved. All MINUTEMAN trademarks are property of Para Systems, Inc.
Other trademarks are property of their respective owners.
1. Introduction 2
2. Controls and Indicators 6
3. Installation 8
4. Operation 11
5. Troubleshooting 14
6. Replacing the Battery 15
7. Obtaining Service 19
8. Specifications 20
9. Limited Product Warranty 22
A1. Declaration of Conformity 23
English
3
2
WARNING: Risk of Electrical Shock. Hazardous live parts inside
these power supplies are energized from the battery even when the
AC input is disconnected.
CAUTION! T o de-energize the outputs of the UPS:
1. If the UPS is on press and release the On/Off/T est Button.
2. Disconnect the UPS from the AC wall outlet.
3. T o de-energize the UPS completely , disconnect the battery .
CAUTION! To reduce the risk of electrical shock in conditions
where the load equipment grounding cannot be verified, disconnect
the UPS from the AC wall outlet before installing a computer interface
cable. Reconnect the power cord only after all signaling connections
are made.
CAUTION! Connect the UPS to a two pole, three wire grounding
AC wall outlet. The receptacle must be connected to the appropriate
branch protection (circuit breaker or fuse). Connection to any other
type of receptacle may result in a shock hazard and violate local
electrical codes. Do not use extension cords, adapter plugs, or surge
strips.
English
CAUTION! T o reduce the risk of electrical shock with the installa-
tion of this UPS equipment and the connected equipment, the user
must ensure that the combined sum of the AC leakage current does
not exceed 3.5mA.
This symbol indicates "Direct Current Supply"
This symbol indicates "Equipment Grounding Conductor"
WARNING: This Uninterruptible Power Supply contains potentially
hazardous voltages. Do not attempt to disassemble the UPS beyond
the battery replacement procedure. This UPS contains no user serviceable parts. Repairs and Battery replacement must be performed
by QUALIFIED SERVICE PERSONNEL ONL Y .
CAUTION! To reduce the risk of fire, connect only to a circuit
provided with 20 amperes maximum branch circuit over-current protection in accordance with the National Electric Code, ANSI/NFPA
70.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS !
English
Thank you for purchasing this power protection product. It has been designed
and manufactured to provide many years of trouble free service.
Please read this manual before installing your PRO-LCD Tower Series UPS,
models PRO500LCD, PRO700LCD, PRO1 100LCD, PRO1500LCD as it provides important information that should be followed during installation and maintenance of the UPS and batteries allowing you to correctly set up your system
for the maximum safety and performance. Included is information on customer
support and factory service if it is required. If you experience a problem with the
UPS please refer to the Troubleshooting guide in this manual to correct the
problem or collect enough information so that the Technical Support Department can rapidly assist you.
This symbol indicates "ATTENTION"
This symbol indicates "Risk of Electrical Shock"
This symbol indicates "Alternating Current Supply"
This symbol indicates "Alternating Current Supply Phase"
5
4
English
English
Life Support Policy
As a general policy, we do not recommend the use of any of our product s in life
support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect
its safety or effectiveness. We do not recommend the use of any of our products in direct patient care. We will not knowingly sell our products for use in
such applications unless it receives in writing assurances satisfactory to us
that (a) the risks of injury or damage have been minimized, (b) the customer
assumes all such risks, and (c) our liability is adequately protected under the
circumstances.
Examples of devices considered to be life support devices are neonatal oxygen
analyzers, nerve stimulators (whether used for anesthesia, pain relief, or other
purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia
detectors and alarms, pacemakers, hemodialysis systems, peritoneal dialysis
systems, neonatal ventilator incubators, ventilators for both adults and infants,
anesthesia ventilators, and infusion pumps as well as any other devices designated as “critical” by the United States FDA.
Hospital grade wiring devices and leakage current may be ordered as options
on many of our UPS systems. We do not claim that units with this modification
are certified or listed as Hospital Grade by us or any other organization. Therefore, these units do not meet the requirements for use in direct patient care.
After removing your UPS from its carton, it should be inspected for damage that
may have occurred in shipping. Immediately notify the carrier and place of
purchase if any damage is found. Warranty claims for damage caused by the
carrier will not be honored. The packing materials that your UPS was shipped
in are carefully designed to minimize any shipping damage. In the unlikely
case that the UPS needs to be returned to the manufacturer, please use the
original packing material. Since the manufacturer is not responsible for shipping damage incurred when the system is returned, the original packing material is inexpensive insurance. PLEASE SAVE THE P ACKING MA TERIALS!
Receiving Inspection
NOTE: These UPSs are shipped with the batteries disconnected. The batter-
ies must be connected before putting these UPSs into service. Refer to Section 3 "Installation" for connecting the batteries.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules and the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference of the Canadian Department of Communications. These limits are designed to provide reasonable
protection against such interference in a residential installation. This equipment generates and uses radio frequency and if not installed and used properly,
that is, in strict accordance with the manufacturer's instructions, this equipment may cause interference to radio and television reception. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Re-orient the receiving antenna.
Relocate the computer with respect to the receiver.
Move the computer away from the receiver.
Plug the computer into a different outlet so that the computer and receiver
are on different branch circuits.
Shielded communications interface cables must be used with this product.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
CAUTION! This UPS series is only intended to be install in an indoor
temperature controlled environment that is free of conductive contaminants.
CAUTION! The Maximum ambient operating temperature for this
UPS series is 40°C (“0 ~ 40°C” for Ambient Operation).
ON / OFF / TEST BUTTON: T o turn the UPS on: press and hold the
On/Off/T est Button until the alarm sounds one beep and then release.
The UPS will perform a five second self-test. Once the UPS has
passed its self-test the UPS will provide an output and the load will be
powered. T o turn the UPS off: press and hold the On/Off/Test Button
until the alarm sounds one beep and then release. T o perform a tensecond battery test: With the UPS in the AC mode, press and hold
the On/Off/Test Button until the alarm sounds four beeps, and then
release. During the test, the UPS will switch to the Battery mode, the
On-Battery icon will illuminate and the alarm will sound.
NOTICE! The output of this device is not sinusoidal. It has a total
harmonic distortion and maximum single harmonic as below:
PRO500LCD Total harmonic 57.3% Single harmonic 43.0%
PRO700LCD Total harmonic 47.7% Single harmonic 39.5%
PRO1100LCD Total harmonic 52.0% Single harmonic 43.0%
PRO1500LCD Total harmonic 57.1% Single harmonic 43.0%
7
6
English
Output Power Receptacles
NEMA 5-15P W/10 ft cord
Model # Input Power Plug
PRO500LCD
PRO700LCD
PRO1100LCD
PRO1500LCD
6-NEMA 5-15R Battery Backup & Surge
2-NEMA 5-15R Surge Only
REAR PANEL
1. Input power cord: Connecting to the Utility Power.
2. Surge-only output receptacles: Non-critical equipment.
3. The RJ1 1/45: Phone/fax/network protection.
4. USB Communications Port: UPS monitoring and control.
5. Battery Backup & Surge output receptacles: Mission critical equipment.
6. Input circuit breaker: Protection against an excessive overload.
English
1. Scroll Button: To scroll through the UPS parameters.
2. Battery Capacity Bar Graph: Displays the amount of Battery Capacity
available in the AC and Battery mode.
3. Load Capacity Bar Graph: Displays the amount of load connected to the
UPS in the AC and Battery mode.
4. AC normal and Boost/Buck mode Icon: Illuminates when the UPS is in the
AC normal mode and flashs when the UPS is in the Boost or the Buck
mode.
5. On-Battery Icon: Illuminates when the UPS is operating in the Battery mode.
6. Overload Icon: Illuminates when the amount of load attached to the UPS
exceeds its power rating,
7. UPS Parameters and Error codes:
Input - Voltage and Frequency.
Output - Voltage and Frequency.
Estimated Runtime (minutes) - AC normal and Battery mode.
S.L.F - A site wiring fault has been detected.
FAL - An internal fault has been detected.
8. On/Off/T est Button: To turn the UPS On/Off and to perform a ten-second
battery test.
CONTROL PANEL
9
8
English
English

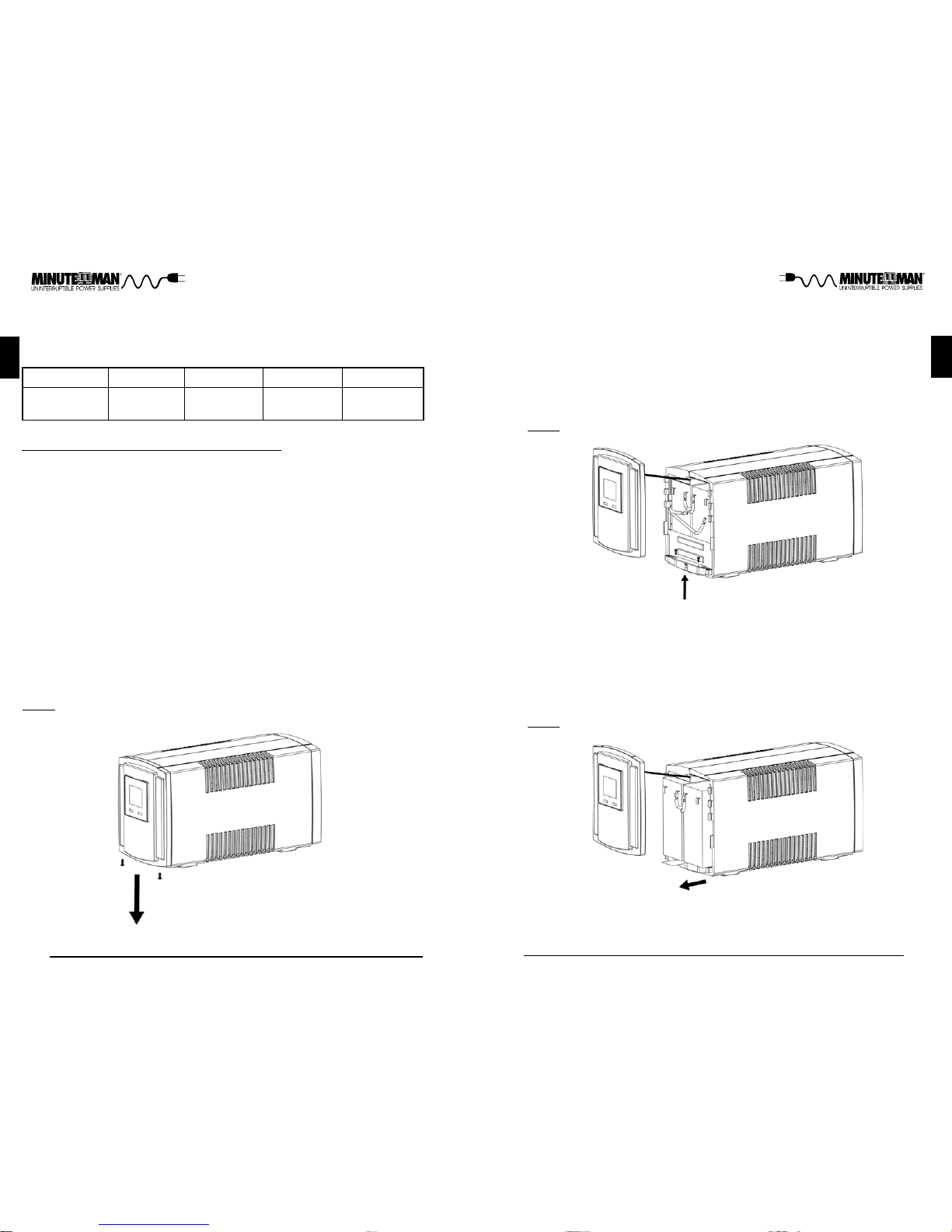

CONNECTING THE BATTERIES
(QUALIFIED SERVICE PERSONNEL ONL Y)
Please read all of the WARNINGS and CAUTIONS before attempting to connect the batteries.
1. Remove the UPS from the shipping box and set on the floor or a bench top.
2. Remove the front panel retaining screws on the bottom side of the front
panel. (FIG. 1)
3. Slide the front panel downward, then outward, and then move it to the side.
4. Verify proper polarity . Connect the battery positive (red) wire to the battery
positive (red) terminal. (FIG . 2)
NOTE: Some sparking might occur, this is normal.
5. Re-install the front panel onto the UPS.
6. Re-install the front panel retaining screws.
7. Continue with the rest of the Installation.
INSTALLATION
Be sure to read the installation placement and all the cautions before installing
the UPS. Place the UPS in the final desired location and complete the rest of
the installation procedure. These UPSs are shipped with the internal batteries
disconnected. The batteries must be connected before putting these UPSs into
service. See Connecting the Batteries to connect the batteries.
INSTALLATION PLACEMENT
This UPS series is only intended to be install in an indoor temperature controlled environment that is free of conductive contaminants. DO NOT operate
the UPS in: extremely dusty and/or unclean areas, locations near heating devices, water or excessive humidity, or where the UPS is exposed to direct
sunlight. Select a location, which will provide good air circulation for the UPS at
all times. Route power cords so they cannot be walked on or damaged. Typical battery life is 3 to 5 years. Environmental factors do affect battery life. High
temperatures, poor utility power, and frequent, short duration discharges have a
negative impact on battery life.
FIG. 1
FIG. 2
CONNECTING YOUR EQUIPMENT
Plug the mission critical equipment into the Battery Backup & Surge output
receptacles on the rear panel of the UPS. Plug the non-critical equipment into
the Surge Only output receptacles on the rear panel of the UPS. Ensure that
the connected equipment does not exceed the maximum output rating of the
UPS (refer to the information label on the UPS or the electrical specifications in
this manual). DO NOT PLUG EXTENSION CORDS, ADAPTER PLUGS, SURGE
STRIPS OR POWER STRIPS INTO THE OUTPUT RECEPT ACLES OF THE
UPS. NOTE: Risk of damaging the UPS and/or connected equipment.
CONNECTING THE UPS TO AN AC SOURCE
CAUTION - T o reduce the risk of fire, connect only to a circuit provided with 20
amperes maximum branch circuit over-current protection in accordance with
the National Electric Code, ANSI/NFP A 70. Plug the UPS into a two pole, three
wire, grounded receptacle only . DO NOT PLUG THE UPS INTO EXTENSION
CORDS, ADAPTER PLUGS, SURGE STRIPS OR POWER STRIPS. DO NOT
CUT THE INPUT PLUG OFF AND A TTEMPT TO HARDWIRE THIS UPS, DOING SO WILL VOID THE WARRANTY.
CAUTION! DO NOT connect a laser printer to the output of the UPS.
11
10
English
PHONE/FAX/NETWORK PROTECTION CONNECTION (OPTIONAL)
Connect a 10/100 Base-T network, single line phone, or fax line to the RJ1 1/45
modular connectors on the rear panel of the UPS. This connection will require
another length of telephone or network cable. The cable coming from the telephone service or networked system is connected to the port marked “IN”. The
equipment to be protected is connected to the port marked "OUT". NOTE:
Connecting to the Phone/Fax/Network modular connectors is optional. The
UPS works properly without this connection.
SYSTEM OVERVIEW
This Line-Interactive UPS protects computers, servers, telecom systems, VoIP
systems, security systems, and a variety of electronic equipment from blackouts, brownouts, overvoltages, and surges.
The AVR function continuously
corrects the voltages, in-between the brownout and overvoltage transfer points
(90 - 150VAC), to a safe usable level. When the UPS is operating in the AVR
mode the audible alarm will remain silent and the AC normal mode indicator will
blink. During normal AC operation, the UPS will quietly and confidently protect
your system from power anomalies.
The UPS will charge the batteries with the UPS in the on or off position when
the UPS is plugged into the wall outlet and there is an acceptable AC volt age
present (90 - 150VAC). When a blackout, brownout, or an overvoltage condition
occurs; the UPS will transfer to the battery mode, the On Battery indicator will
illuminate and the audible alarm will sound once every five seconds indicating
that the commercial power is lost or unacceptable. When the commercial
power returns or is at an acceptable level, the UPS will automatically transfer
back to the AC normal mode and start recharging the batteries. During an
extended outage when there is approximately two minutes of backup time remaining the audible alarm will sound twice every five seconds. This Low Battery Warning is informing the user that they should save all open files and turn
off their computer. When the batteries reach the predetermined level the UPS
will automatically shutdown protecting the batteries from over discharging. Once
the commercial power returns the UPS will automatically restart, providing safe
usable power to the connected equipment and start recharging the batteries.
English
CHARGING THE BATTERY
The UPS will charge the internal batteries whenever the UPS is connected to
an AC source and there is an acceptable AC voltage present (90 - 150V AC). It
is recommended that the UPS's batteries be charged for a minimum of 4 hours
before use. The UPS may be used immediately, however, the “On Battery”
runtime may be less than normally expected. Typical battery life is 3 to 5
years. Environmental factors do affect battery life. High temperatures, poor
utility power, and frequent, short duration discharges have a negative impact on
battery life. NOTE: If the UPS is going to be out of service or stored for a
prolonged period of time, the batteries must be recharged for at least twentyfour hours every ninety days.
USB COMMUNICATIONS PORT CONNECTION (OPTIONAL)
This UPS series supports USB communications. The power monitoring software and interface cable can be used with the UPS. Use only the interface
cable that come with these UPSs. The USB communications protocol is HID.
The HID USB driver comes standard in the Windows OS. Simply connect the
USB cable to the USB communications port on the rear panel of the UPS.
Connect the other end of the USB cable to the device that will be monitoring/
controlling the UPS and then follow the prompts on the screen. NOTE: Connecting to the Communications Port is optional. The UPS works properly without this connection.
CHECKING THE SITE WIRING FAULT
After plugging the UPS into the wall outlet, check the LCD screen on the front
panel of the UPS for a Site Wiring Fault (S.L.F). If the S.L.F is illuminated, the
UPS is plugged into an improperly wired wall outlet. If the UPS indicates a Site
Wiring Fault (S.L.F), have a Qualified Electrician correct the problem.
CAUTION! The TNV connector shall use the same type of RJ45.
POWER MONITORING SOFTWARE
The UPS comes with power monitoring software. See the software CD for the
installation of the power monitoring software.
TURNING THE UPS ON / OFF
To turn the UPS on: press and hold the On/Off/Test Button until the alarm
sounds one beep and then release. The UPS will perform a five second internal
self-test. Once the UPS has passed its internal self-test the UPS will provide
an output and the load will be powered. T o turn the UPS off: press and hold the
On/Off/T est Button until the alarm sounds one beep and then release.
TEST BUTTON
To perform a ten-second user invoked battery test: W ith the UPS in the AC
normal mode, press and hold the On/Off/T est Button until the alarm sounds four
beeps, and then release. During the test, the UPS will switch to the Battery
mode, the On-Battery icon will illuminate and the alarm will sound.
13
12
English
WEAK/BAD BATTER Y
The UPS automatically tests the battery’s condition. If the battery is weak, bad
or disconnected, the Battery Capacity Bar Graph will flash and the alarm will
sound three beeps every five minutes until the battery is either reconnected or
replaced. This alarm will be repeated until the batteries pass a self-test. It is
recommended that the UPS be allowed to charge overnight before performing a
battery test to confirm a Weak/Bad Battery condition.
OVERLOAD
When the amount of load attached to the UPS exceeds its power rating, the
Overload icon will illuminate and the alarm will sound continuously (AC and
Battery modes). This alarm will remain on until the excess load is removed or
the UPS’s self protection circuit shuts the UPS down.
T o clear the overload alarm when the UPS has shutdown requires that the UPS
perform a battery test. First remove part of the load, then turn the UPS on, the
Overload icon and the alarm will be on. Second either use the Test Button or
unplug the input power cord to perfom the battery test.
ALARMS
ON BATTER Y
When the UPS is operating on the batteries, the AC normal icon will extinguish,
the On-Battery icon will illuminate and the alarm will sound one beep every five
seconds. Once the UPS returns to the normal AC mode, the alarm will stop,
the On-Battery icon will extinguish and the AC normal icon will illuminate.
LOW BATTERY WARNING
When the batteries reach the predetermined level, the alarm will sound two
beeps every five seconds and the Battery Bar Graph will display the remaining
battery capacity. This condition will continue until either AC returns or the
UPS’s self protection circuit shuts the UPS down to protect the battery from
over discharging.
UPS FAULT
When the UPS detects an internal fault, "FAL" will be displayed on the LCD
screen, the alarm will sound continuously and the output will be turned off. The
fault condition, in some instances, may be reset by turning the UPS off and
then on. If the fault condition does not clear the UPS must be sent in for
service.
English
SELF-TEST
The self-test feature is useful to verify the correct operation of the UPS and the
condition of the batteries. The length of the test that is automatically performed
every two weeks is longer than the start-up or user invoked test. This every two
week test will run for approximately fifteen-seconds to measure the battery’s
capability to support the output load. The start-up and user invoked test will run
for approximately ten-seconds. If the UPS fails one of these tests, one of the
icons or the information displayed on the LCD will remain illuminated indicating
the type of problem. NOTE: The UPS will automatically perform a self-test on
start-up and every two weeks.
SCROLL BUTTON
Press the Scroll Button to scroll through the UPS parameters. The UPS parameters are displayed on the LCD screen.
LCD SCREEN
The LCD provides the user with a variety of useful information. The LCD has a
real-time meter to display, in numeric fashion, the following data:
Input Voltage and Frequency
Output Voltage and Frequency
Connected Load Capacity
Battery Capacity
Estimated runtime in the AC and DC mode
The LCD will include dedicated icons for the following information:
AC Normal
On Battery
AVR Mode (Boost and Buck) – The AC Normal icon will flash
Overload
Weak/Bad Battery (Battery Capacity Bar Graph will flash)
Site Wiring Fault (S.L.F. will be displayed)
UPS Fault (FAL will be displayed)
The LCD does have a backlight that will turn on when the UPS is turned on.
After approximately 20-seconds the backlight will turn off to conserve energy .
When an event (alarm) occurs, such as going to the battery mode, the backlight will turn on for approximately 20-seconds to alert the user that an event
has occurred and then the backlight will turn off. While the Scroll button is in
use the backlight will remain on. Approximately 20-seconds after the Scroll
button has stopped being used the backlight will turn off to conserve energy.
BATTER Y OVER CHARGE PROTECTION
If the charger is providing too much voltage to the battery the UPS will turn off
the charger to protect the battery. When the charger volt age exceeds 14.52V/
battery the charger will turn off. The alarm will sound three beeps every five
seconds and the Battery Capacity Bar Graph will flash. In some instances, the
charger may be reset by turning the UPS off and then on. When the charger
voltage exceeds 15.0V/battery the charger will turn off. The alarm will sound
three beeps every five seconds and the Battery Capacity Bar Graph will flash.
The UPS will automatically transfer to the battery mode and operate until the
UPS shuts down due to battery exhaustion. The UPS must be sent in for
service.
15
14
English
REPLACING THE BATTERY
WARNING!
This UPS contains potentially hazardous voltages. Do not attempt to disassemble the UPS beyond the battery replacement
procedure. This UPS contains no user serviceable parts. Repairs and battery replacement must be performed by QUALIFIED
SERVICE PERSONNEL ONL Y .
Do not open or mutilate batteries. Released electrolyte is harmful
to the skin and eyes and may be toxic.
CAUTION:
(QUALIFIED SER VICE PERSONNEL ONL Y)
CAUTION:
Do not dispose of batteries in a fire. The batteries may explode.
The batteries in this UPS are recyclable. Dispose of the batteries properly. The batteries contain lead and pose a hazard to the
environment and human health if not disposed of properly. Refer
to local codes for proper disposal requirements or return the
battery to the supplier.
The battery system can present a risk of electrical shock. These
batteries produce sufficient current to burn wire or tools very rapidly, producing molten metal. Observe these precautions when
replacing the batteries:
1. Remove watches, rings, or other metal objects.
2. Use hand tools with insulated handles.
3. Wear protective eye gear (goggles), rubber gloves and boots.
4. Do not lay tools or other metal parts on top of batteries.
5. Disconnect the charging source prior to connecting or disco nnecting the battery terminals.
6. Determine if the battery is inadvertently grounded. If the bat tery is, remove the source of the grounding. Contact with any
part of a grounded battery can result in an electrical shock.
The likelihood of such shock will be reduced, if such grounds
are removed during installation and maintenance.
CAUTION:
Please read all of the WARNINGS and CAUTIONS before attempting to service
the batteries. Typical battery life is 3 to 5 years. Environmental factors do
affect battery life. High temperatures, poor utility power, and frequent, short
duration discharges have a negative impact on battery life.
English
Possible Cause
Symptom
What T o Do
Press, hold and then release
the On/Off button to start UPS
On/Off/Test button not
pressed
UPS will not turn on
Reset circuit breaker by
pressing the plunger back in.
If the AC circuit breaker trips
after UPS starts up, reduce
the load on the UPS
UPS operates in
battery mode only,
even though there
is normal AC
present
Input AC circuit breaker is
tripped
UPS has detected an internal fault
Call for service
"FAL" is displayed
on the LCD
The AC mode icon
is illuminated, but
there is no output
Disconnect the computer
cable from the UPS and press
the On button. If UPS works
normally, the software has
control of the UPS
The UPS is being controlled via its communications port
The batteries may be
weak or at the end of their
useful service life
Charge the batteries for 8hours and retest. If the runtime
is still less than expected, the
batteries may need to be
replaced, even though the
Weak/Bad Battery LED is not
illuminated
UPS does not
provide expected
runtime
The Battery Capacity Bar Graph is
flashing
The Overload icon
is illuminated
Loose connections at the
batteries, Weak batteries,
Bad batteries
The output load has exceeded the UPS's capacity
Check battery connections,
charge the batteries for 8hours, replace the batteries
Check the specifications (see
section 8). Remove part of
the load
The AC mode icon
is flashing and the
alarm is silent
The UPS is operating in
the Boost or the Buck
mode
The UPS has detected an
improperly wired wall outlet
The UPS is performing its intended function
Contact a Qualified Electrician
to correct the problem
"S.L.F" is displayed on the LCD
17
16
English
FIG. 2
FIG. 3
7. Slide the front panel downward, then outward, and then move to the side or
lay it on the top of the unit. (FIG. 2)
8. Disconnect the Battery positive (red) wire.
9. Disconnect the Battery negative (black) wire.
Caution: Do not short the Battery positive wire to the Battery negative wire.
10. Remove the two screws for the battery retaining bracket.
11. Slide the battery ret aining bracket upwards and then remove from the unit.
English
BATTERY REPLACEMENT PROCEDURE
PLEASE READ THE CAUTIONS AND W ARNINGS BEFORE A TTEMPTING
TO REPLACE THE BA TTERIES
Hot-swappable batteries mean that the batteries can be replaced without powering down the whole UPS system.
NOTE: If there is a power interruption while replacing the hot-swappable batteries, with the UPS on, the load will not be backed up. T o hot-swap the batteries
start with step number 6.
1. Turn off the equipment that is plugged into the output of the UPS.
2. Turn off the UPS.
3. Unplug the UPS's AC power cord from the AC wall outlet.
4. Unplug the equipment from the output receptacles of the UPS.
5. Unplug the computer interface cable from the rear panel of the UPS.
6. Remove the front panel retaining screws on the bottom side of the front
panel. (FIG. 1)
Replace batteries with the same number and type as originally
installed in the UPS. These batteries have pressure operated vents.
These UPSs contain sealed non-spillable maintenance-free lead
acid batteries.
CAUTION:
FIG. 1
12. Grasp the battery pull tab and gently pull the battery module out of the UPS
and set aside. (FIG. 3)
Caution: DO NOT pull the battery module out by pulling on the battery wires.
Battery Module
Part #
PRO1500LCD
BM0051
Model #
PRO500LCD
BM0048
PRO700LCD
BM0049
PRO1100LCD
BM0050
19
18
English
IF THE UPS REQUIRES SERVICE
1. Use the TROUBLESHOOTING section to eliminate obvious causes.
2. Verify there are no circuit breakers tripped. A tripped circuit breaker is the
most common problem.
3. Call your dealer for assistance. If you cannot reach your dealer, or if they
cannot resolve the problem call or fax the T echnical Support department at
the following numbers; Voice phone (972) 446-7363, F AX line (972) 446-901 1
or contact Minuteman UPS at mmsupport@minutemanups.com.
Please have the following information available BEFORE calling the T echni cal Support Department.
A. Your name and address.
B. Where and when the unit was purchased.
C. All of the model information about your UPS.
D. Any information on the failure, including LEDs that may be illuminated.
E. A description of the protected equipment, including model numbers if
possible.
F . A technician will ask you for the above information and, if possible, help
solve your problem over the phone. In the event that the unit requires
factory service, the technician will issue you a Return Material Authoriza tion Number (RMA #).
G . If the UPS is under warranty , the repairs will be done at no charge. If not,
there will be a charge for repair.
4. Pack the UPS in its original packaging. If the original packaging is no longer
available, ask the T echnical Support Technician about obtaining a new set.
It is important to pack the UPS properly in order to avoid damage in transit.
Never use Styrofoam beads for a packing material.
A. Include a letter with your name, address, day time phone number , RMA
number, a copy of your original sales receipt, and a brief description of the
problem.
5. Mark the RMA # on the outside of all packages. The factory cannot accept
any package without the RMA # marked on the outside.
6. Return the UPS by insured, prepaid carrier to:
Para Systems Inc.
MINUTEMAN UPS
1455 LeMay Drive
Carrollton, TX 75007
ATTN: RMA # _______
English
13. Slide the new battery module into the UPS.
14. Re-install the battery retaining bracket.
15. Re-install the two screws for the battery retaining bracket.
16. Verify proper polarity . Reconnect the battery negative (black) wire to the
battery negative (black) terminal.
17. Verify proper polarity . Reconnect the battery positive (red) wire to the
battery positive (red) terminal.
NOTE: Some sparking might occur, this is normal.
18. Re-install the front panel on the UPS.
19. Re-install the front panel retaining screws.
20. Properly dispose of the old batteries at an appropriate recycling facility or
return them to the supplier in the packing material for the new batteries.
21. The UPS is now ready for the normal operation.
NOTE: If the UPS has a Weak/Bad Battery Alarm after replacing the battery
module, a user invoked battery test must be performed to clear the Weak/Bad
Battery Alarm. To initiate a user invoked battery test see section 4 "TEST
BUTTON".
21
20
English
BATTER Y SYSTEM
Typical Recharge Time
Typical Battery Life
3 to 5 years. Environmental factors do affect battery life.
High temperatures, poor utility power, and frequent, short
duration discharges have a negative impact on battery life.
From Full load dishcarge: 4-hours to 80%, 8-hours to 90%
Battery Type
Sealed, Non-Spillable, Maintenance Free, V alue Regulated Lead Acid
Runtime: Half Load (minutes)
Runtime: Full Load (minutes)
SURGE PROTECTION AND FIL TERING
Audible Noise at 1 m (3 ft.)
10/100 Base-T surge protection let-through
(as a percentage of an applied +/-6 kV 1.2/50
us, 500 a 8/20 uS test)
Telephone line surge protection let-through
(as a percentage of an applied +/-6 kV 1.2/50
us, 500a 8/20 uS test)
Noise Filter
Surge voltage let-through (as a percentage
of an applied ANSI C62.41 Cat. A +/-6 kV)
Surge Response Time
Surge Current Capability
Surge Energy Rating 760 J
0 ns (instantaneous) normal mode; <5 ns common mode
< 11%
>45db normal and common mode EMI/RFI suppression
<45 dBA
< 1%
< 5%
10000 Amps total (one time 8 to 20us waveform)
PHYSICAL
Weight - Net
Size - Net
L X W X H
Size - Shipping
L X W X H
Weight - Shipping
11.81 x 6.69 x 7.87"
300 x 170 x 200 mm
15.16 x 9.84 x 11.22"
385 x 250 x 285 mm
34.2 lbs
15.5 Kgs
36.4 lbs
16.5 Kgs
ENVIRONMENTAL
Operating/Storage Humidity
95% Non-Condensing
Storage Elevation
0 to 15,000m (0 to +50,000 ft)
Storage Temperature
-15 to +45°C (+5 to +113°F)
Operating Temperature 0 to 40 degrees C (+32 to +104 degrees F) at
Operating Elevation 0 to 1,500m (0 to +5,000 ft)
Operating Temperature 0 to 35 degrees C (+32 to +95 degrees F) at
Operating Elevation 1501 to 3,000m (0 to +10,000 ft)
17.6 lbs
8.0 Kgs
19.8 lbs
9.0 Kgs
5
17
7
21
English
120VAC
1100VA
770W
Protection
Waveform Type
Over-Current, Short-Circuit Protected and Latching Shutdown
Simulated Sine Wave (Step Wave)
Frequency
50/60Hz, +/-0.5Hz (unless synchronized to utility)
Nominal Voltage
Maximum Power Capacity
6 ms Typical
>90% (Full Load)
Resettable Circuit Breaker
50 or 60 Hz, +/-5Hz, autosensing
0 - 160VAC
90 - 150VAC
104 - 132VAC
Transfer Time
Efficiency (Line Mode)
Input Protection
Frequency Limits
Voltage Range
Acceptable Input voltage
PRO1100LCD
Model Number
SYSTEM SPECIFICATIONS
Voltage Range
Topology
Line-Interactive, Simulated Sine Wave
OUTPUT NON-BATTER Y OPERA TION
INPUT
Number of Phase Single (1∅ 2W +G)
Nominal Voltage 120VAC
Low Voltage Transfer Point
90V resets to Utility Power at 94V or higher
High Voltage Transfer Point
150V resets to Utility Power at 146V or lower
Voltage Regulation 120VAC: -13.3% - +10.0%
Frequency Range 60Hz: 55 - 65Hz or 50Hz: 45 - 55Hz
OUTPUT BATTER Y OPERA TION
Voltage Regulation Nominal +/-5% (until Low Battery Warning)
Overload Capacity
AC Mode: 110% for 5-seconds then fault, 120% Shutdown Immediately
PRO1500LCD
1500VA
1050W
REGULAT ORY COMPLIANCE
Safety and Approvals
EMC Verification
cTUVus (conforms to UL1778, CSA 22.2 standards)
FCC Class B, CE certified
23.8 lbs
10.8 Kgs
39.2 lbs
17.8 Kgs
41.4 lbs
18.8 Kgs
26.0 lbs
11.8 Kgs
7
21
5
17
14.56 x 6.69 x 7.87"
370 x 170 x 200 mm
18.11 x 10.24 x 11.22"
460 x 260 x 285 mm
PRO500LCD PRO700LCD
500VA
350W
700VA
490W
DC Mode: 110% for 10-seconds then shutdown, 120% Shutdown Immediately
Battery Module Part #
BM0051BM0048
BM0049 BM0050
23
22
English
A1. DECLARATION OF CONFORMITY
Application of Council Directive(s): 2004/108/EC, 2006/95/EC, cTUVus (for
UL1778)
Standard(s) to which Conformity is declared: EN55022, EN55024, EN610003-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,
EN61000-4-6, EN61000-4-8, EN61000-4-11, UL1778, FCC Class B
Manufacturer’s Name: Para Systems, Inc. (MINUTEMAN UPS)
Manufacturer’s Address: 1455 LeMay Drive
Carrollton, Texas 75007 USA
Type of Equipment: Uninterruptible Power Supplies (UPS)
Model No: PRO500LCD, PRO700LCD, PRO1100LCD, PRO1500LCD
I hereby declare that the equipment specified above conforms to the above
Directive(s).
Place: Carrollton, Texas, USA
Date: March 1, 2011
Robert Calhoun
(Name)
Manager Engineering
(Position)
Y ear of Manufacture: Beginning March 1, 201 1
English
Para Systems, Inc. (Para Systems) warrants this equipment, when properly applied and operated within specified conditions, against faulty materials or workmanship for a period of three
years from the date of purchase. For equipment sites within the United States and Canada, this
warranty covers repair or replacement of defective equipment at the discretion of Para Systems. Repair will be from the nearest authorized service center. The customer pays for
shipping the unit to Para Systems. Para Systems pays ground freight to ship the unit back to the
customer. Replacement parts and warranty labor will be borne by Para Systems. For equipment located outside of the United States and Canada, Para Systems only covers faulty parts.
Para Systems products repaired or replaced pursuant to this warranty shall be warranted for
the unexpired portion of the warranty applying to the original product. This warranty applies
only to the original purchaser who must have properly registered the product within 10 days of
purchase.
The warranty shall be void if (a) the equipment is damaged by the customer, is improperly used,
is subjected to an adverse operating environment, or is operated outside the limits of its
electrical specifications; (b) the equipment is repaired or modified by anyone other than Para
Systems or Para Systems approved personnel; or (c) has been used in a manner contrary to
the product’s User's Manual or other written instructions.
Any technical advice furnished before or after delivery in regard to use or application of Para
Systems’s equipment is furnished without charge and on the basis that it represents Para
Systems’s best judgment under the circumstances, but it is used at the recipient’s sole risk.
EXCEPT AS PROVIDED HEREIN, PARA SYSTEMS MAKES NO WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A P ARTICULAR
PURPOSE. Some states do not permit limitation of implied warranties; therefore, the aforesaid
limitation(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL P ARA SYSTEMS BE LIABLE FOR DIRECT ,
INDIRECT , SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE
OF THIS PRODUCT , EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. S pecifically ,
Para Systems is not liable for any costs, such as lost profits or revenue, loss of equipment, loss
of use of equipment, loss of software, loss of data, cost of substitutes, claims by third parties,
or otherwise. The sole and exclusive remedy for breach of any warranty, expressed or
implied, concerning Para Systems’s products and the only obligation of Para Systems hereunder, shall be the repair or replacement of defective equipment, components, or parts; or , at Para
Systems’s option, refund of the purchase price or substitution with an equivalent replacement
product. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
No employee, salesman, or agent of Para Systems is authorized to add to or vary the terms of
this warranty.
25
24
Notes: Notes:
English
English
Loading...
