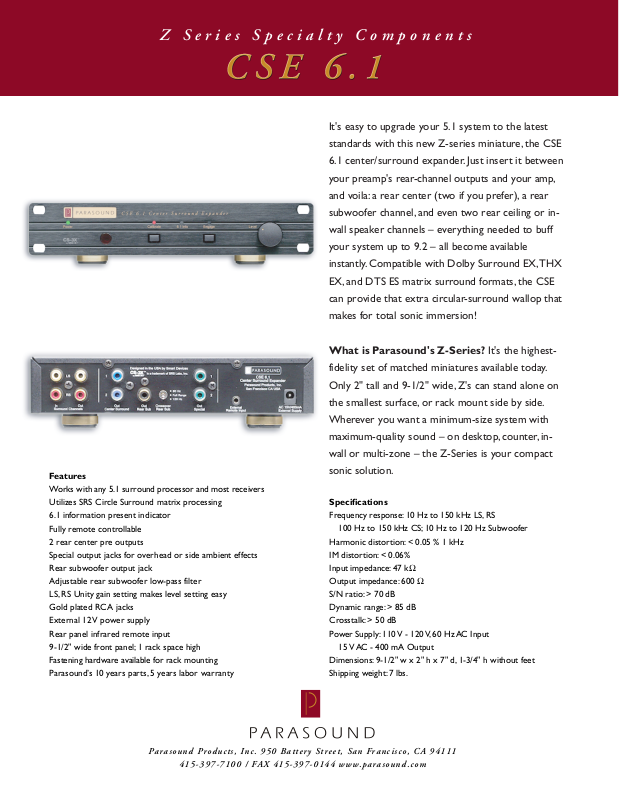

Parasound CSE-61 Brochure

Z Series Specialty Components

It's easy to upgrade your 5.1 system to the latest

standards with this new Z-series miniature, the CSE

6.1 center/surround expander. Just insert it between

your preamp's rear-channel outputs and your amp,

and voila: a rear center (two if you prefer), a rear

subwoofer channel, and even two rear ceiling or in-

wall speaker channels – everything needed to buff

your system up to 9.2 – all become available

instantly. Compatible with Dolby Surround EX, THX

EX, and DTS ES matrix surround formats, the CSE

can provide that extra circular-surround wallop that

makes for total sonic immersion!

Features

Works with any 5.1 surround processor and most receivers

Utilizes SRS Circle Surround matrix processing

6.1 information present indicator

Fully remote controllable

2 rear center pre outputs

Special output jacks for overhead or side ambient effects

Rear subwoofer output jack

Adjustable rear subwoofer low-pass filter

LS, RS Unity gain setting makes level setting easy

Gold plated RCA jacks

External 12 V power supply

Rear panel infrared remote input

9-1/2" wide front panel; 1 rack space high

Fastening hardware available for rack mounting

Parasound’s 10 years parts, 5 years labor warranty

What is Parasound's Z-Series? It's the highest-

fidelity set of matched miniatures available today.

Only 2" tall and 9-1/2" wide, Z's can stand alone on

the smallest surface, or rack mount side by side.

Wherever you want a minimum-size system with

maximum-quality sound – on desktop, counter, in-

wall or multi-zone – the Z-Series is your compact

sonic solution.

Specifications

Frequency response: 10 Hz to 150 kHz LS, RS

 100 Hz to 150 kHz CS; 10 Hz to 120 Hz Subwoofer

Harmonic distortion: < 0.05 % 1 kHz

IM distortion: < 0.06%

Input impedance: 47 kΩ

Output impedance: 600 Ω

S/N ratio: > 70 dB

Dynamic range: > 85 dB

Crosstalk: > 50 dB

Power Supply: 110 V - 120 V, 60 Hz AC Input

 15 V AC - 400 mA Output

Dimensions: 9-1/2" w x 2" h x 7" d, 1-3/4" h without feet

Shipping weight: 7 lbs.

Parasound Products, Inc. 950 Battery Street, San Francisco, CA 94111

415-397-7100 / FAX [phone] www.parasound.com
