TX
ON/OFF
ON/OFF
T
S
R
Antenna Connectors
A
B
C
D
E
F
H
I
J
K
G
A: On-Off Switch
B: Power LED
C: Video Status LED
D: Link Status LED
E: Diagnostic LED
F: USB
G: Link / Reset Button
H: 2-pin Power Input
2-pin Power Input HDMI Input
NEED MORE HELP?
SUPPORT FORUM: http://support.paralinx.net Contains tips, information and all the latest firmware & software updates.
SUPPORT STAFF: support@paralinx.net or call +01 818-934-1535 (Mon-Fri 9am to 5pm PST - GMT -8)
CONNECT AND POWER YOUR DEVICE
1
2
STATUS SCREENS
MENU OPERATION
ON-SCREEN DISPLAY OPERATION

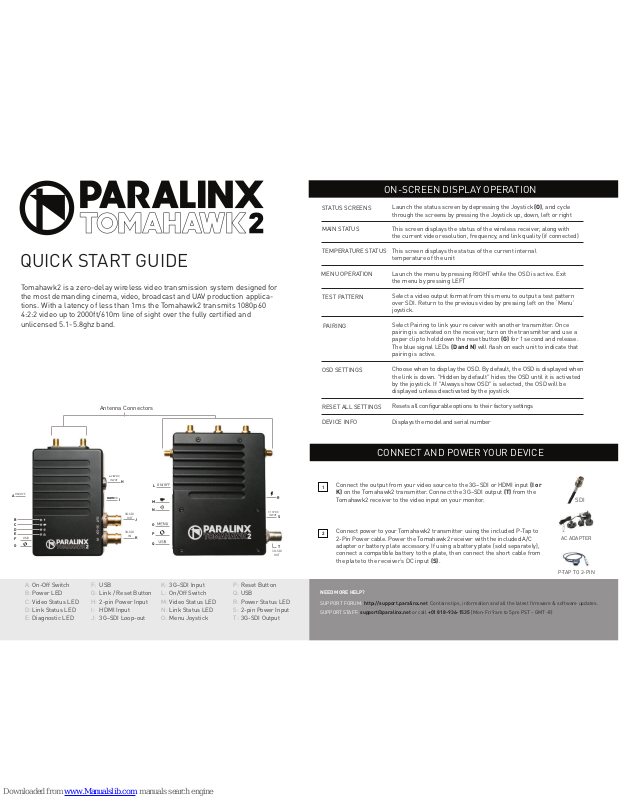

QUICK START GUIDE
Tomahawk2 is a zero-delay wireless video transmission system designed for
the most demanding cinema, video, broadcast and UAV production applications. With a latency of less than 1ms the Tomahawk2 transmits 1080p60
4:2:2 video up to 2000ft/610m line of sight over the fully certified and
unlicensed 5.1-5.8ghz band.
MAIN STATUS
Resets all configurable options to their factory settings
This screen displays the status of the wireless receiver, along with
the current video resolution, frequency, and link quality (if connected)
Select Pairing to link your receiver with another transmitter. Once
pairing is activated on the receiver, turn on the transmitter and use a
paper clip to hold down the reset button (G) for 1 second and release.
The blue signal LEDs (D and N) will flash on each unit to indicate that
pairing is active.
Select a video output format from this menu to output a test pattern
over SDI. Return to the previous video by pressing left on the ‘Menu’
joystick.
Choose when to display the OSD. By default, the OSD is displayed when
the link is down. "Hidden by default" hides the OSD until it is activated
by the joystick. If "Always show OSD" is selected, the OSD will be
displayed unless deactivated by the joystick
This screen displays the status of the current internal
temperature of the unit
TEMPERATURE STATUS
Launch the menu by pressing RIGHT while the OSD is active. Exit
the menu by pressing LEFT
Launch the status screen by depressing the Joystick (O), and cycle
through the screens by pressing the Joystick up, down, left or right
TEST PATTERN
PAIRING
OSD SETTINGS
RESET ALL SETTINGS
Displays the model and serial number
DEVICE INFO
Connect the output from your video source to the 3G−SDI or HDMI input (I or
K) on the Tomahawk2 transmitter. Connect the 3G−SDI output (T) from the
Tomahawk2 receiver to the video input on your monitor.
Connect power to your Tomahawk2 transmitter using the included P-Tap to
2-Pin Power cable. Power the Tomahawk2 receiver with the included A/C
adapter or battery plate accessory. If using a battery plate (sold separately),
connect a compatible battery to the plate, then connect the short cable from
the plate to the receiver’s DC input (S).
AC ADAPTER
SDI
L
M
N
O
P
Q
P-TAP TO 2-PIN
M:
Link Status LED
Q:
Power Status LED
3G-SDI Output
N:
Menu Joystick
R:
O:
Reset Button
S:
P:
USB
J: 3G−SDI Loop-out
K: 3G−SDI Input
L:
Video Status LED
T:
On/Off Switch
I:
3G-SDI
OUT
3G-SDI
OUT
6-28V DC
INPUT
7-17V DC
INPUT
3G-SDI
IN
PARALINX MANAGER SOFTWARE
MOUNTING
– Keep the transmitter and receiver a few feet apart for 60 seconds after powering on
the devices, allowing them to scan for and select the best wireless channel .
– For best results when using multiple Tomahawk2 in the same area, place the
transmitters and receivers a few feet apart from each other.
– Operation of other wireless equipment may interfere with the Tomahawk2. For best
results, separate other wireless transmitters and receivers as much as possible.
– Mount the Tomahawk2 transmitter vertically, keeping the antennas clear of any
obstructions.
– Orient the transmitter and receiver so they are parallel to each other.
– For best results, orient the receiver so the front or back has clear line-of-sight to
the transmitter.
CAUTION!
Using a reverse polarity or improperly-constructed power cable can
damage the product and is not covered under warranty!
Paralinx Manager allows you to configure and upgrade your Paralinx Tomahawk2. It is
available at
www.paralinx.net/downloads. The following configurations are available:
– REGION SELECTION: Configure Paralinx Tomahawk2 to comply with your region’s regula-
tions governing use of the 5GHz spectrum.
CUSTOM / 3RD PARTY CABLES
2. Test the power cable polarity with ONLY the power cable connected to Tomahawk2.
3. Do not connect video cables, until you are certain your unit is properly-powered
DEVICE OPERATION
BEST PRACTICES PARALINX MANAGER SOFTWARE
REGION SELECTION
FIRMWARE UPGRADE
QUICK START GUIDE
Select SETTINGS tab to
enter Region Selection
1. Check the power cable for shorts and proper grounding.
Click on UPGRADE tab to enter
Firmware Upgrade Section
Click on UPGRADE tab to enter
Firmware Upgrade Section
Click on NEXT tab to enter
Firmware Upgrade Section
Select your region
– CHANNEL SELECTION: Select specific 5GHz channels if experiencing performance issues
in highly-saturated RF environment.
